Rolls RM169 6-Channel Mixer w/ Bluetooth

Model: RM169

Rolls RM169 6-Channel Mixer w/ Bluetooth
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed




About: Rolls RM169 6-Channel Mixer w/ Bluetooth

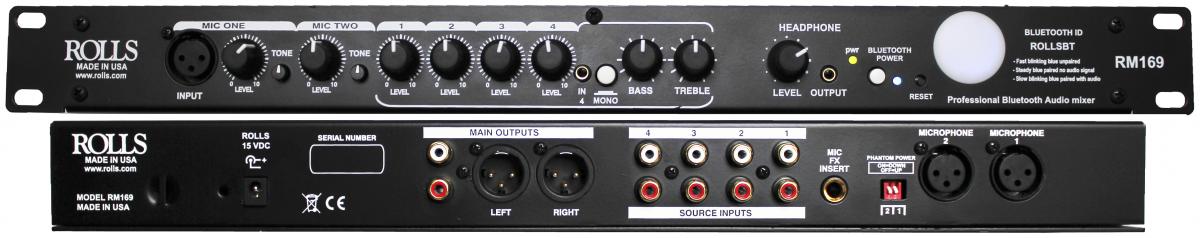

The RM169 is a six channel Professional audio mixer with Bluetooth input. Two microphone inputs, and four stereo line RCA inputs, the RM169 is ideal for any installation where space is a consideration, without compromising audio quality. The Bluetooth input has extended range and exceptional audio quality. RCA and XLR balanced outputs jacks make the RM169 perfect for any application.

  • Two XLR Microphone Inputs (including a paralleled front panel input).
  • Individually switchable phantom power.
  • Four Stereo Source Inputs, Four RCA and one front panel stereo 3.5mm.
  • 1/4" TRS Mic Insert jack.
  • Stereo RCA and XLR Outputs.
  • Headphone output on front panel with volume control.
  • level control for Bluetooth input signal.
  • Input Impedance: Mic: 600 Ohms XLR balanced Source: 22K Ohms RCA Mic Insert: 22K Ohms 1/4" TRS insert
  • Weight: 5 lbs. (2.3 kg)
  • Size: 19" x 1.75" x 4" (48.3 x 4.5 x 10 cm)
  • Max Gain: Mic: 60 dB Source: 26 dB Tone Controls: /-12 dB 100 Hz Bass, /-12 dB 11kHz Treble Noise Floor: - 80 dB, THD: <.025%
  • Output Impedance: 51 Ohms
  • Output Level: 17 dBV max
  • Phantom Power: 15 VDC
  • In/Out Connectors: 5: XLR, 5: Stereo RCA, 1: 1/4" TRS, 2: 3.5mm
  • Headphone Output Impedance: > 8 Ohms
  • Max Input Level: Mic: -14 dBV Mic level Source: 24 dBV
  • Current drain 100ma 15vdc

UPC: 675889001693

Reviews: Rolls RM169 6-Channel Mixer w/ Bluetooth

There are currently no product reviews.


Warranty: Rolls RM169 6-Channel Mixer w/ Bluetooth

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Rolls Accessories
Limited 1-year warranty parts and labor.

Rolls Rack Units: (Mixers, Amplifiers, Processors)
Limited 1-year warranty parts and labor.

Rolls Signal Sources
90 Days warranty parts and labor.

RFX Units
Limited 3-year warranty parts and labor.

Bellari
Limited 1-year warranty parts and labor.
