Rolls RS81B Quartz PLL Synthesized AM/FM Tuner
Model: RS81B
About: Rolls RS81B Quartz PLL Synthesized AM/FM Tuner

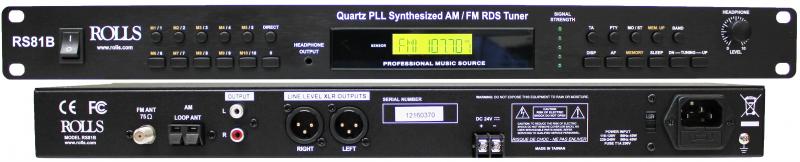

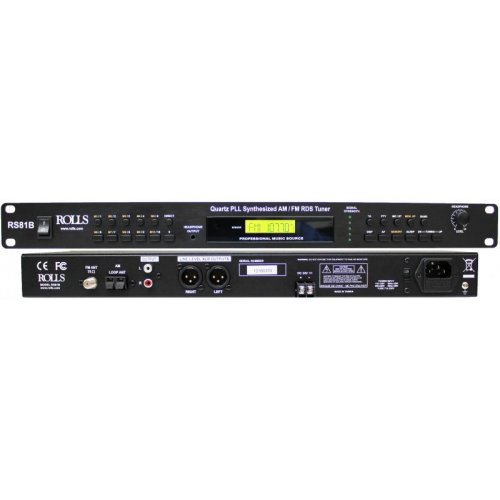

The Rolls RS81B is a single rack space Phase Lock Loop digital AM/FM Tuner designed and built for professional applications such as remote radio station trucks and repeaters, church and school installations, as well as night clubs and restaurants.
Features:
- Up to 30 FM and AM stations may be stored.
- RDS ( Radio Data System) Display.
- Retains presets when power is off.
- Large LCD digital display.
- Auto Search function.
- Standard 1 space EIA rack chassis.
- 3.5mm Headphone output, XLR outputs.
- Signal strenth LED meter indicator.
- Remote included.
Specifications
- Tuning Range: 87.5-108MHz
- 3 dB Limiting: 12dB
- Image Rejection: 53dB
- Usable sensitivity mono IHF: 9dB
- Selectivity: (-70KHz : +90KHz)
- S/N Ratio at 1 mV Mono: 52dB
- Stereo: 50dB
- THD at 1 mV 40 kHz deviation: 0.18%
- Stereo Separation: 28dB
- Auto Scan Sensitivity: 23dB
- AM Suppression Mod: 52dB
- Antenna Input Impedance: 75 Ohms
- AM SECTION:
- Tuning Range: 530 - 1710 kHz (10 kHz increm.)
- 522 - 1611 kHz (9 kHz increm.)
- IF Frequency: 450KHz
- Usable Sensitivity: 28dB
- Auto Scan Sensitivity: 41dB
- S/N Ratio at 5 mV/M: 46dB
- 6 dB Bandwidth: 7KHz
- Image Rejection: 42dB
- A.C.A. +/- 9 kHz: 46dB
- AGC Action: 43dB
- THD at 5mV/M: 0.40%
- Antenna Input Impedance: 300 Ohms
- Size: 19” x 1.75” x 7”
- Weight: 7.1 lbs. (3.2 kg)
UPC: 675889008111
Reviews: Rolls RS81B Quartz PLL Synthesized AM/FM Tuner
Nice model
Finishing not perfect
High power consumption
Another little point but to be mentioned, the power consumption is high: 45 watts. This is of course not so important for people in pro audio business but Rolls could have done better on this.
Those points behind, the sound quality is astonishingly good, even better than the Yamaha one I have in my Hi-Fi system! very high audio definition, clean reception and for that reason, I will yes recommend this tuner to other potential buyers.
Warranty: Rolls RS81B Quartz PLL Synthesized AM/FM Tuner
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Rolls Accessories
Limited 1-year warranty parts and labor.
Rolls Rack Units: (Mixers, Amplifiers, Processors)
Limited 1-year warranty parts and labor.
Rolls Signal Sources
90 Days warranty parts and labor.
RFX Units
Limited 3-year warranty parts and labor.
Bellari
Limited 1-year warranty parts and labor.
