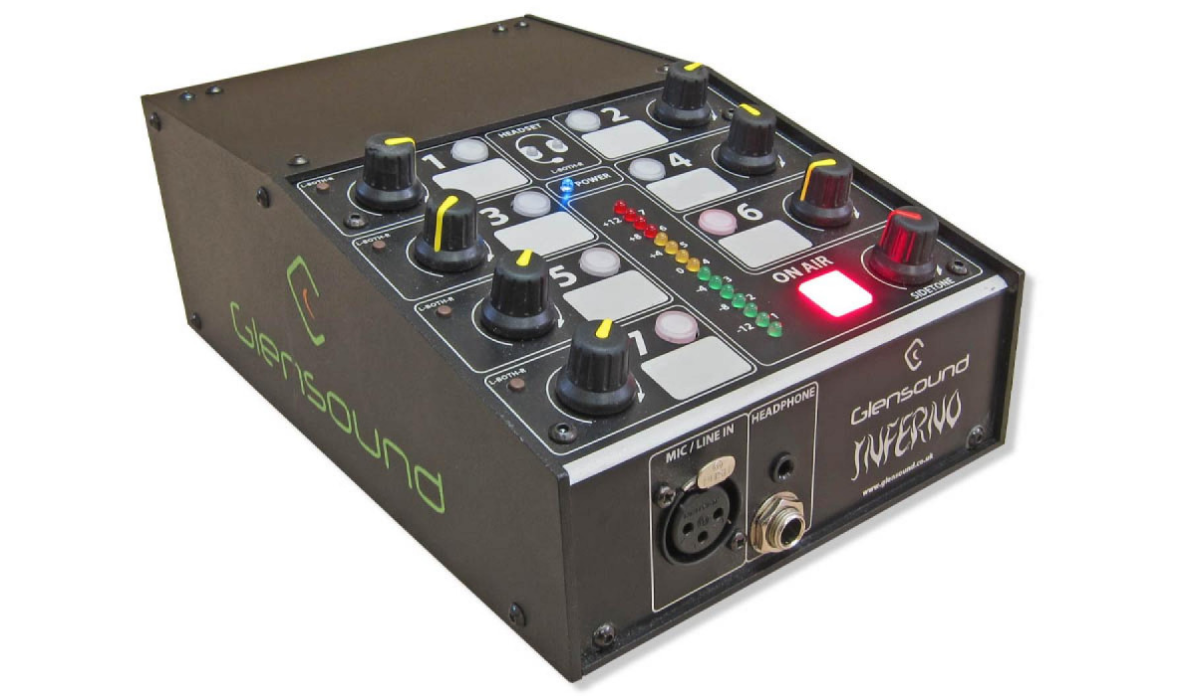

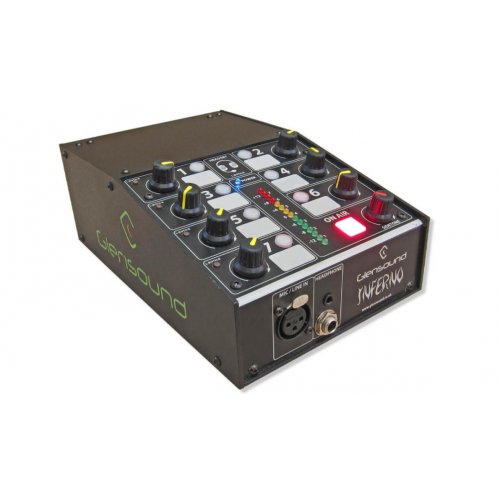

Glensound INFERNO PLUS Single Commentator's Box w/Analogue Outputs
Model: INFERNO PLUS
About: Glensound INFERNO PLUS Single Commentator's Box w/Analogue Outputs
Glensound Inferno Plus is a single-user Dante commentary box designed for high-quality broadcast commentary applications. An enhanced version of the standard Inferno, it adds two local analogue outputs while maintaining full Dante integration and remote control functionality. Its compact, rack-mountable form factor and scalable architecture make it suitable for both standalone use and large networked commentary systems.
Features
- Single user Dante® commentary box with scalable system integration
- Includes two additional analogue outputs on 3-pin XLR for mic passthrough backup
- Single mic/line input with 48V phantom power and Referee compressor/limiter
- Seven talkback circuits routable over Dante and configurable via web interface
- Eight-input headphone mixer (7 Dante inputs + local sidetone), each with left/both/right ear selection
- 15-segment LED PPM input level meter
- Remote configuration and control via built-in web server
- Primary and secondary Dante network connections for redundancy
- Multiple power options: PoE, internal 100–240V AC, or external DC input
- Also available in AES67/Ravenna version
Specifications
| Mic Input | 1 x balanced XLR, switchable between mic, line, or 48V phantom power |
|---|---|
| Compressor | Referee compressor/limiter for smooth signal peaks without clipping |
| Headphone Mixer | 7 Dante inputs + local sidetone, individually assignable to left, right, or both ears |
| Talkback Circuits | 7 talkback outputs, programmable via Dante and remote interface |
| Analogue Outputs | 2 x balanced XLR passthrough outputs of mic input |
| Network Interfaces | Primary and secondary Dante ports for redundancy |
| Remote Control | Browser-based configuration and control of mic gain and button logic |
| Metering | 15-segment LED PPM meter for input monitoring |
| Power Options | PoE, 100–240V internal AC, or external DC |
