Listen Auri 16-Port Docking Station for Auri RX1 Audio Receivers

About: Listen Auri 16-Port Docking Station for Auri RX1 Audio Receivers

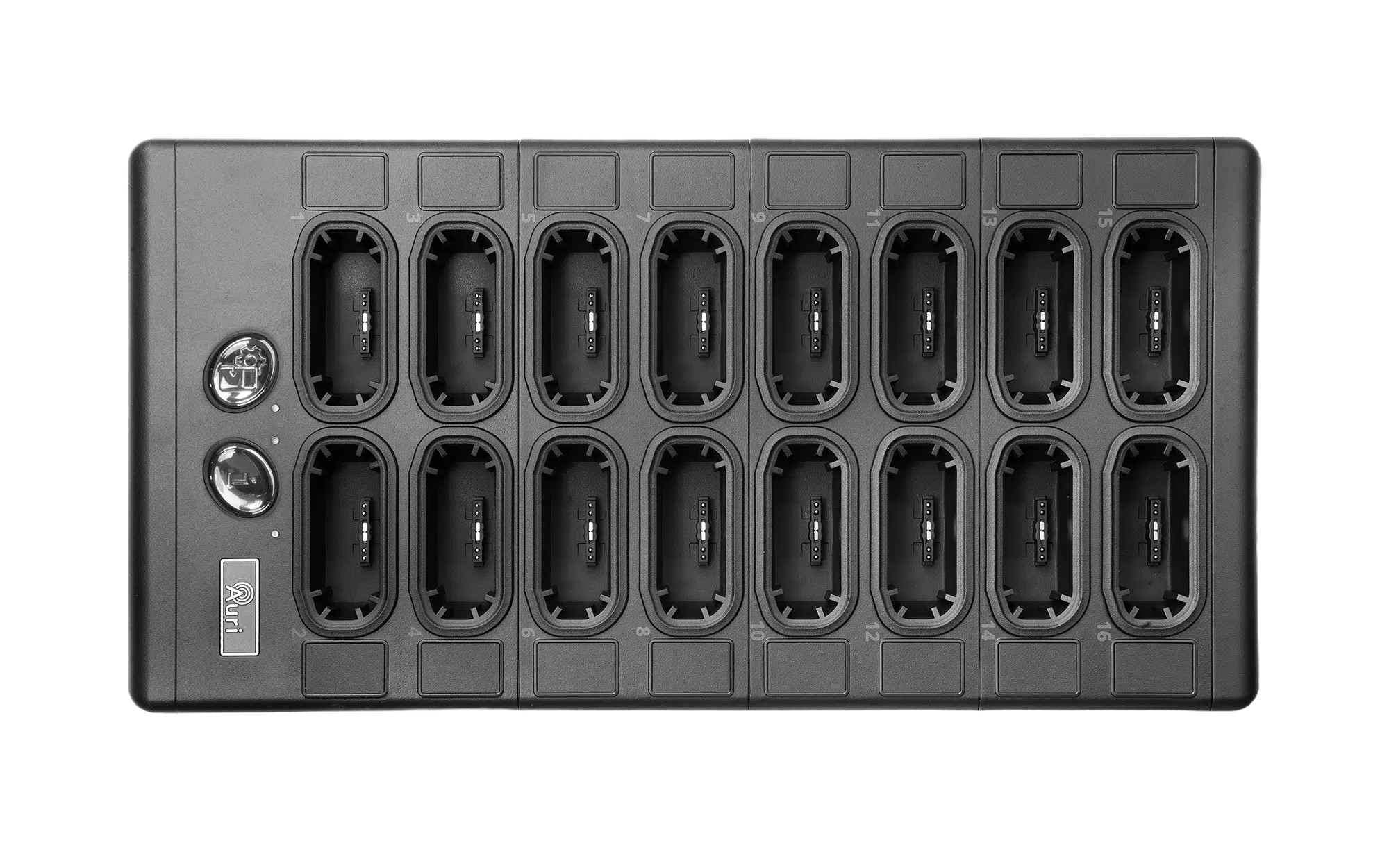

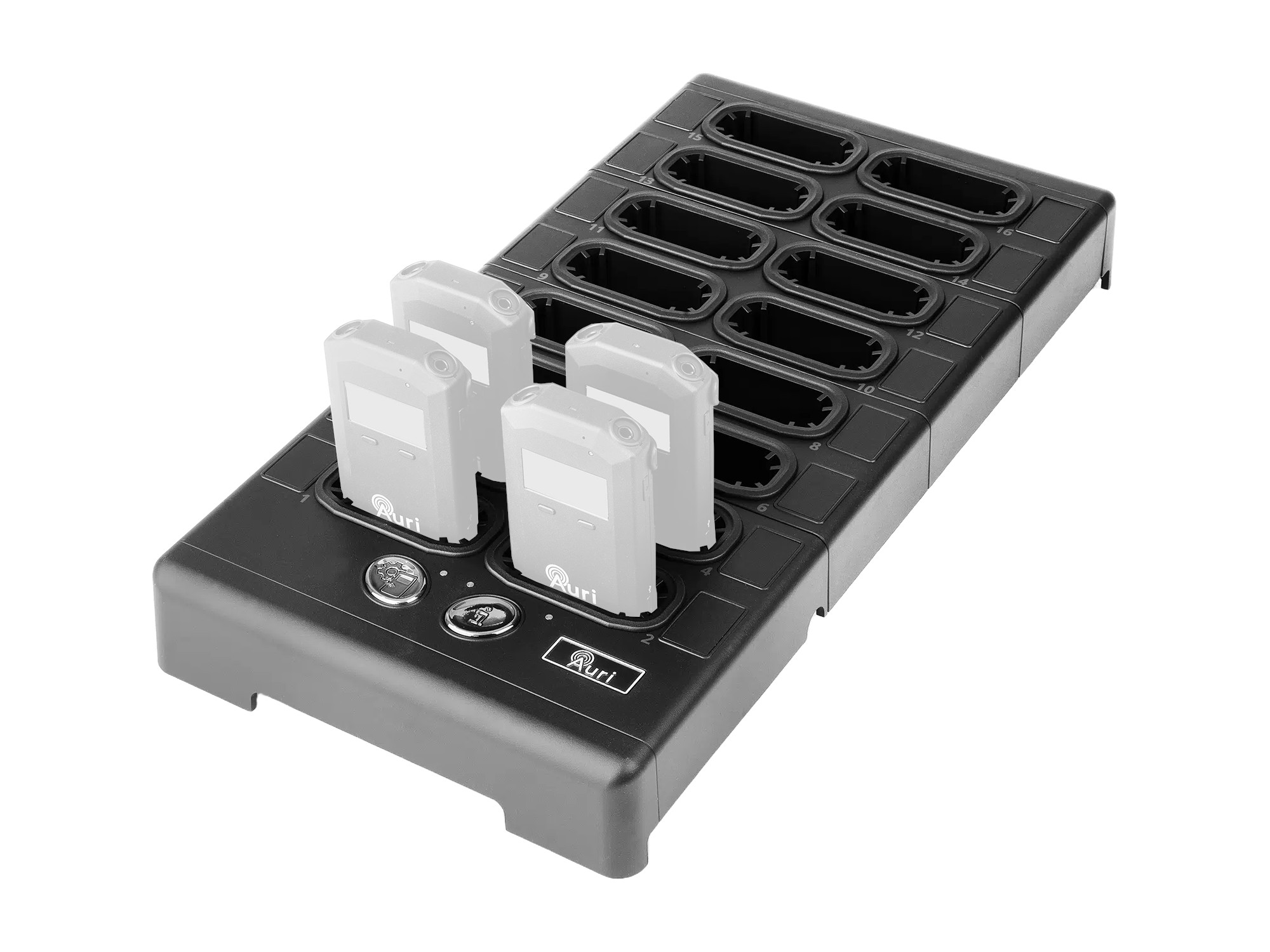

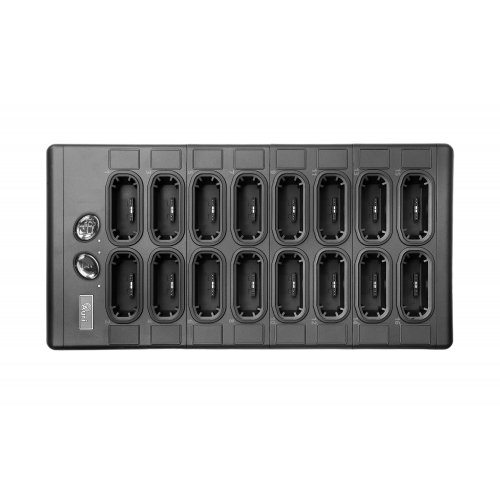

The Auri Docking Station 16 is designed for flat surfaces and wall mounting, with sixteen slots respectively. But these docks are more than chargers – they offer network capability and can store receiver configurations, enabling centralized management, programming, and configuration.

• Network capability
• Receiver configuration storage
• Centralized programming & configuration

Specifications

• Network
  • Port Speed: 100 Mbit
  • IP Address: DHCP, static or link-local
  • Protocols: mDNS, UDP (unicast), RTP (multicast), RTCP (multicast)
  • Security: UDP communication AES256-GCM
• Controls and Indication
  • Buttons: Copy and Status Buttons, Recessed restart and factory reset buttons
  • Setup/Programming: Via Auri Manager Software over network
  • LEDs: Copy LED (red) and Status LED (amber), see handbook for states
• Power
  • Power Supply Input: 100-240 VAC, 50-60 Hz
  • Power Supply Output: 12 VDC, 4.0 A, 48 W
  • Power Supply Connector: 5.5 mm (.22 in) OD x 2.3 mm (.09 in.) ID, barrel type
  • Power Cable: 1.8 m (72 in.) Input Power Cable, 1.1 m (43 in.) Output Cable
• Environmental
  • Temperature - Storage: -40 °C (-40 °F) to 70 °C (+158 °F)
  • Temperature - Operation: -10 °C (14 °F) to 40 °C (+104 °F)
  • Relative Humidity: 0 to 95% relative humidity, non-condensing
  • IP Rating: IP20
• Compliance
  • Standards: CE, UKCA, RCM, REACH, WEEE
• Network Requirements
  • Device Discovery: Type: mDNS (Multicast), Address: 224.0.0.251, Port: 5353
  • Control: Type: UDP (Unicast), Address: Device IP (DHCP, Static, or Link Local), Port: 55666, 56666
  • Firmware Update: Type: TFTP, Address: Device IP, Port: 69
• Physical
  • Dimensions: 50 x 192 x 375 mm (1.97 x 7.56 x 14.77 in.)
  • Unit Capacity: 16 Units
  • Weight: 1.73 kg (3.81 lbs.)
  • Color: Black with Chrome Buttons

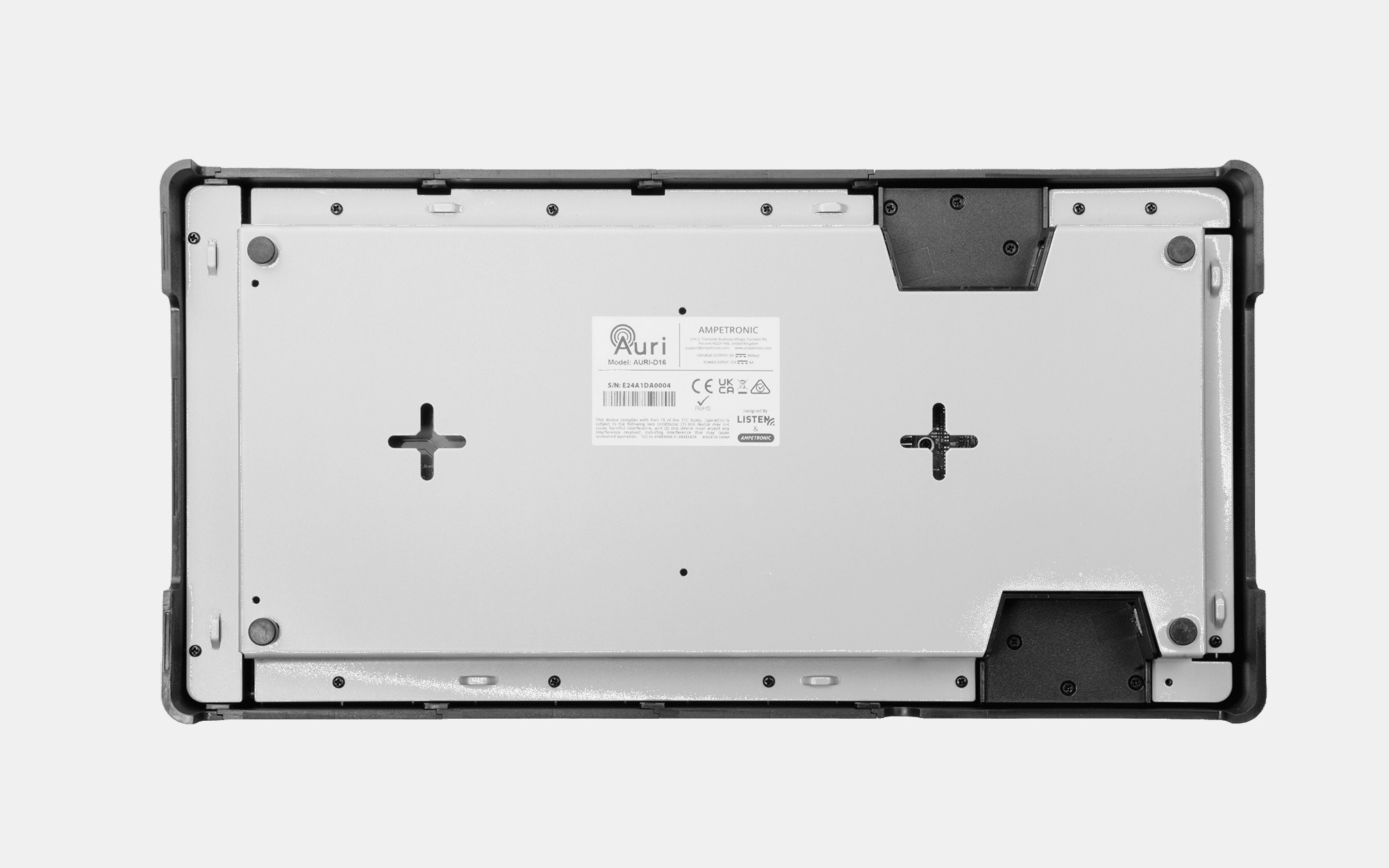

  • Mounting: Place on flat surface or use wall mounting slots

What's in the Box

• 1x AURI-D16 Auri Docking Station 16
• 1x LA-210 Power Supply
• 1x Quick Start Guide
• 1x Safety Data Sheet
