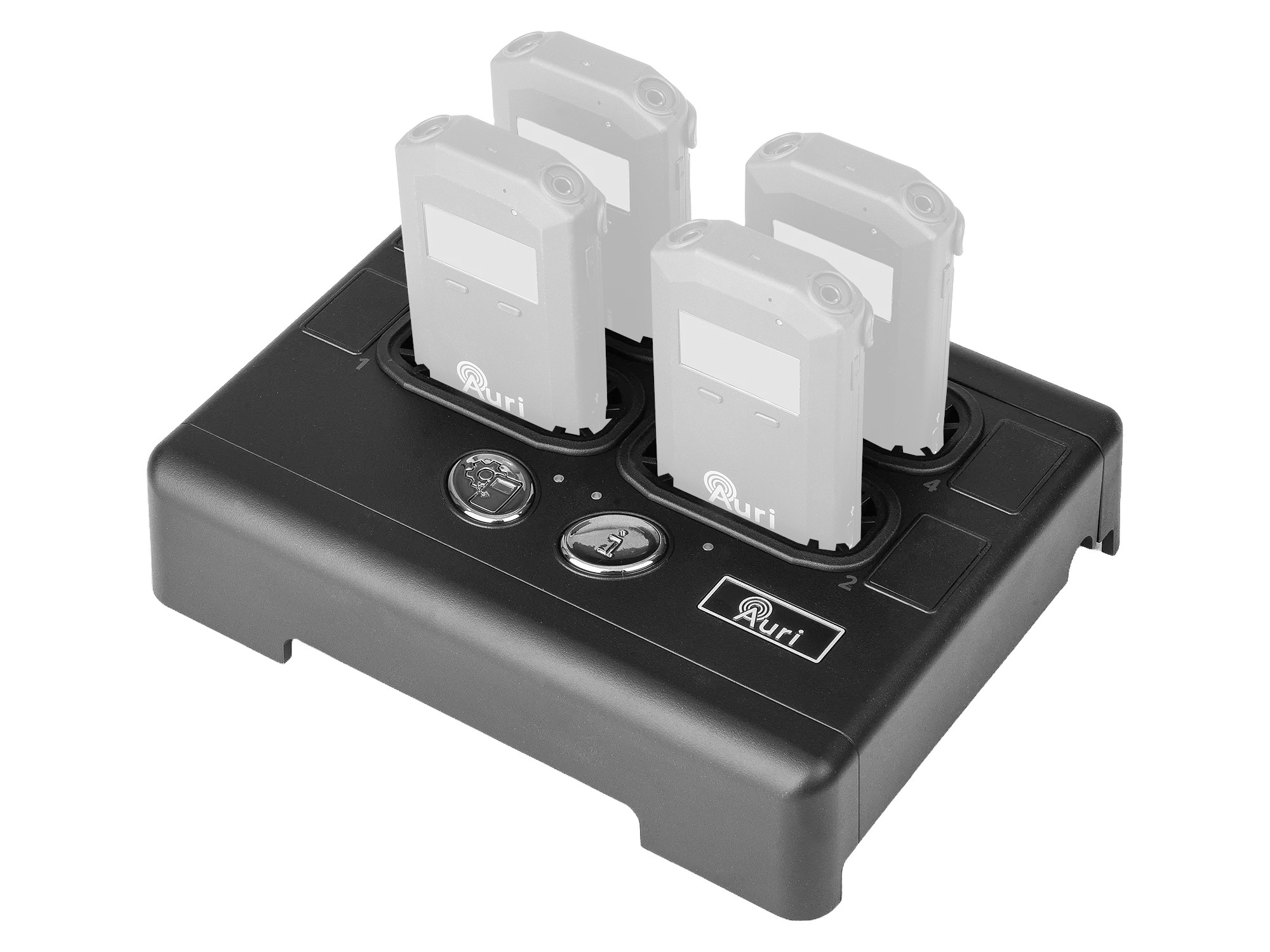

Listen Auri 4-Port Docking Station for Auri RX1 Audio Receivers

About: Listen Auri 4-Port Docking Station for Auri RX1 Audio Receivers

The Auri Docking Station 4 is designed for flat surfaces and wall mounting, with four slots respectively. But these docks are more than chargers – they offer network capability and can store receiver configurations, enabling centralized management, programming, and configuration.

• Network capability
• Receiver configuration storage
• Centralized programming & configuration

Specifications

• Network
  • Port Speed: 100 Mbit
  • IP Address: DHCP, static or link-local
  • Protocols: mDNS, UDP (unicast), RTP (multicast), RTCP (multicast)
  • Security: UDP communication AES256-GCM
• Controls and Indication
  • Buttons: Copy and Status Buttons, Recessed restart and factory reset buttons
  • Setup/Programming: Via Auri Manager Software over network
  • LEDs: Copy LED (red) and Status LED (amber), see handbook for states
• Power
  • Power Supply Input: 100-240 VAC, 50-60 Hz
  • Power Supply Output: 12 VDC, 4.0 A, 48 W
  • Power Supply Connector: 5.5 mm (.22 in) OD x 2.3 mm (.09 in.) ID, barrel type
  • Power Cable: 1.8 m (72 in.) Input Power Cable, 1.1 m (43 in.) Output Cable
• Environmental
  • Temperature - Storage: -40 °C (-40 °F) to 70 °C (+158 °F)
  • Temperature - Operation: -10 °C (14 °F) to 40 °C (+104 °F)
  • Relative Humidity: 0 to 95% relative humidity, non-condensing
  • IP Rating: IP20
• Compliance
  • Standards: CE, UKCA, RCM, REACH, WEEE
• Network Requirements
  • Device Discovery: Type: mDNS (Multicast), Address: 224.0.0.251, Port: 5353
  • Control: Type: UDP (Unicast), Address: Device IP (DHCP, Static, or Link Local), Port: 55666, 56666
  • Firmware Update: Type: TFTP, Address: Device IP, Port: 69
• Physical
  • Dimensions: 50 x 192 x 150 mm (1.97 x 7.56 x 5.89 in.)
  • Unit Capacity 4 Units
  • Weight: 0.65 kg (1.43 lbs.)
  • Color: Black with Chrome Buttons
  • Mounting: Place on flat surface or use wall mounting slots

What's in the Box

• 1x AURI-D4 Auri Docking Station 4
• 1x LA-210 Power Supply
• 1x Quick Start Guide
• 1x Safety Data Sheet
