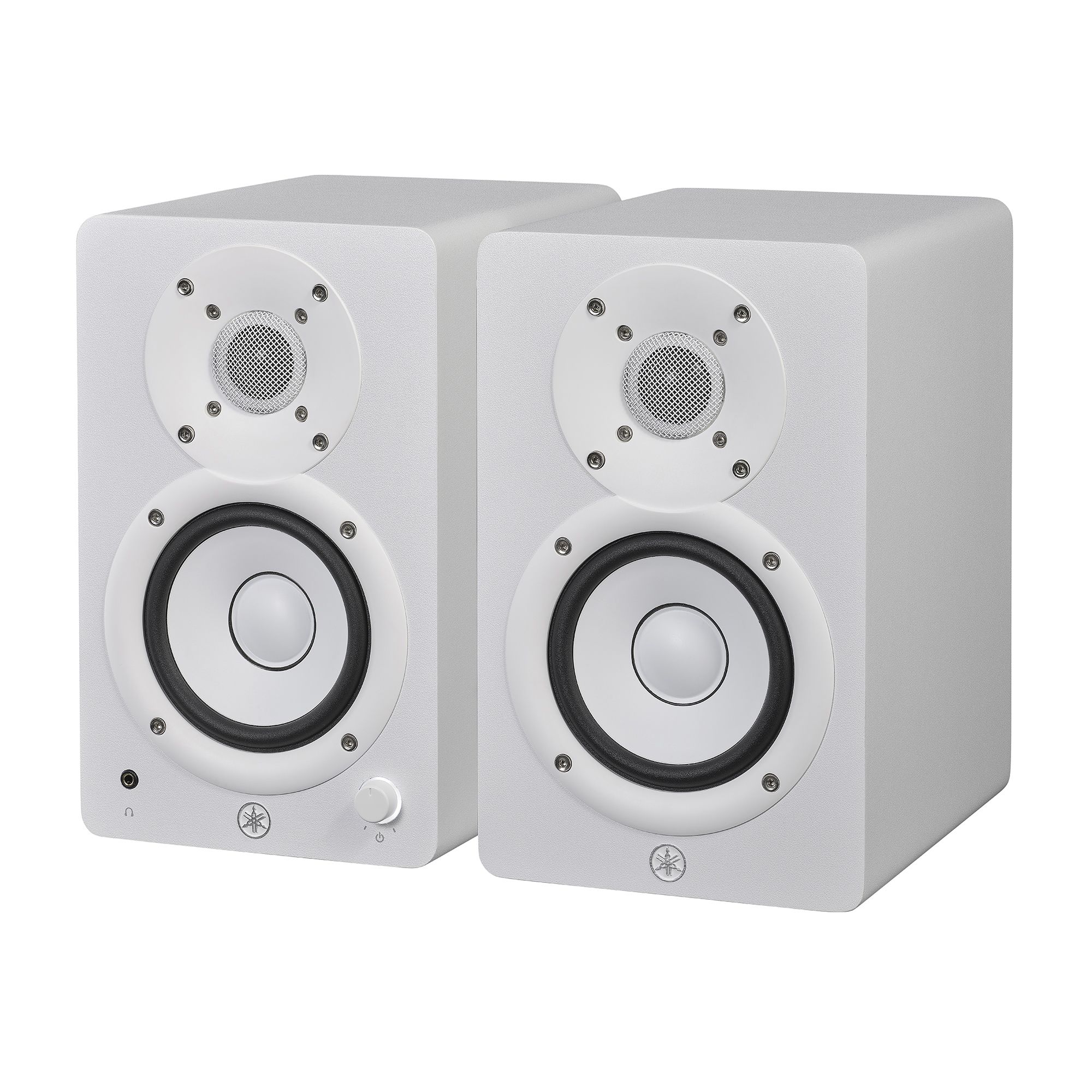

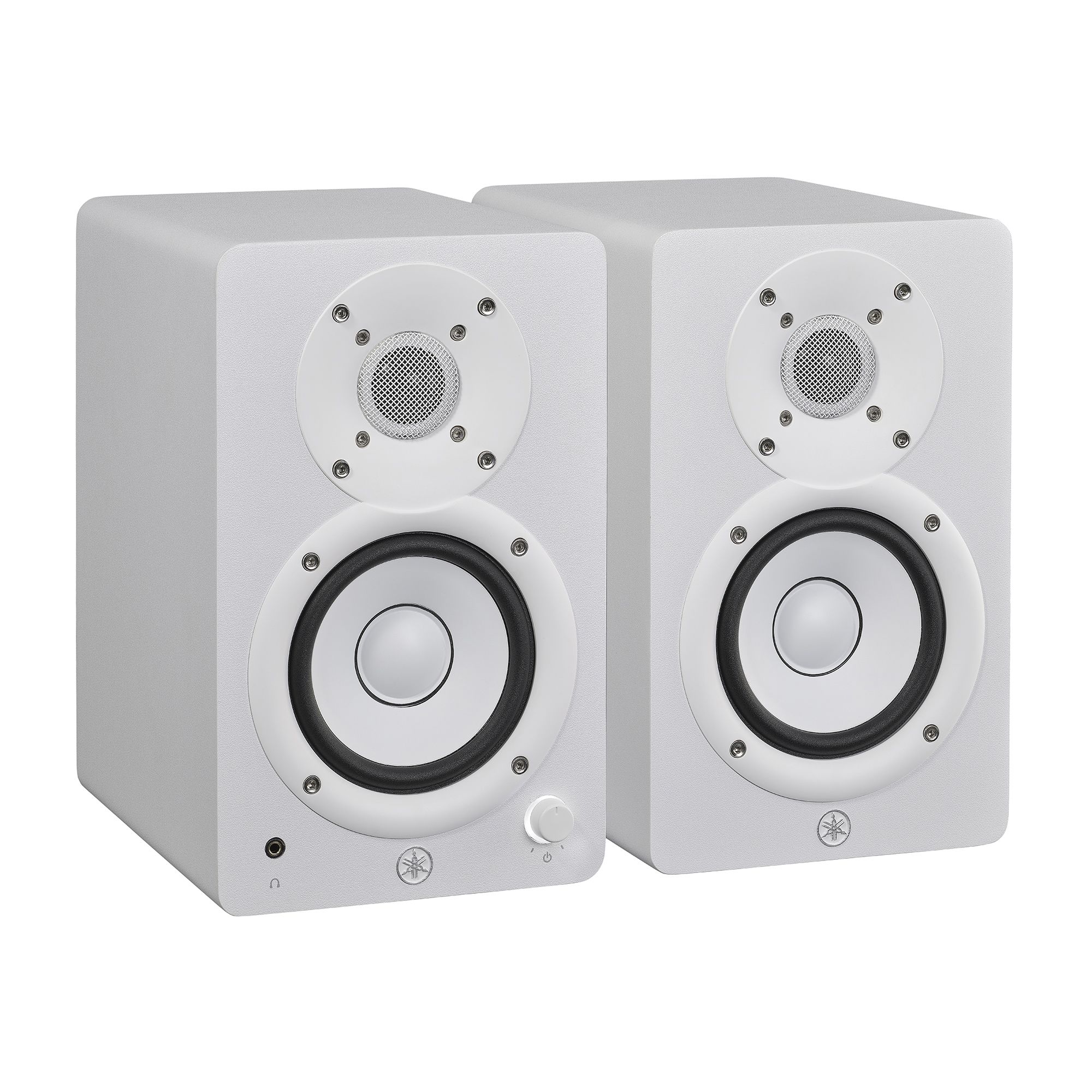

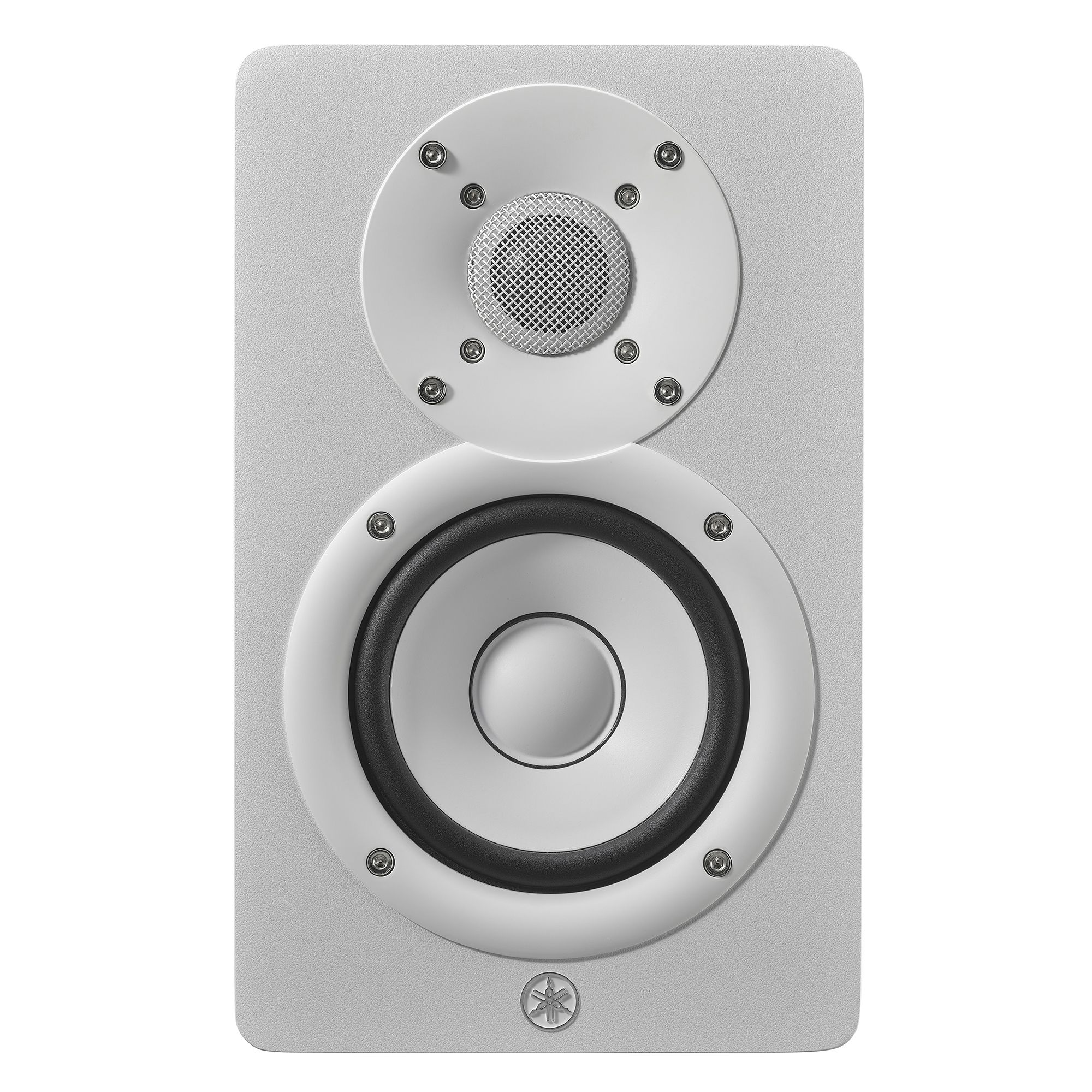

Yamaha HS4 Powered Studio Monitors - White (Pair)

About: Yamaha HS4 Powered Studio Monitors - White (Pair)

Yamaha HS Series speakers are the standard in studio monitors, trusted for many years by the world’s top audio engineers, producers, and artists. Now Yamaha has redefined their essence in a compact housing. The HS3 and HS4 are powerful tools to help create a wide range of audio content—from music production to video editing—that meets the expectations of creators who have limited space but do not want to compromise on monitoring quality.

• 2-way bass-reflex powered speaker with 4.5" cone woofer and 1" dome tweeter
• 60 Hz - 22 kHz frequency response (-10 dB)
• 26 W + 26 W output power (Dynamic, RL=6 Ω)
• ROOM CONTROL and HIGH TRIM response controls
• XLR/TRS Phone (COMBO), RCA, and Stereo Mini inputs
• Stereo mini - RCA cable, speaker cable, and anti-slip pad included
• Packaged as a pair

Sound that's always true to the original

The HS3 and H34 studio monitors embody our legacy of design excellence. No detall has been overlooked. Inside are carefully selected parts such as a high-performance class-D amplifler, a highly resilient MDF cabinet, as well as woofers and soft-dome tweeters that deliver a pure sound faithful to the source - despite their small aize. Additionally, our proprietary "Twisted Mare Port technology delivers crystal-clear beas with minimal turbulence noise, The result is outstanding resolation, sound image, and depth with a flat response across all bandwidths without any coloring of the original sound.

Optimal sound tailored to your environment

The sound produced by speakers can sometimes be affected by the surrounding environment.

The rear panels of the HS3 and HS4 are equipped with ROOM CONTROL and HIGH TRIM functions that allow you to make adjustments to achieve the ideal sound for any environment, such as reducing the unneeded, exaggerated low-end that can often occur when speakers are placed next to walls.

Inputs and controls to fit any use

The rear panel of the HS3 and HS4 is equipped with combination XLR/TRS phone, RCA, and stereo mini connectors, allowing you to connect to a wide range of equipment such as computers, audio interfaces, audio mixers, and electric instruments. The most commonly used features—power button, volume knob, and headphone connector—are located in the front for easy access.

Compact and portable

The compact size of the HS3 and HS4 was made possible thanks to the highly efficient class-D amp. Using one amp for two speakers has enabled us to both reduce the weight of the speakers and simplify the cable connections. They take up little space even in a small bedroom studio, and are easy to take with you on the road.

Specifications

• Speaker type - 2-way powered speaker, Bass-reflex type
• Frequency response (-10dB) - 60 Hz - 22 kHz
• Frequency response (-3dB) - 83 Hz - 20 kHz
• Crossover - 2.3 kHz
• Maximum Output Level (Measured peak, IEC noise@1m) - 102 dB SPL
• Components
  • HF - 1" Dome
  • LF - 4.5" Cone
• Nominal impedance - 6 Ω
• I/O connectors
  • Input
    • Left Side: COMBO (XLR/TRS Phone) ×2, RCA ×2, Stereo Mini
    • Right Side: Speaker Input
  • Output - Left Side: Headphone, Speaker Output
• Output power
  • 26 W + 26 W (Dynamic, RL=6 Ω)
  • 20 W + 20 W (THD 0.1%, 1kHz, RL=6 Ω)
• Input sensitivity
  • LINE 1 (COMBO): +4 dBu
  • LINE 2 (RCA, ST Mini): -10 dBu (Volume: Maximum)
• Input Level
  • LINE 1 (COMBO): +20 dBu
  • LINE 2 (RCA, ST Mini): +6 dBu (Maximum Input)
• Input impedance
  • LINE 1 (COMBO): 20 kΩ,
  • LINE 2 (RCA, ST Mini): 10 kΩ
• Controls
  • Front: Volume,
  • Rear: ROOM CONTROL SWITCH (0/-2/-4 dB under 500 Hz), HIGH TRIM SWITCH (+2/0/-2 dB above 2 kHz)
• Indicators - Power ON (White LED)
• Power requirements - 100-240 V, 50/60 Hz (*)
  • * While this product will work at a voltage of between 100 V to 240 V, as limiter settings vary depending on the supply voltage, make sure to use this product at the supply voltage indicated on the rear panel of this product.
• Power consumption - 15 W
• Cabinet material - MDF
• Dimensions (WxHxD)
  • ​Left Side - 5.9 x 9.4 x 8.4 inch (150 x 240 x 213 mm)
  • Right Side - 5.9 x 9.4 x 8.0 inch (150 x 240 x 203 mm)
• Net weight
  • Left Side - 8.2 lb (3.7 kg),
  • Right Side - 6.8 lb (3.1 kg)

What's in the Box

• Yamaha HS4 Studio Monitors - White (Pair)
• Stereo mini to RCA Cable
• Speaker Cable
• 8x Antislip Pad
• Quick Start Guide
• Safety Guide
