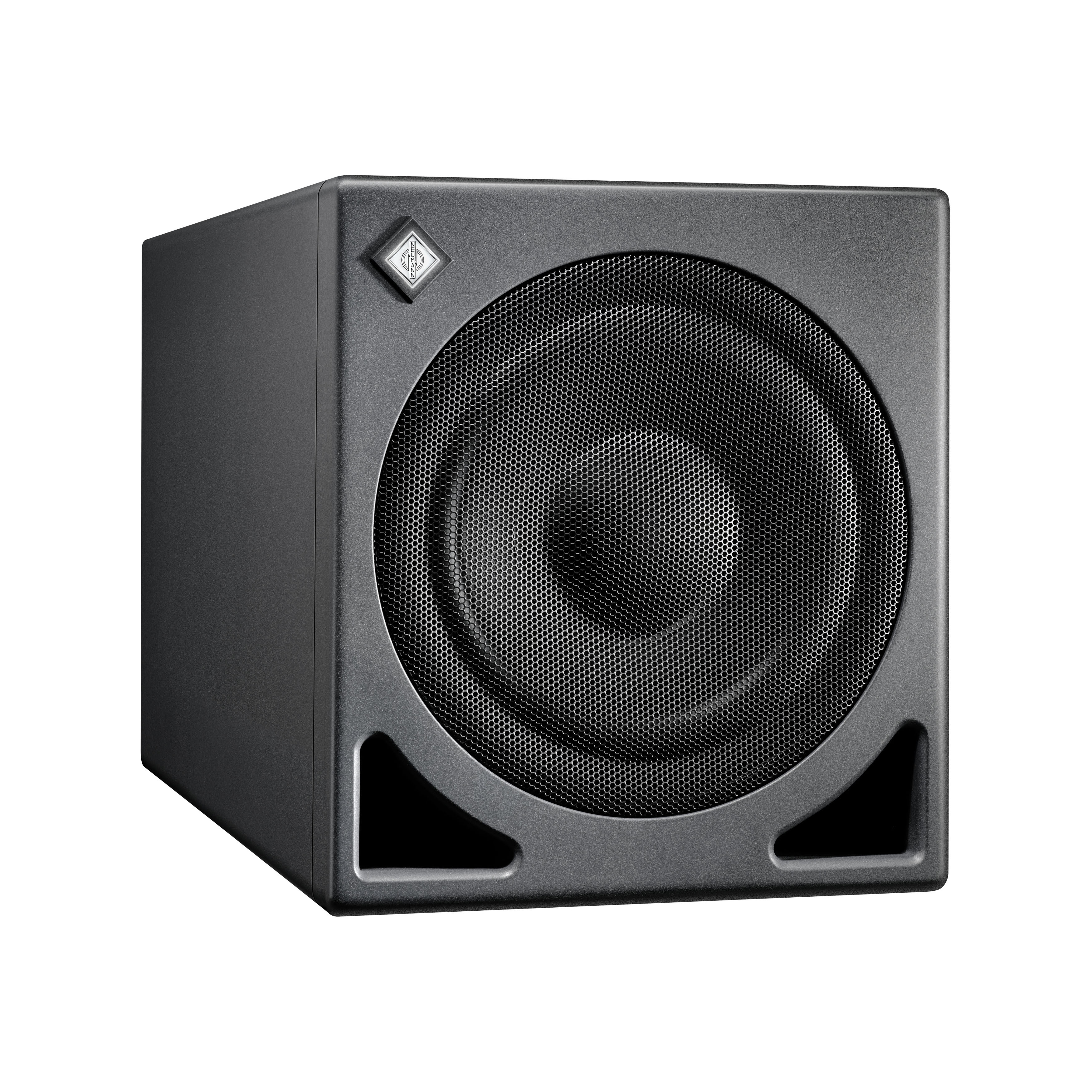

Neumann KH 810 II AES67 10in DSP-Controlled Powered Subwoofer

About: Neumann KH 810 II AES67 10in DSP-Controlled Powered Subwoofer

The KH 810 II AES67 is the perfect subwoofer for medium sized rooms, providing bass extension with Neumann precision. It includes a unique and flexible Bass Manager for multichannel systems up to 7.1.4. Analog and AES3 outputs (BNC) for up to 11 studio monitors as well as redundant AES67 network connectivity allow for flexible connectivity.

• Deep and powerful bass down to 16 Hz
• The perfect complement to mid-size Neumann KH line studio monitors
• DSP-controlled for superior sonics and unparalleled precision
• Room correction via MA 1 Automatic Monitor Alignment (sold separately)
• Supports automatic alignment also for analog KH line studio monitors (patented)
• Redundant AES67 audio network connectivity, multichannel signal distribution

Next Generation Subwoofer

The KH 810 II AES67 improves on its predecessor in acoustic performance and adds new features. Thanks to a novel long-throw 10” woofer with Extremely Linear Force Factor (ELFF) technology and intelligent protection limiters, the KH 810 II ensures exceptionally low distortion even at maximum SPLs.

The KH 810 II AES67 extends low frequency reproduction down to 16 Hz and delivers about twice the output of the KH 750 DSP. This makes the KH 810 II AES67 the perfect complement to mid-sized speakers such as the KH 150 and KH 310.

The KH 810 II AES67 is DSP-controlled for superior sonic performance and seamless integration via MA 1 Automatic Monitor Alignment (sold separately). When combined with analog Neumann studio monitors such as the KH 120 A (discontinued), KH 310, or KH 420, it offers sufficient DSP-power for aligning an entire stereo, surround or even immersive system up to 7.1.4, using MA 1, optimizing not only the frequency response but also the phase. Of course, the KH 810 II AES67 is also a perfect complement to Neumann’s new DSP-equipped studio monitors. In surround and immersive systems, analog and DSP-equipped Neumann speakers can be combined and room-aligned using MA 1 with Multichannel Extension (sold separately). The KH 810 II AES67 is therefore much more than “just” a subwoofer: It is the perfect tool for upgrading existing systems and/or extending them for immersive audio.

With its redundant AES67 connectivity, this subwoofer is a complete solution for integrating your entire loudspeaker setup into your Audio over IP infrastructure. The KH 870 II AES67 accepts up to 12 channels of network audio to be reproduced by the subwoofer itself and up to 11 studio monitors connected to its analog and digital outputs.

Precision in Every Detail

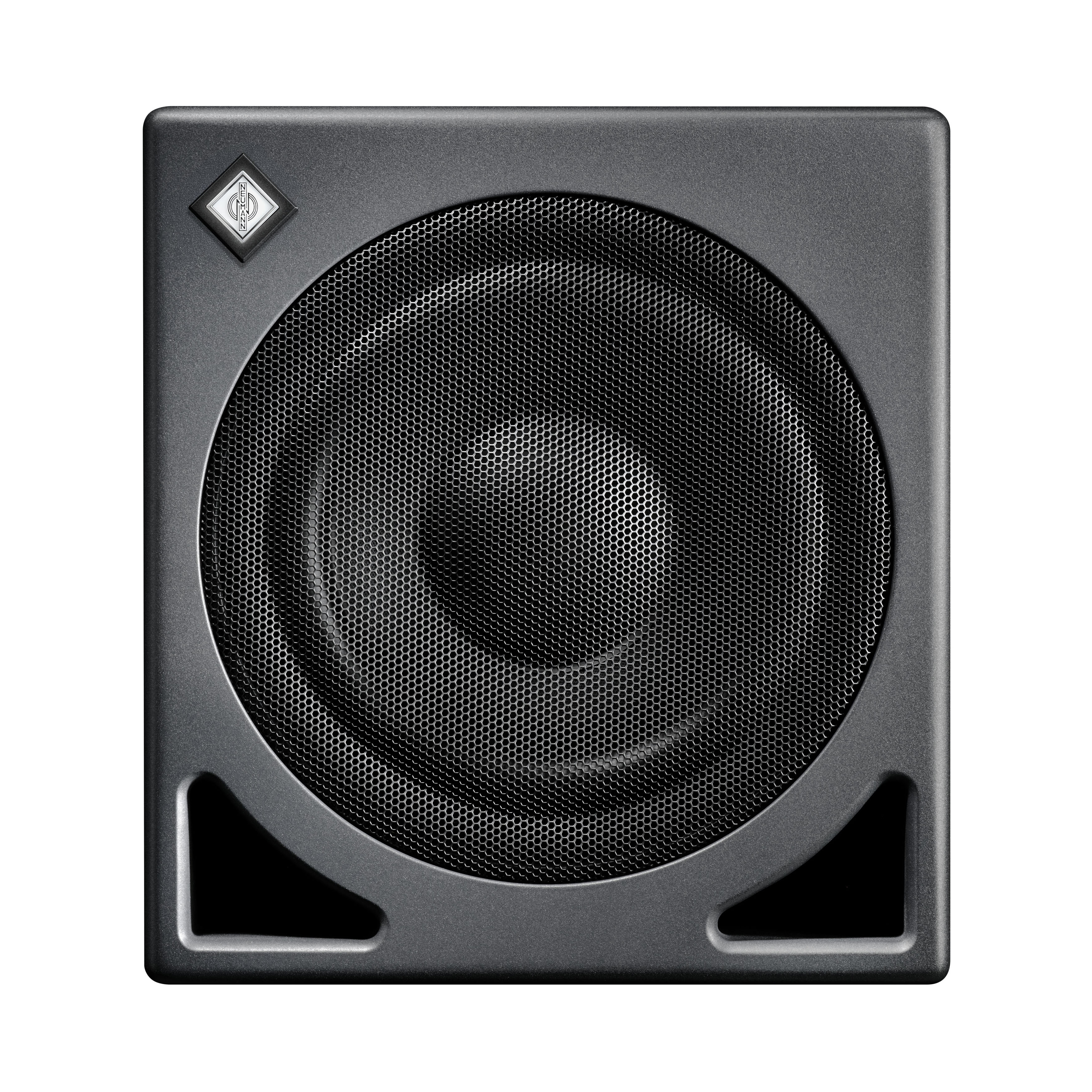

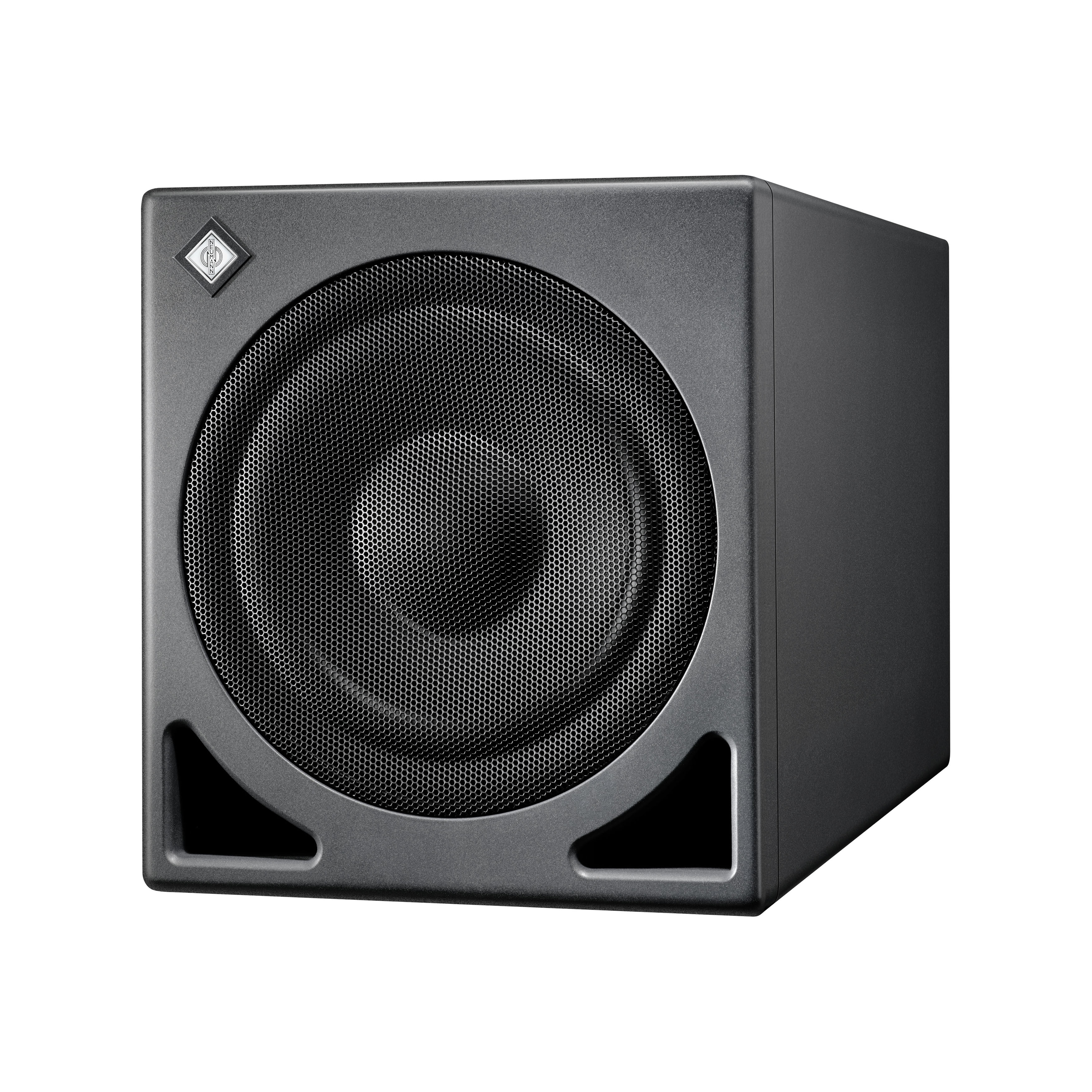

As subwoofers are typically placed on the floor, a robust grille protects the driver from accidental damage. The rigid cabinet features a highly efficient bass reflex system, which is carefully engineered and tuned for the tightest bass reproduction – with inaudible port noise.

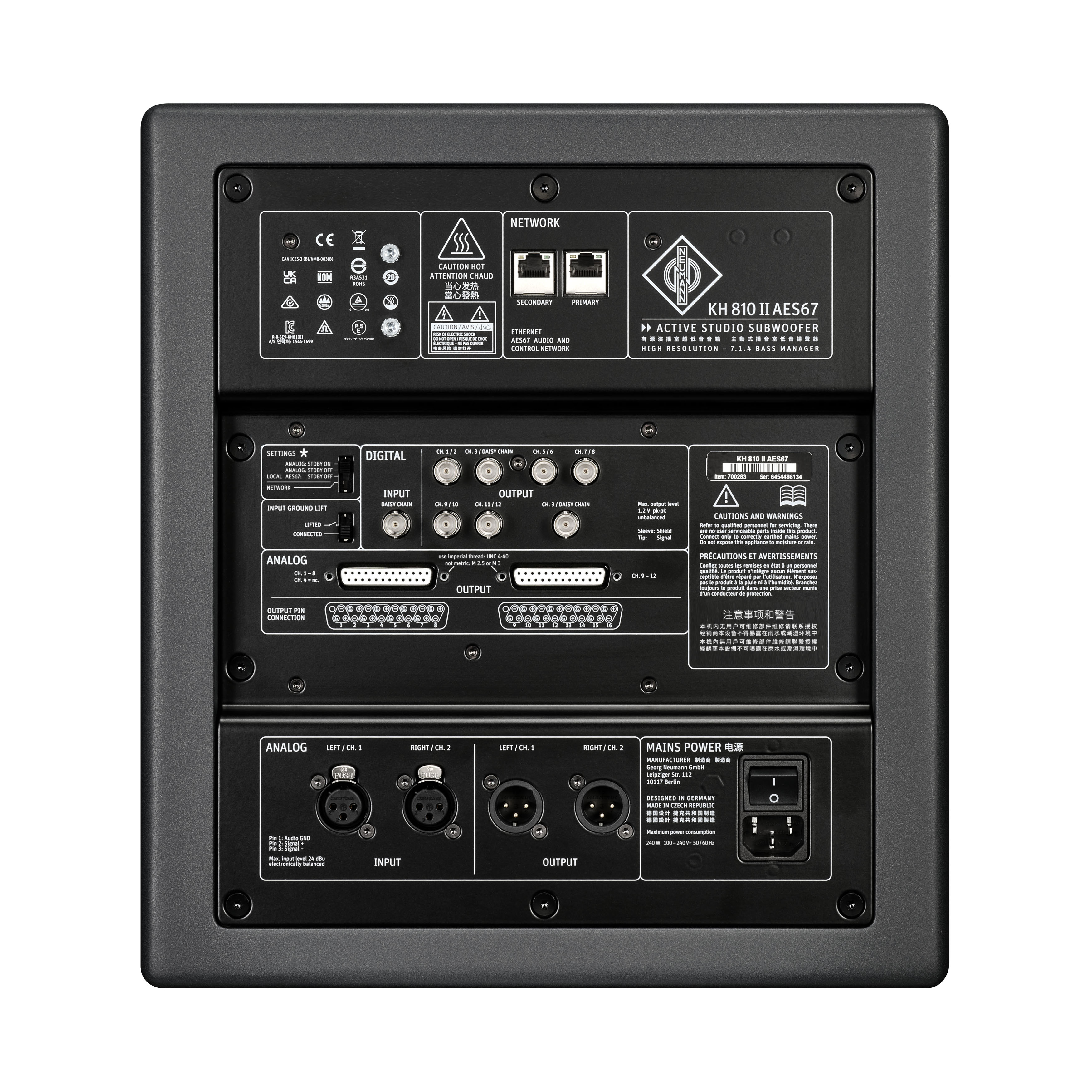

Two analog XLR inputs and outputs are available to connect the subwoofer for stereo operation. For multichannel operation, the KH 810 II AES67 offers two Sub D25 connectors for analog connection as well as seven AES3 outputs (BNC) for digital connection to 11 studio monitors. All analog inputs and outputs are electronically balanced. The AES3 outputs (BNC) are compatible to S/P-DIF inputs on Neumann studio monitors using a BNC to RCA cable.

Two network ports offer redundant AES67 audio-over-IP connectivity with up to 12 input channels. The KH 810 II AES67 can thus be used as a hub, accepting multichannel audio which is distributed to the entire system using analog or AES3 (BNC) connections to up to 11 additional speakers, including its internal bass management.

The KH 810 II AES67 excels in music, film scoring, broadcast, and post-production studios for tracking, mixing, and mastering. Thanks to a novel power amp design, the KH 810 II combines superior audio performance with excellent energy efficiency. Its Auto Standby function can be deactivated in the MA 1 app.

Benefits

• Bass extension of the monitoring system down to 16 Hz
• Increasing the maximum SPL of the entire system
• Decreasing harmonic and intermodulation distortion of loudspeakers
• Interface between the Audio over IP infrastructure in the studio and all analog or digital KH Line loudspeakers
• MA 1 Ready for perfect alignment of the entire system and seamless subwoofer integration. For multichannel setups, we offer MA 1 Multichannel Extension option.
• MA 1 integration of analog KH Line speakers, enough DSP power for an entire multichannel system up to 7.1.4.

Features

• Ultra stiff wooden cabinet
  • Tough painted finish and build-in rubber feet for acoustic isolation
  • Excellent self-damping properties leading to minimal cabinet resonances
  • No standing wave resonances inside cabinet
  • Ultra tight bass reproduction due to very low group delay
• In-house modelled long-throw bass driver with Extremely Linear Force Factor
  • (ELFF) and robust resonance optimized basket
  • Damping of break up modes brings low distortion at high sound levels
  • Extremely linear force factor provides low harmonic distortion even at high excursions
  • Reduced air noise and improved rocking modes
  • Grille protects against mechanical damage
• XLR electronically balanced analog inputs and outputs (stereo)
  • Standard interfacing to professional equipment
  • Daisy chain input and output for subwoofer arrays
• Two electronically balanced SUB-D 25 connectors for up to 11 analog output channels. The pinout follows the Tascam standard.
• Digital outputs (multichannel)
  • 192 kHz, 24-bit conversion
  • 7x BNC: Channels 1-3, Channels 5-12, Daisy Chain Out
• Redundant AES67 audio network ports that are fully compliant with broadcast standards such as ST 2110, ST 2022-7 redundancy, and RAVENNA.
  • Also compatible with DANTE-generated AES67 network streams.
  • Network connection is required for control via MA 1 Automatic Monitor Alignment software.
• Control function
  • Toggle switch for selection of two completely independent modes of operation and calibration: on the device or via the network using the MA 1 -
  • Automatic Monitor Alignment software.
• Universal switched-mode power supply (100 … 240 V)
  • One version works in any country and is robust to poor quality mains supply
• Ground lift to overcome ground loops
  • Inputs with very high CMRR to reduce noise induced by long cables in electrically noisy environments
  • Completely symmetrical internal signal flow to avoid electrical interferences
• Low heat dissipation amplifiers with large headroom and sophisticated protection circuitry
  • Improved transient response
  • Assured reliability and safety
  • Separate thermo limiter to protect the voice coil and power amplifier
• Soft clip and excursion limiters
  • Increases system reliability
  • Allows extraction of the maximum performance from the system
• Standby function
  • Reduces power consumption when product is not in use.

Specifications

• Acoustics
  • Free field frequency response ±6 dB: 16 ... 750 Hz
  • Free field frequency response ±3 dB: 18 ... 310 Hz
  • Frequency response ripple; range, deviation: 20 ... 295 Hz, ±1.5 dB
  • Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu): <20 dB(A) SPL
  • Sine wave output with a THD < 0.5 % at 1 m in half space: 95 dB SPL (42 - 200 Hz)
  • Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz): 109 dB
  • Max. SPL for subwoofers: on floor; against the wall; in the corner: 109 dB; 112 dB; 115 dB;
  • Dolby DARDT. Max SPL bass managed: 117 dB SPL
  • Acoustical Principle: Bassreflex, Ports at the front
• Analog Inputs and Outputs
  • Analog input(s): 2 x XLR: electronically balanced;
  • Analog input impedance: >12k Ohms
  • Max. input level for 114 dB SPL Output Level and 0 dB Gain Setting: 18 dBu (CH1...3, 12); 15 dBu (CH 5...11)
  • Max. input level for 108 dB SPL Output Level and 0 dB Gain Setting: 18 dBu (CH1...3, 12); 15 dBu (CH 5...11)
  • Max. input level for 100 dB SPL Output Level and 0 dB Gain Setting: 18 dBu (CH1...3, 12); 15 dBu (CH 5...11)
  • Max. input level for 94 dB SPL Output Level and 0 dB Gain Setting: 24 dBu (CH 1...3, 12); 21 dBu (CH 5...11)
  • Max. input level: 24 dBu (CH 1...3, 12); 21 dBu (CH 5...11)
  • Common mode rejection ratio (CMRR), XLR / Sub-D: > 56 dB @ 15 kHz
  • Crosstalk (1 kHz), level matching, XLR / Sub-D: -90 dB; ±0.1 dB
  • Remote volume control: via MA 1 software
  • Volume control range; resolution: 0 … -∞ dB; 0.1 dB
  • Analog dynamic range; THD+N (A-D-A), XLR / SubD: 120 dB(A)(CH1...3,12); 116dB(A) (CH5...11) <0.003% (-90 dB)
  • Signal routing modes: analog
  • Analog output(s): 2 x XLR: electronically balanced; 1 x SUB-D 25: 7 x electronically balanced; 1 x SUB-D 25: 4 x electronically balanced
• Digital Inputs and Outputs
  • Digital input(s): 1 x BNC: Daisychain in; 1 x Ehternet: primary AoIP 1 x Ethernet: secondary AoIP
  • Digital output(s): 7 x BNC: 11 x Monitor out; 1 x daisychain out
  • Digital converter: resolution; design: 24 Bit
  • Digital converter: sampling rate: 32 kHz..200 kHz
  • Digital internal sampling rate: 48 kHz
  • Output sampling rate: 48 kHz
  • Dynamic range A-D: CH 1, 2=124 dBA
  • Dynamic range A-D-A (Converter): CH 1, 2=121.5 dBA
  • Dynamic range D-A: CH 1, 2, 3, 12=125 dBA; CH 5...11=118 dBA
  • Digital sensitivity: -18 dBFS = 100 dB SPL at 1 m
  • Latency ADA / DA: 2 ms (A-D-A); 4 ms (D-A AES67)
  • Delay: User adjustable delay range: 0 ... 115 ms
  • Delay: Resolution: time; distance: 20.8 µs; 0.71 mm (0.28 ")
  • Delay: Max. frames Audio-video synchronisation (lip sync): 2 (40 ms) frames; 2.75 (33 ms) frames
  • Delay: Time-of-flight maximum distance: Out of 115 ms, FW based
• User Interface
  • Status Indication: Illuminated Neumann Logo
  • Input Select: analog / AES67
  • Ground Lift: Yes
  • Control: Local; Network
  • Mains Switch: Yes
  • Mains Voltage: Universal Power Supply 100 V~ … 240 V~
• Electronics - Controller
  • Controller design: Digital; active
  • DSP resolution: 32 Bit Audio, Processing 64 Bit double precision
  • Crossover frequency: 80 Hz
  • Crossover slope: 24 dB/oct; 4th order
  • Supports automatic room calibration via MA 1: Yes; Subwoofer and connected analog loudspeakers
  • FIR phase linearization: for connected analog loudspeakers in combination with MA 1
  • Protection circuitry: soft clip, peak and thermo limiters; Woofer excursion limiter; thermo limiter for the electronics and amplifiers
  • Remote control: via Ethernet and MA 1
  • Display: On; Normal Operation: Neumann logo “White”
  • Display: Identification: Neumann logo “Rosé”
  • Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute: Neumann logo “Red”
  • Logo Brightness: via MA 1 software
• AES67
  • AES67 Audio-over-IP Interface: Fully redundant AES67 ST2110 compliant audio network interface; 2 Fast Ethernet 100Base-TX (IEEE 802.3) RJ-45 connectors; Physical redundant network (ST 2022-7)
  • AES67 Audio-over-IP input word length: 24 bits
  • AES67 Audio-over-IP input sampling rate: 44.1 / 48 / 88.2 / 96 kHz
  • AES67 Audio-over-IP input connection management: RAVENNA, NMOS IS-04 (Discovery & Registration) and NMOS IS-05 (Connection Management)
  • Sample rates: 44.1 / 48 / 88.2 / 96 kHz
  • Packet times: 125 µs, 1 ms
  • PTP profiles: IEEE1588 Default, AES67 PTP Media, IEEE 802.1AS (AVB)
  • Other PTP profiles: SMPTE ST 2059-2
  • Transport: Multicast, Unicast
  • SMPTE ST 2110-30: Yes, two physical network ports
  • SDP transport: Manually, SAP, RAVENNA method (RTSP)
  • Discovery: SAP, mDNS, NMOS IS-04, RAVENNA method (advertising RTSP uri and other services)
• Electronics - Amplifiers and Power Supply
  • Output power woofer amplifier (THD+N with limiter activated: 0.1%): 180 W
  • Mains Power Supply: input voltage; frequency: SMPS: 100-240 V; 50/60 Hz
  • Power consumption (230 V / 100 V): Standby: <=300mW
  • Power consumption (100 V): Idle: 33 W
  • Power consumption (230 V / 100 V): Idle: 33 W
  • Power consumption (230 V): Idle: 32 W
  • Power consumption (100 V): Full output: 240 W
  • Power consumption (230 V / 100 V): Full output: 240 W
  • Power consumption (240 V): Full output: 235 W
  • Standby: disabled; automatic, 20 mins (default)
  • Amplifier Standby: Disabled; user defined in software
• Mechanics
  • Cabinet material: Wood cabinet, aluminum electronics panel
  • Cabinet surface finish; color (front / back): Painted; metallic anthracite (RAL 7021) / black (RAL 9005)
  • Operating conditions: +10° C to +40° C (+50° F to +104° F); <75% RH, non-condensing
  • Transport/storage conditions: -25° C to +60° C (-13° F to 140° F); <90% RH; non-condensing
  • Woofer: 265 mm (10") with protecting black metal grille
  • Dimensions (HxWxD): 368 x 330 x 645 mm (14.5" x 13" x 25.4")
  • External net volume: 78 liters
  • Weight: 25.5 kg (56 lbs 3 oz)
  • Acoustical Axis horizontal: 165 mm
  • Acoustical Axis vertical (from bottom): 183.5 mm

What's in the Box

• 1x KH 810 II AES67 Subwoofer
• 4x Mains Cables, black (EU/KR, UK, US and CN)
• 1x Safety Guide
• 1x Supplement “Getting Started Quickly”
