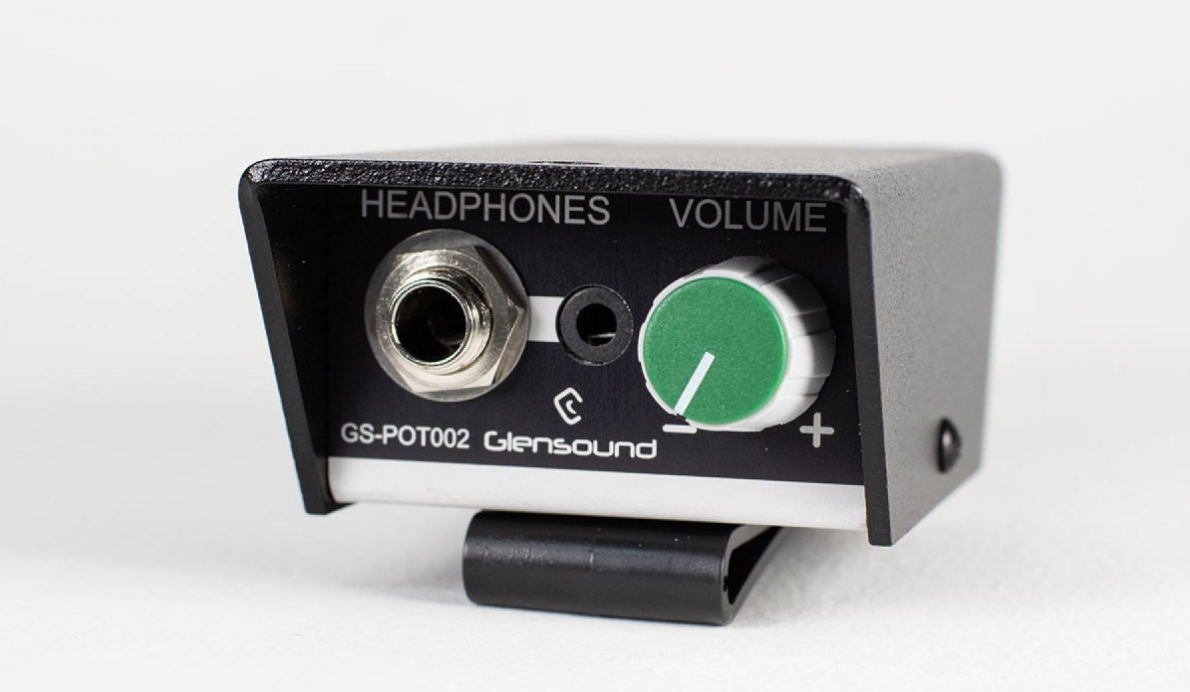

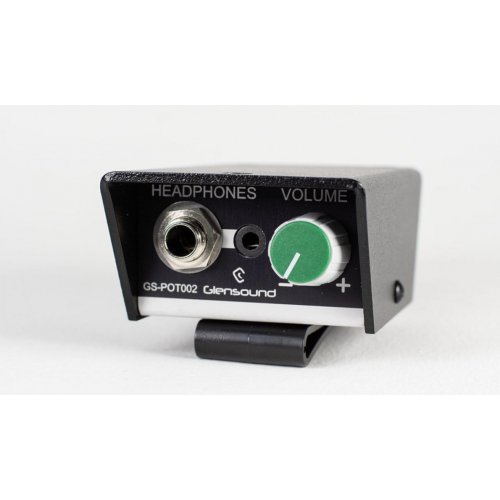

Glensound GS-POT001 & GS-POT002 Headphone Pot Box
Model: GS-POT001 & GS-POT002
About: Glensound GS-POT001 & GS-POT002 Headphone Pot Box
Glensound GS-POT001 & GS-POT002 are compact, rugged headphone potentiometer (POT) boxes designed for remote audio monitoring in professional broadcast environments. Both units provide local volume control for headphones or earpieces and are ideal for desktop, under-desk, or belt-mounted use, thanks to their protective metal overhang and included belt clip.
Features
- Adjustable volume control for headphone or earpiece monitoring
- Full-size volume/pan knob for tactile control
- 6.35mm jack socket for standard headphones
- 3.5mm jack socket for mono earpiece
- Audio input via female XLR connector
- Loop output via male XLR connector to pass through audio if needed
- Front and rear overhang design to protect connectors
- Mounts on or under desk; includes belt clip for mobile use
Model Variants
- GS-POT001: Acts as a balance/pan control between two input channels. When panned fully left or right, the corresponding input feeds both ears. In intermediate positions, it mixes both left and right inputs into both ears at variable levels.
- GS-POT002: Standard stereo attenuator controlling overall level from a stereo source to the headphones—expected behavior for typical POT boxes.
Specifications
| Headphone Outputs | 1 x 6.35mm stereo jack, 1 x 3.5mm mono jack |
|---|---|
| Audio Input | Female 3-pin XLR (unbalanced audio) |
| Loop Output | Male 3-pin XLR |
| Dimensions | 80 mm (L) x 55 mm (W) x 35 mm (H) excluding belt clip, 45 mm including |
| Mounting | Belt clip included; desktop or under-desk mountable |
