Universal Audio Volt 2 Max 10-in/4-out USB Audio Interface

About: Universal Audio Volt 2 Max 10-in/4-out USB Audio Interface

The Universal Audio Volt 2 Max is a next-generation desktop USB audio interface with two Tone Shaping Preamps, a Smart Display with bright visual feedback, and Max dynamics processing. Taken together, it packs the rich, full sound of a pro studio into the smallest footprint possible.

• 10-in / 4-out desktop USB audio interface with professional 32-bit / 192 kHz audio conversion
• Two Tone Shaping Preamps with 60 dB gain and three harmonic character modes — Warmth, Focus, and Shine — for the rich sounds of classic analog mic preamps at the source
• Max Processing — onboard realtime compression with six musical presets for vocals, guitars, and bass, modeled on classics like the LA-2A and 1176
• Over 18 character combinations by pairing Tone and Max, all completely noise-free
• Two mic / line inputs with two front-panel Hi-Z instrument inputs
• Built-in talkback microphone for effortless studio communication
• ADAT or S/PDIF optical input for up to eight channels of digital expansion, plus MIDI In and Out
• Onboard USB hub for connecting peripherals and powering external MIDI controllers
• Full-color Smart Display for bright, at-a-glance visual feedback, including gain-reduction metering
• Auto-Gain and Clip Protection for perfect recording levels, every time
• Two studio-quality headphone outputs (with one shared cue mix) for monitoring and collaboration
• Full integration with the UAD Console app and LUNA, including session recall and low-latency cue mixes
• Built-in loopback for podcasting, streaming, and content creation
• Independent 48V phantom power per channel for condenser microphones
• USB bus-powered and class-compliant for easy setup with Mac, Windows, iPad, and iPhone*
• Stylish, rugged construction built to withstand years of use

Built by the same Universal Audio team as legendary Apollo interfaces, Volt Max gives you studio mic preamp tones and classic compression at the push of a button. And when it's time to commit, you get the perfectly tailored suite of award-winning UAD plug-ins and the LUNA Digital Audio Workstation.

Our second generation of Volt USB audio interfaces give your recordings incredible studio tone right out of the box. Volt starts with pristine 32-bit audio conversion, then opens up a world of colorful UA sound with Tone Shaping preamps, Max dynamics processing, and a Smart Display that always shows you the way.

With Volt, you'll sound like an absolute legend, literally at the push of a button.

• Tone Shaping Preamps: Get the rich character of a record, not a demo.
• Max Processing: Record with classic compressor presets tuned for vocals, guitar, and bass.
• Full 32-Bit Audio: Hear your performance in incredible detail with legendary UA quality.
• Mics, Instruments & More: Capture your vocals and instruments simultaneously, connect instruments over MIDI, and add inputs over ADAT.
• Smart Display: Select channels and set levels fast with bright visual feedback.
• Auto-Gain & Clip Protection: Never worry about signal peaks ruining your take again.
• Mobile Ready: Record anywhere with USB bus power — no external power supply needed.*
  • *Requires an Apple Lightning to USB Camera Adapter (except iPhone / iPads with USB-C).
  • *Windows systems use the ASIO driver, available in the UA Connect app.
• Easy to Use: Quickly connect and record using your favorite music apps.
• Premium UAD Software: Get the same EQs, compressors, synths, and guitar amps used by the pros, plus the award-winning LUNA DAW.

Studio Sound at the Push of a Button

Home recordings and phone demos can sound thin and lifeless. Volt Max gives your recordings incredible tone right from the start. With three harmonic mic preamp modes — Warmth, Focus, and Shine — you can quickly add Tube, Solid State, and British Class-A tone to everything you record.

Add Punch with Max Processing

Volt Max lets you punch up your vocals, guitars, bass, and other sources as you track, thanks to Max dynamics processing. With six push-button presets ranging from “Rap Vocals” to “Jangly Acoustic,” you’ll get big, radio-ready sounds based on our venerable 1176 and LA-2A studio compressors. Combined with its three preamp modes, it puts 18 inspiring sonic possibilities right at your fingertips.

Hear Every Detail with 32-Bit Converters

When you capture that perfect take, Volt Max’s best-in-class 32-bit / 192 kHz converters preserve every detail, exactly as it happened. And with loud, clear speaker and headphone outputs, you’ll get the perfect monitoring levels, from your first take to your final mix.

Start Small, Expand When You’re Ready

With Volt Max, your audio interface never becomes a bottleneck. Use its dual mic and Hi-Z instrument inputs to record multiple vocalists and instruments at the same time. Tap into clean 48V phantom power for your fancy studio condenser mics. Connect your controllers and synths over MIDI. And with ADAT you can add eight more digital inputs, should the need arise.

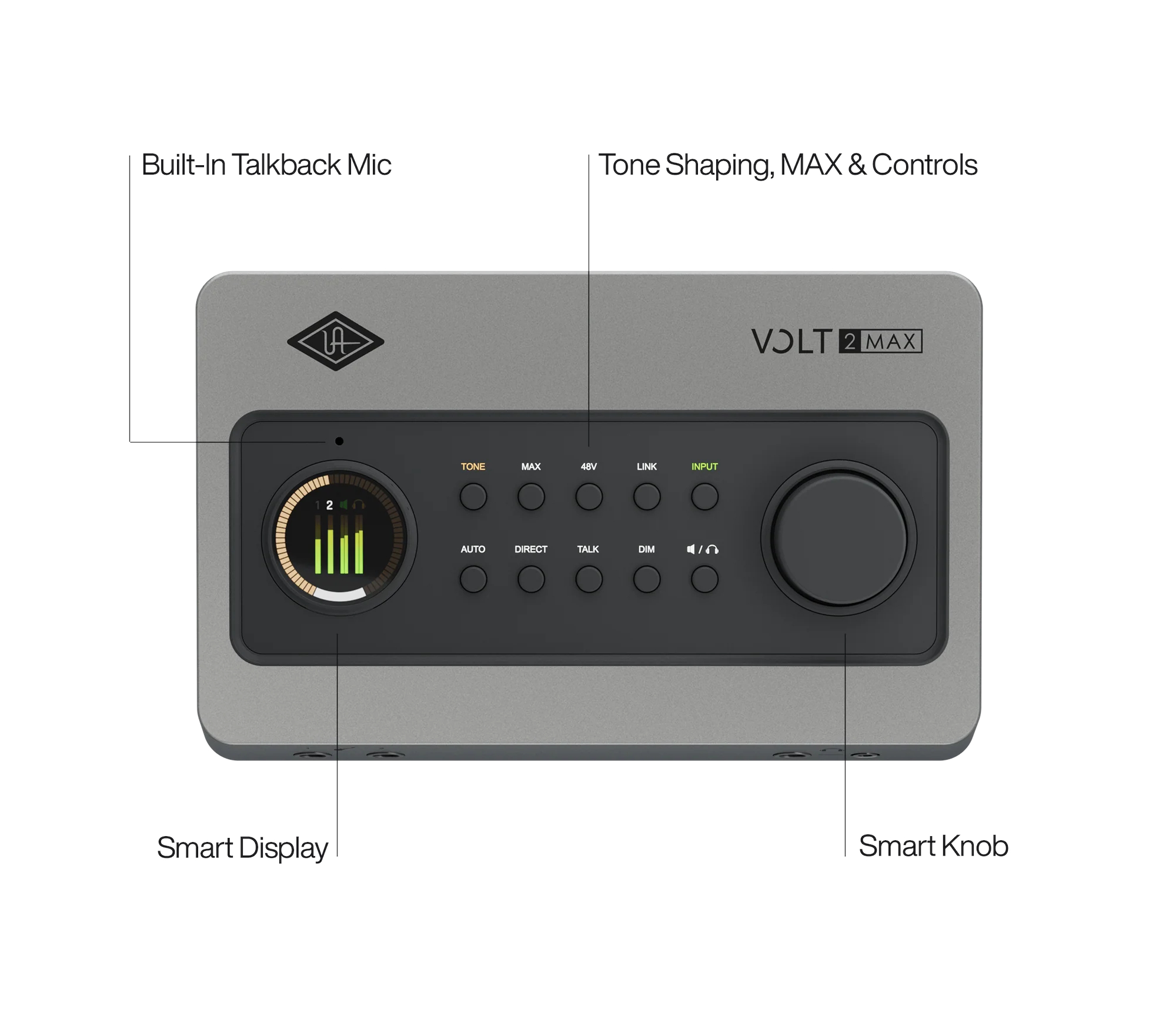

See the Big Picture with Smart Display

Volt Max’s beautiful full-color Smart Display shows your inputs, levels, and settings in detail. So you spend less time setting up and more time creating.

Get the Perfect Levels with Auto-Gain

Nothing’s worse than a perfect take wrecked by digital distortion. Auto-Gain sets your recording levels in seconds, and Clip Protection catches unexpected peaks. So you can focus on the performance instead of the meters.

Turn Anywhere You Go into a Studio

Volt 2 Max is bus-powered. That means you don’t need a power outlet or external power supply to make music. Or even a studio space. Just plug Volt Max into your computer, tablet, or phone, pull up a session and get to work.*

Start Making Music in Minutes

When you’re inspired, every second counts. Thankfully, Volt Max is ready, willing, and USB class-compliant on Mac, Windows, iPad, and iPhone.* No downloads or drivers. Works with any DAW. So you can be up and recording in minutes.

Shape Your Songs with UAD Plug-Ins and LUNA

Every Volt includes over 15 UAD plug-ins and instruments — the same software used to create and mix countless hit records for decades. Plus you get LUNA, our award-winning DAW with authentic “big studio” sound and smart tools designed to make recording easy.

Ideal for Podcasts and Livestreams

Volt Max’s Loopback feature allows you to blend live sources with computer audio. So you can mix podcasts and livestreams in realtime. Or just level up your video calls. There’s even a Talkback mic to communicate with talent. It’s the same way pro broadcasters work, built into every Volt.

• *Requires an Apple Lightning to USB Camera Adapter (except iPhone / iPads with USB-C). Windows systems use the ASIO driver, available in the UA Connect app. Requirements for bus-power vary by model and device.

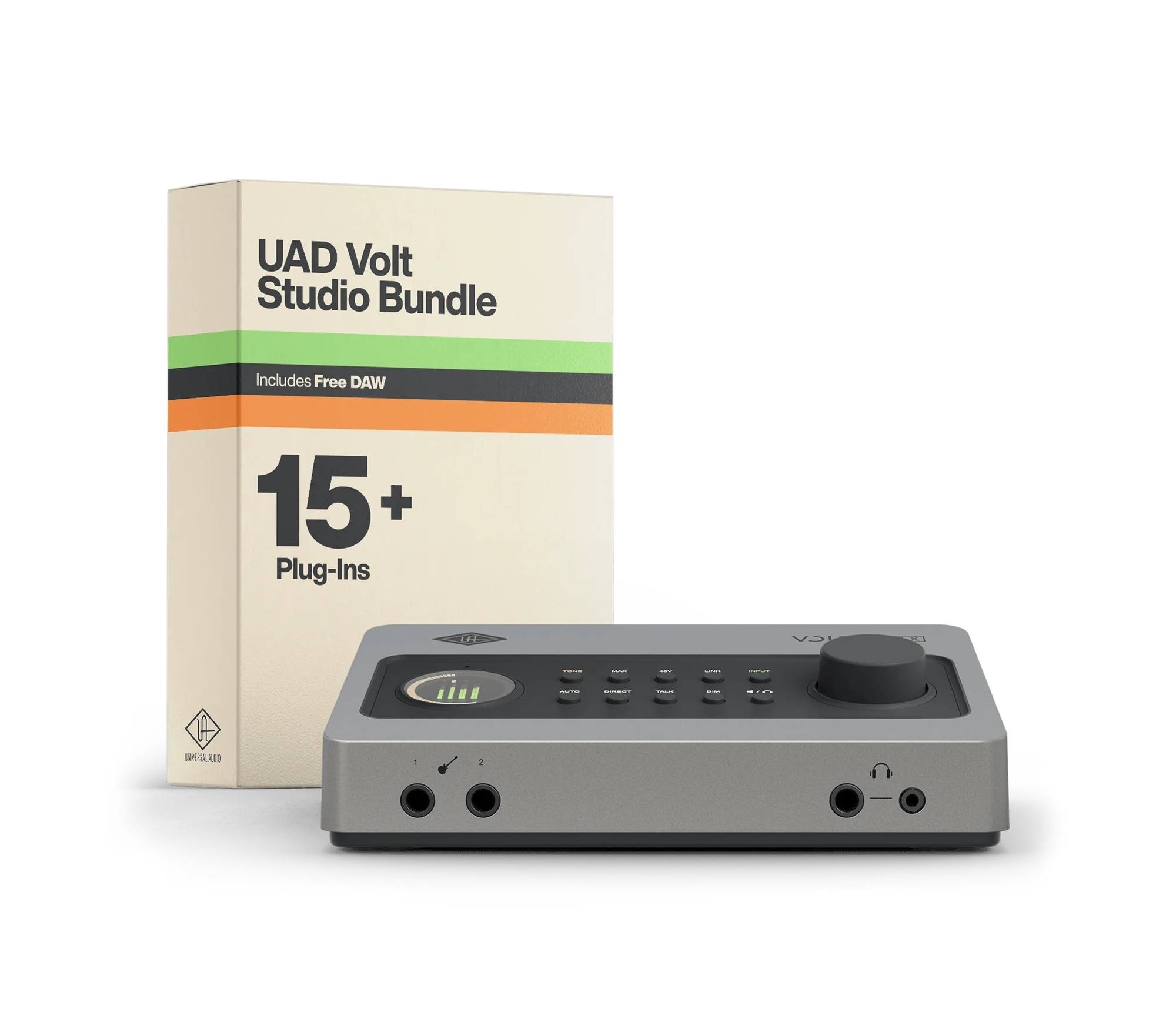

Included Volt Software (Subject to Change)

• UAD Volt Studio Bundle
  • LUNA Free
  • Topline Vocal Tune
  • UA 610 Tube Preamp & EQ Collection
  • Century Tube Channel Strip
  • Teletronix LA-2A Tube Compressor
  • UA 1176 Classic FET Compressor
  • Pure Plate Reverb
  • Galaxy Tape Echo
  • Oxide Tape Recorder
  • Vibe Analog Machines
  • Vibe Analog Machines Essentials
  • PolyMAX Synth
  • Anthem Analog Synth
  • UAD Lion '68 Super Lead Amp
  • UAD Showtime ’64 Tube Amp
• Additional Software
  • Melodyne Essential by Celemony
  • Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance (Includes Ampeg SVT-VR Classic, bx_Tuner, bx_Masterdesk_Classic)
  • Virtual Drummer DEEP by UJAM
  • Virtual Bassist DANDY by UJAM
  • Splice INSTRUMENT
  • Prisma - Producer Lab by UVI
  • FL Studio Producer Edition (3 months free)
  • Access to exclusive Puremix audio education content

Specifications

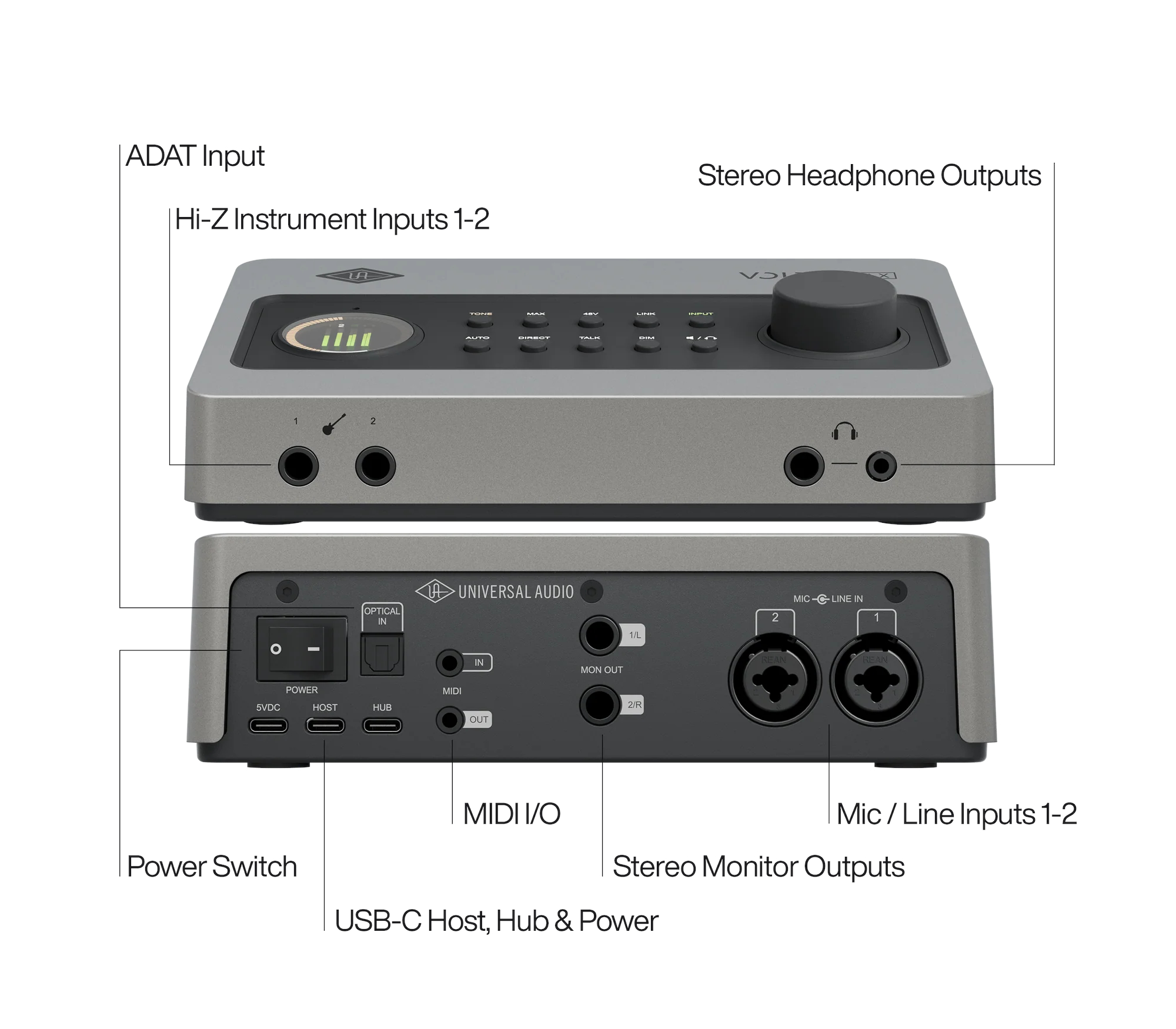

• I/O
  • Simultaneous I/O: 10-in / 4-out
  • Microphone Preamps: Two, 60 dB available gain with Tone Shaping, Harmonic Saturation, and Max Compression
  • Monitor Outputs: One stereo
  • Headphone Outputs: Two stereo (one shared cue mix)
  • USB:
    • One USB 2.0 host port (bus-power capable)
    • One USB 5VDC power port
    • One USB hub port
  • Digital / Optical: ADAT or S/PDIF optical input
    • ADAT IN: 8 channels at 44.1 and 48 kHz - S/MUX capable 4 channels at 96 kHz - S/MUX capable 2 channels at 192 kHz
    • S/PDIF IN: 2 channels at all supported sample rates
  • MIDI: In, Out, 1/8" TRS Mini-Jack MIDI Type A
  • Talkback: Built-in microphone
• A/D – D/A Conversion
  • Supported Sample Rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
  • Bit Depth: 32
• Power
  • USB Bus-Powered: Yes
  • Power Consumption (@ 5VDC): 4.1W typical, 5.7W maximum
  • On / Off Switch: Yes - Rear Panel
• Analog I/O
  • Instrument Input 1-2
    • Frequency Response: 20 Hz to 20 kHz ±0.02 dB
    • Dynamic Range (A–weighted): 116 dB
    • THD + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004%)
    • Maximum Input Level: 13 dBu
    • Input Impedance: 1 Megohms
    • Available Gain (Digitally-controlled): 60 dB
    • Connector Type: 1/4" TS unbalanced
  • Microphone Input 1-2
    • Frequency Response: 20 Hz to 20 kHz ±0.08 dB
    • Dynamic Range (A–weighted): 119 dB
    • THD + Noise (1 kHz @ -1 dBFS): -110 dB (0.0003%)
    • Maximum Input Level: 14 dBu
    • Input Impedance: 2 Kilohms
    • Available Gain (Digitally-controlled): 60 dB
    • Phantom Power: +48V (switchable per channel)
    • Connector Type: XLR Combo Jack, pin 2 positive
  • Line Input 1-2
    • Frequency Response: 20 Hz to 20 kHz ±0.05 dB
    • Dynamic Range (A–weighted): 119 dB
    • THD + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004%)
    • Maximum Input Level: 22 dBu
    • Input Impedance: 10 Kilohms
    • Available Gain (Digitally-controlled): 60 dB
    • Connector Type: 1/4" Combo Jack TRS balanced or TS unbalanced
  • Monitor Outputs
    • Frequency Response: 20 Hz to 20 kHz ±0.05 dB
    • Dynamic Range (A–weighted): 126 dB
    • THD + Noise (1 kHz @ -1 dBFS): -112 dB (0.0003%)
    • Maximum Output Level: 20.2 dBu
    • Output Impedance: 200 Ohms
    • Connector Type: 1/4" TRS balanced (DC coupled)
  • Headphone Output
    • Frequency Response: 20 Hz to 20 kHz ±0.08 dB
    • Dynamic Range (A–weighted): 116 dB
    • THD + Noise (1 kHz @ -1 dBFS into 300Ω): -103 dB (0.0007%)
    • Maximum Output Power into 32Ω: 45 mW
    • Maximum Output Power into 300Ω: 24 mW
    • Connector Type: 1/4" and 1/8" TRS stereo unbalanced (DC coupled)
• System Requirements
  • macOS & Windows
    • Available USB 2.0 (or higher) port
    • USB cable (included)
    • Intel, AMD, or Apple silicon processor
    • Windows 10 64-bit edition or newer
    • macOS 12 Monterey or newer
    • Internet connection for software downloads
  • iPad & iPhone
    • iPadOS / iOS 16 or newer
• DAW Compatibility
  • All major DAWs, including Ableton Live, FL Studio, GarageBand, Logic Pro, Pro Tools, and more
• Mechanical
  • Dimensions (WxDxH): 7.5 x 4.5 x 2.1 in (19.1 x 11.5 x 5.4 cm)
  • Weight: 1.3 lbs (0.6 kg)

What's in the Box

• Volt 2 Max USB audio interface
• One-meter USB cable (Type-C to Type-C)
• Important safety instructions
• End-user license agreement
