Fender Quantum LT 16 USB-C Audio Interface

About: Fender Quantum LT 16 USB-C Audio Interface

The Fender Quantum LT 16 is the ultimate interface in the LT series, built for project studios, multi-instrument setups, and electronic musicians who demand maximum flexibility. With eight MAX-HD mic preamps offering a massive 75 dB of gain — the most in its class — LT 16 captures pristine sound from large ensembles, drum kits, or multi-mic sessions. Fender-designed instrument inputs and professional-grade converters ensure guitars, basses, and all your sources sound natural and dynamic.

• 16 x 8 USB-C Interface – Ultra-low-latency custom drivers
• Eight MAX-HD Mic Preamps with 75 dB Gain – Transparent, low-noise recording for large sessions
• A Total of 14 Line Inputs – for easy connection of mic pres, synths, mixers, and other line-level devices:
  • 6 front panel XLR/TRS (combo jacks 3–8)
  • 8 rear panel TRS inputs with switchable 4 dBu / -10 dBV operation
• Dual Fender-Designed Instrument Inputs – Optimized for guitars, basses, and other instruments
• Balanced TRS Outputs & Headphone Monitoring – Professional-quality, flexible monitoring
• Loopback Audio – Streaming, podcasting, and mix routing
• Standalone Mixer Mode & Mic Pre Mode – Analog mixing or 8-channel mic preamp operation
• DC-Coupled Outputs – Integrate modular synths and analog gear
• 5-Pin MIDI I/O – Hardware integration without external MIDI interface
• Fender Studio Pro Perpetual Included – Professional DAW with Mustang and Rumble plug-ins
• Built-in MyFender Access – Quick setup, registration, and support

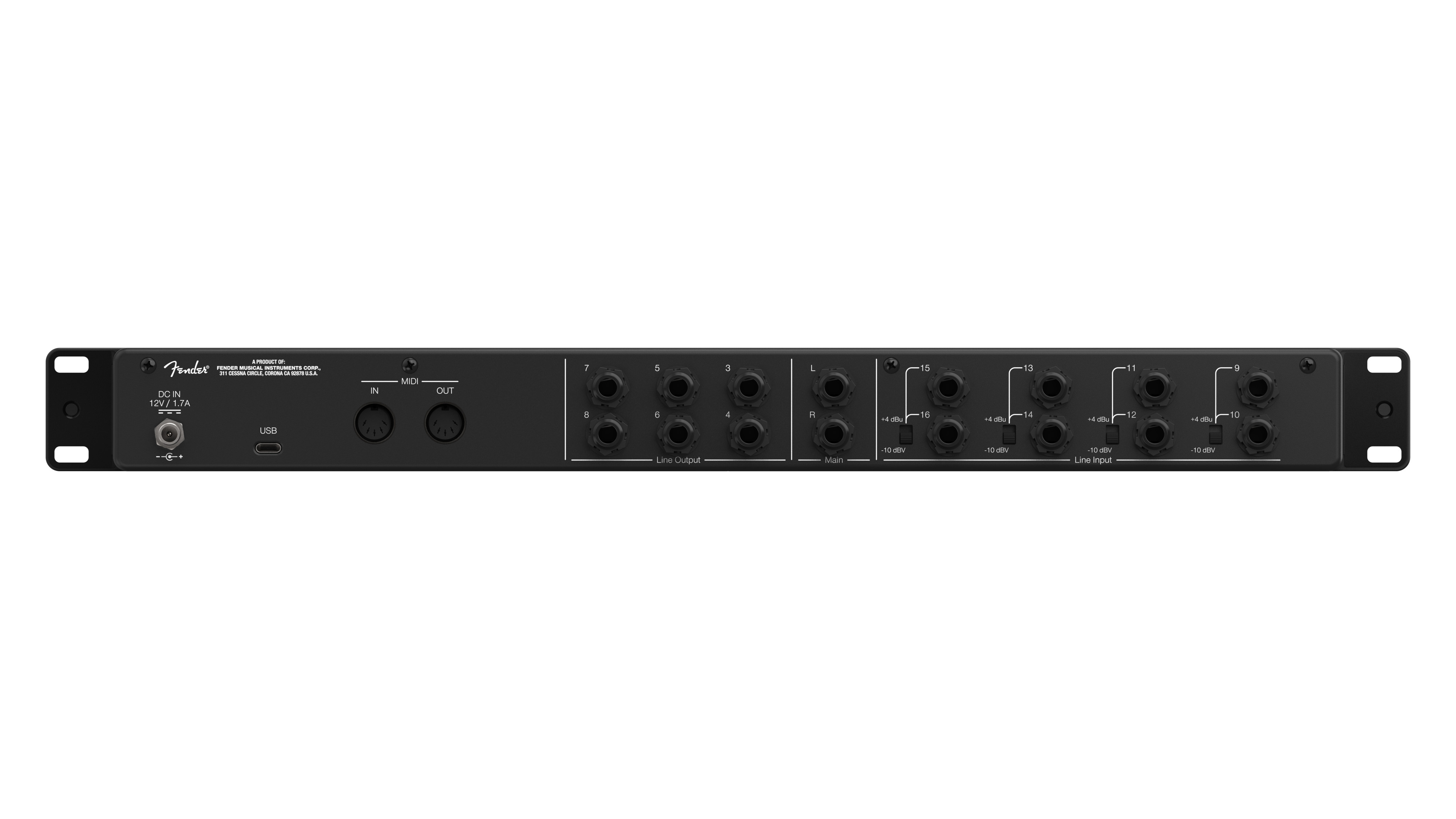

In addition to the six front panel line inputs, the LT 16 features eight rear panel TRS analog line inputs for effortless integration with outboard gear such as external mic preamps, synthesizers, mixers, or other line-level devices — expanding your studio’s sonic palette without complicating your setup.

Fender Quantum LT’s blazing-fast, custom low-latency drivers provide an ultra-responsive recording experience, while balanced TRS outputs and a powerful headphone amp give you versatile monitoring options. LT 16 also unlocks exclusive features: Standalone “Mic Pre Mode” transforms it into an 8-channel mic preamp, DC-coupled outputs bring CV control to your modular synth rig, and 5-pin MIDI I/O ensures seamless hardware integration. A perpetual license for Fender Studio Pro is included, offering a professional DAW with exclusive Mustang and Rumble plug-ins.

EIGHT MAX-HD MIC PREAMPS

With eight newly designed mic preamps offering 75 dB of gain, the LT 16 provides pristine capture for large projects — from full bands to detailed multi-mic setups.

FOURTEEN TRS ANALOG LINE INPUTS

Easily integrate outboard gear like external mic preamps, synthesizers, mixers, or other line-level devices, expanding your creative possibilities without complicating your workflow.

FENDER STUDIO PRO INCLUDED

Get creating immediately with a perpetual license for Fender Studio Pro. Record, produce, mix, and perform in a pro DAW featuring lightning-fast workflow, inspiring tools, and exclusive Mustang Guitar and Rumble Bass amp plug-ins.

DC-COUPLED LINE OUTPUTS

Connect to modular and analog synth gear with DC-coupled outputs that can send control voltage directly from your DAW, bridging digital and analog creativity.

5-PIN MIDI I/O

Easily integrate keyboards, drum machines, and hardware sequencers with traditional MIDI devices, no external MIDI interface required.

STANDALONE “MIC PRE MODE”

Use the LT 16 as an 8-channel standalone mic preamp, making it a powerful addition to hybrid recording rigs and expanding your studio’s input options.

Specifications

• AD/DA CONVERSION
  • Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
  • Converter Resolution: 24-bit
• INPUTS
  • Instrument Inputs
    • Connector Type: 1/4-inch Female
    • Maximum Input Level: +22dBu
    • Frequency Response: 20 Hz to 20 kHz
    • Dynamic Range: 114 dB
    • THD + N: 0.001%
    • Input Impedance: 1M Ohms
  • Microphone Inputs
    • Connector Type: Combo-style, XLR / TRS (digital control, +75 dB mic range)
    • Maximum Input Level: +18dBu
    • Gain Range: 0 to +75 dB
    • Frequency Response: 20 Hz to 20 kHz
    • Dynamic Range: 115 dB
    • THD + N: 0.001%
    • EIN: -128.6 dBu
    • Input Impedance: 1600 Ohms
    • Phantom Power: 48V
  • Line Inputs
    • Connector Type: Combo-style, XLR / TRS
    • Maximum Input Level: +18dBu
    • Frequency Response: 20 Hz to 20 kHz
    • Dynamic Range: 115 dB
    • THD + N: 0.001%
    • Gain Range: 0 to +26 dB
    • Input Impedance: 10K Ohms
• OUTPUTS
  • Main Outputs
    • Connector Type: 1/4-inch Female, TRS
    • Maximum Output Level Quantum: +18dBu
    • Frequency Response: 20 Hz to 20 kHz
    • Dynamic Range: 115 dB
    • THD + N: 0.001% (1 kHz, +4 dBu)
    • Trim Range: -∞ dB to 0 dB
  • Line Outputs
    • Connector Type 1/4-inch Female, TRS (DC-coupled)
    • Maximum Output Level +18 dBu (Balanced)
    • Frequency Response 20 Hz to 20 kHz
    • Dynamic Range 115 dB
    • THD + N 0.001%
    • Output Impedance 51 Ohms
    • Trim Range -∞ dB to 0 dB
  • Headphone Outputs
    • Connector Type 1/4-inch Female, TRS (1-4)
    • Maximum Output Level: 142 mW/channel
    • Frequency Response: 20 Hz to 20 kHz
    • Dynamic Range: 114 dB
    • THD + N: 0.001%
    • Output Impedance: 33 Ohms
    • Trim Range: -∞ dB to 0 dB
• DIGITAL I/O
  • MIDI I/O
    • Connector Type 5-pin DIN (off DB-9)
• Dimensions (HxDxW): 1.7 x 5 x 19 inch (43 x 127 x 483 mm)
• Weight: 4.85 lbs (2.2 kg)

What's in the Box

• Quantum LT 16 Audio Interface
• USB-C to USB-C cable (1.5m)
• Power Supply
• Quick Start Guide
• Health, Safety and Compliance Guide
