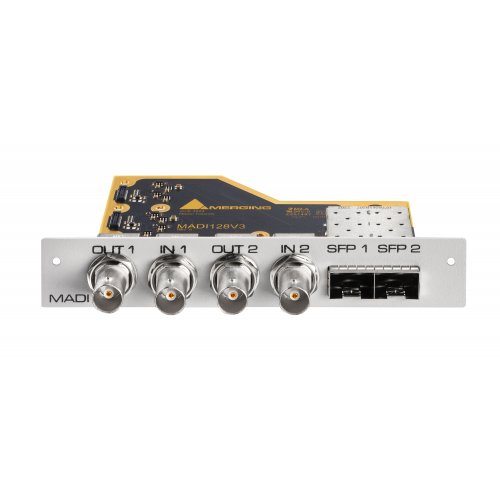

Merging Technologies MADI V3 Expansion Card 128 Channels with two SFP cages
Model: 700527
About: Merging Technologies MADI V3 Expansion Card 128 Channels with two SFP cages

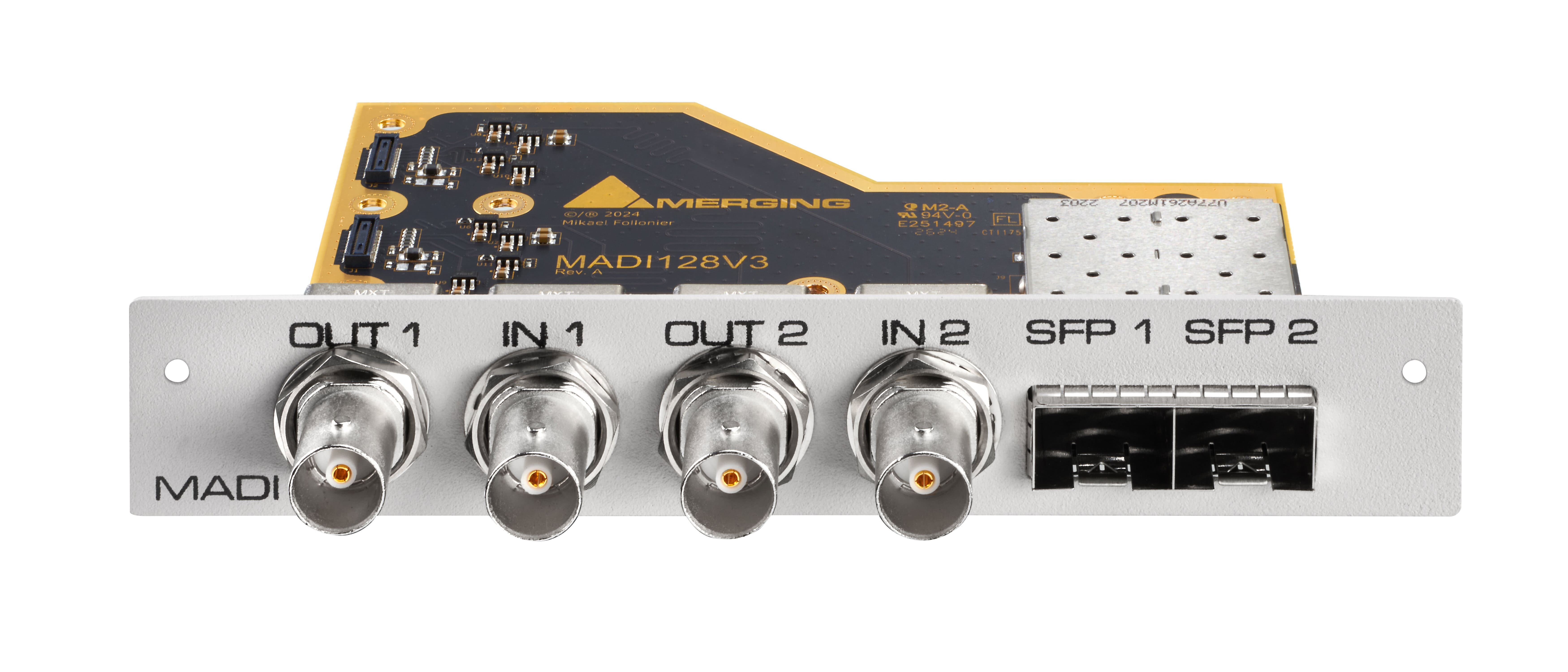

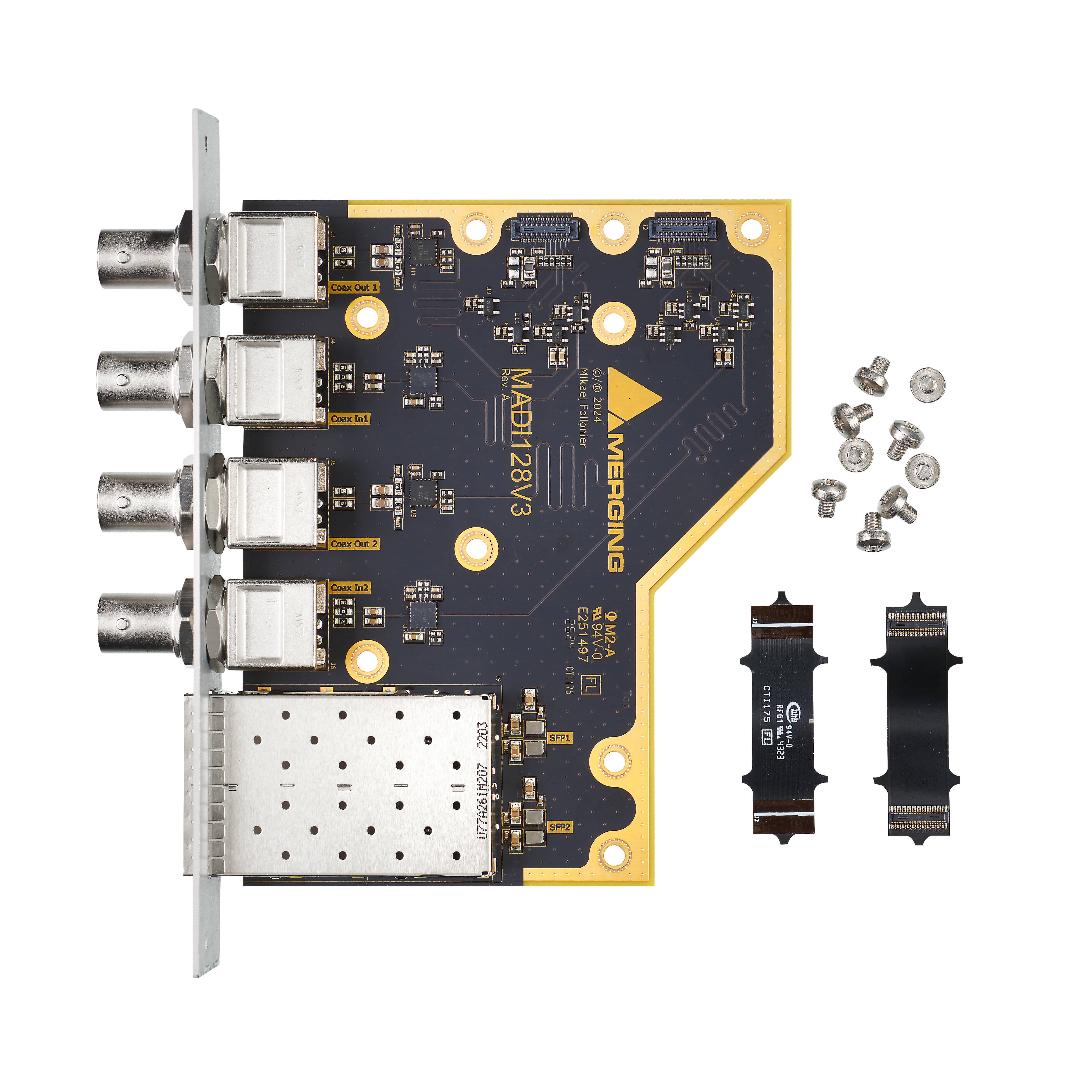

The Merging MADI128V3 expansion card doubles the total MADI channel count to up to 128 inputs and 128 outputs @1FS for Hapi MkIII. The MADI128V3 is also equipped with a two slots Small Form-factor Pluggable (SFP) cages, suitable SFP modules can be fitted. SFP transceivers for optical multi-mode or single-mode for transmission or mini BNC for coaxial transmission are not included.
Features
- Two pairs of MADI Coaxial inputs and outputs (4 X BNC connectors)
- 128 discrete channels of digital input and output (extended mode) at 1FS
- Up to 384 kHz sampling rate
- 24-bit resolution
- Fully compliant MADI (AES 10-1991)
- 2 x SFP Cages slots.
Specifications
- Coaxial*
- IO Channels at 44.1/48kHz 128
- IO Channels at 88.2/96kHz 64
- IO Channels at 176.4/192kHz 32
- IO Channels at DXD/384kHz 16
- * Recommeded cables for EMC compliancy 75Ω. Typically: RG7, RG59,RG179
- SFP**
- IO Channels at 44.1/48kHz 128
- IO Channels at 88.2/96kHz 64
- IO Channels at 176.4/192kHz 32
- IO Channels at DXD/384kHz 16
- ** Recommended SFP modules listing available
