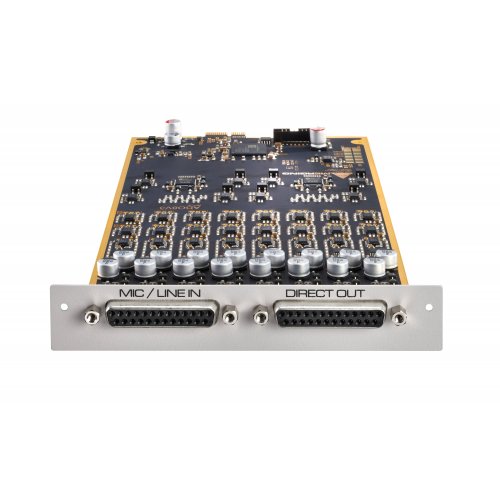

Merging Technologies 8ch Mic/Line A/D V3 Expansion Card w/ Direct Outs DSD/DXD

About: Merging Technologies 8ch Mic/Line A/D V3 Expansion Card w/ Direct Outs DSD/DXD

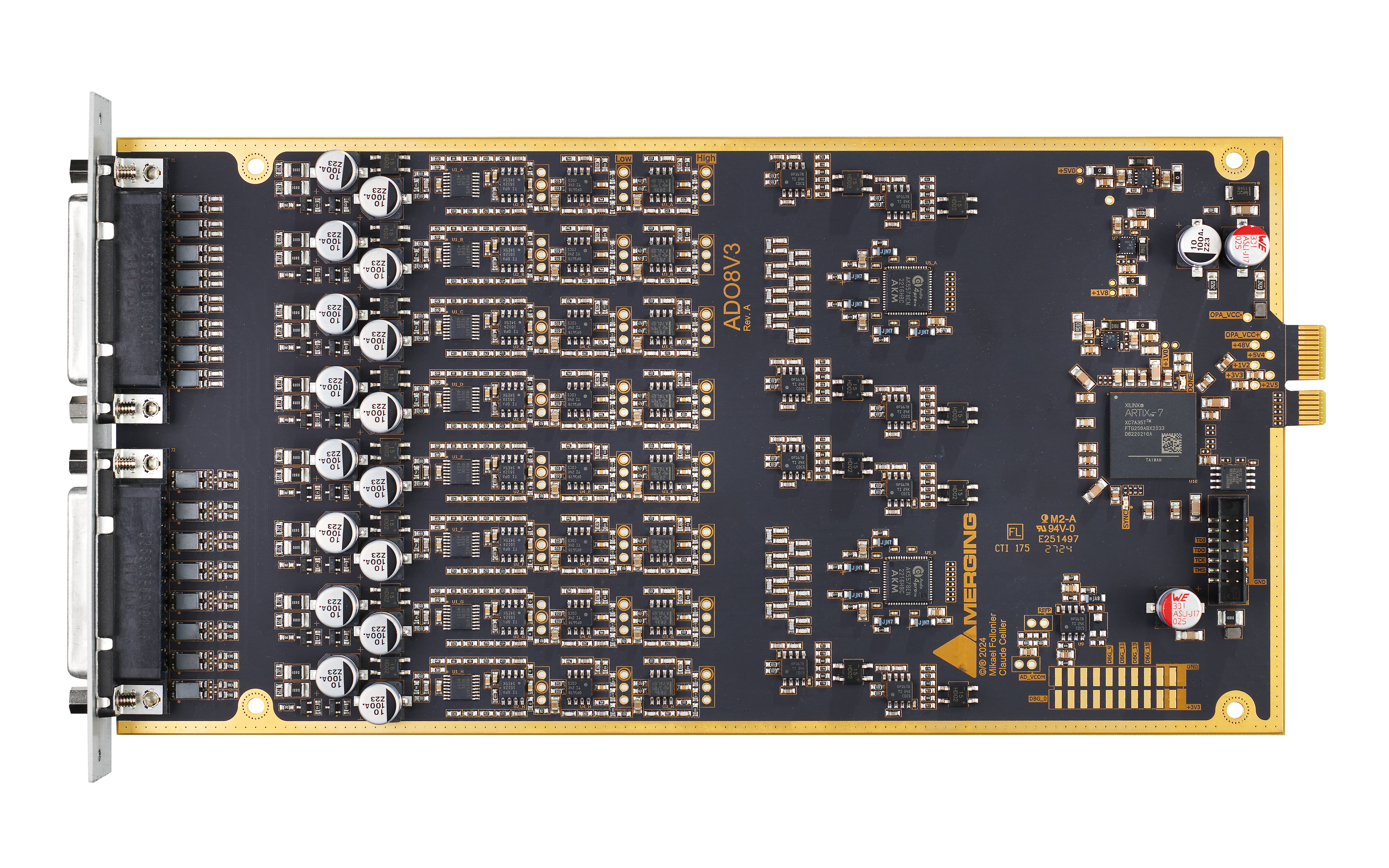

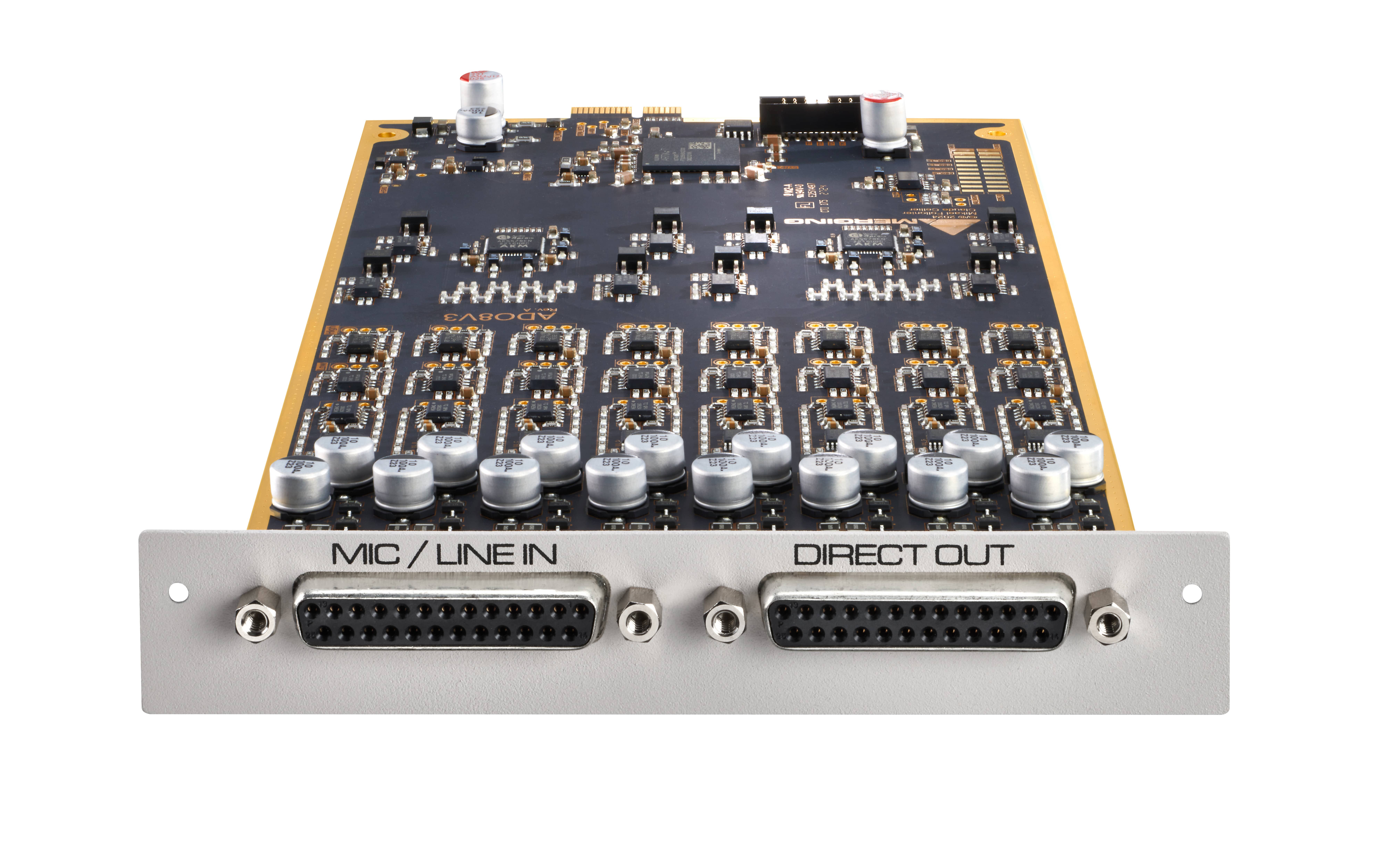

The ADO8V3P input card is an outstanding addition to the Merging Hapi Mk III audio mainframe.

With 8 mic/line inputs, it delivers unparalleled audio quality and a dynamic range of an impressive 139 dB (A).

The Swiss-designed preamps offer up to 78 dB of gain with exceptional transparency, thanks to Merging’s unique 3rd generation dual gain topology design. Its remote accessibility allows you to easily adjust all parameters for each channel. The ADO8V3P sets a new standard in audio circuit design, and it even includes analog direct outs (post-mic-pre) for monitoring or external processing.

The Premium card ADO8V3P has superior specifications and supports sample rates up to 352.8 kHz (DXD) and 384 kHz as well as bitstream formats up to DSD256.

Features

• 8 exceptionally transparent, Swiss-designed preamplifiers
• Up to 78 dB of gain (with Boost)
• Remote/local switch to line level on a per-channel basis
• Full remote access for all parameter changes
• Phantom power/polarity invert/low cut/impedance switchable per channel
• Removes the need for DI-boxes
• Direct line out for each channel (post mic preamp)
• Dynamic range of 139 dB (A-weighted, typ.)
• Auto-mute circuitry for “no-pop” power cycling
• Preamps MIDI remote control support
• 2x 25-pin Sub D connector
• Sample rates up to 352.8 kHz (DXD), 384 kHz; DSD64, DSD128 and DSD256
• Each Premium card is measured for the highest specs and smallest tolerances!

Specifications

• Mic Pre-Amp + ADC
  • Mic Pre Max Input
    • (Mic+Pad / Mic / Boost): +24 dBu / +12 dBu / +0 dBu
    • (Pad On; Pad Off): > 3 kΩ; 10.4 kΩ
    • Input Impedance (Zlo; ZHi): > 3 kΩ; 10.4 kΩ
  • Dynamic Range
    • (flat 20 Hz-20 kHz): > 134 dB
    • (A-weighted, typ): 136 dB
    • Gain Range (software controlled): 0 dB to +66 dB
    • Gain Precision: ±0.2 dB
    • Gain Step: 0.5 dB
    • THD+N Pre + A/D (20 Hz-20 kHz) @ -2 dBFS: -110 dB (0.00031 %)/-112 dB (0.00025 %)
  • Interchannel Crosstalk
    • @ 1kHz, typ.: <-130 dB
    • @ 20Hz – 20 kHz: < -105 dB
    • EIN @ >40 dB Gain (150Ω Source Impedance, A-weighted, typ): -128 dBu
  • Common Mode Rejection Rate
    • @ 1kHz, typ.: 75 dB (up to -20 dBFS)
    • @ 20Hz – 20 kHz: > 60 / 65 dB (up to -20 dBFS)
    • Phantom Power (Software Switchable Per Channel): +48 Volts
    • Phase Reverse Switch (Software Switchable Per Channel): Yes
    • Low Cut filter (Software Switchable Per Channel): -12 dB/octave, 80 Hz
• Line Input
  • Frequency response
    • +0/-0.1dB @ fs = 44100 Hz: 5.7 Hz - 20.5 kHz
    • +0/-1.0dB @ fs = 44100 Hz: 1.8 Hz - 21.0 kHz
    • +0/-0.1dB @ fs = 96000 Hz: 5.7 Hz - 43.9 kHz
    • +0/-1.0dB @ fs = 96000 Hz: 1.8 Hz - 45.4 kHz
    • +0/-0.1dB @ fs = 192000 Hz: 5.7 Hz - 42.1 kHz
    • +0/-1.0dB @ fs = 192000 Hz: 1.8 Hz - 64.7 kHz
    • +0/-0.1dB @ fs = 384000 Hz: 5.7 Hz – 40 kHz
    • +0/-1.0dB @ fs = 384000 Hz: 1.8 Hz - 75 kHz
  • Max Line Input for 0 dBFS: +24 dBu
  • Input Impedance: 10.4 kΩ
  • Dynamic Range
    • (flat 20 Hz-20 kHz), ref +24 dBu: > 136 dB
    • (A-weighted, typ), ref +24 dBu: 139 dB
  • THD+N Line+A/D
    • (1 kHz) @ -2 dBFS, Typ.: -110 dB (0.00031%)
    • (20 Hz-20 kHz) @ -2 dBFS: < -107 dB
  • Interchannel Crosstalk
    • @ 1kHz, typ.: -130 dB
    • @ 20Hz – 20 kHz: < -100 dB
  • Sensitivity Range for 0 dBFS (software controlled): -42 dBu to +24 dBu
  • Gain Precision: ±0.2 dB
  • Gain Step: 0.5 dB
  • Common Mode Rejection Rate
    • @ 1kHz, typ.: 75 dB (up to -20 dBFS)
    • @ 20Hz – 20 kHz: > 65 dB (up to -20 dBFS)
  • Group Delay
    • (1FS): 5/fs
    • (2FS): 5/fs
    • (4FS) / Premium (8FS): 6/fs / 7/fs
• ADO8V3 Direct Out
  • Max Direct Output level typ.: +24 dBu / +12 dBu / +0 dBu
  • Output Impedance (Differential): < 100 Ω
  • THD+N (1 kHz) @ +10dBu: < -110 dB (0.00028 %)
  • Input Connector Pinout: DB-25 / AES59 (Tascam Ana.)
  • Direct Output Connector Pinout: DB-25 / AES59 (Tascam Ana.)
