Merging Technologies 8ch Mic/Line A/D & D/A V3 Expansion Card DSD/DXD

About: Merging Technologies 8ch Mic/Line A/D & D/A V3 Expansion Card DSD/DXD

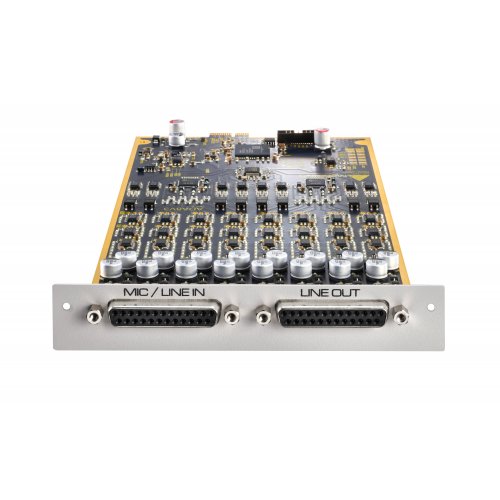

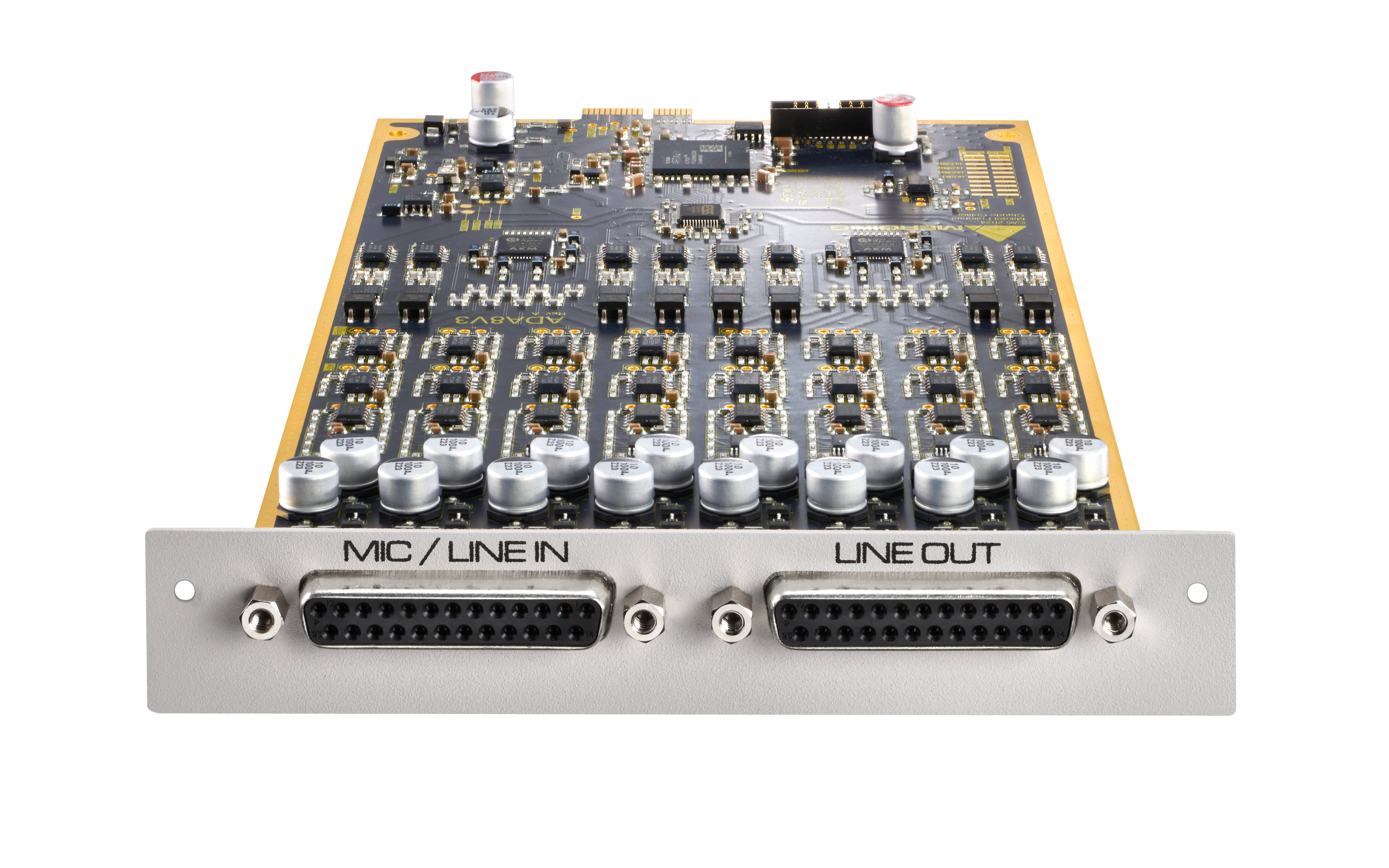

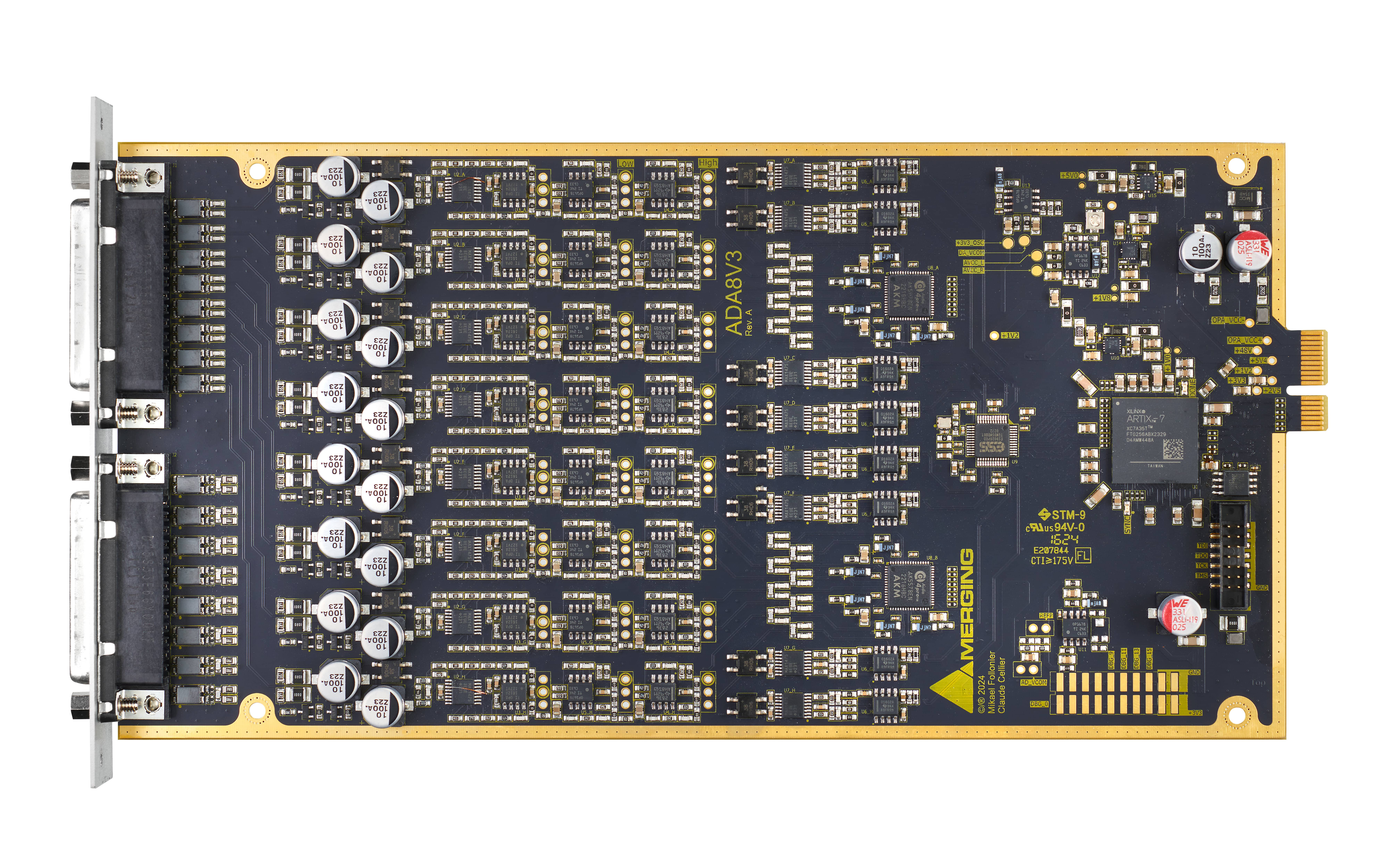

The ADO8V3P input card is an outstanding addition to the Merging Hapi Mk III audio mainframe.

With 8 mic/line inputs, it delivers unparalleled audio quality and a dynamic range of an impressive 139 dB (A).

The Swiss-designed preamps offer up to 78 dB of gain with exceptional transparency, thanks to Merging’s unique 3rd generation dual gain topology design. Its remote accessibility allows you to easily adjust all parameters for each channel. The ADO8V3P sets a new standard in audio circuit design, and it even includes analog direct outs (post-mic-pre) for monitoring or external processing.

The Premium card ADO8V3P has superior specifications and supports sample rates up to 352.8 kHz (DXD) and 384 kHz as well as bitstream formats up to DSD256.

Features

• 8 exceptionally transparent, Swiss-designed preamplifiers
• Up to 78 dB of gain (with Boost)
• Remote/local switch to line level on a per-channel basis
• Full remote access for all parameter changes
• Phantom power/polarity invert/low cut/impedance switchable per channel
• Removes the need for DI-boxes
• Direct line out for each channel (post mic preamp)
• Dynamic range of 139 dB (A-weighted, typ.)
• Auto-mute circuitry for “no-pop” power cycling
• Preamps MIDI remote control support

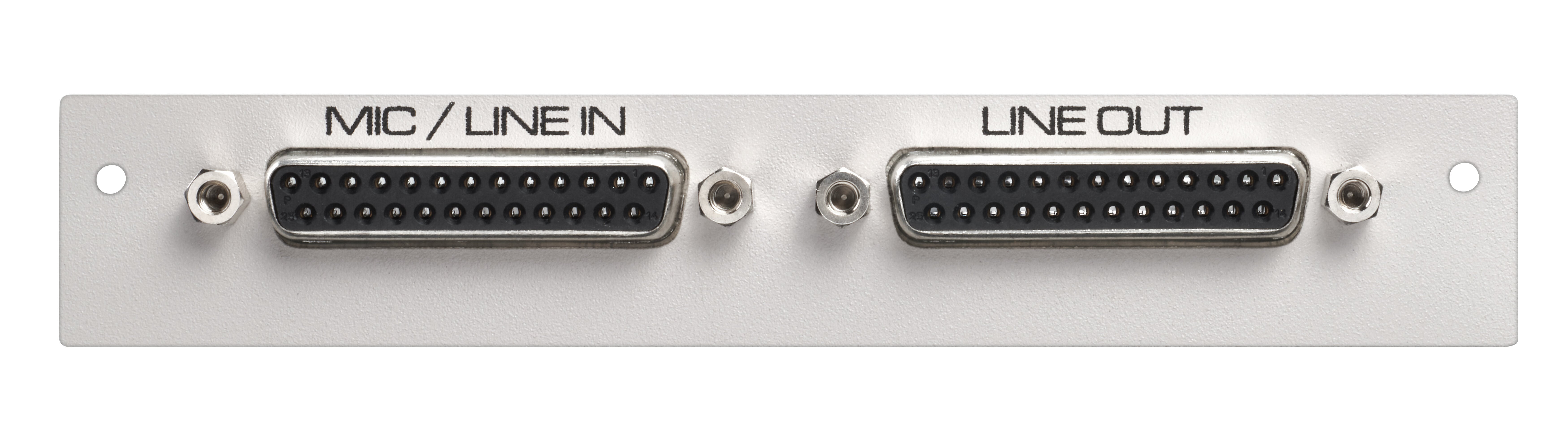

• 2x 25-pin Sub D connector
• Sample rates up to 352.8 kHz (DXD), 384 kHz; DSD64, DSD128 and DSD256
• Each Premium card is measured for the highest specs and smallest tolerances!

Specifications

• Mic Pre-Amp + ADC Section
  • Mic Pre Max Input (Mic+Pad / Mic / Mic Boost): +24 dBu / +12 dBu / +0 dBu
  • Input Impedance (Differential, Software Switchable Per Channel): ​3 kΩ / 10.4 kΩ
  • Frequency response +0/-0.3dB @ fs = 48 kHz: 9 Hz – 22 kHz
  • Frequency response +0/-0.3dB @ fs = 96 kHz: 9 Hz – 46 kHz
  • Frequency response +0/-0.3dB @ fs = 192 kHz: 11 Hz – 94 kHz
  • Dynamic Range (A-weighted, typ.), ref +12 dBu: 137 dB
  • Dynamic Range Mic Boost (A-weighted, typ.), ref 0 dBu: 128 dB
  • Gain Range (software controlled): 0 dB to +66 dB
  • THD+N Pre + A/D (20 Hz - 20 kHz) @ -2 dBFS: < -111 dB (0.00028 %)
  • Interchannel Crosstalk @ 1kHz: < -130 dB
  • EIN @ > 40 dB Gain (150Ω Source Impedance, A-weighted): < -127 dBu
  • Common Mode Rejection Rate (20 Hz – 20 kHz): > 75 dB
  • Phantom Power (Software Switchable Per Channel): +48V
  • Polarity Invert (Software Switchable Per Channel): YES
  • Low Cut filter (Software Switchable Per Channel): -12 dB/octave, 80 Hz
• Line Input
  • Max Line Input for 0 dBFS: +24 dBu
  • Input Impedance (Differential): 10.4 kΩ
  • Dynamic Range (A-weighted, typ), ref +24 dBu: 139 dB
  • THD+N Line+A/D (20 Hz - 20 kHz) @ -2 dBFS: < -111 dB (0.00028 %)
  • Interchannel Crosstalk @ 1kHz, typ.: < -135 dB
  • Sensitivity Range for 0 dBFS (software controlled): -42 dBu to +24 dBu
  • Gain Step: 0.5 dB
  • Common Mode Rejection Rate (20 Hz – 20 kHz): > 75 dB
  • Connector Pinout: DB-25 / AES59 (Tascam Ana.)
• Line Output Section
  • Max Output level software switchable for 0 dBFS: +24 dBu / +18 dBu +0/-0.5 dB
  • Frequency response +0/-0.3dB @ fs = 48 kHz: 0 Hz – 22 kHz
  • Frequency response +0/-3dB @ fs = 96 kHz: 0 Hz – 46 kHz
  • Frequency response +0/-3dB @ fs = 192 kHz: 0 Hz – 92 kHz
  • Output Impedance (Differential): < 80 Ω
  • Dynamic Range (A-weighted, typ.): 122 dB / 124 dB
  • THD+N (1 kHz) @ 0dBFS: < -117 dB (0.00014 %)
  • Interchannel Crosstalk @ 1kHz: < -139 dB
  • Connector Pinout: DB-25 / AES59 (Tascam Ana.)
• Latencies
  • Input latency at 44.1/48kHz: 8 samples
  • Input latency at 88.2/96kHz: 8 samples
  • Input latency at 176.4/192kHz: 8 samples
  • Output latency at 44.1/48kHz: 9* samples
  • Output latency at 88.2/96kHz: 9* samples
  • Output latency at 176.4/192kHz: 9* samples
    • * Filter setting
      • Slow Roll Off Filter option = 9 Samples
      • Sharp Roll Off Filter option = 38 Samples
