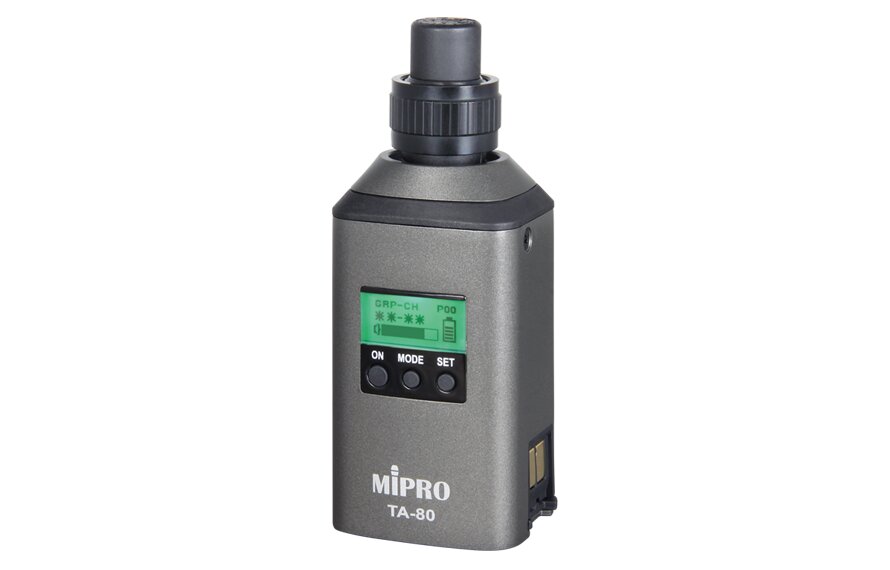

Mipro TA-80 UHF Digital Plug-On Transmitter (5UA)
Model: TA-80 - 5UA
About: Mipro TA-80 UHF Digital Plug-On Transmitter (5UA)
- The compact aluminum alloy housing that isolates RF spurious and noise interference, is equipped with a built-in high efficiency transmitting antenna and a green backlit LCD, which displays operation parameters. Operates in the UHF band and is compatible with ACT-800 Series digital receivers.
- Features a flat and wide frequency response, ultra-low THD and noise floor, fast transient response, and high S/N ratio. It solves the problems of tangling microphone cables and defects of analog transmission. Thus, it is an ideal gear to reproduce the natural sound of any premium wired microphone.
- A balanced XLR input jack for any condenser microphone to plug on.
- Compatible with various pick-up microphones, it also supplies several gain settings. Selectable 12 / 48 V phantom power at 10 mA for condenser microphones.
- A high-capacity lithium battery that enables up to 8 hours of use per charge. After use, directly plug it into the MP-8T charger to recharge or simply remove the battery or replace it with a full-charged battery. TA-80 has reverse polarity protection and battery replacement is fast and easy.
Specifications
- Frequency Band - UHF 480 – 960 MHz
- Bandwidth - 72 MHz
- RF Power Output - 10 / 50 mW switchable (country dependent)
- Gain Setting - -18 to 30 dB, 9 selectable settings
- AF Input Level - 2 V max. @ 0 dB
- Phantom Power - Selectable 12 V and 48 V @ 10 mA max.
- Battery - 18500 Li-ion battery
- Charger - MP-8T
- Dimensions (W × H × D) - 44 × 114 × 37 mm
- Weight - Approx. 180 g
