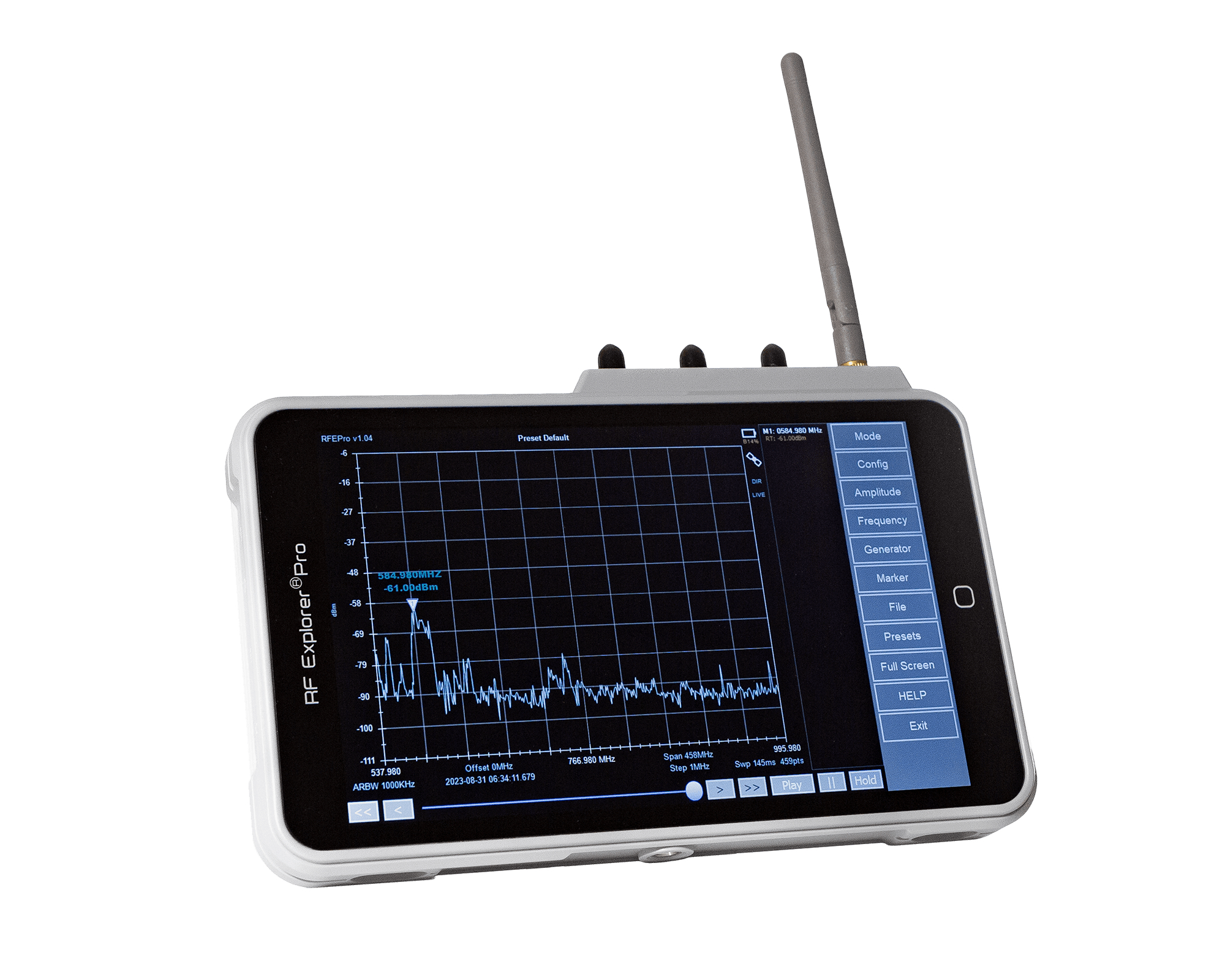

RF Explorer Pro is an advanced, 3rd generation, high-performance multi-purpose instrument. With its integrated Spectrum Analyzer, Signal Tracking Generator, and Power Meter, this device offers advanced functionality in a user-friendly high-resolution touch screen interface.

The internal GPS ensures accurate RF heatmap tracking, while the high-performance CPU enables fast frequency coordination calculations, real-time interference checking, and intermodulation analysis.

Experience the convenience and power of the RF Explorer Pro for precise RF analysis and optimization.

• Built-in Frequency Coordination
• Record/ Save /Replay Spectrum Data
• Continuous Frequency Monitoring
• Remote Network Control

3rd Generation Spectrum Analyzer

Features an advanced touch screen, high-resolution display, and state- of-the-art RF electronics for precise sweep spectrum analyzer scans.

The design of this instrument is the culmination of over 15 years of experience in developing robust RF high-frequency instruments that are cost-sensitive and widely used across the globe.

It features advanced modes such as Zero Span, Waterfall 2D and 3D, and Power Channel, offering enhanced flexibility to effectively handle a wide range of scenarios.

Capture and replay of elusive events has been made effortless, allowing for optimal monitoring of IoT, radio packets, and continuous modulated and unmodulated signals.

Wideband Design

With the ability to resolve 8GHz band detection events in just 100uS, our device ensures accurate and fast detection across a wide frequency range.

Advanced Power Meter

Enjoy continuous and trigger modes for precise power measurement and analysis.

The Trigger mode of this instrument enables the accurate capture of pulse and fast events that may be challenging to capture using other methods.

Tracking Generator

This feature allows for rapid diagnostics and characterization of cables, filters, and amplifiers. When combined with a directional coupler, it can measure impedance and characterize antenna VSWR.

Configurable Radio Standards

Easily configure channel measurements to match your specific radio standards, ensuring compatibility and accuracy.

• Integrated Internal Preamplifier LNA and Attenuators: Our device includes an integrated preamplifier LNA and attenuators, significantly increasing the dynamic range and enabling handling of low-level and high-level RF signals.
• Cable Tester1: Perform instant and easy checks of RF cables of any length, ensuring their proper functioning.

Heatmap Coverage Map

Utilize the external GPS assistance and internal manual operation to measure signal strength on the go, creating a heatmap of coverage areas.

To display geolocated data positions on a map, the current implementation of this feature requires a computer connected to the Internet.

• Frequency Coordination: Advanced frequency coordination features specifically designed for A/V and Wireless Microphone applications, minimizing interference, intermodulation, and enabling continuous monitoring.
  • This Feature Requires software license

WiFi Analyzer

It offers the capability to detect signals present on any 2.4/5.8GHz band channel, enabling accurate identification of interference, collisions, and noise in WiFi environments.

• Record/Save/Replay Spectrum Data: Automatically save scan data on RAM for easy replay of any event. Additionally, the data can be manually or automatically saved in binary and CSV formats for later use.
• Continuous Monitoring and Alerting: Stay informed with reliable alerts, including configurable limit lines, to ensure you never miss critical events.
• Export Data to WSM/WWB6/Excel/Matlab: Seamlessly export all captured data to a USB drive for use in other software applications such as WSM, WWB6, Excel, or Matlab.

Specifications

• Spectrum Analyzer
  • Frequency range
    • 15MHz to 3.3GHz (baseline)
    • 15MHz to 6GHz (license 6G)
    • 15MHz to 7.5GHz (license 7G)
  • Frequency Span
    • 0 (zero span)
    • 500KHz to 6GHz (sweep)
  • RBW - 3Khz – 2.5MHz
    • Future firmware upgrade will enable 100Hz – 2.5MHz
  • VBW - Automatic
  • Low Frequency Support - 100KHz – 240MHz
    • With external RF Explorer Upconverter module
  • Frequency resolution - 1KHz
    • Future firmware upgrade will enable 100Hz
  • Sweep Time - 3GHz / 280ms (With RBW 2.5MHz)
  • Sweep Points - 512-65,000
  • Frequency stability (typical) - TCXO ±0.5ppm
  • Amplitude stability and accuracy (typical) - ±1.5dB
  • Factory Calibration - 3K reference points
  • Frequency accuracy (Internal reference) - TCXO ±1ppm
  • Aging - ±1ppm/year
  • Displayed Frequency accuracy - Span/(Sweep Points-1)
  • Amplitude resolution - 0.5dB
    • Future firmware upgrade will enable 0.25dB
  • Dynamic range (Depending on RBW and Band)
    • Direct: -110dBm to +10dBm
    • Preamplifier LNA: -130dBm to -30dBm
    • Attenuator: -80dBm to +33dBm
  • Absolute Max input power - +33dBm internal Attenuator selected
  • Display Average Noise Level - -130dBm (typical LNA)
  • Noise Floor - -160dBm/Hz (typical LNA)
  • WiFi Analyzer - 2.4Ghz / 5.8GHz
  • CPU - Advanced Intel 64bits
  • DSP - High Performance Dual DSP 32bits+16bits
  • Save/Replay
    • 100,000 Sweeps on Memory
    • Unlimited Sweeps on File
  • File Export - Compatible CSV and Binary formats
    • Suitable for WSM/WWB6/Excel/Matlab
• Wideband Power Meter
  • Frequency range - 10MHz to 8GHz
  • Dynamic range (Depending on RBW and Band)
    • Direct: -60dBm to +10dBm
    • Preamplifier LNA: -130dBm to -30dBm
    • Attenuator: -80dBm to -10dBm
  • Operational Modes
    • Continuous
    • Trigger
  • Event Detection - 100uS
  • Samples
    • 2-1024 Trigger Samples
    • 100,000 Captures on Memory
  • Amplitude resolution - 0.25dB
  • Amplitude stability and accuracy (typical) - ±1.5dB
  • Factory Calibration - 1K reference points
• Signal Tracking Generator
  • Frequency range - 24MHz to 6GHz
  • Frequency step/resolution - 1Khz
  • Frequency stability (typical) - TCXO ±0.5ppm
  • Output power accuracy - Typical ±3dB
  • Output power stability - Typical ±0.5dB
  • Output amplitude settling time - 500uS
  • Factory Calibration - 1K reference points
  • Frequency accuracy (internal reference) - TCXO ±1ppm
  • Output power range (nominal)
    • -40dBm to -30dBm in 3dB steps
    • -10dBm to 0dBm in 3dB steps
  • Operational Modes
    • CW
    • Frequency Sweep
    • Amplitude Sweep
    • Tracking SNA
  • Harmonics - Typical < -10dBc
  • Spurious - Typical < -50dBc
  • Frequency Sweep settling - < 5ms
  • Amplitude Sweep settling - < 500uS
  • Sweep hops range - unlimited
  • Tracking Speed - >500pts/sec
• Electrical and Mechanical
  • Remote Display - VNC Compatible
  • Video Output - Micro HDMI port
  • USB - Type A USB 3.0
  • Network - Ethernet with USB adapter
    • Adapter Not Included
  • Audio
    • Internal Speaker
    • Audio Jack 3.5mm
  • Micro SD card - Up to 64GB
    • SD Card Not Included
  • Operating temperature - 5-35C
  • Operating humidity - Max 90%
  • Connector type - SMA 50 ohms
  • Display Technology - Anti-glare 8” IPS TFT Capacitive Touchscreen
  • Display Resolution
    • 1280x800 pixels
    • 16.7M color
  • Display Luminance - 250 cd/m2
  • Display Contrast ratio - 800:1
  • Viewing Angle - 85 deg
  • Charge - USB-C 5VDC 2A
    • Charger Not Included
  • Charge Time - 3hs
  • Internal Battery - Lithium Ion 4500mAh
  • Battery Lifetime - 3.5 – 5hs
    • Depending on operational mode
  • Holder - Back Removable Holder
  • Tripod Support - Compatible with standard 1/4-20 Camera tripod
  • Certification - CE/FCC/RoHS/MSDS
  • Weight - 1.26 lb (570 g)
  • Size - 8.46 x 5.51 x 0.98 inch (215 x 140 x 25mm)
