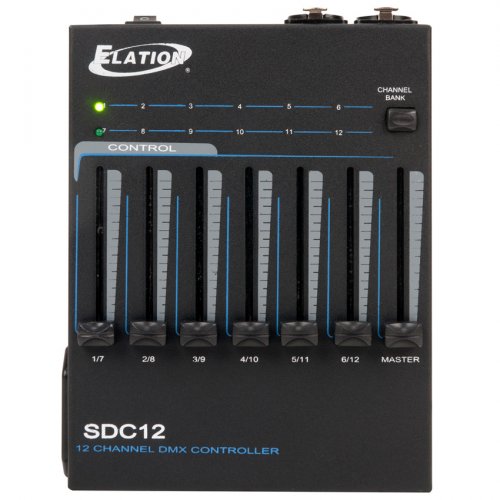

Elation SDC12 12-Channel DMX Controller
Model: SDC-12
About: Elation SDC12 12-Channel DMX Controller
The SDC12 features 12 DMX channels, DIP switches to set a starting DMX channel, a master dimmer fader, on/off switch, 3-pin and 5-pin XLR output, and operates via an external 12VDC power supply (included) or a 9VDC battery (not included).
The SCD12 is a great handheld device for product demos or manual control of LED or conventional fixtures. It may also be wall mounted for permeant installations.
Features
- 12 DMX Channels Faders
- Master Dimmer Fader
- Portable Handheld Or Wall Mountable
- Operates via 12VDC Power Supply (Included) Or
- 9VDC Battery (Not Included)
Specifications
- CONTROL / CONNECTIONS
- DIP Switches To Set Starting DMX Channel
- 3pin & 5pin DMX Outputs
- On/Off Switch
- LED Channel Bank Indicator
- DC 12V Power Supply Input
- ELECTRICAL
- DC 12V 500mA min OR 9V Battery (Not Included)
- APPROVALS / RATINGS
- CE Approved
- RoHs Compliant
- SIZE / WEIGHT
- Length: 7.5” (191mm)
- Width: 5.9” (149mm)
- Height: 1.6” (41mm)
- Weight: 2.0 lbs. (0.9kg)
- INCLUDED ACCESSORIES
- 12V Power Supply
UPC: 837874016451
