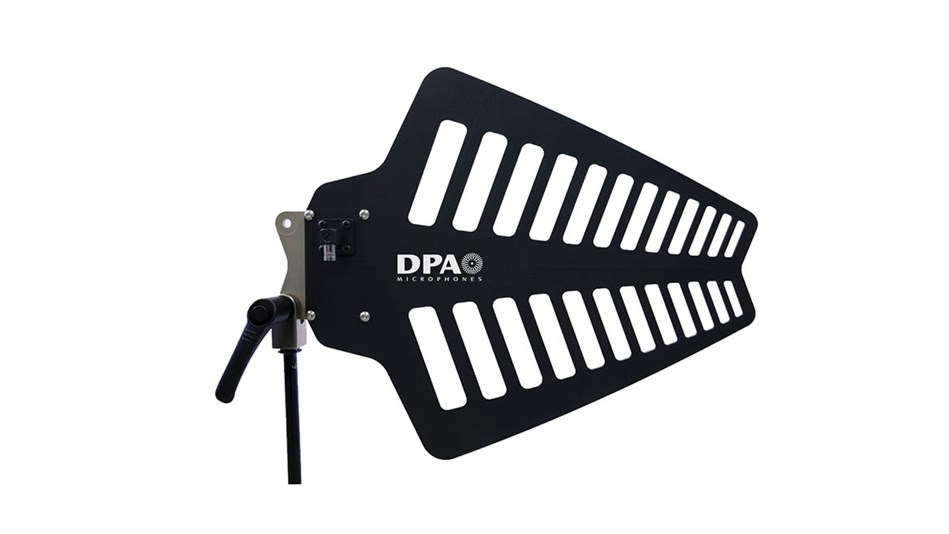

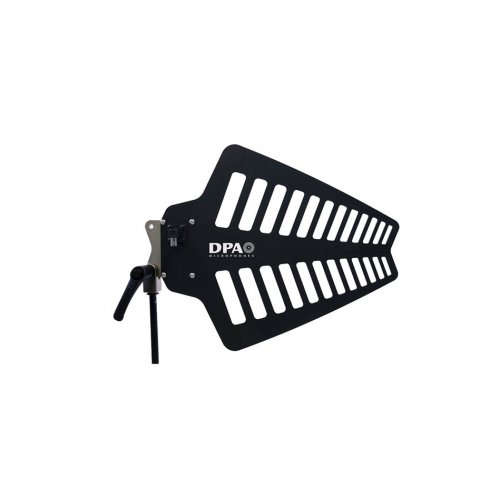

DPA ANT202P Passive Directional LPDA Antenna
Model: ANT202P
About: DPA ANT202P Passive Directional LPDA Antenna
A wideband UHF antenna LPDA (log periodic dipole Array) that enhances reception providing approximately 6 dBi of gain with a typical beamwidth of 140°.
ANT202P Antenna Directional Features
- Skeletal Design for Minimal Wind Loading
- Bend elements for maximal directionality with minimum size (6 dBi gain)
- Future proof huge reception bandwidth 420-1300 GHz
- Robust metal support with fine slope tuning
- Full metal support and mounting base (1/4″ & 3/8″)
- Textured Weather-Resistant Coating
- Waterproof with gasket sealing
Specifications:
- Rated output impedance: 50 Ω
- RF Frequency Range: 420 ÷ 1300 MHz
- SWR: < 1:1.5; typ. = 1:1.4
- Polarization: Vertical
- Radiation: Directional
- Connector: BNC
- Material: Epoxy fiberglass (copper – clad)
- Finishing: Black matte
- Mounting: 5/8” with worth or 3/8” with adapter
- Dimension (H x W x D): 276 x 336 x 61 mm
- Weight: 500g
UPC: 5713055033576
Reviews: DPA ANT202P Passive Directional LPDA Antenna
Warranty: DPA ANT202P Passive Directional LPDA Antenna
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All DPA microphones are covered by warranty for a minimum of two years. Some of them come with a five-year warranty.
The five-year warranty is valid for the following microphones: The d:facto™ Vocal Microphone with the 4018V capsule and all d:dicate™ microphones except the 2006 and 2011.
The DPA warranty covers:
- Only the microphone
- Mechanical functionality
- Documented specifications
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
