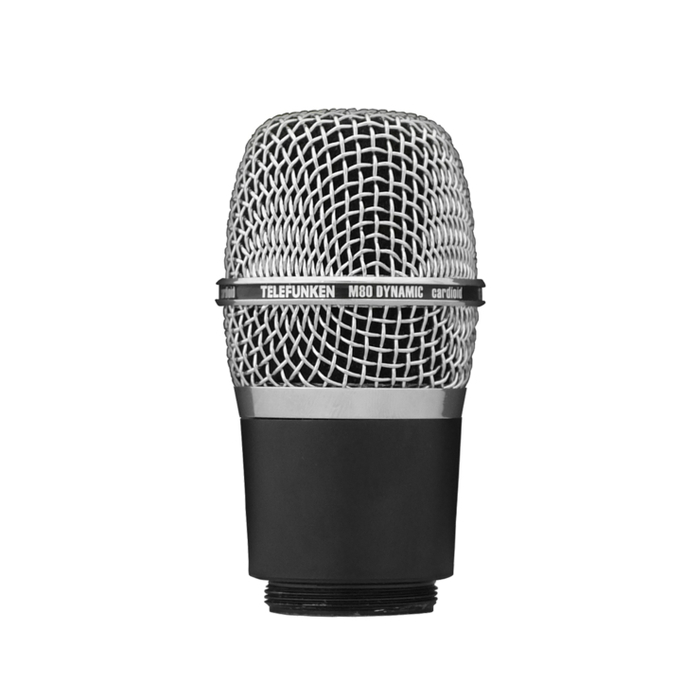

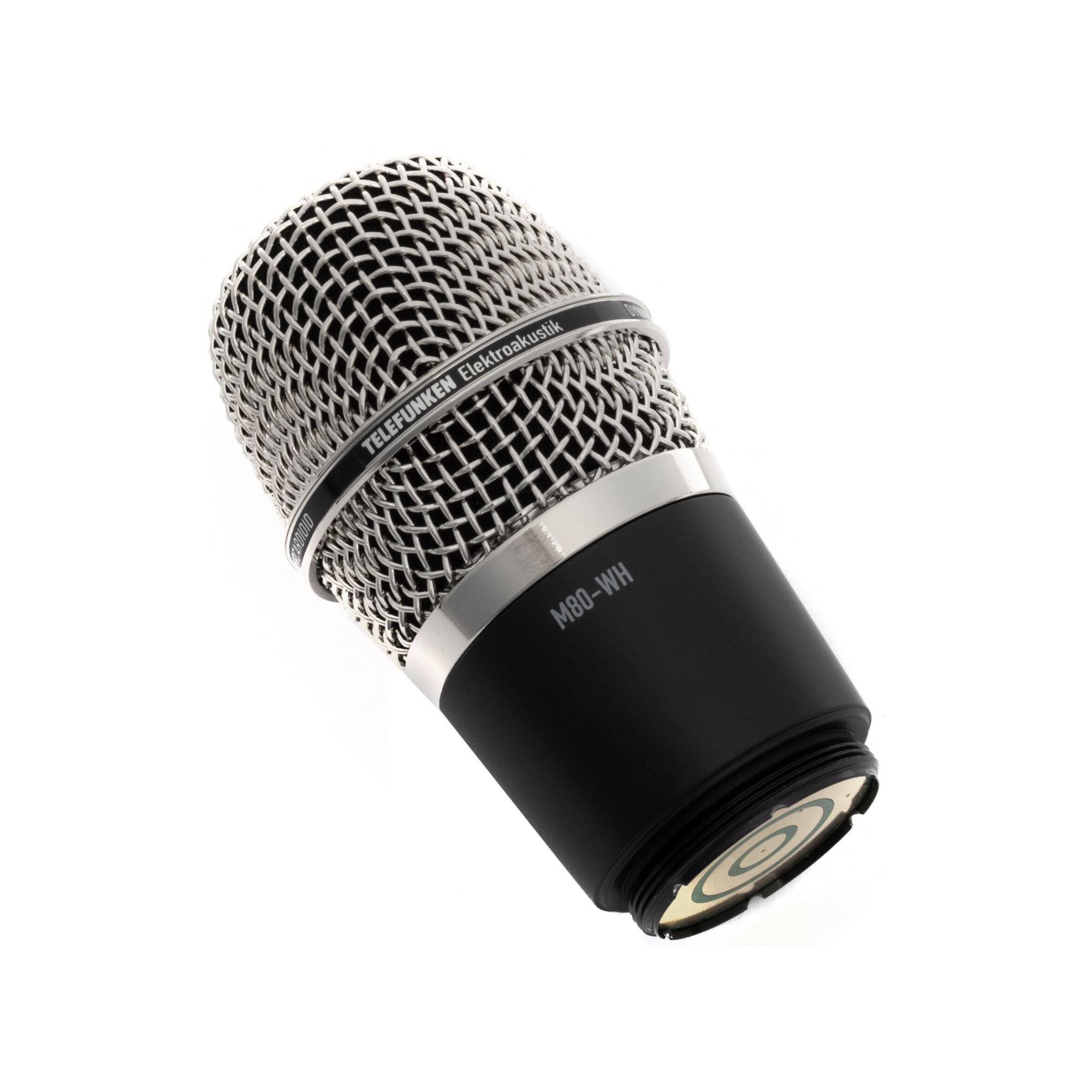

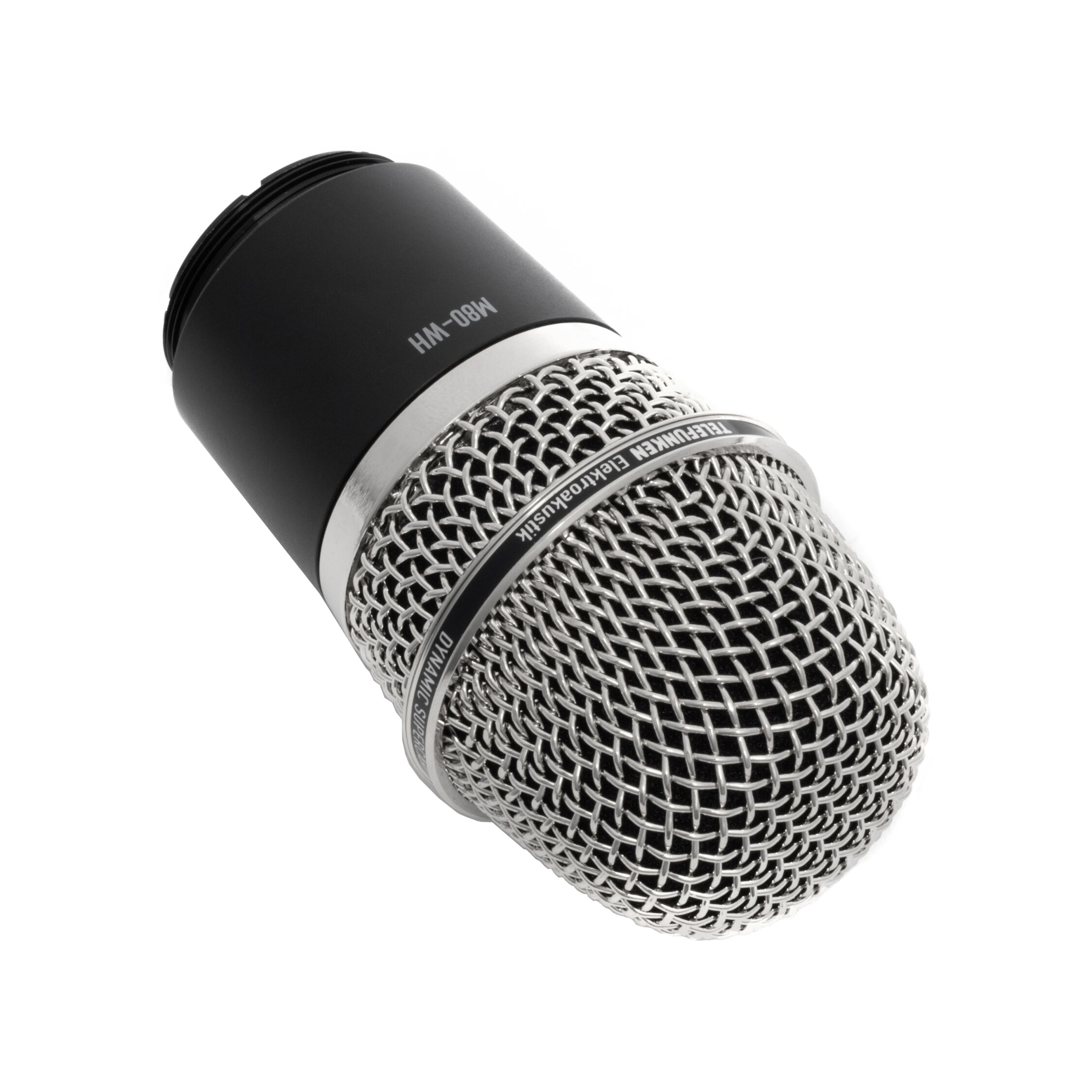

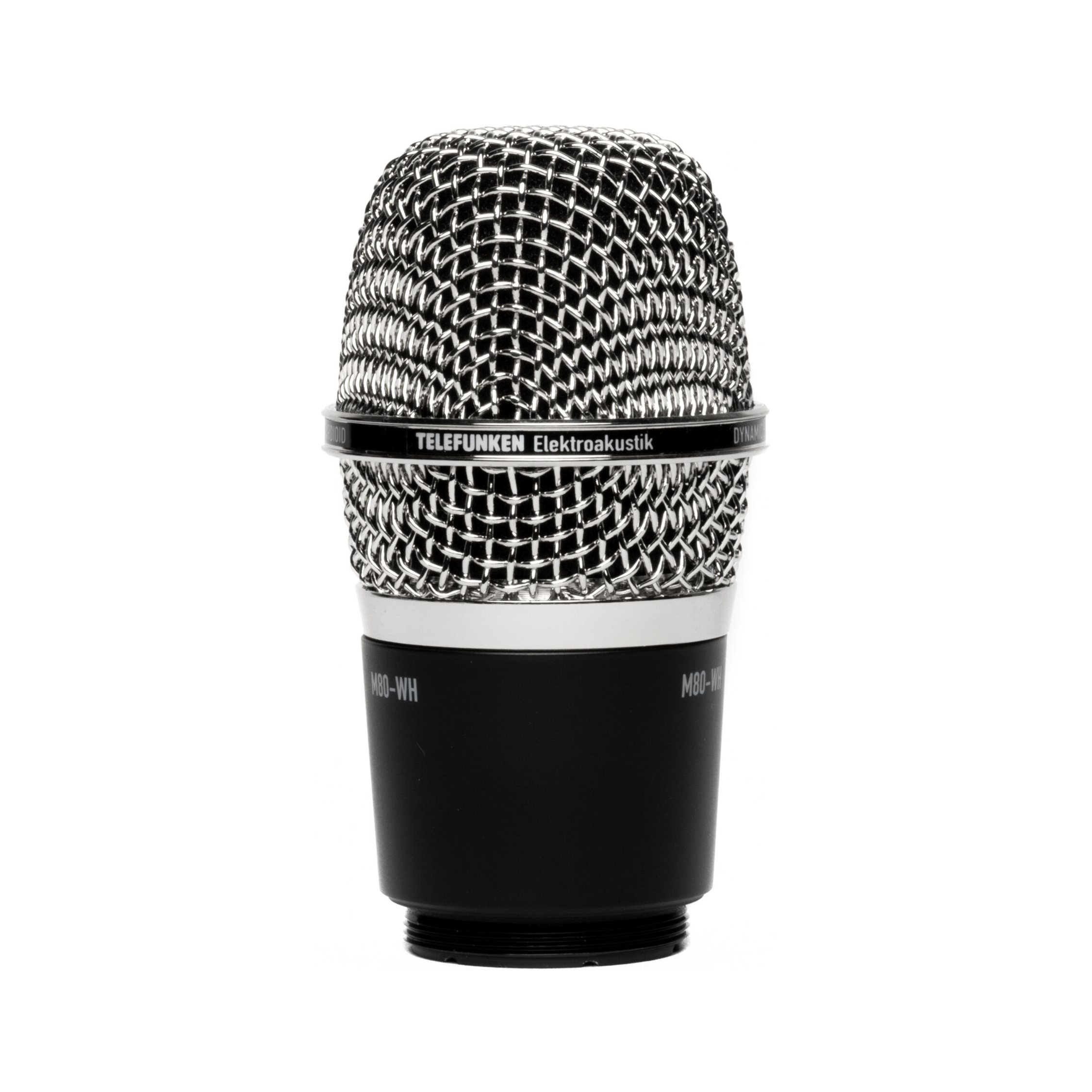

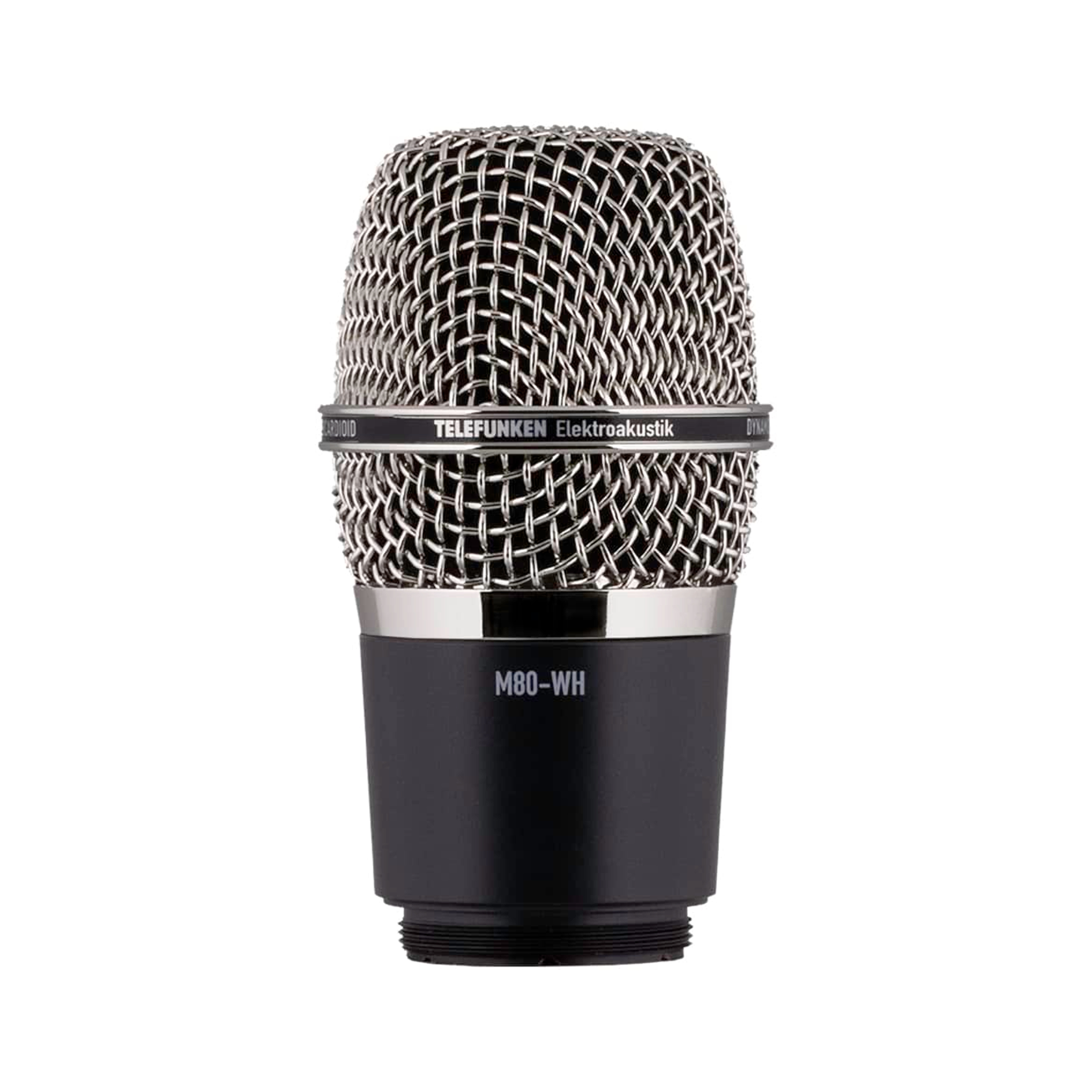

Telefunken M80-WH Dynamic Capsule Head for Shure Wireless Transmitters
Model: M80-WH
About: Telefunken M80-WH Dynamic Capsule Head for Shure Wireless Transmitters
The M80-WH wireless capsule head is designed to mate with Shure® wireless transmitters and features the same sonic characteristics as the standard M80 dynamic microphone.
- Same detailed, condenser-like performance as the wired M80
- Prestine audio quality with a wide frequency response and high SPL handling
- Supercardioid polar pattern provides excellent feedback rejection
- Low mass diaphragm reduces proximity effect
- Custom-wound impedance-matching audio transformer
- Mates with many industry-standard wireless transmitters
- Designed and hand assembled in the USA
The M80-WH brings the M80’s condenser-like performance, minimal proximity effect, and superior feedback rejection to the Shure® wireless transmitter platform. Featuring the same low mass diaphragm and custom wound output transformer as the handheld M80 Standard and low-profile M80-SH, the M80-WH provides the impressive sound quality and reliability one expects from a Telefunken Dynamic Series microphone. This product is intelligently designed to minimize handling noise and seamlessly mate to your wireless system of choice.
Compatible Transmitters
- Shure
- Axient
- PG
- PGX
- QLXD
- SLX
- SLXD
- UHF-R
- ULX
- ULXD
- UR2
- Lectrosonics
- HH
- HHa
- Sony
- UTX-M03
Specifications
- Type: Dynamic
- Polar Pattern: Supercardioid
- Frequency Range: 50 Hz – 18 kHz, ±3 dB
- Capsule: 25mm Dynamic Moving Coil
- Transformer: TELEFUNKEN Elektroakustik T80
- Sensitivity: 1.54 mV/Pa, ±1 dB
- Output Impedance: 325 Ω
- Maximum SPL (for 1% THD): 135 dB
- Dimensions (LxDia.): 3.54 x 1.89 inch (90 x 48 mm)
- Weight: 0.36 lbs (165 g)
UPC: 899051002169
