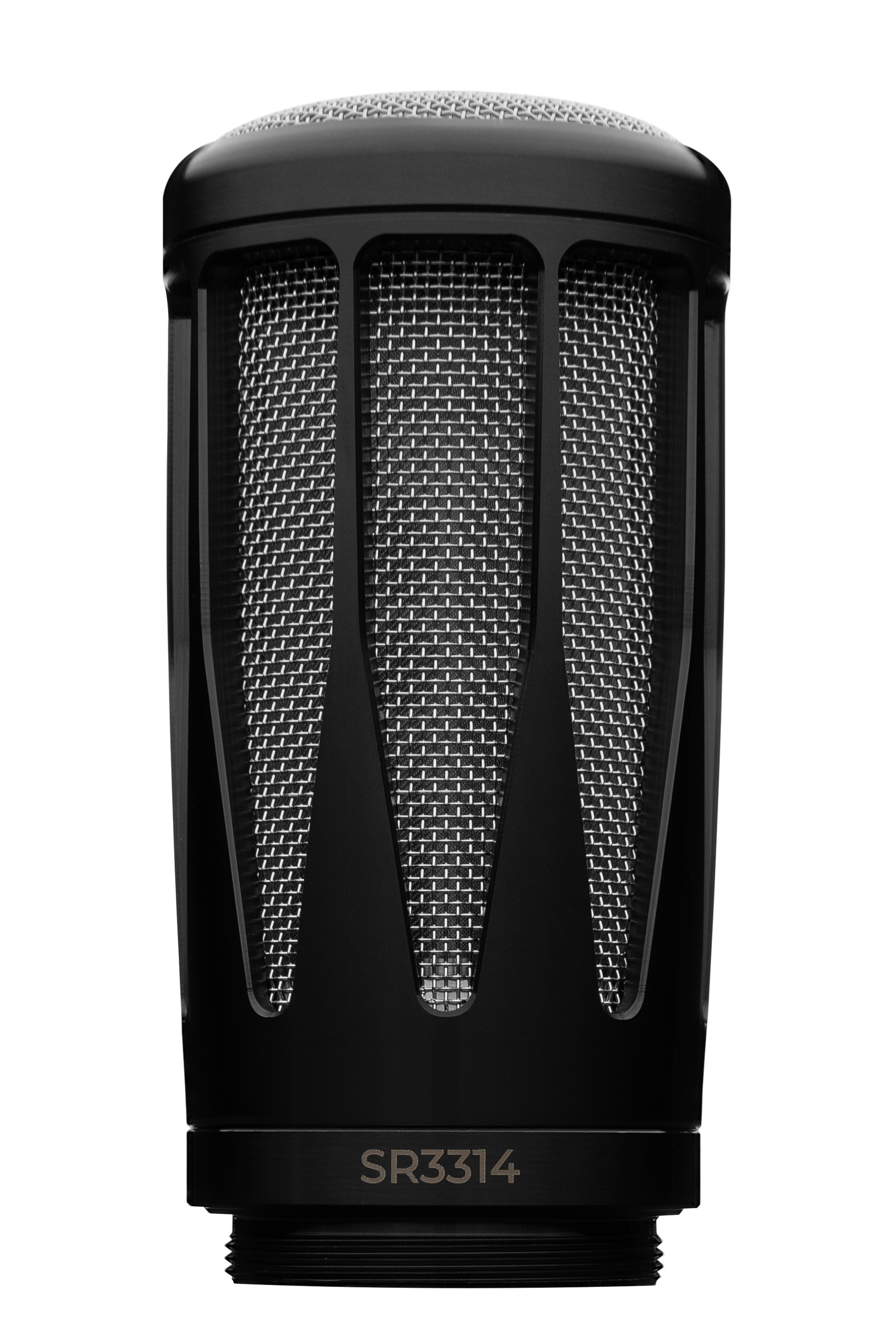

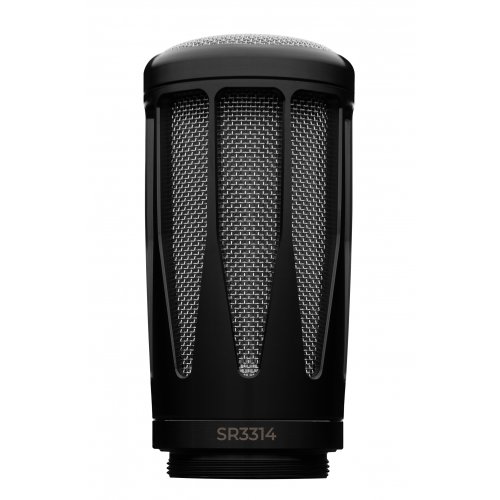

Earthworks SR3314 Cardioid Wireless Microphone Capsule - Black w/ Stainless Mesh

About: Earthworks SR3314 Cardioid Wireless Microphone Capsule - Black w/ Stainless Mesh

Performance at the speed of sound, designed for massive headroom and full dynamic range. Formatted for use with any 3-ring wireless microphone base, the Earthworks SR3314 captures natural, open, rich-sounding vocals with minimal proximity effect and delivers articulate low end close up without thinning out with distance.

The SR3314 Wireless Capsule Features:

• Tight cardioid polar pattern with consistent frequency response to 90º off-axis
• Extreme attenuation of off-axis sound sources beyond 90º; maximum rejection at 180º
• Consistent low-frequency response at any distance. The low-end does not thin out.
• Small-diaphragm cardioid condenser capsule for compatible wireless microphone transmitters
• Class A amplifier circuit
• Captures natural, open, rich-sounding vocals
• Extended flat frequency response from 20Hz–30kHz
• Sanitization-Ready stainless steel. Stay clean. Stay healthy.
• Handcrafted & Assembled in the USA
• Built to last

Studio Control On Stage

Speed matters. Bring the most responsive wireless capsule to your favorite wireless platform. Mitigate bleed and feedback with unparalleled off-axis sound rejection. Experience control on stage as if you were in the studio.

Wireless Flexibility

Untether and decouple. Whether performing for an intimate live streaming session or for a local gig, work the stage while sounding like you're singing through a wired handheld.

​Faster Soundchecks

Clean impulse response combined with a textbook cardioid pattern equals better monitor mixes.

Compatibility

• Shure: Axient, ULX-D, QLX-D
• Audio Technica: 3000 Series, 5000 Series, 6000 Series
• Lectrosonics: HH, Hha
• Line 6: V75, V55

Specifications

• FREQUENCY RESPONSE - 20Hz – 30kHz
• POLAR PATTERN - Cardioid
• SENSITIVITY - 6.5 mV/Pa (-43.7 dBV/Pa)
• POWER REQUIREMENTS - 3V to 6V; 2.1 mA @ 5V
• DISTORTION - Less than 3% THD
• PEAK ACOUSTIC INPUT - 133dB SPL @ 6V
• OUTPUT - Center & outer ring on 3-ring concentric connector
• OUTPUT IMPEDANCE - 0.1 ohms
• THREADS - 1.25”/28 (31.7mm/0.9) thread pitch to match compatible wireless handheld transmitters
• SELF NOISE - 22dBA @ capsule output (A weighted)
• DIMENSIONS
  • 3.3” (84mm) long
  • 1.6” (40.6mm) max dia.
  • 1.46” (37mm) min dia
• WEIGHT - 0.4 lbs. (0.18kg)
