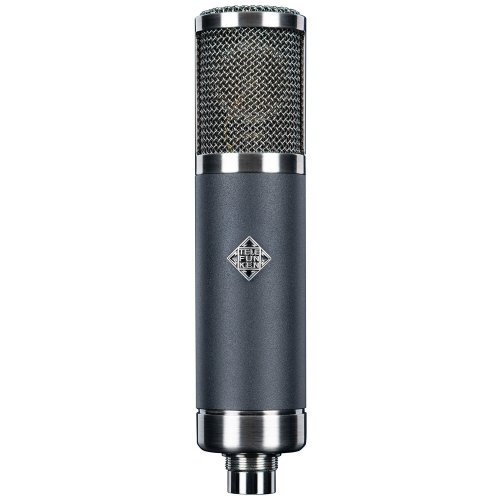

Telefunken TF47 Tube Condenser Microphone
Model: TF47
About: Telefunken TF47 Tube Condenser Microphone
The TF47 is a new design based on the “German” sound, drawing inspiration from the historic U47 and M49. With a deep low end and a forward midrange, the TF47 is excellent for adding depth and presence to any source. These characteristics make it especially ideal for recording vocals, guitar amps, and drums.
Circuit Design
At the heart of the TF47 is an all-brass K47-style capsule, new old stock 5840W vacuum tube, and custom-made historically accurate BV8 transformer (as found in the U47). These components deliver a warm and punchy sound reminiscent of the U47 with a pleasant top end articulation that sits perfect in a mix.
Key Features
- Forward mid-range, reminiscent of the U47
- Smooth and detailed top end
- Full and round low end
- Hand assembled in the USA
- K47-style capsule and BV8 transformer, similar to the U47
Applications
- R&B, rap or aggressive vocals, female soul vocals
- Upright bass
- Toms and kick out
- Trombone
- Cello
- Percussion
Accessories
Every TF47 microphone system comes with a multi pattern M 903 Power Supply, M 803 Tube Microphone Cable, ZC03 Shell Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.
Technical Specifications
- Capsule: K47-Style Center-Terminated
- Tube Type: NOS 5840W
- Transformer: Custom-Made Vintage Spec BV8
- Polar Pattern: Cardioid, Omni, Figure-8
- Dimensions: 200 mm L x 46 mm Dia
- Microphone Weight: 695 g
UPC: 810047032762
Reviews: Telefunken TF47 Tube Condenser Microphone
Warranty: Telefunken TF47 Tube Condenser Microphone
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
90 day warranty with 2 year extension upon registration
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
