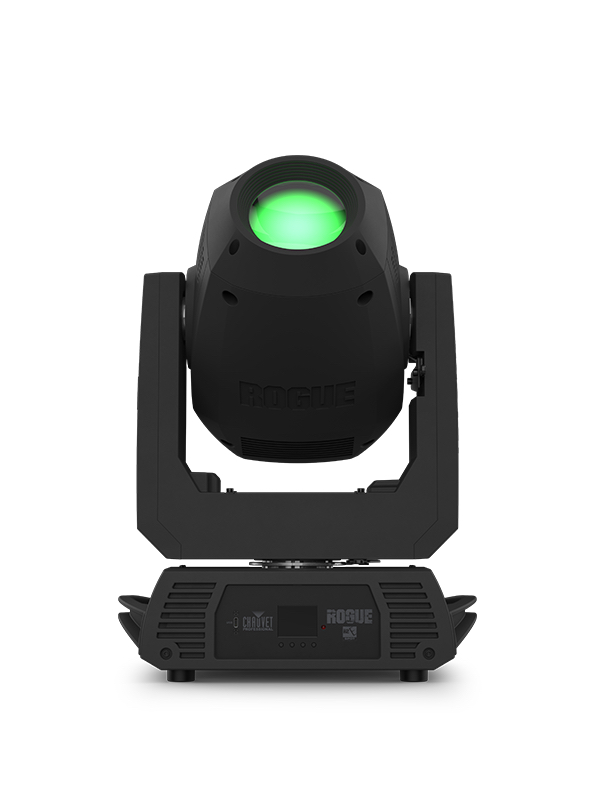

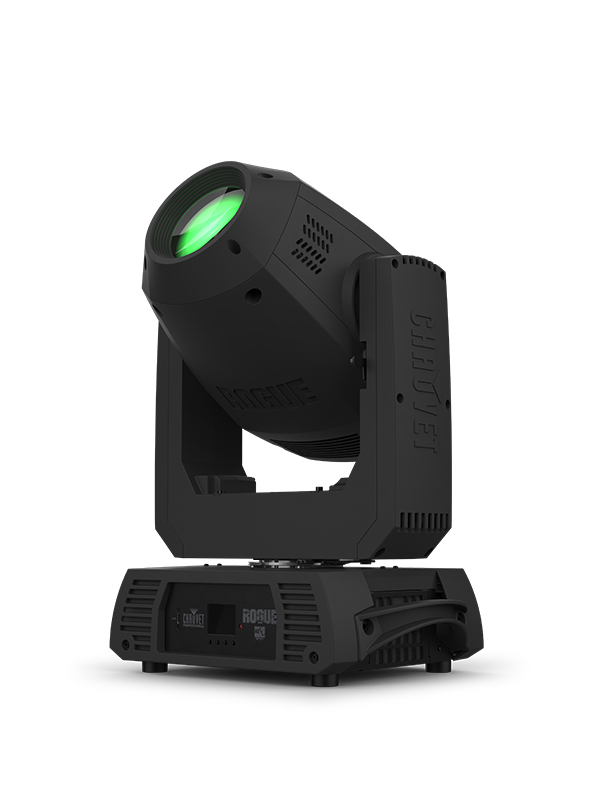

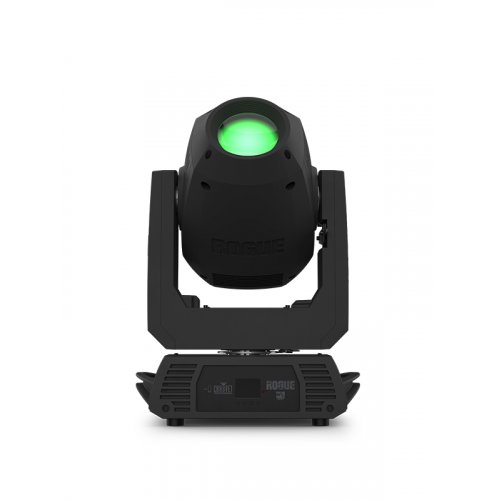

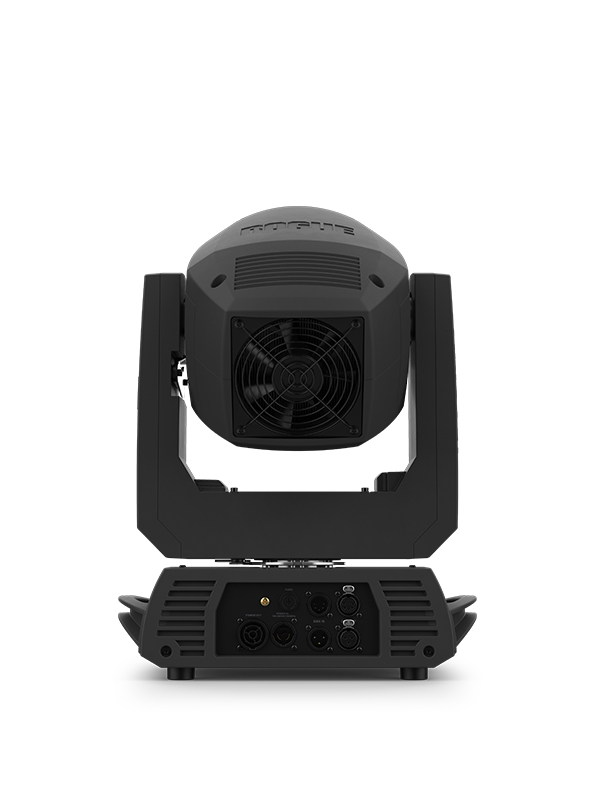

Chauvet Pro Rogue R2E Spot LED Moving Head Spot Light

About: Chauvet Pro Rogue R2E Spot LED Moving Head Spot Light

Two gobo wheels and two color wheels pair up in the fully featured Rogue R2E Spot. This compact, lightweight moving yoke spot delivers intense output from its 350W LED light engine and brings a packed wheelhouse: dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; dual color wheels each with eight brilliant colors + white + split colors; 3-facet rotating prism for stunning aerial effects; and motorized iris and frost for beam shaping. Its 15° beam angle delivers crisp gobo projections and a selectable LED max output setting enables matching brightness with legacy Rogue R2X Spots in your rig.

• A fully featured compact and light weight moving yoke spot fixture with an Intense 350 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, and two color wheels.
• 16-bit dimming of master dimmer for smooth control of fades
• Perfect gobo morphing between gobo wheels
• Two color wheels with 8 colors, split color ability, and continuous variable speed scrolling
• Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel.
• Iris, 3-facet prism, and frost for beam control
• True 1 compatible power input/output connections for power linking.
• 3- and 5-pin DMX input/output connections
• RDM enabled for remote addressing and trouble shooting.
• Selectable LED maximum output to match legacy Rogue R2X Spots
• Selectable PWM settings to maintain flicker-free operation on camera.
• Simple and complex DMX channel profiles for programming versatility

Specifications

• OPTICAL
  • Light Source: 1 LEDs (CW) 350 W, (5 A), 7057 K, 50,000 hours life expectancy
  • Color Temperature (at full): 7057 K
  • Front lens diameter: 90mm
  • CRI: 70.4
  • Beam Angle: 15.9°
  • Field Angle: 18.1°
  • Cutoff Angle: 20.3°
  • Lumens – Source: 24,500
  • Lumens – Output: 16,345
  • Illuminance (total): 11,345 lux @ 5 m
  • Selectable LED Power output: 50-100
  • Selectable PWM: 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz
• DYNAMIC EFFECTS
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt.
  • Colors (1): 8 + white, split colors, continuous scroll at variable speeds
  • Colors (2): 8 + white, split colors, continuous scroll at variable speeds
  • Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds.
  • Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating) size: 20 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
  • Framing Shutters: No
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 3 Facets, motorized, rotating
  • Strobe Rate: 0 to 22 Hz
  • Standalone Color Mixing: No
  • Color Temperature Presets: No
  • Move-in-Black: Yes
• CONNECTIONS
  • Power Connection: Edison (local) plug to Seetronic PowerKon
  • Power Input: Seetronic PowerKon
  • Power Output: Seetronic PowerKon
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
• CONTROL
  • Control Protocol: DMX, RDM
  • DMX Channels: 19 or 22
  • Modes/Personalities: 2 personalities (19, 22)
• ELECTRICAL
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2; 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
  • Power and Current: 481 W, 4.05 A @ 120 V, 60 Hz
  • Power and Current: 472 W, 2.32 A @ 208 V, 60 Hz
  • Power and Current: 469 W, 2.13 A @ 230 V, 50 Hz
• CERTIFICATIONS / QUALIFICATIONS
  • CE, MET, FCC, UKCA
  • IP Rating: IP20, dry location
• ​CONSTRUCTION / PHYSICAL
  • Dimensions (single unit): 14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm)
  • Weight (single unit): 31.2 lb (14.2 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

WHAT'S INCLUDED

• Rogue R2E Spot
• Neutrik powerCON power cord
• 2x 140D Omega brackets with mounting hardware
