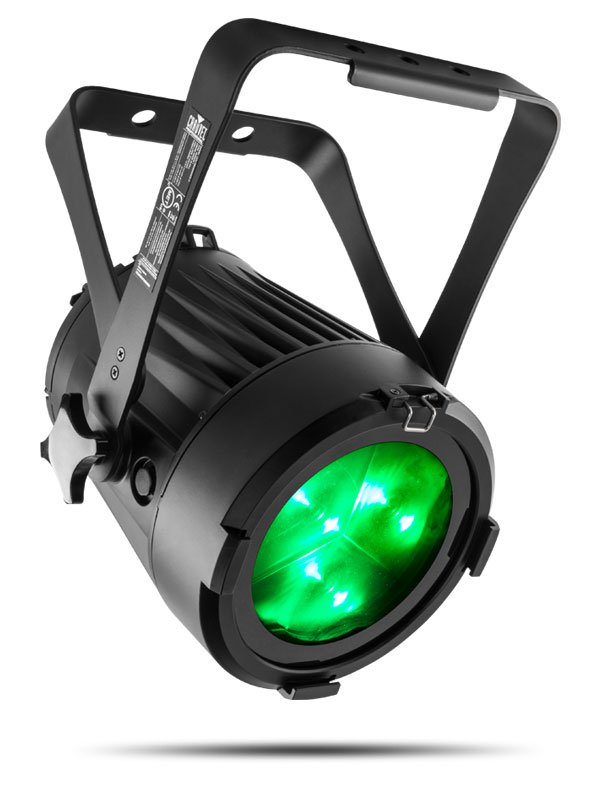

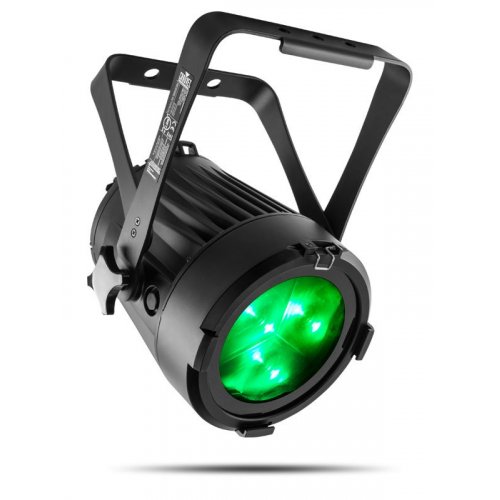

Chauvet Pro COLORado 2 Solo

About: Chauvet Pro COLORado 2 Solo

COLORado 2 Solo uses three 40 W RGBW engines to project a beautiful and fully homogenized beam through fast and smooth zooming optics. IP rated power and data connectors, and full convection cooling ensure a reliable and silent performance indoors and out, in a wide range of applications, from theatrical to outdoor festival productions.

At a Glance

• Zooming RGBW LED wash for touring, rental, and production, indoors or out
• Completely homogenized wash with superior color mixing and zoom
• 7° to 42° smooth and fast zoom
• All environment operation with IP rated power and DMX connections
• Color temperature presets, from 3200 K to 10000 K
• Selectable, smooth dimming curves for programming versatility
• OLED display with password protection

Specifications

Optical

• Light Source: 3 LEDs (quad-color RGBW) 40 W, (2.5 A), 50,000 hours life expectancy
• Beam Angle: 5° to 27°
• Field Angle: 7° to 42°
• Zoom Angle: 7° to 42°
• Illuminance (5°): 9,720 lux @ 5 m
• Illuminance (27°): 318 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 25 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 5
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes

Construction / Physical

• Dimensions: 8.26 x 10.7 x 15.2in (210 x 274 x 387 mm)
• Weight: 16.2lb (7.3kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 7.5 in (190 mm)

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Control
• Control Protocol: DMX
• DMX Channels: 9, 12 or 17
• Modes/Personalities: 5 personalities (HSIC, SSP, TOUR, TR16, STD.Y)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 12 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
• Power and Current: 130 W, 1.11 A @ 120 V, 60 Hz
• Power and Current: 124 W, 0.63 A @ 208 V, 60 Hz
• Power and Current: 123 W, 0.57 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve

What's Included

• COLORado 2 SOLO
• Seetronic Powerkon IP65 power cord
