Chauvet Pro Ovation F-55FC RGBAL Fresnel

Model: OVATION-F55FC

Chauvet Pro Ovation F-55FC RGBAL Fresnel
Chauvet Pro Ovation F-55FC RGBAL Fresnel
Chauvet Pro Ovation F-55FC RGBAL Fresnel
  • Free Shipping!
  •  Special Order: Estimated Lead Time 3-4 Weeks
  • Not yet reviewed




About: Chauvet Pro Ovation F-55FC RGBAL Fresnel

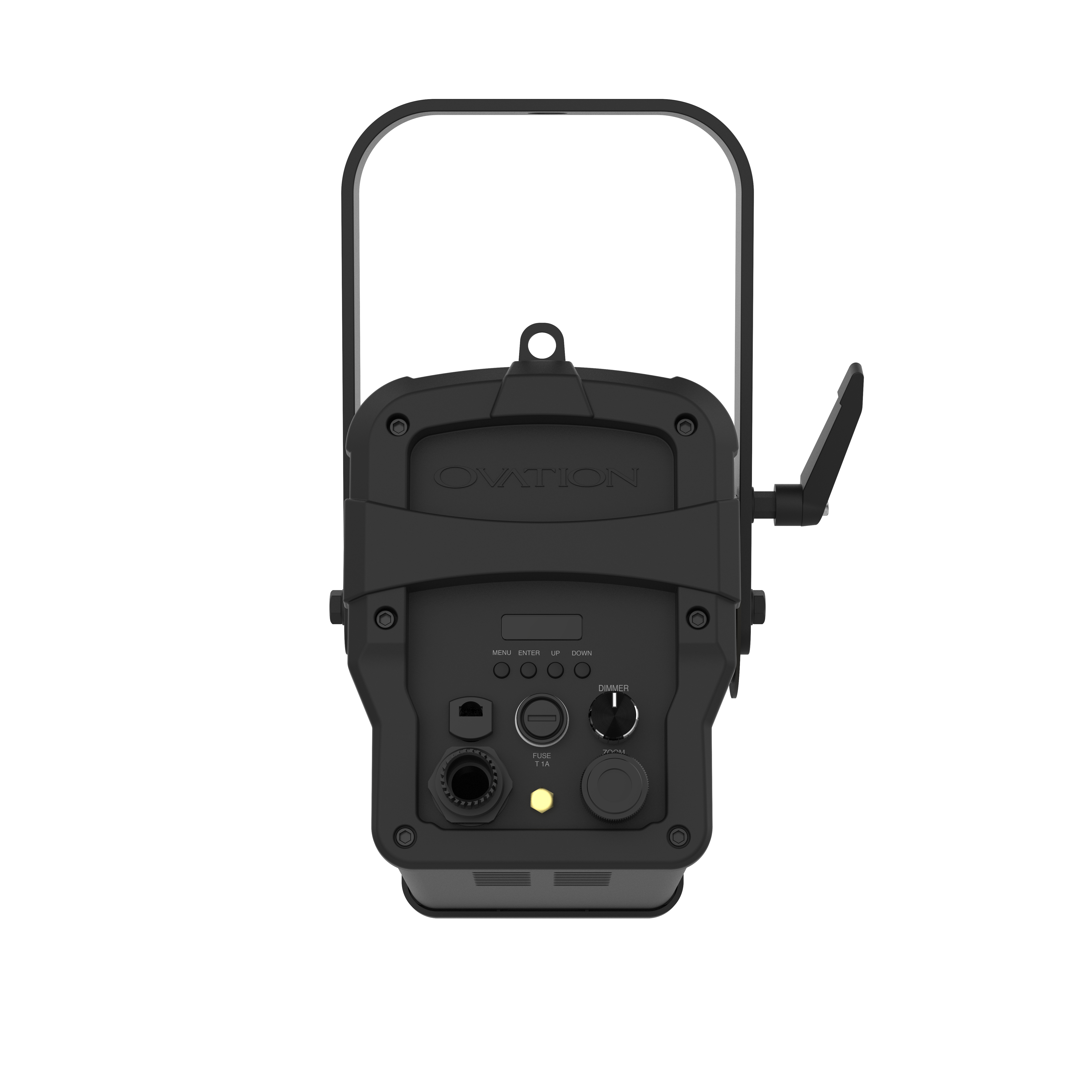

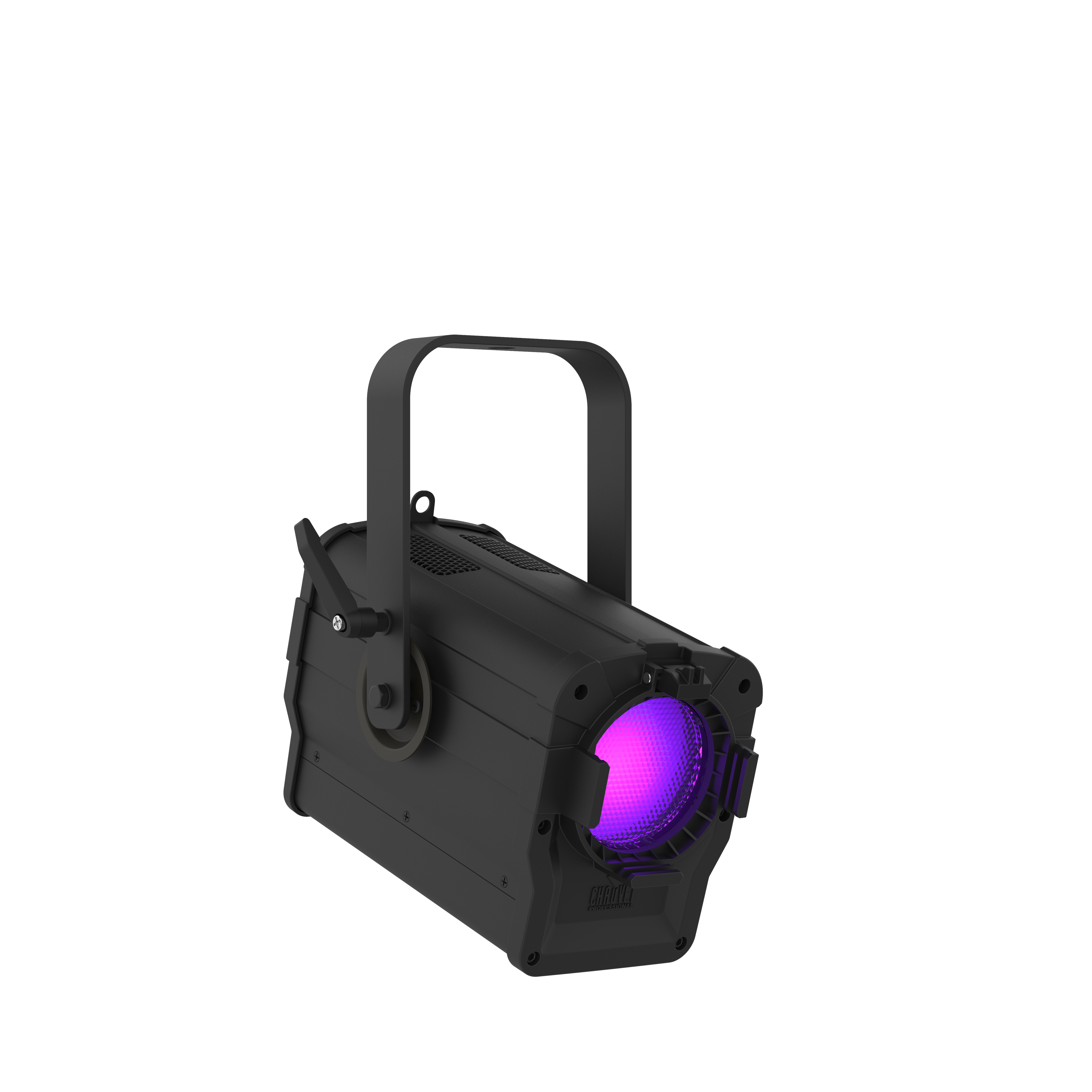

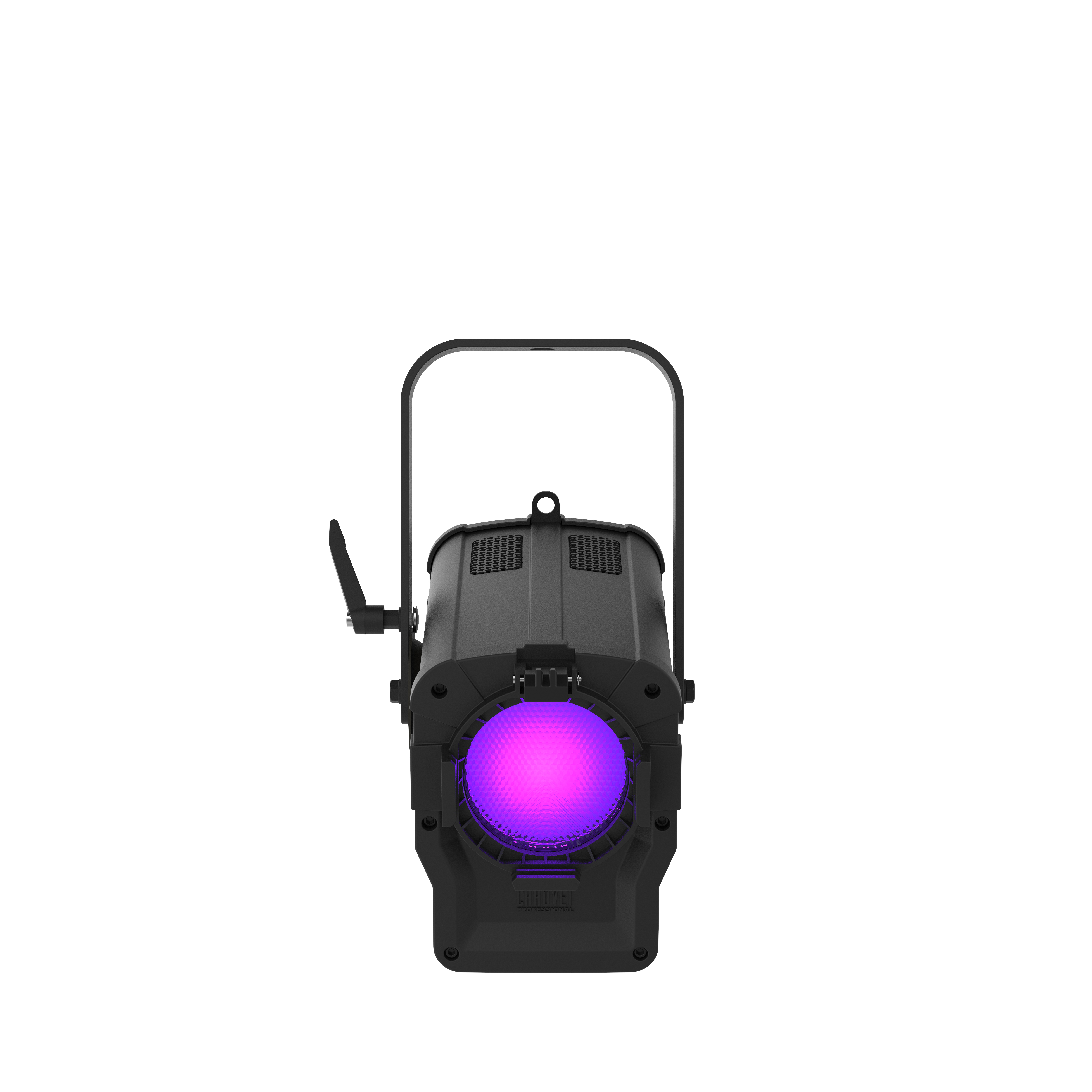

Ovation F-55FC is a full color RGBAL LED (3-inch) inkie Fresnel-style fixture ideal for short throw applications in television studios and theatres. Our handy Virtual Color Wheel and Color Temperature presets are shared from our other full color Ovation fixtures. A manual zoom with a 32° – 87° field angle allows you to add a beautifully soft field of light where needed.

Features:

  • Compact, full color fresnel for tight spaces and on-location lighting
  • 16-bit dimming resolution for smooth fades
  • Flat, even field of light
  • Virtually silent operation for use in any situation
  • Manually controlled variable zoom angle between 32° to 87°

Specifications

Optical

  • Light Source: 15 LEDs (3 red, 3 green, 3 blue, 3 amber, 3 lime) 3 to 4 W, (700 mA), 3779 K, 50,000 hours life expectancy
  • Color Temperature (at full): 3779 K
  • CRI (3200 K): 91
  • Beam Angle: 18° to 67°
  • Field Angle: 32° to 87°
  • Zoom Angle: 32° to 87°
  • Lumens (30°): 114
  • Lumens (69°): 462
  • Illuminance (32°) : 36 lux @ 5 m
  • Illuminance (73°): 18 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Manual
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25,000 Hz

Construction / Physical

  • Dimensions: 9.64 x 4.64 x 6.53 in (245 x 118 x 166 mm)
  • Weight: 5.4 lb (2.4 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Steel

Connections

  • Power Connection: Edison plug to hard-wired
  • Power Input: Hard-wired
  • Data Connectors: 5-pin XLR
  • Cable Length (signal): 1.79 ft (0.54 m)
  • Cable Length (power): 3.5 ft (1.07 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 3, 5, 7, 10, 12, 13 or 15
  • Modes/Personalities: 8 personalities (HSV, 3CH, 5CH, 7CH, 10CH, 12CH, 13CH, 15CH)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 44 W, 0.357 A @ 120 V, 60 Hz
  • Power and Current: 28 W, 0.130 A @ 208 V, 60 Hz
  • Power and Current: 29 W, 0.121 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20, dry location

What's Included

  • Ovation F-55FC
  • Gel Frame

Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik® powerCON® cables
  • 5-pin DMX Cables
  • Color Blending Filters: DF60X1D, DF20D
  • Ovation F3.25” Barndoor

UPC: 781462217327

Reviews: Chauvet Pro Ovation F-55FC RGBAL Fresnel

There are currently no product reviews.


Warranty: Chauvet Pro Ovation F-55FC RGBAL Fresnel

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Maverick, Rogue and Ovation LED

  • Fixture (indoor rated) - 3 years
  • Fixtures (outdoor IP54 and higher) - 2 years
  • LED Engine (indoor rated) - 5 years
  • LED Engine (outdoor IP54 and higher) - 2 years

Maverick, Rogue and Ovation Lamp fixtures - 2 years
All other lighting fixtures - 2 years
LED Video Products - 2 years
Controllers - 2 years
Networking Products - 1 year
Atomopherics (Foggers / Hazers) - 1 year
Trussung, bags and accessories - 1 year
Batteries - 6 months
