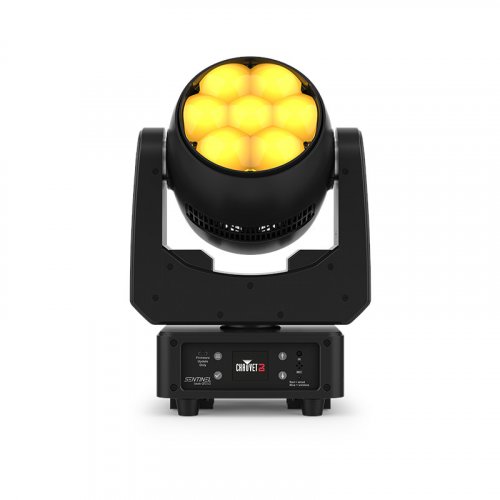

Chauvet DJ Sentinel Wash Q7Z ILS Compact RGBW LED

About: Chauvet DJ Sentinel Wash Q7Z ILS Compact RGBW LED

With its motorized zoom, ILS compatibility, and built-in D-Fi transceiver, Sentinel Wash Q7Z ILS seamlessly shifts from narrow beams to wide washes, instantly coordinates with different ILS fixture types, and offers the convenience of wireless DMX or ILS control. Mix saturated RGBW colors with a compact LED moving head built for both short- and long-throw applications that delivers smooth motion, easy control, and a Totem mode that keeps all the excitement focused on the dance floor.

• Compact moving head wash fitted with 20 W quad-color RGBW LEDs
• Motorized zoom for short-throw or long-throw applications
• Built-in DFI transceiver communicates DMX or ILS signals wirelessly
• Easy navigation and access all functions directly from the full-color LCD display
• ILS compatibility for use in the ILS ecosystem
• Totem Mode keeps the moving head focused on the dance floor
• Save time running cables and extension cords by power linking multiple units
• Fits best in the CHS-40 VIP Gear Bag

Specifications

• DMX Channels: 9 or 14
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/225°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 225° tilt
• Light Source: 7 LEDs (quad-color RGBW) 140 W total (5 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Zoom Angle: 5° to 27°
• Power Linking
  • 6 units @ 120 V
  • 12 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current
  • 148 W, 1.2 A @ 120 V, 60 Hz
  • 146 W, 0.7 A @ 230 V, 50 Hz
• Illuminance Narrow: (5°) 30,537 lux @ 2m
• Illuminance Wide: (27°) 3,390 lux @ 2m
• Cable Length: 5 ft (1.5 m)
• Optional Controllers: IRC-6, ILS Command
• Approvals: CE, RoHS, FCC
• Size: 14.2 x 10 x 7.41 in (362 x 255 x 188 mm)
• Weight: 13.8 lb (6.3 kg)

What's in the Box

• Sentinel Wash Q7Z ILS
• Power cord
• Hanging bracket
• Quick Reference Guide
