ADJ Focus Spot 7Z Moving Head with 420W White LED

About: ADJ Focus Spot 7Z Moving Head with 420W White LED

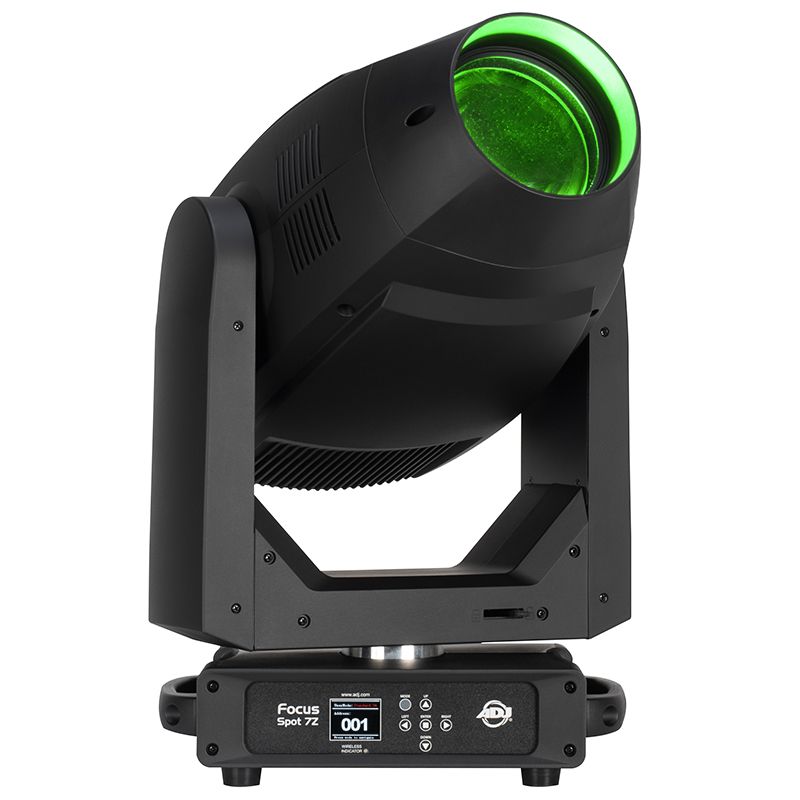

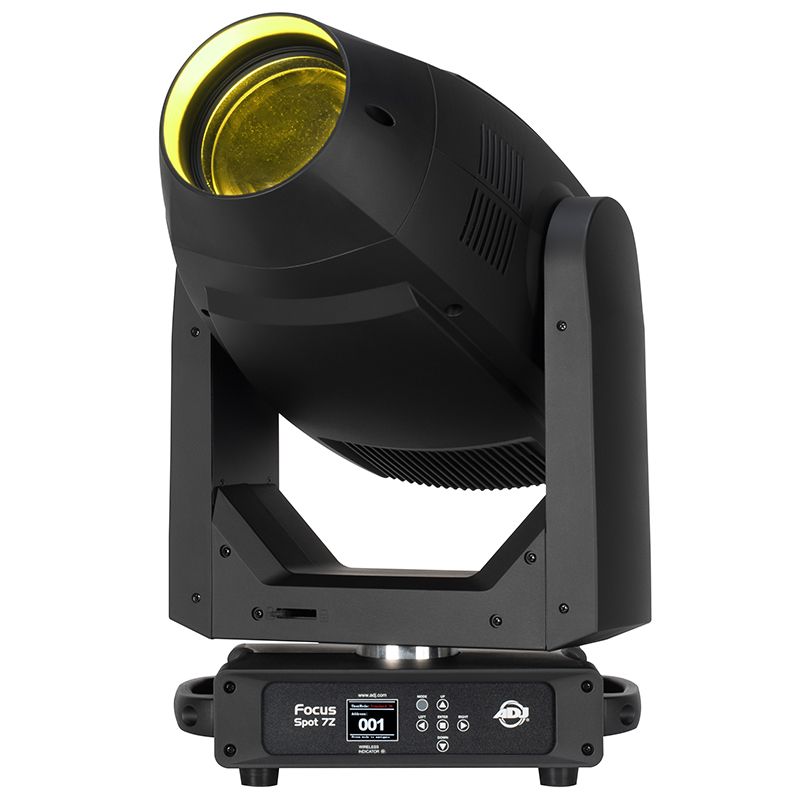

Part of ADJ’s popular Focus Series of LED-powered moving head luminaires, the Focus Spot 7Z is a potent and feature-rich spot fixture. Its light source is an efficient 420W white (8,000K) LED engine, which has an average operational life of 20,000 hours. Focused through precision-engineered optics, it allows the fixture to generate a bright, punchy and even output of 20,000 Lumens.

An exhaustive collection of beam-shaping tools is packed into the Focus Spot 7Z, equipping lighting designers to fully unleash their creative potential. This begins with an advanced color selection system which combines a variable CMY and CTO (2,700K to 8,000K) color mixing system with a color wheel that features seven dichroic slots (including High CRI and CRB filters).

The fixture features two independent GOBO wheels, each of which incorporate seven slots for interchangeable, indexed-rotating patterns. In addition, it also incorporates an animation wheel with indexed rotation as well as two separate rotating prisms (4-facet circular and 6-facet linear). Motorized zoom (6° ~ 48°), focus and iris are integrated into the optical system as are two separate frost filters (Light to blur GOBO patterns and Heavy to generate a wash output).

Weighting in at only 51.7 lbs. (23.45kg), the Focus Spot 7Z is lighter and has a smaller footprint than other leading hybrid fixtures in its class.

Specifications

• Light Source
  • 420W White LED Engine
  • 20,000 Hour Average LED Life
• Photometic Data
  • 20,000 Total Lumens
  • 8,000K, >73CRI (without CRI Filter)
  • 7,700K >85CRI (with CRI Filter)
  • 56,513 LUX @16.4’ (5m) (6° Beam)
  • 1,585 LUX @16.4’ (5m) (48° Beam)
• Effects
  • 4-Facet Circular & 6-Facet Linear Rotating Prisms
  • 2 Frost Filters (Light & Heavy)
  • Animation Wheel (Rotatable and Indexable)
  • Motorized Zoom (6° ~ 48°)
  • Motorized Focus
  • Motorized Iris
  • Electronic Dimming & Strobe (1-20Hz)
• Colors
  • Full CMY color mixing
  • Variable CTO (2,700K to 8,000K)
  • Colors Wheel with 7 dichroic slots (Includes High CRI and CTB Filters)
  • CMY and Color Wheel preset macros
• GOBOs
  • 2 Gobo Wheels
  • #1 - (7) Interchangeable Rotating-Indexing Gobos
  • #2 - (7) Interchangeable Rotating-Indexing Gobos
• Control / Connections
  • (3) DMX Channel Modes (30 / 34 / 45)
  • DMX512, ArtNet and sACN protocols
  • WiFLY EXR Wireless DMX
  • RDM (Remote Device Management) compliant

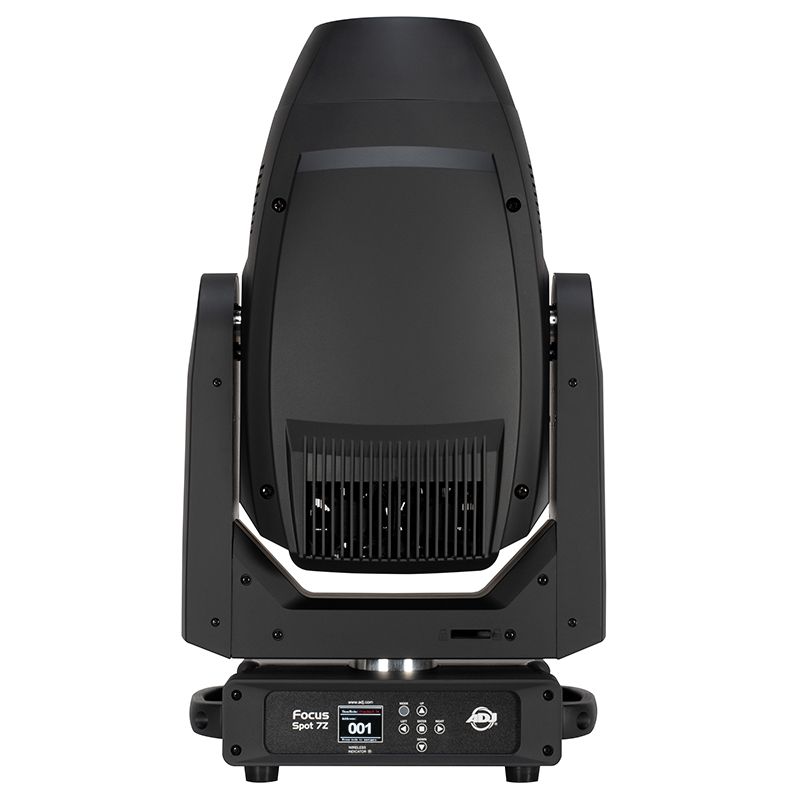

  • 6-Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • 8 / 16 Bit Resolution Adjustable Movement

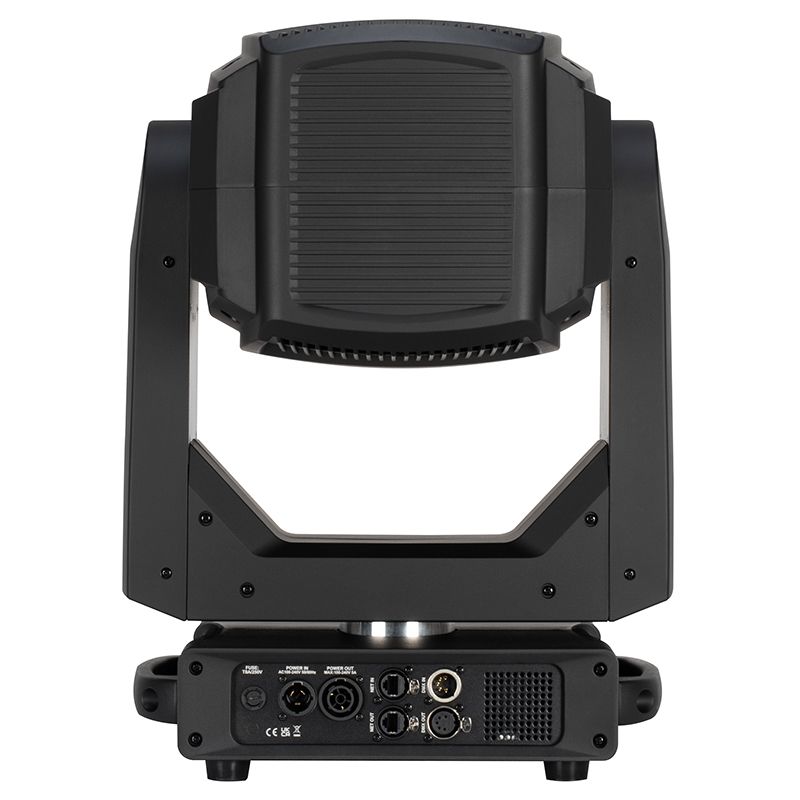

  • 5-pin DMX Data In/Out
  • RJ45 In/Out
  • Locking In/Out power connections
  • Safety eye
  • With Wired Digital Communication Network
• Pan/Tilt
  • Pan: 540-degrees
  • Tilt: 270-degrees
  • Pan & Tilt Locks
• Electrical / Thermal
  • Multi-voltage: AC 100-240V - 50/60Hz
  • Max Power Consumption: 524W
  • Max ambient temperature: 14°F to 113°F (-10°C to 45°C)
  • Max housing temperature: 136°F (58°C)
• Technical Data
  • DB Rating @ 3ft.: 49dB
  • BTU: 0.53
  • BTU/H: 1,909.60
• Approvals
  • CE | ETL (Pending)
  • IP20
• Dimensions & Weight
  • Dimension (LxWxH): 14.73 x 9.22 x 24.81 inch (374 x 234 x 630mm)
  • Weight: 51.7 lbs. (23.45kg)

What’s Included

• 1x Locking Power cable

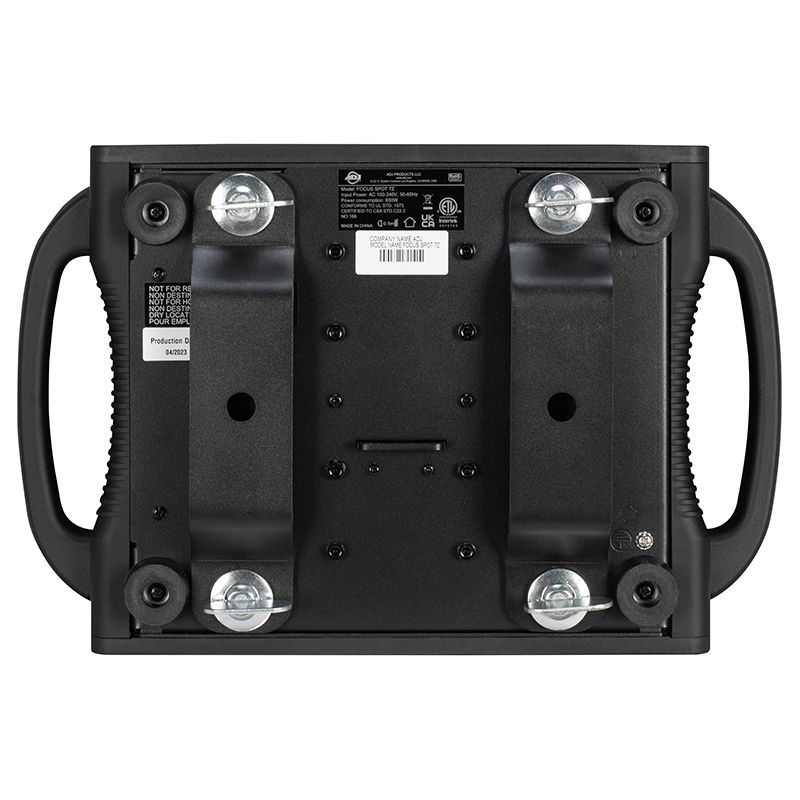

• 2x 180mm Omega brackets
