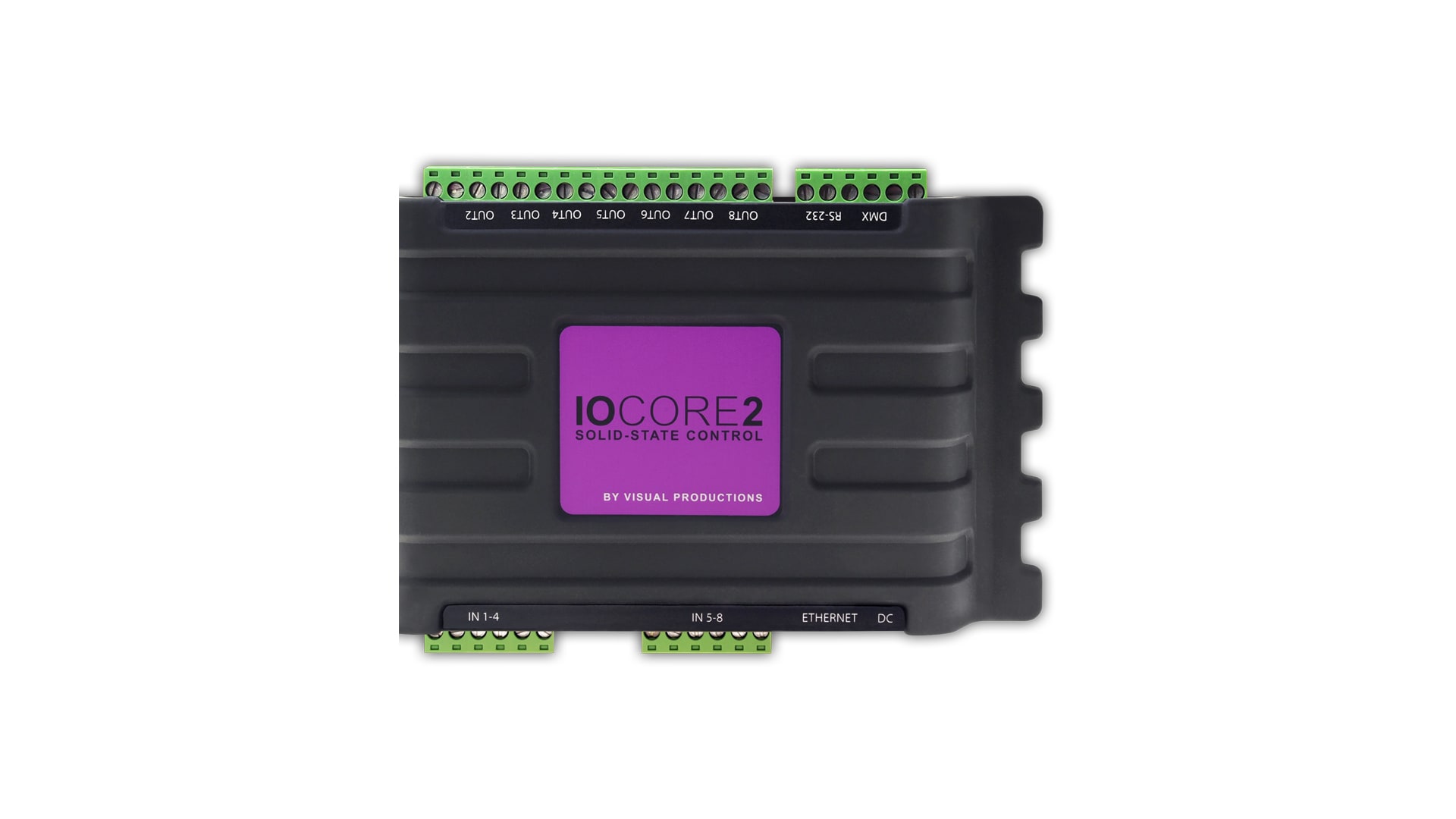

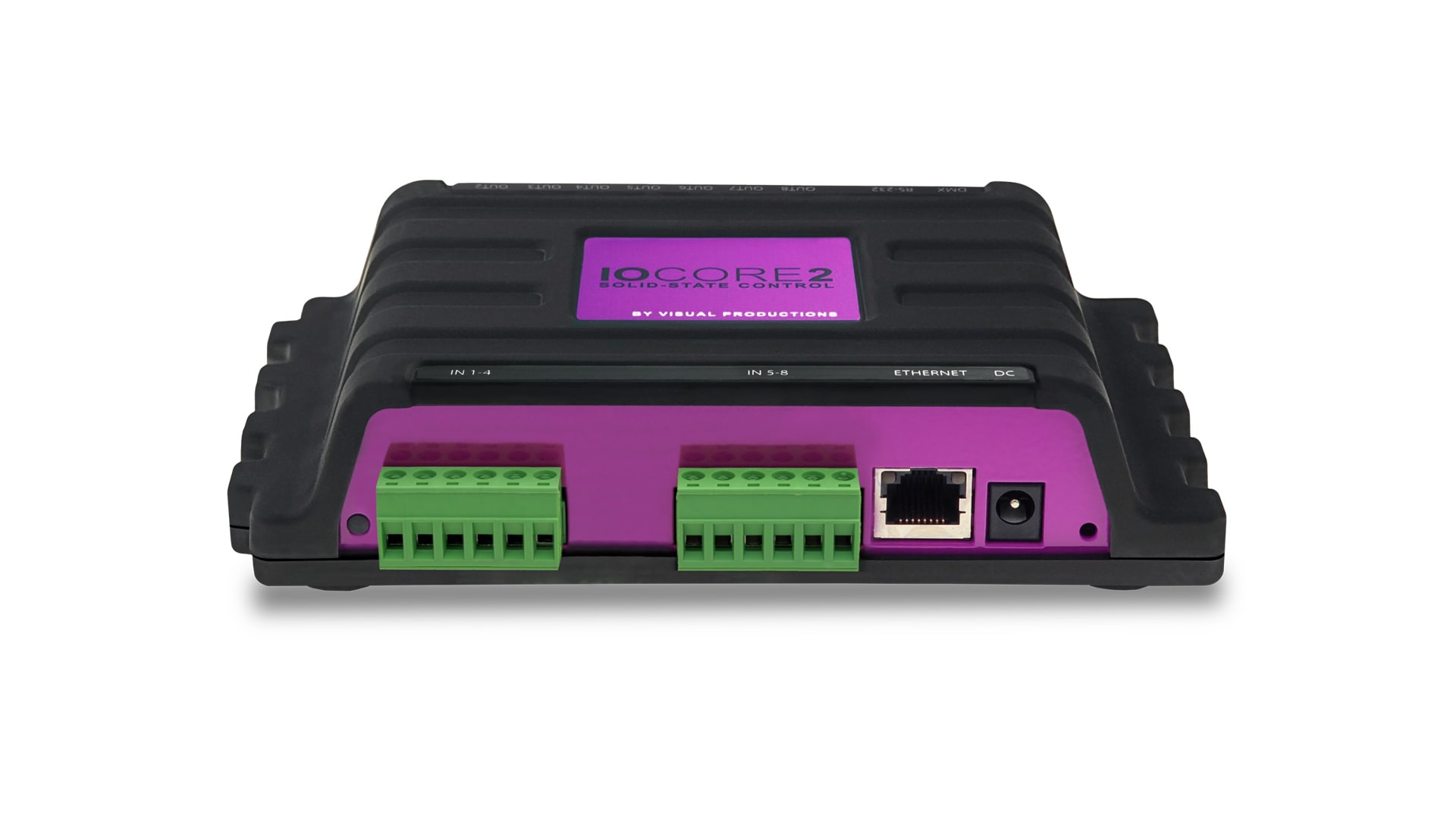

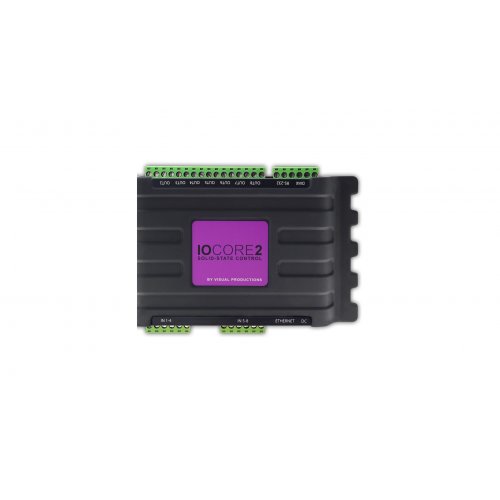

Visual Productions IoCore2 GPIO Interface
Model: IOCORE2
About: Visual Productions IoCore2 GPIO Interface
The IoCore2 is network-based solid-state interface for GPIO signals. It features eight GPI ports that can be configured as digital contact-closures or analog 0-10V level inputs.
The IoCore2 also has eight GPO ports that are fitted with potential free relay switches. Furthermore, it has a RS-232 port, a bi-directional DMX-512 port and it supports many Ethernet based protocols.
Specifications
- Ethernet port
- Programming via web-interface
- 8 x Analogue or Digital inputs
- 8 x Relay (250VAC/30VDC max. 2A)
- DMX512-A (ANSI E1.11) port (opto-isolated, input or output)
- RS-232 port (in & out)
- Art-Net (in & out)
- sACN (in & out)
- TCP (in)
- USP & OSC (in & out)
- 12-24 DC 500mA (PSU included)
- Power over Ethernet (class I)
- Kensington lock
- Desktop, DIN Rail or 19″ rack mount (optional adapter)
- Operating temperature -20°C to +50°C (-4°F to +122°F)
- Compliance EN55103-1 EN55103-2
- Bundled with CueluxPro, vManager and Kiosc software
Extend CueCore connectivity
- The IoCore2 is an expansion module for the CueCore2. It can extend the CueCore’s capabilities with its GPI, GPO, RS-232 and DMX ports. Incoming signals on any of these ports can be used to trigger lighting scenes inside the CueCores.
Convert and trigger protocols stand-alone
- The IoCore2 is capable of sending, receiving and converting between any of its physical ports (GPI, GPO, RS-232 & DMX) and Ethernet based protocols (TCP, UDP, OSC & Art-Net).
- The web-interface allows flexibel triggers and conversions to be programmed inside the IoCore. The unit can operate autonomously, no external equipment required.
Combine with other products from the family
- The IoCore2 can easily be combined with the CueCore2 and QuadCore lighting engines. Or the B-Station, a wall-mount button panel. And the RdmSplitter, a DMX signal booster/splitter.
Download the software tools
- The IoCore2 comes with the vManager software tool. vManager, allows you to discover IoCores on the network, backup their internal data and upgrade firmware.
UPC: 8718781510305
