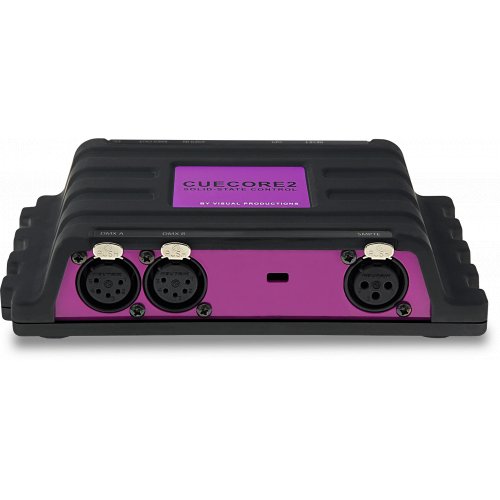

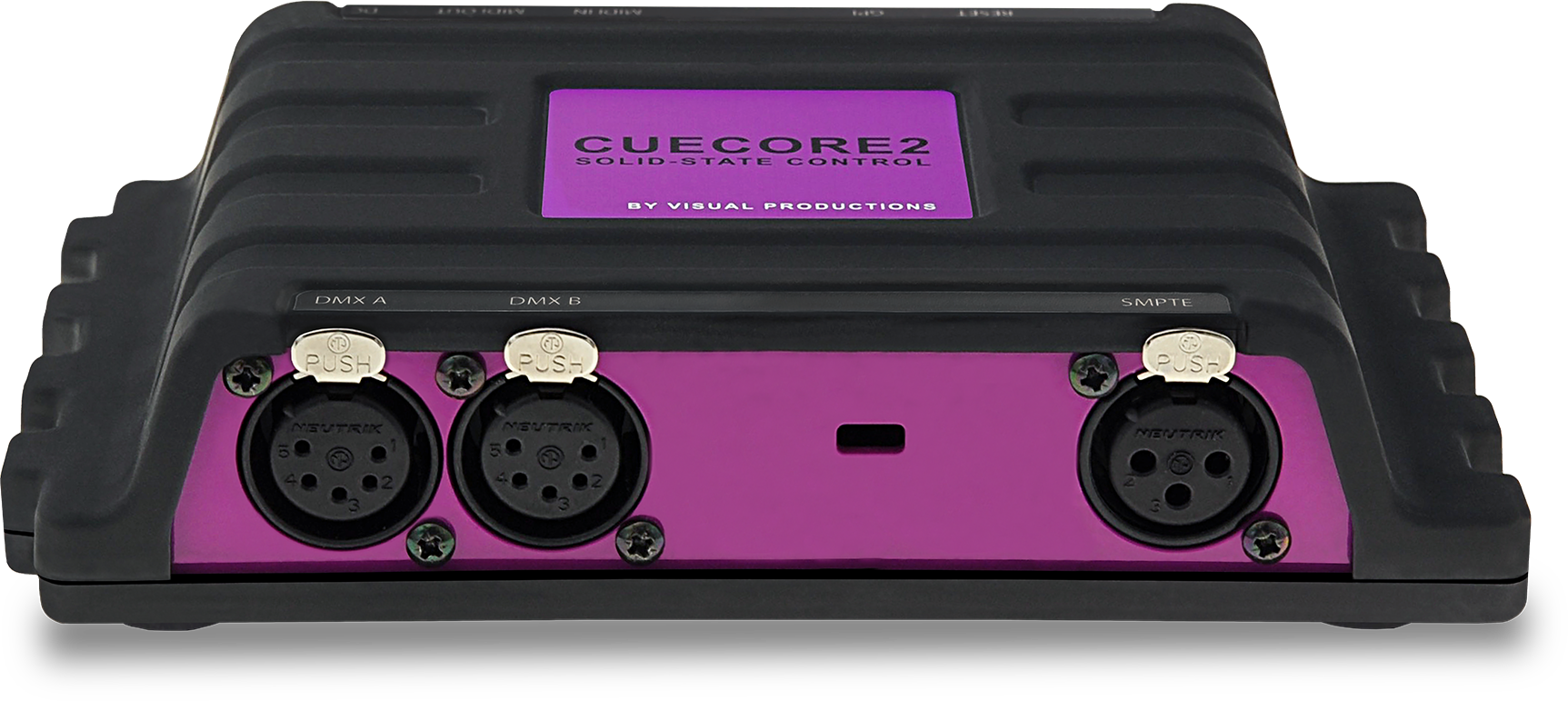

Visual Productions CueCore2 Solid-state Lighting Controller

About: Visual Productions CueCore2 Solid-state Lighting Controller

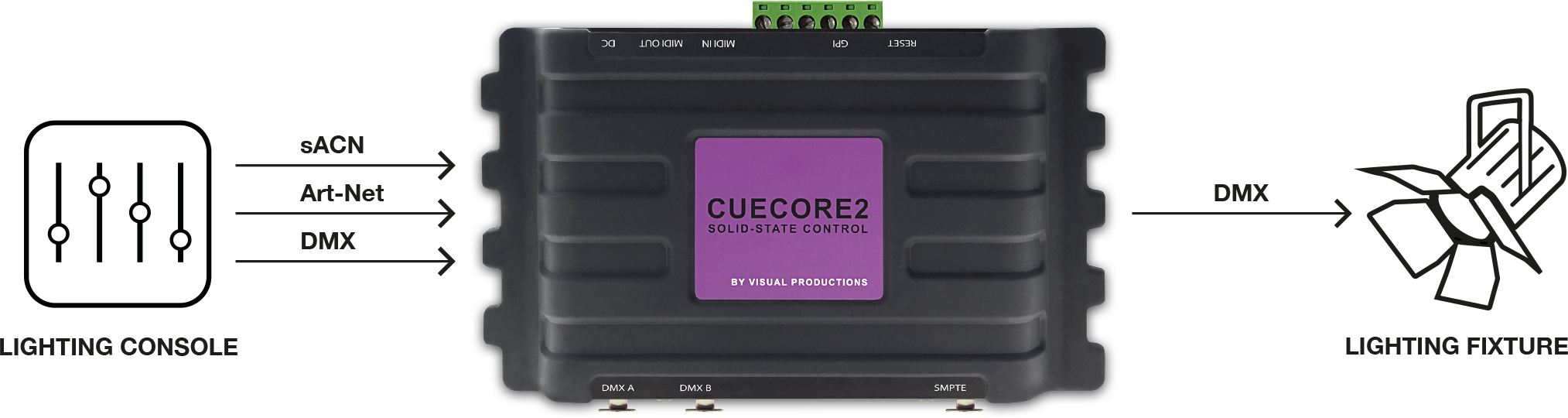

The CueCore is a lighting controller for permanent installations. The device is completely solid-state, with no moving parts; it is an extremely secure and low-maintenance installation control solution that has only a minimal power consumption. All operating and programming is done through its dynamic web 2.0 interface.

In fixed installations, often the computer running the lighting software proves to be the weakest link. Failing power-supplies, hard-disks, fans or dust-filled CPU heatsinks are notorious for bringing PCs to a full stop.

The CueCore is designed to operate without a computer; thus lowering the cost of the control system and greatly reducing the need for maintenance.

Lighting Console

Connected to a browser, the CueCore unfolds itself into a 1024 channel lighting controller, complete with a industry-standard command-line interface for fast programming. It features 256 scenes with programmable fade and hold times.

DMX Recorder

With its exceptional value-for-money, the CueCore also features a DMX and Art-Net recorder with a capacity for storing 16 individual tracks. Each track has 1024 channels and is compressed for maximum duration. Multiple tracks can be played back, each with individual master levels.

Show Control

With lighting projects becoming more complex every day, the CueCore features a powerful Show Control logic for advanced system integration. This allows for interaction with other types of equipment and controllers. The Show Control editor enables you to program triggers and actions based on events from scheduled dates or times, time-code, contact-closure or any other incoming signal.

• 2 x DMX-512 opto-isolated (in or out)
• Art-Net & sACN (in and out)
• KiNet (out)
• MIDI, MSC & MMC
• OSC & UDP (in and out)
• TCP triggers (in)
• GPI port with 4 contact-closures or 0-10V inputs
• On-board lighting controller with 6 independent playbacks
• DMX, Art-Net and sACN show recorder
• Scheduling with Real-Time clock, weekdays and sunrise/sunset
• NTP time synchronisation
• SMPTE, MTC and Art-Net timecode slave
• Show Control function (connect any input to any output)
• Master/slave protocol for synchronising multiple units
• Compatible with Kiosc
• PoE
• Desktop or DIN Rail mounted
• Kensington lock
