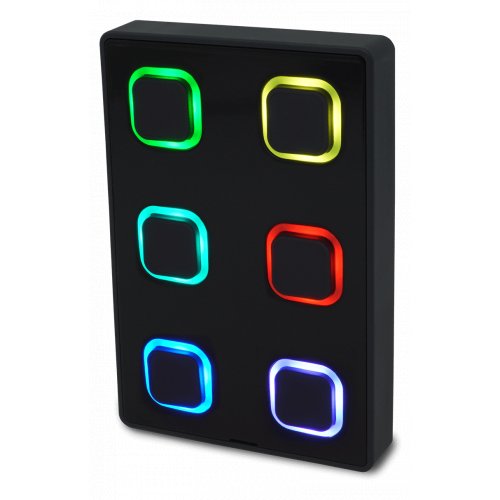

Visual Productions B-Station2 Wall Mount Button Controller for CueCore

About: Visual Productions B-Station2 Wall Mount Button Controller for CueCore

Remote control CueCores
The B-Station2 seamlessly integrates with other devices from the Visual Productions family of control products e.g. CueCore2, QuadCore, DaliCore, LPU-2, TimeCore and IoCore2.

Multiple B-Stations can be networked together.

Stand-alone lighting controller
For small lighting projects, the B-Station2 is a clever, compact and complete stand-alone solution. Fitted with a DMX port, the B-Station2 can be programmed via the web-interface. It features a patch for 32 fixtures, 6 playbacks, many cues and even a basic FX-engine.

The bi-directional DMX port is RDM capable. This enables the B-Station2 to discover and commission RDM fixtures.

Control third-party equipment
The B-Station2 speaks many protocols that are popular amongst AV equipment and systems integration. This makes the B-Station2 compatible with a wide range of third-party equipment like audio players, media servers and show controllers, etc.

Show Control programming
The web-interface of the B-Station2 allows you to program triggers and actions based on incoming signals from any of the supported protocols such as UDP, OSC and Art-Net. Likewise, it is possible to send out messages or call internal software functions in the event of any trigger.

Combine with other products from the family
The B-Station2 can easily be combined with the CueCore2, LPU-2 and DaliCore lighting engines. Or the IoCore2, a GPI, GPO & RS-232 interface module. And the RdmSplitter, a DMX signal booster/splitter.

Software Tools
The B-Station2 comes with the ‘vManager’ software tool. vManager, allows you to discover B-Stations on the network, backup their internal data and upgrade firmware. There is also a simple program for creating custom touch-screen user-interfaces called Kiosc.

Specifications

• 6 Push Buttons
• RGB LED rings
• Web-interface for programming
• DMX-512 (ANSI E1.11) opto-isolated
• RDM (ANSI E1.20)
• Art-Net output and input
• sACN output and input
• UDP output and input
• OSC output and input
• TCP Input
• Compatible with Kiosc
• Power over Ethernet (class I)
• 32 fixtures in stand-alone
• 6 playbacks/zones in stand-alone
• FX Generator
