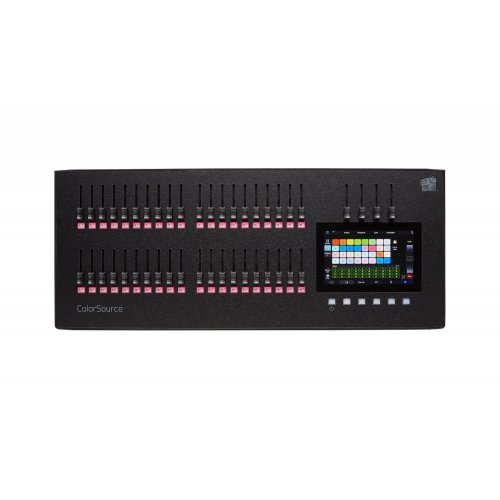

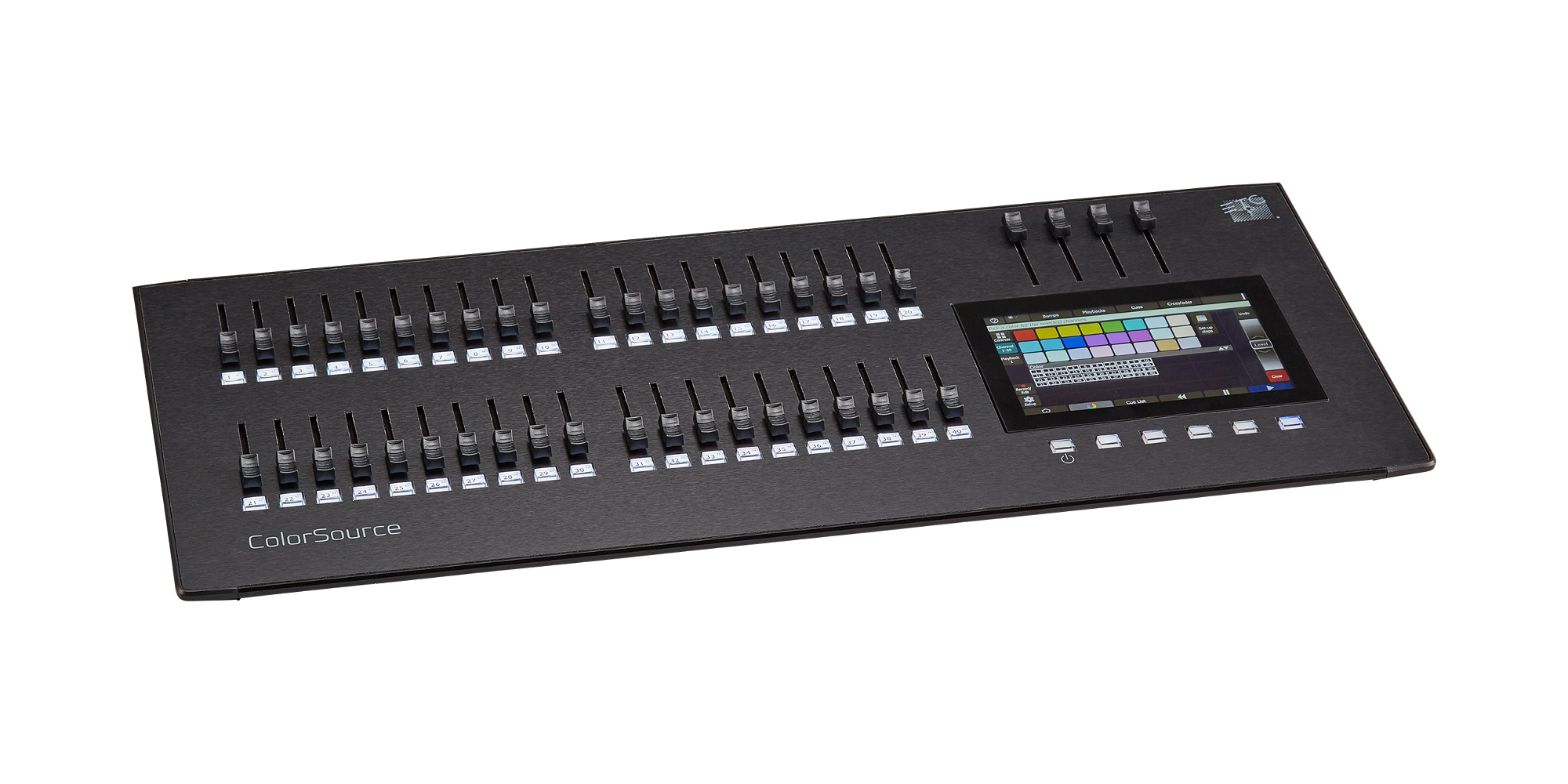

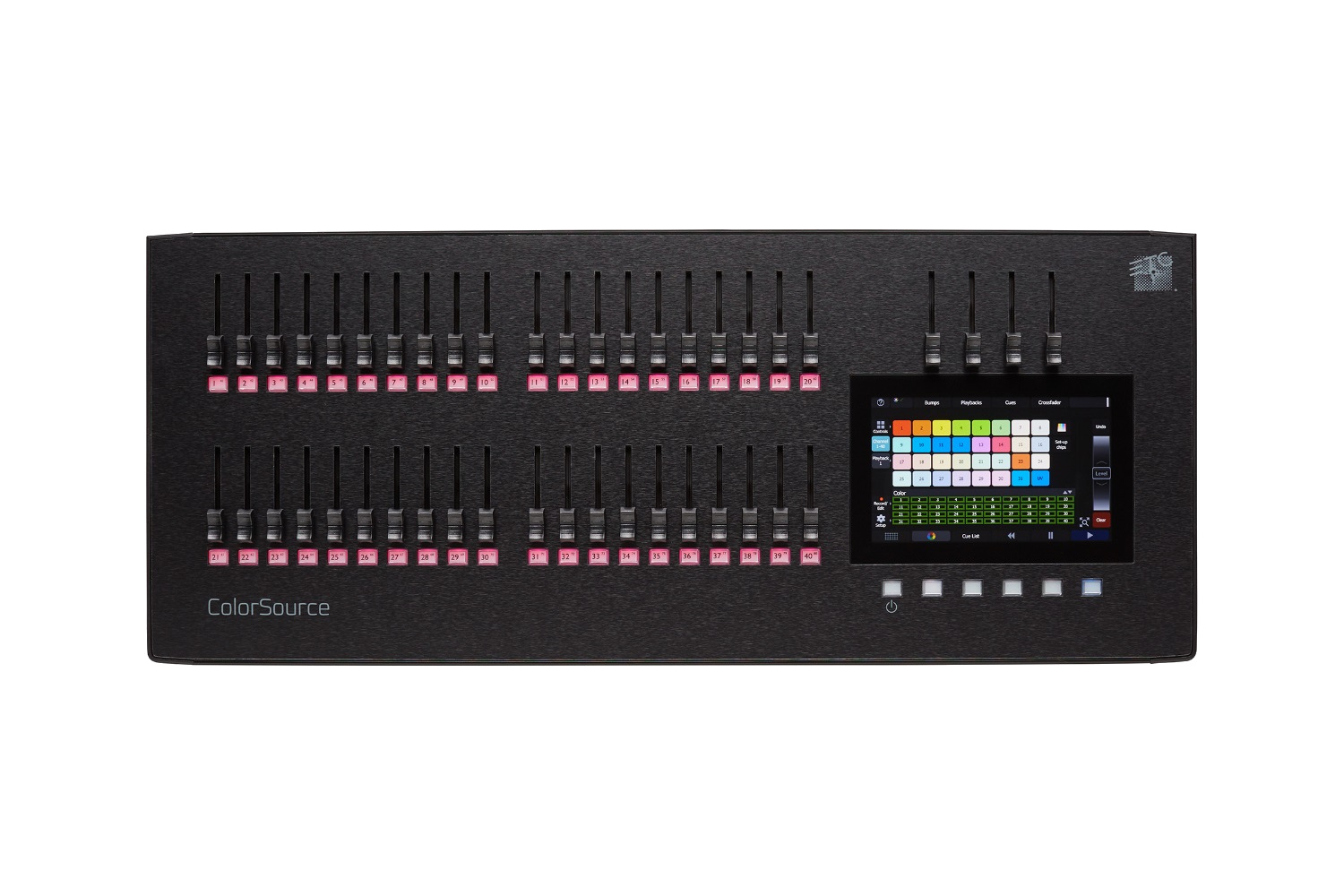

ETC ColorSource 40 DMX Controller
Model: ETC 7225A1001-US
About: ETC ColorSource 40 DMX Controller
ColorSource consoles provide affordable, comprehensive control with an approachable, streamlined interface.
With ColorSource consoles, setup and programming is a breeze! From patching to performance, ColorSource consoles enable you to navigate and program quickly. The multi-function onboard touchscreen provides not only a customizable stage map but also color and parameter controls, a full palette system, effects manipulation, and the Playback Toy live busking controls.
The onboard faders can be used as direct channel controls or as playback faders. For preprogrammed shows, ColorSource consoles include comprehensive cue stack functionality. Assign additional faders as submasters, group masters, or a grandmaster.
ColorSource AV
ColorSource AV consoles retain all standard ColorSource features, but add sACN and Art-Net networking, OSC, audio input/output and an HDMI video connection.
Use the video output for an external status display monitor or as part of an integrated AV setup with sound and image cues. Use the groundbreaking Video Toy for immersive live media effects – busk along with the band, or let the sound-to-light feature take over!
ColorSource AV consoles also support Amigo, a web-based remote focus tool.
ColorSource Offline Editor
Prep your patch, write cues, and program effects before you hit the venue. Programming can easily be transferred to any ColorSource console via a USB drive.
- Minimum specifications:
- Screen resolution 1920x850 or better
- Windows
- 7 SP1 or better
- DirectX 9/OpenGL 3.0 or better
- macOS: 14 (Sonoma) through 26 (Tahoe)
All ColorSource consoles feature
- 80 control channels/devices
- 7" integrated multi-touch display
- 4 user-definable master faders
- 5 user-definable buttons for common commands
- Virtual level/rate paddle
- Cue list record and playback functions
- Non-intensity parameter control
- Console lockout
- Color, Position and Beam Pallettes
- Color, intensity, position and parameter effects
- Intuitive color control of LEDs
- RDM discovery & configuration
- Onboard help system
- "Simple Mode" operation for 4 looks
- Playback Toy for live busking
- Kensington Security Slot
Which ColorSource console is right for you?
| ColorSource 20 | ColorSource 40 | ColorSource 20 AV | ColorSource 40 AV | |
|---|---|---|---|---|
| DMX input/output Control Faders | 20 | 40 | 20 | 40 |
| 5-pin DMX ports | 1 | 1 | 2 | 2 |
| USB Ports | 1 | 1 | 2 | 2 |
| Playback pages with configurable modes | 10 (200 total) | 10 (400 total) | 10 (200 total) | 10 (400 total) |
| Network (sACN/Art-Net universes) | No | No | 5 | 5 |
| 3.5mm/ 1/8" stereo audio input/output | No | No | Yes | Yes |
| Sound-to-light playback | No | No | Yes | Yes |
| HDMI port for monitor or image/visual effects | No | No | Yes | Yes |
| Video Toy for Interactive visual effects | No | No | Yes | Yes |
| "Amigo" web-based remote control over network | No | No | Yes | Yes |
| OSC support | No | No | Yes | Yes |
Specifications
- MECHANICAL
- One home and five configurable softkey buttons
- Four configurable function faders
- 7” color multi-touch touchscreen
- PLAYBACK CONTROLS
- One cue list with 999 cues
- 10 pages of 20 or 40 playbacks
- Static memories or sequences
- Playback Toy for filtered and timed execution of playbacks
- Mulitple bump modes (Flash, Solo, Solo Change, Move/Go)
- Full-history rubberbanding for playbacks
- On-board help system
- Extensive library for controlling moving lights
- MEDIA
- Audio input type:
- 3.5 mm (1/8”) TRS, Stereo, unbalanced
- Line in -10 dBV (316 mV RMS)
- Input Impedance: 29k ohms
- Audio output type:
- 3.5 mm (1/8”) TRS, Stereo, unbalanced
- Line out -10 dBV (316 mV RMS) at 10k ohms “Line Level”
- Load Impedance : 10k – 200k ohms
- Supported media file formats:
- Audio: mp3, aac and wav files (44.1 kHz sample rate, 4 GB maximum file size)
- Image: jpg, png, tiff, and bmp files (1280 x 720 maximum resolution)
- Please note: visual output is limited to still images and effects from the VideoToy feature of the ColorSource AV console. Movie files are not supported
- Audio input type:
- REGULATORY AND COMPLIANCE
- cETLus Listed
- CE Compliant
- PROGRAMMING TOOLS
- Color and white pickers
- Reference based Position, Color and Beam palettes
- Innovative touch-based parameter controls
- Auto fixture selection on fader moves
- Virtual Level/Rate wheel
- Cutomizable Channel display using Stage Map
- Effects (intensity, color, shape, and parameter)
- Fixture Tags for Quick Selects
- 27 Quick Select groupings
- Two independent channels
- Virtual keypad for level entry
- UNIQUE FEATURES
- 80 channels / multi-parameter devices
- 40 Channel / Playback faders with color indication
- One DMX/RDM port
- One USB port
- 2 GB onboard storage for show files
- PHYSICAL
- Dimensions (HxWxD): 2.36 x 26.3 x 11 inch (60 x 668 x 279mm)
- Weight 9.55 lbs (4.33kg)
