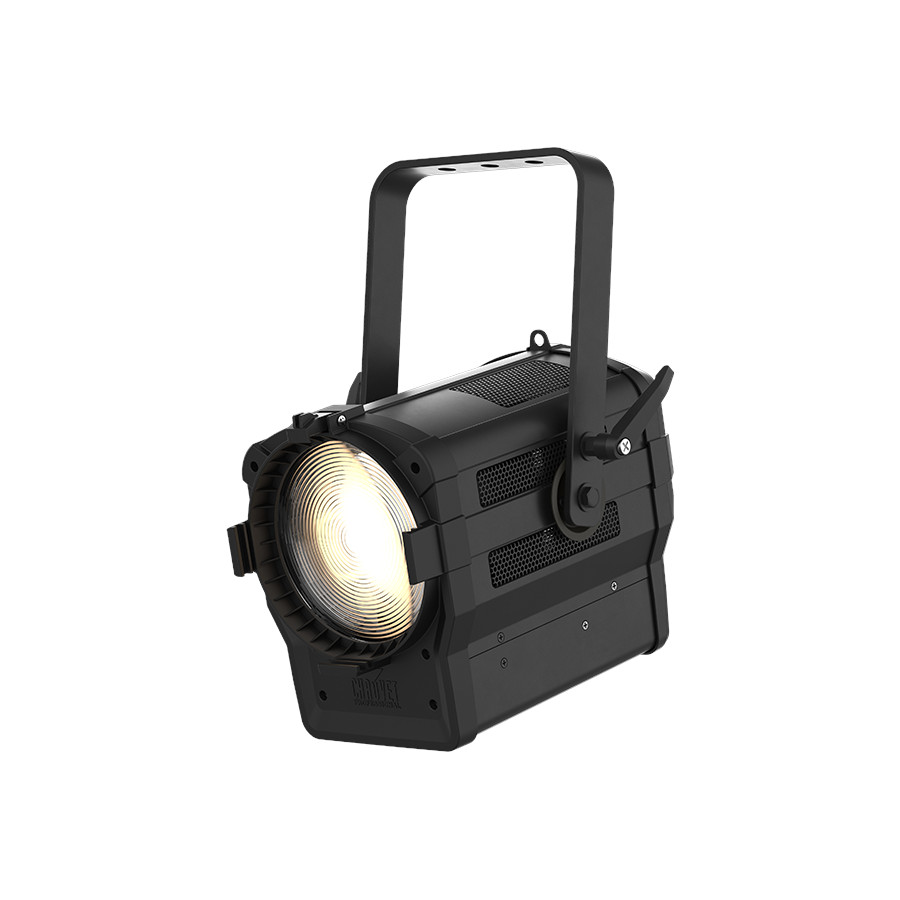

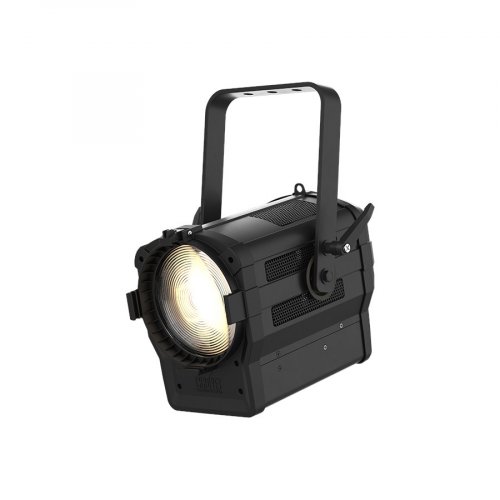

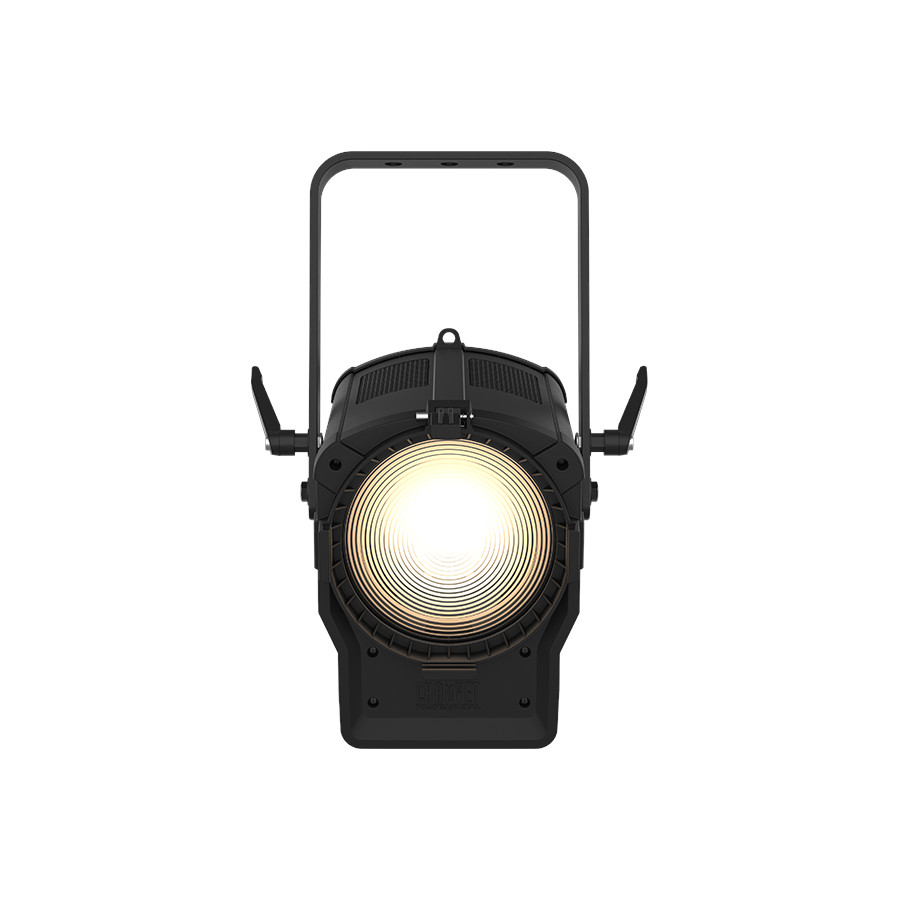

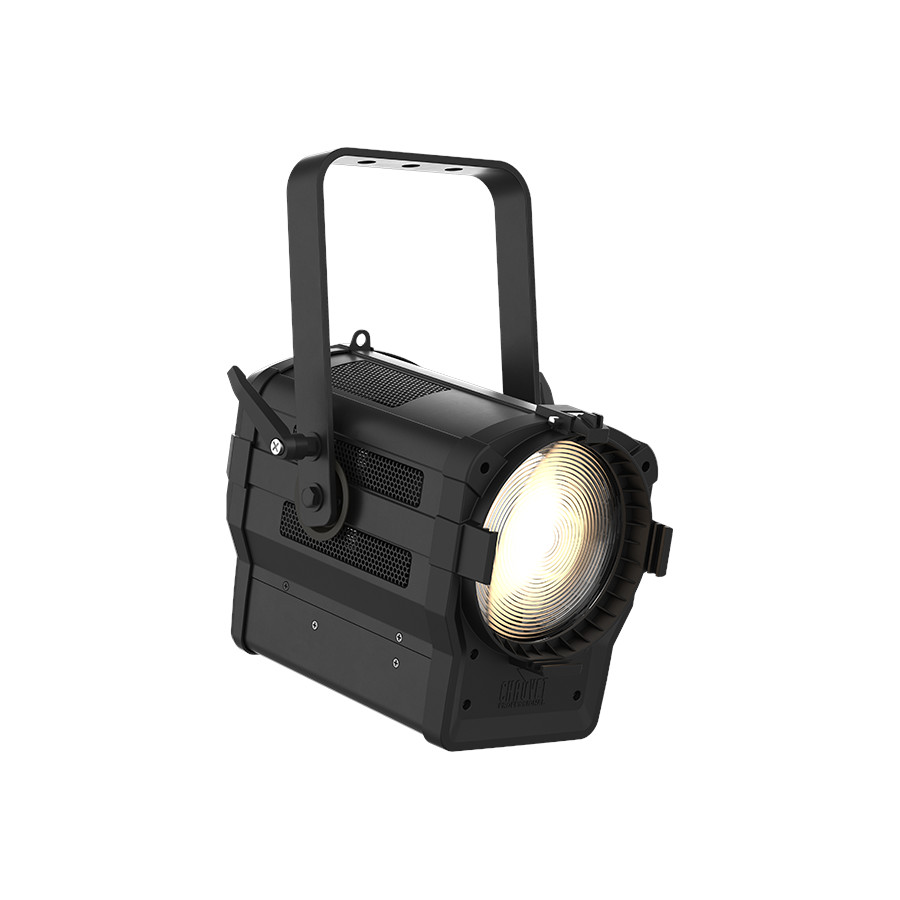

Chauvet Pro Ovation F-145WW Warm White LED Fresnel

About: Chauvet Pro Ovation F-145WW Warm White LED Fresnel

Ovation F-145WW delivers a beautifully soft and flat field of warm white light with high CRI and a motorized zoom range of 16° to 65°, making it a versatile LED replacement for aging incandescent six-inch Fresnels. A virtually quiet operation and smooth 16-bit dimming control make it a great choice for theatrical and/or studio applications.

• Warm white Fresnel with output comparable to a 6”, 650 W Fresnel
• Soft and even field of light
• 16-bit dimming resolution for smooth fades
• Virtually silent operation for use in any situation
• Motorized zoom range between 16° to 65°, manually or via DMX

Specifications

• Optical
  • Light Source: 1 LED (WW) 70 W, (3.6 A), 50,000 hours life expectancy
  • Color Temperature (at full): 3096 K
  • CRI: 97
  • Beam Angle: 16° to 48°
  • Field Angle: 25° to 65°
  • Zoom Range: 16° to 65°
  • Lumens (25°): 2,787
  • Lumens (65°): 4,266
  • Illuminance (25°): 1,290 lux @ 5 m
  • Illuminance (65°): 252 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
• Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 30 Hz
  • Dim Modes: 4

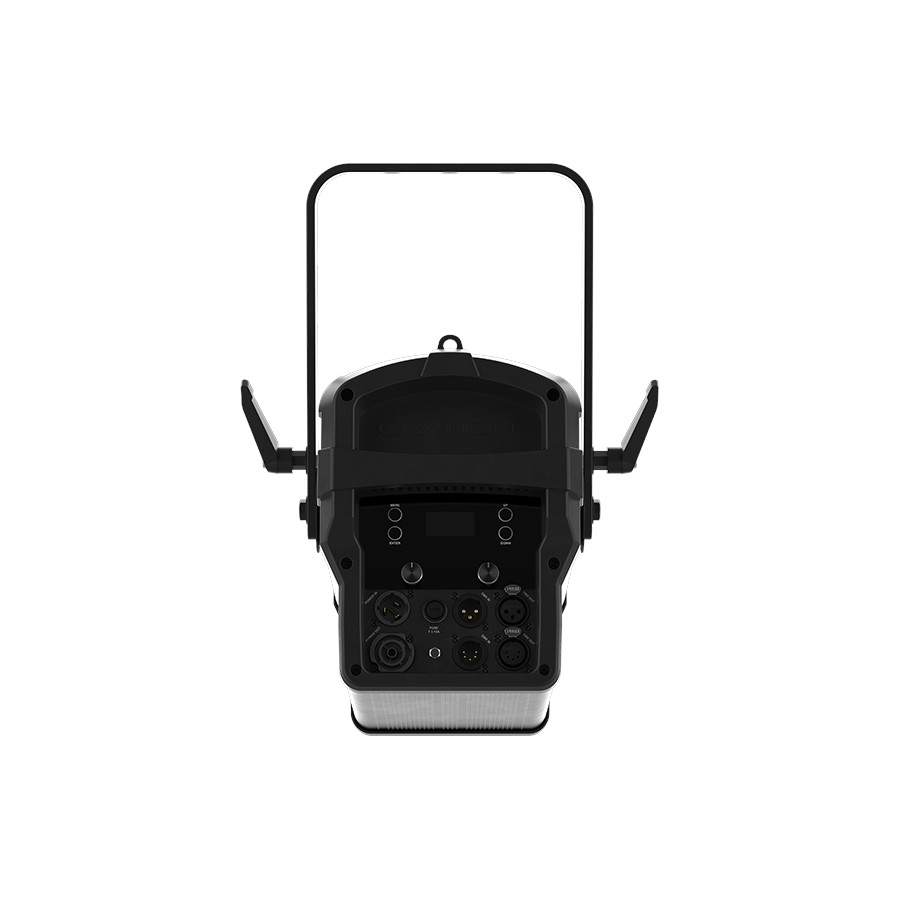

• Connections
  • Power Connection: Edison (local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
• Control
  • Protocol(s): DMX, RDM
  • DMX Channels: 1, 2, 2 or 5
  • Modes/Personalities: 4 personalities (1, 2, 2, 5)
• Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 18 units @ 120 V; 32 units @ 208 V; 35 units @ 230 V
  • Power and Current: 75 W, 0.635 A @ 120 V, 60 Hz
  • Power and Current: 73 W, 0.373 A @ 208 V, 60 Hz
  • Power and Current: 73 W, 0.337 A @ 230 V, 60 Hz
• Certifications / Qualifications
  • CE, MET, FCC, UKCA
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• Construction / Physical
  • Dimensions: 11.69 x 11.22 x 15.03 in (297 x 285 x 382 mm)
  • Weight: 11 lb (5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)
• Optional Accessories
  • Professional Clamps: CTC-50HC, CTC-50HCN
  • TRUE1 Style Power Extension cables
  • 3-pin or 5-pin DMX Cables
  • Color Blending Filters: DF60X1D, DF20D
  • Ovation F6.25” Barndoor

What's Included

• Ovation F-145WW
• Seetronic Powerkon IP65 power cord
• Gel Frame
