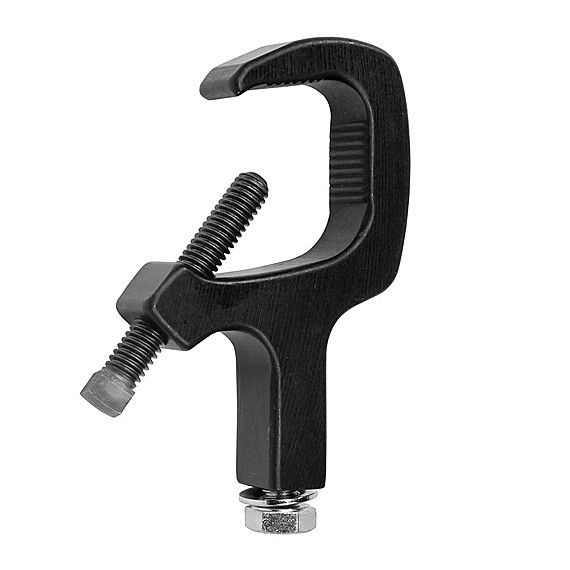

The Light Source Micro-Clamp- Black
Model: TLC MMB
About: The Light Source Micro-Clamp- Black
The Micro Clamp is ideal for hanging miniature fixtures like MR-16’s onto a small pipe or tube. Made from high tensile aircraft aluminum. Solid design grips pipe with micro grooves, has spring loaded pan adjustment, and has 5/16" fasteners. Available in black anodized, or polished aluminum finishes.
- Minimum Size
- 3/8" pipe, .675" OD
- Maximum Size
- 1" pipe, 1.315" OD
- Safe Vertical Working Load
- 125 lb 55kg
- Hardware
- 5/16″ × 3/4" long hex head Grade 5 Bolt
- 5/16″ × 2″ long square head case hardened set screw
- Belleville spring washer.
- Dimensions
- 3.85" Tall x 2.5" wide x .625" thick
- Weight
- 3.2 oz
