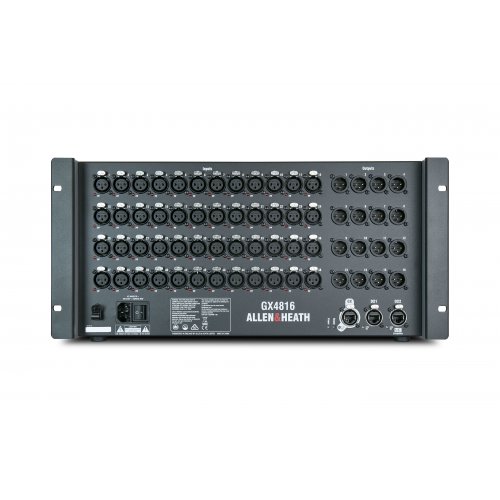

Allen & Heath GX4816 48 XLR Input / 16 XLR Output Expander
Model: GX4816
About: Allen & Heath GX4816 48 XLR Input / 16 XLR Output Expander
GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for SQ, Avantis and dLive* mixing systems, and for the AHM-64 audio matrix processor.
*dLive compatibility due in Firmware V1.9
Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion. Connection to a ME Personal Mixing System is possible via the DX2 socket when used with SQ, dLive and Avantis.
GX4816 connects via a single Cat5e cable to an SLink socket on a SQ, Avantis or AHM-64, or to a gigaACE audio network card on a dLive system.
Connection to DX Expanders and the ME Personal Mixing System is also over Cat5e cable.
Features
- 48 Mic Preamps on XLR with Phantom Power status LEDs
- 16 XLR Line Outs
- 96kHz operation
- DX1 Port – compatible with a single DX32, or up to 2 DX168/DX164-W expanders
- DX2/ME Port – compatible with a single DX32, up to 2 DX168/DX164-W expanders, or a ME personal monitoring system (not compatible with AHM-64).
- Compatible with SQ, Avantis, AHM-64 and dLive (firmware 1.9 onwards) systems
- Multiple GX4816 can be added to a system:
- Up to 2 GX4816 units can be added to a SQ system
- Up to 2 GX4816 units can be added to an Avantis system
- Up to 5 GX4816 units can be added to a dLive S Class system
- Up to 3 GX4816 units can be added to a dLive C Class system
- Rack-mounted (5u) or shelf/floor operation
- Plug and Play – no IP addressing required
- Compatible with CAT5e (or higher) cables of up to 100m
- Locking EtherCon ports
