Whirlwind W1 39 Pin Male to Female Connector Cable - 75ft
Model: C12075W1MF
About: Whirlwind W1 39 Pin Male to Female Connector Cable - 75ft

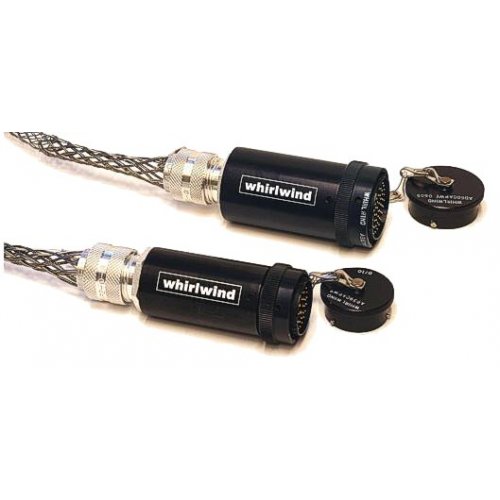

The Whirlwind W1 is a 39 contact, quick disconnect connector system based on the proven MIL-26482 multipin standard. The pin and socket modules are shell size 20 with a standard 39 contact insert arrangement. The solder style contacts are permanently mounted in resilient rubber insulators to provide years of trouble free service. Whirlwind manufactures a robust aluminum backshell to protect the soldered connections and provides a waterproof mesh grip for an absolutely reliable strain relief on the cable. The W1 system utilizes a 39 pin male insert in a plug shell, with a quarter-turn locking ring and a 39 socket female insert in a receptacle shell with studs, that mates with the male plug shell. Whirlwind provides the W1 in four standard configurations, male and female inline and male and female chassis mount. The W1 can be used to interconnect up to 12 balanced, shielded signal lines.
These Cable Assemblies are designed to interconnect the components of the PATCHMASTER60 and the Mini-12 W1 box.
Specifications
- Materials and Finishes
- Contacts: Copper alloy, hard gold plate over nickel under plate per MIL-G-45204
- Insulators: Low temperature elastomer
- 'O' Rings and Seals: Low temperature elastomer
- Shells and Dust Caps: All aluminum alloy, black anodized coating Chain-Stainless steel
- Mechanical Data
- Operating Temperature: -40°C to +105°C / -40°F to +221°F
- Contacts: #20 AWG Solder type (7.5 Amp rating)
- Contact Retention: 15 lbs. minimum
- Connector Engagement and Separation Forces: 32 in. lbs. maximum
- Polarization: 5 Keyways
- Electrical Data
- Operating Voltage: 850 VDC or 600 VAC rm's maximum
- Insulation Resistance: 5000 megohm minimum
- Contact Resistance: 6 milliohms maximum
