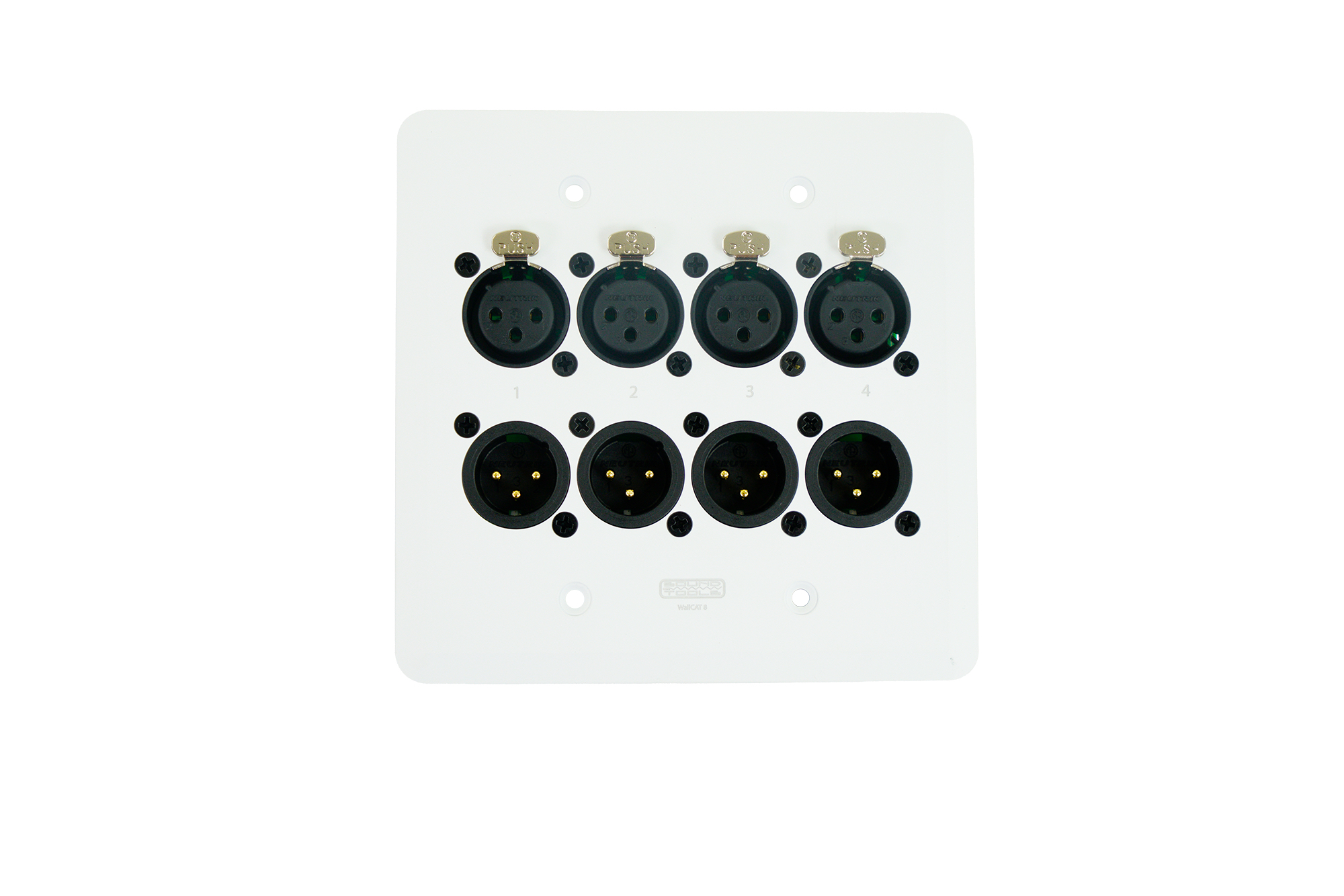

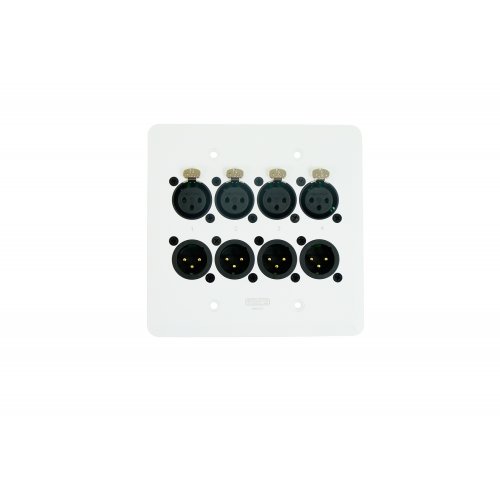

Sound Tools WallCAT 8 Analog Audio Over CAT5 Wall Mount - White

About: Sound Tools WallCAT 8 Analog Audio Over CAT5 Wall Mount - White

The SoundTools WallCAT 8 is an easy-to-install 2 gang wall plate. Choose from either input or output across 4 XLR channels that utilizes Cat5e, Cat6, or Cat7 cable to transmit superior analog audio, AES3, DMX and intercom signals to multiple locations.

ANALOG AUDIO OVER CAT5 WALL MOUNT

Send analog audio from one room to another using shielded Cat5e cable and SoundTools WallCAT 8s. These durable aluminum wall units fit standard 4” US electrical junction boxes to easily send or receive four channels of XLR, AES3, DMX or intercom throughout a venue or home.

PERFECT FOR STUDIO OR OFFICE

SoundTools is committed to the design and manufacture of professional grade audio equipment, whether it’s used on a festival stage, in a concert hall, recording studio, or in your office building. With the SoundTools WallCAT 8, we set out to create a superior XLR wall plate for sending and receiving analog audio and COM over shielded CAT cables. Compatible with analog, DMX, AES3 and intercom signals.

NO SOLDERING REQUIRED

Not all wall plates are created equally. Unlike other brands, our wall plates require no soldering to install. Every connection you need, including 8 Neutrik XLR connectors (4 male, 4 female wired in parallel) in front and 2 Amphenol RJ45 connections in back, come pre-installed and clearly labeled. Because of our commitment to consistent, high-quality analog audio and intercom signals, WallCAT 8s are designed to keep strong, stable connections. Our high-quality brushed aluminum and stainless steel mounting screws (included) are resistant to rust and most wear-and-tear.

SHIELDED CABLE ALLOWS PHANTOM POWER

SoundTools WallCAT 8s require shielded (STP/FTP) Cat cable to function properly. They are compatible with 48-volt phantom power. Using several SoundTools WallCAT 8s and our SuperCAT cable in your building installation will allow you to run four channels of clear analog audio signals from one room to another or to multiple rooms at once. Combine with our CAT Box, CAT Rack, and/or CAT Tails for the ultimate audio-over-Cat5 experience.

Specifications

• Technical
  • No soldering required, all connections included
  • Mounts in USA standard 4” electrical junction box
  • Professional-looking brushed aluminum in black or silver
  • 4 XLR ins or outs and 2 RJ45 connections (in and thru)
  • AES72-2O compliant
• Size
  • Dimensions (HxWxD): 4.6 x 4.76 x 1.8 in (11.68 x 12.09 x 4.57 cm)
  • Weight: 4 oz (113.4 g)
• System Requirements
  • Analog audio (including phantom power*)
  • DMX signals
  • AES3
  • Intercom
    • *Requires shielded cable for full functionality

What's in the Box

• 4 channel wall plate
• Mounting screws (x4)
• User documentation
