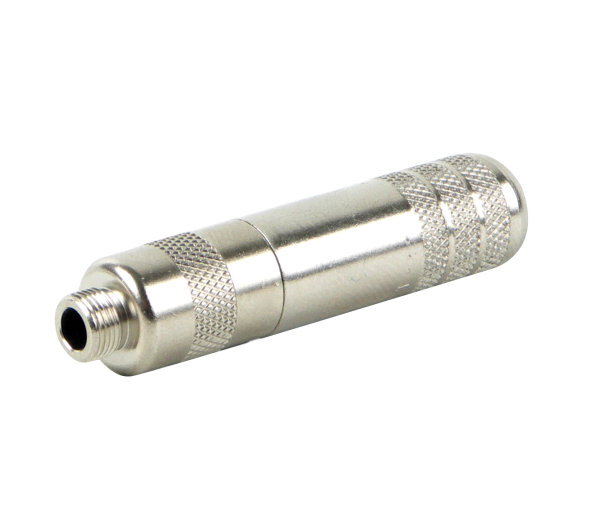

Switchcraft 35LJNS 3.5mm 1/8in Locking Stereo Inline Jack

Model: 35LJNS

Switchcraft 35LJNS 3.5mm 1/8in Locking Stereo Inline Jack
  • Free Shipping on orders over $199
  •  In Stock - Ship or Pick-up
  • Not yet reviewed




About: Switchcraft 35LJNS 3.5mm 1/8in Locking Stereo Inline Jack

Specifications

Electrical Specifications

  • Contact Resistance: 0.020 ohms
  • Insulation Resistance : 2000 megohms
  • Dielectric Withstand Voltage:  250VAC

Mechanical Specifications

  • Insertion Force: 8 lbs MAX
  • Withdrawal Force: 1lbs MIN
  • Life Cycles: 5,000 insertion/ withdrawal cycles
  • Max Soldering Temp/Time: 800°F/10s or 700°F/20s
  • Vibration per MIL-STD-202F Method 201
  • Thermal Shock per MIL-STD-202F Method 107G

Material Specifications

  • Sleeve: Copper alloy, nickel
  • Handle: Copper alloy, nickel
  • Cable Clamp: C.R.S., tin-plated
  • Solder Terminal: Copper alloy, silver or gold plated
  • Insulator: Thermoplastic, black


AVShop.ca is a Canadian authorized Switchcraft retailer.

Reviews: Switchcraft 35LJNS 3.5mm 1/8in Locking Stereo Inline Jack

There are currently no product reviews.


Warranty: Switchcraft 35LJNS 3.5mm 1/8in Locking Stereo Inline Jack

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Limited Lifetime Warranty
