Cable Techniques Low-Profile Right Angle 1/4in TRS w/Standard Cap - Black
Model: CT-LP14-3P-K
About: Cable Techniques Low-Profile Right Angle 1/4in TRS w/Standard Cap - Black
Low-Profile right angle Professional 1/4" Phone Plug, 3-Pole, nickel plated contacts, SOLDER type, Black shell. Premium quality, performance and easy to solder.
Designed to offer maximum flexibility for using multiple right angle plugs adjacent to each other e.g. patch bays, portable mixers, consoles, rack gear multichannel snakes and instrument effects pedalboards. Our unique design is perfect for right angle applications with the assurance of soldered connections fitted on multiple adjacent sockets with cable management a function and aesthetic. Assembly is seamless with "keyed" components with precise tolerances.
Available in 10 interchangeable Cap colors: Black, Red, Blue, Green, Yellow, Orange, White, Gray, Purple and Brown.
Two Cap Versions: Standard cap accepts cable diameters up to about 4mm (e.g. Mogami W3031, Belden 1804A, Sommer SC-Cicada SO-D14 and our CT-RAWCB-322) and the Large cap accepts cables from up to 6.0mm (e.g. Mogami W2893, W2549, Canare L2E5 etc.).

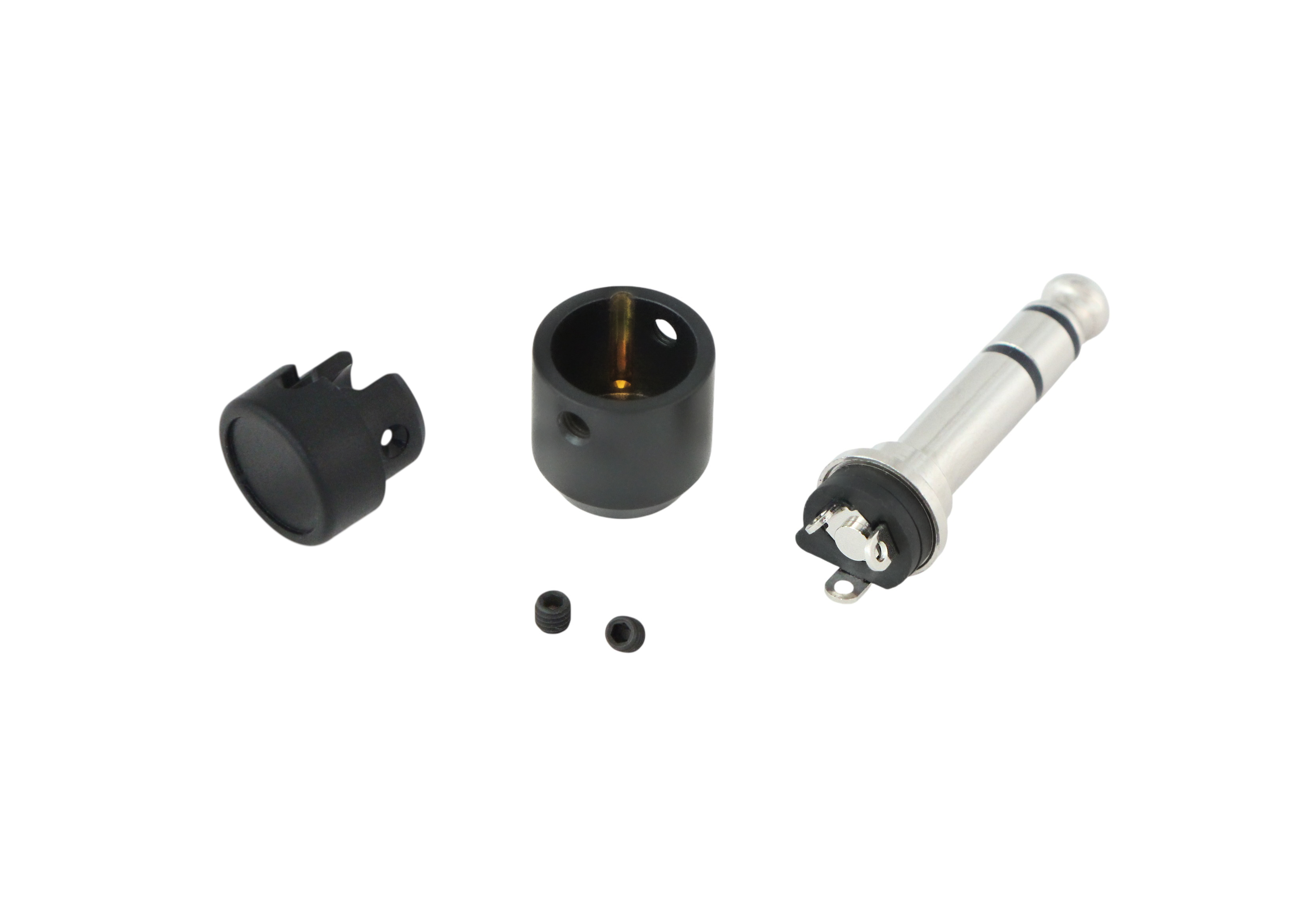

The interchangeable Color Caps can be ordered separately to customize your color profile at any time. Our Low-Profile Plugs are manufactured with the highest quality standards and are fully repairable.
Specifications
- Low-Profile Right Angle
- 3-Pole (Tip-Ring-Sleeve), Stereo / Balanced
- Solder Contacts
- Cable Outlet: up to 4mm, or up to 6.0mm
- Weight: 15g
- Dimensions - Standard Cap: 14mm x 52mm
- Large Cap: 14mm x 54mm
- 20mm (22 w large cap) exposed out of jack when plugged in
- Black shell, Machined Brass
- Color Caps: Molded ABS Thermoplastic
- Contacts: Nickel Plated Brass
