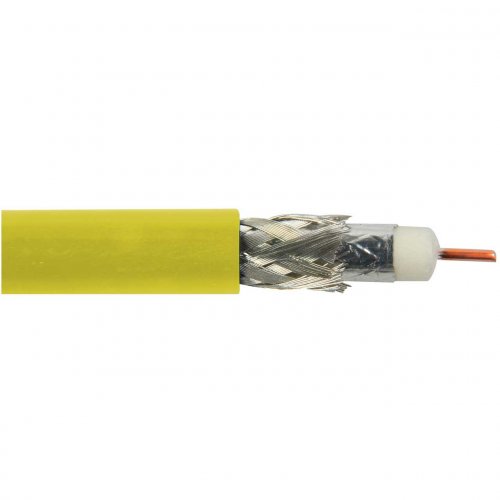

Belden 1694A 1000FT Install SDI / HDSDI Cable - Yellow

Name: Belden 1694A 1000FT Install SDI / HDSDI Cable - Yellow
Brand: Belden
SKU: 55498
Price: 1049.00 CAD
Availability: OutOfStock

$1,049.00 CAD

Find it for Less? Let us Know.

Black$1,049.00

Violet$1,049.00

Blue$1,049.00

Brown$1,049.00

Gray$1,049.00

Green$1,049.00

Orange$1,049.00

Red$1,049.00

White$1,049.00

Yellow$1,049.00

Black$799.00

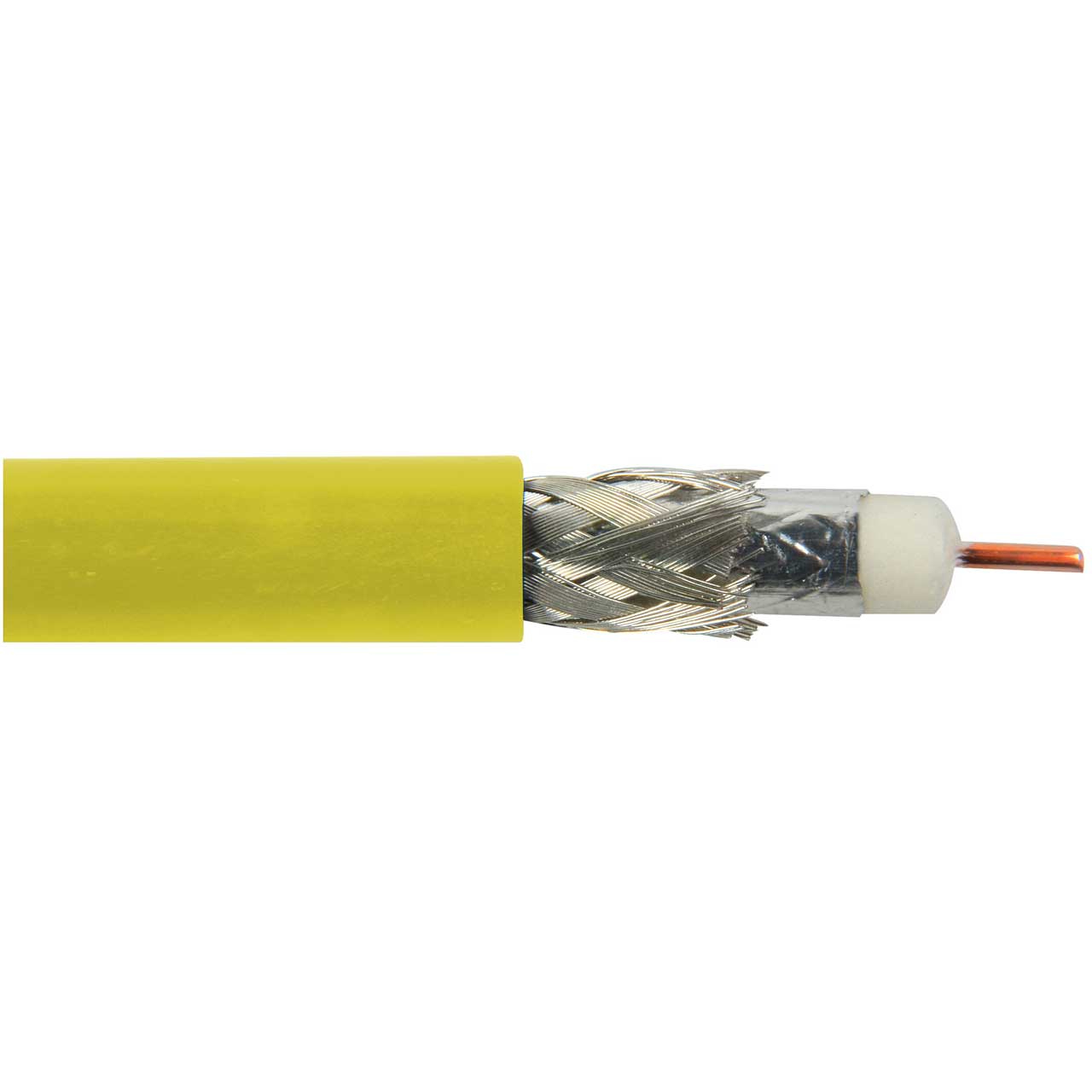

About: Belden 1694A 1000FT Install SDI / HDSDI Cable - Yellow

75 Ohm SDI Coax, RG-6, 18 AWG Solid Bare Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMR

Suitable Applications - Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p
Construction Details - RG Type: 6
Conductor
- Size: 18 AWG
- Stranding: Solid
- Nom. Diameter: 0.04 in
- Material: BC - Bare Copper
Insulation
- Material: PE - Polyethylene (Foam)
- Nom. Insulation Diameter: 0.180 in (4.57 mm)
- Color Code: White
Outer Shield
- Layer 1
  - Outer Shield Type: Tape
  - Material: Tri-Laminate (Alum+Poly+Alum)
  - Material Trade Name: Duofoil
  - Coverage: 100%
- Layer 2
  - Outer Shield Type: Braid
  - Material: Tinned Copper (TC)
  - Coverage: 95%
Outer Jacket
- Material: PVC - Polyvinyl Chloride
- Overall Cable Diameter (Nominal): 0.274 in (6.96 mm)
Electrical
- Nom. Conductor DCR: 6.4 Ohm/1000ft
- Nom. Outer Shield DCR: 3.8 Ohm/1000ft (12 Ohm/km)
- Nom. Capacitance Cond-to-Shield: 16.2 pF/ft (53.1 pF/m)
- Nom. Characteristic Impedance: 75 Ohm
- Nom. Velocity of Prop.: 82%
Votage - UL Voltage Rating: 300 V (CMR, CMG)
Max. Pull Tension - 69 lbs (31 kg)
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, UV Resistance, Aerial - Black only, When supported by messenger wire
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL1666 Vertical Shaft
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
- NEC / UL Compliance: CMR
- CEC / C(UL) Compliance: CMG
- Plenum Number: 1695A
