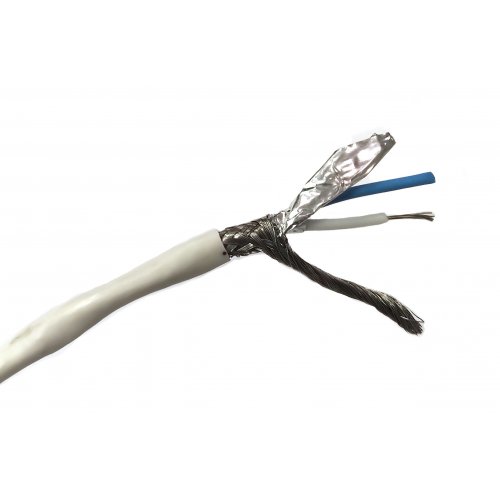

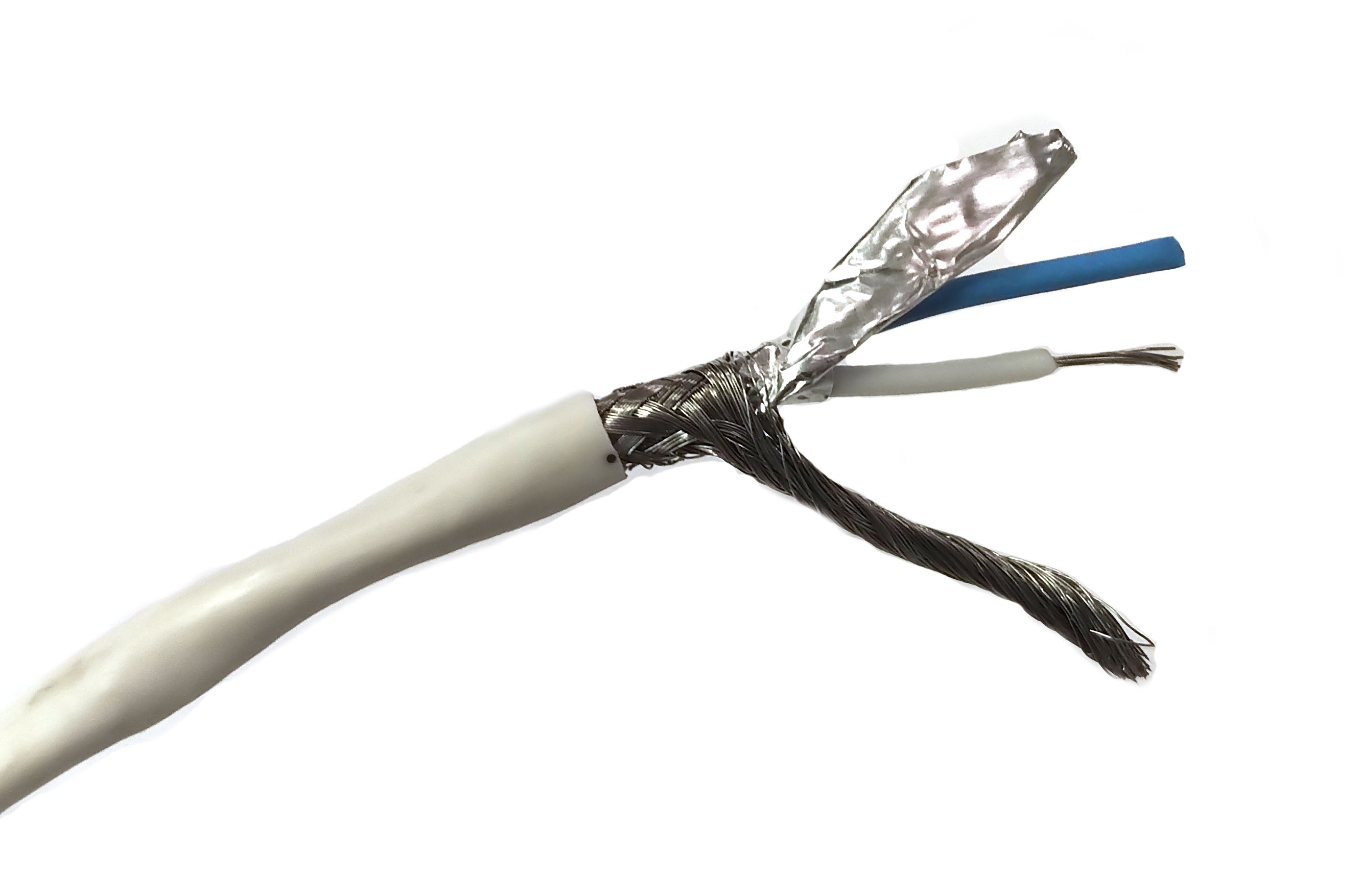

Provo Plenum FT6 DMX Cable - 300M
Model: 995401-300
About: Provo Plenum FT6 DMX Cable - 300M
Multi Conductor Low Capacitance Plenum Rated Cable.
Specifications:
- AWG: 24
- Stranding: 7 x 32 Tinned Copper
- Pairs: 1
- Insulation: Foam FEP 0.023" Wall
- Shield 1: Aluminum Foil Tape 100%
- Shield 2: Tinned Copper Braid 90%
- Drain Wire: 24 (7x32) TC
- Jacket: Low Smoke PVC 0.015" Wall
- Nom Cable OD: 0.204"
- Color Code: White/Blue
- Temperature: 0 - 75 C
- Nominal Impedance: 120 Ohms
- Nominal Capacitance: 12 Pf/ft / 22 Pf/ft
- Nom Velocity of Propagation: 76%
- Nom Conductor DC Resistance: 24 DCR @ 20 C
- Voltage: 300
- UL: CMP
- RoHS Compliant
