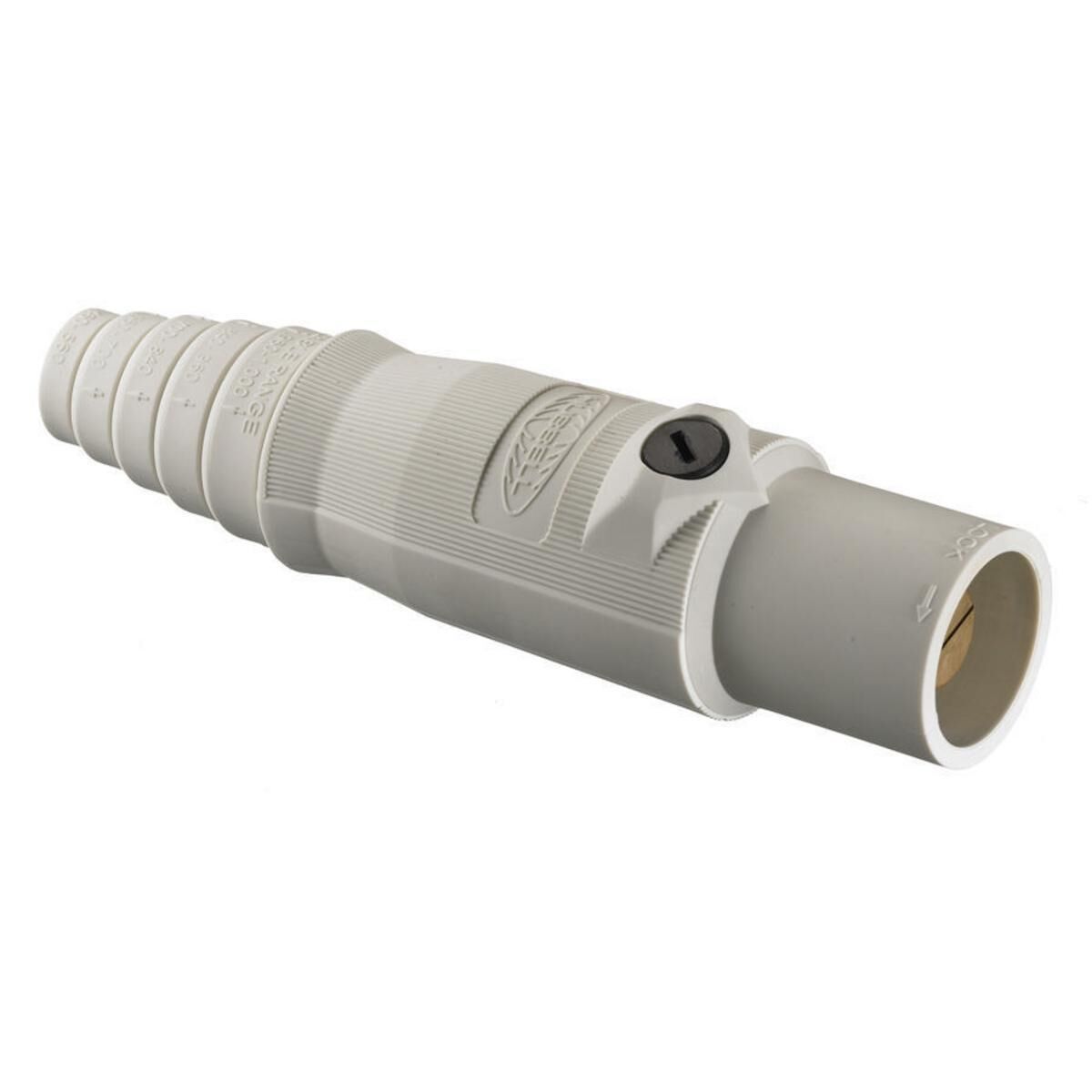

Hubbell HBL300M Single Pole Male Plug 300A/600V - White

About: Hubbell HBL300M Single Pole Male Plug 300A/600V - White

Heavy Duty Products, Single Pole Devices, Industrial Grade, Male, Plug, 300A 600V AC/DC, Single Conductor, Double Set Screws, White

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

• Rounded corners reduce the possibility of catching or snagging on structures or equipment
• Non-conductive retaining screw locks contacts in place and allows for easy installation, prevents contact movement within housing
• Recessed mounting screw minimizes screwdriver slippage
• Lock symbol aids in the mating of devices and provides a clear indication that the devices are properly connected
• With lock indicator symbol making mating clear and simple, devices can lock 180 deg to prevent unintended disconnects
• High conductivity brass contact provides improved performance by helping to reduce operating temperatures and extends life
• Special screw thread requires fewer turns than most competitors and reduces the risk of a conductive screw being substituted
• Extra long non-conductive inner sleeve reduces force required to install housing over contacts, easier to rotate contact in body for installing retaining screw
• Engineered body design makes installation simple with no need for additional tools and the non-metallic retaining screw helps to make operation safe for all involved
• Strip gauge molded into every plug and receptacle housing, simplifies installation and saves time
• Indoor dry unless protected by additional mean environmental conditions
• Accommodates wide range of cables
• Large raised alignment arrow aids in the mating of devices
• Double cam design provides high contact pressure and vibration resistant connection, which helps reduce operating temperatures and extends life
• Insulgrip® style housing for superior gripping conforms to the users hand making it easy to connect and disconnect, even with gloves on
• Easily identifiable cable cut-off points for secure fit allows you to easily customize and cut the housing to the required/correct cable size

Specifications

• Amperage Rating - 300/400 A
• Color - White
• Connection Type - Double Set Screw/Pressure Terminal Screw
• Contact Material - Brass
• Dimensions - 1.48 in Dia x 7.01 in L
• Housing Material - Composite/Thermoplastic Elastomer
• Mounting Type - SC/PPC Cord
• Series - 16 Series
• Specifications - 1-Phase, 1-Pin, 1-Wire, 1-Conductor, 240000 W
• Temperature Rating - 90 deg C
• Type - Industrial Grade Male Standard
• Voltage Rating - 600 VAC, 250 VDC
• Wire Size - 4 to 2/0 AWG
