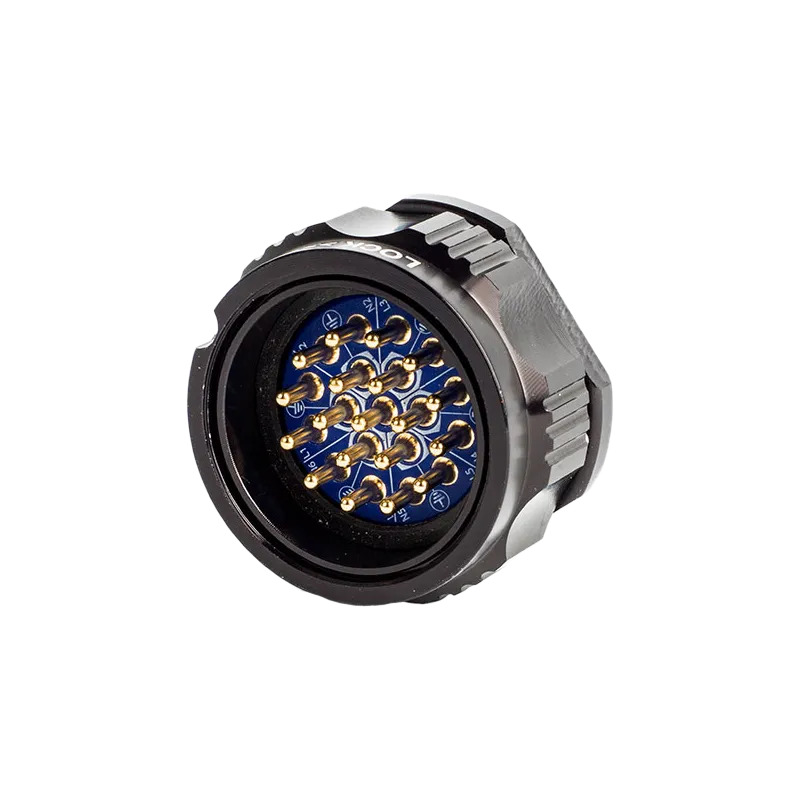

Phase 3 Chassis Mount Male 19 Pin Soca
Model: P19-PM-S-BK
About: Phase 3 Chassis Mount Male 19 Pin Soca
Chassis mount 19pin Phase 3 Soca connector. Veam and Socapex Compatible
The female and male chassis house multi-core socapex cables, with special glands for 2.5mm wires. The panel mounts can be terminated by solder termination for use. The 19-pin panel mount can carry 6 individual circuits at mains voltage with no common neutral or earth connections. Unlike other plugs, all circuits are independent, so can be on different equipment or phases.
- cULus Approved to UL1977 Standard
- 100% UK Manufactured & Assembled
- Amphenol Socapex SL419 Compatible
- Available in both Inline and Panel Mount format
- 3, 5, 7 and 19 Pin connectors are all rated 25A
- Multi-point Gold Plated Contacts
- Integral Insulation Sleeves
- M40 metric cable glands for multicore socapex cable pinout (bush sizes 10-32mm)
- Socapex Breakout Wire sizes from 12 to 14 AWG (1.5-2.5mm)
- IP67 ingress protection when mated
- Temperature Rating -55oC to +125oC
- Voltage Rating 600 VAC, 700 VDC max
- FMLB Earth contacts
- ROHS Compliant
