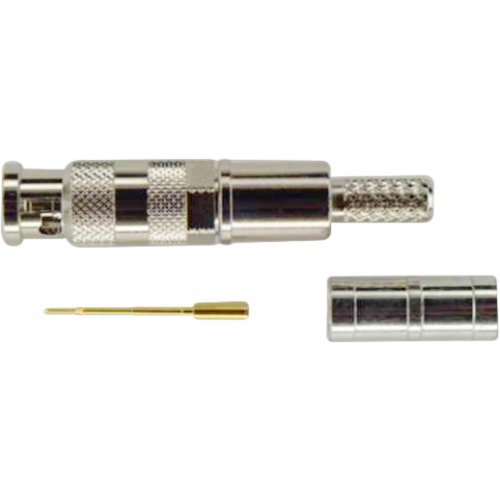

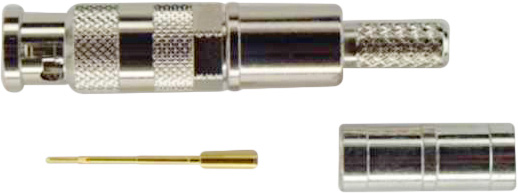

Canare HBCP-D55UHD 12G-SDI Micro BNC Connector
Model: HBCP-D55UHD
About: Canare HBCP-D55UHD 12G-SDI Micro BNC Connector
- Compatible with Amphenol HD-BNCs
- SMPTE ST 2082-1 compliant
- Canare crimp design ensures quick and reliable installation
- Gold plated "snap-lock" center pin
- Beryllium copper outer contact
- Specially designed insertion and removal tool available (BET-D/H)
- Half the size of a standard BNC
- Ideal for high-density mounting
Specifications
- Nominal impedance- 75Ω unbalanced
- Construction - As shown in the drawing (BL613)
- Weight - Approx 9.0g (Includes center contact, crimp sleeve)
- Packaging - 20pcs/package(150×50×30mm)
- Applicable cable - L-5.5CUHD (CANARE)
- Crimp tool - Frame:TC-1, Die:TCD-55UHD
- Note: The coupling part is compatible with our Micro BNC receptacle.
- Rating
- Operating temperature - -40°C~+85°C
- Operating humidity - ~90%
- Electrical characteristics
- Insulation resistance - 1000MΩ or more
- Voltage proof - Without any damage such as electric breakdown etc.
- Contact resistance
- Between center contacts: 10mΩ or less
- Between external contacts: 5mΩ or less
- Return loss
- 26dB or more (0~ 3GHz)
- 20dB or more (0~ 6GHz)
- 15dB or more (0~12GHz)
- Mechanical characteristics
- Intermatability - To be engaged without any abnormality
- Fixing force of contact with lock mechanism - No displacement more than 0.5mm.
- Cable connecting force - 200N or more for L-5.5CUHD
- Mechanical operation - Contact resistance: 20mΩ or less
- Environmental characteristics
- Corrosion resistance (Salt mist)
- Contact resistance: 20mΩ or less
- Appearance: By visual inspection, without noticeable rust.
- Corrosion resistance (Salt mist)
