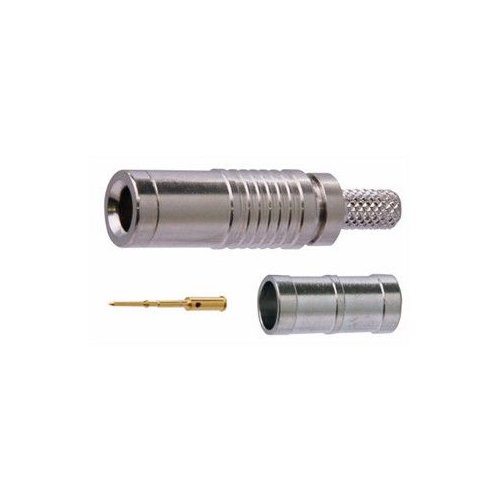

Canare DCP-C25HD DIN 1.0/2.3 Crimp Connector - L-2.5CHD & 1855A
Model: DCP-C25HD
About: Canare DCP-C25HD DIN 1.0/2.3 Crimp Connector - L-2.5CHD & 1855A
Features:
- IEC 61169-29 and DIN 47 297 compatible
- Ball bearing locking mechanism. Smooth action and reliable connection (Patent Pending)
- Canare's original enlongated sleeve design
- Superior cable pull strength and bending performance
- Captive Contact Pin
- True 75 ohm
Specifications:
- Applicable Standards: IEC-61169-29m DIN 47 297
- Nominal Impedance: 75 Ohms Unbalanced
- Return Loss: 26dB or greater (0-2.0GHz)
- 20dB or greater (0-3.0GHz)
- Center Pin: Gold Pating
- Cable Connecting Force: 150N or More
- Operating Temperature: -40 to +85 Deg C
- Weight: Approx. 7.0g each
- Maximum 12G-SDI Transmission Distance for L-2.5CHD: 38m
