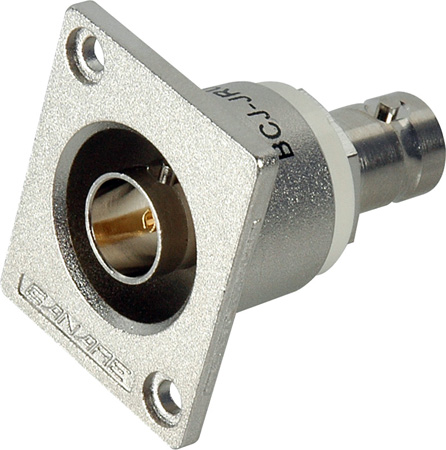

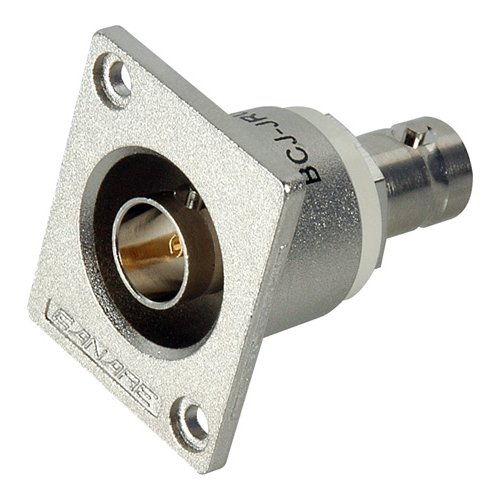

Canare BCJ-JRUK 75 Ohm BNC Bulkhead Connector- Recessed Jack to Jack

Model: BCJ-JRUK

Canare BCJ-JRUK 75 Ohm BNC Bulkhead Connector- Recessed Jack to Jack
  • Free Shipping on orders over $199
  • Usually Ships in 2-3 Days
  • Not yet reviewed




About: Canare BCJ-JRUK 75 Ohm BNC Bulkhead Connector- Recessed Jack to Jack

The Canare BCJ-JRUK is a flush-mount, Cannon ITT type series panel mount type BNC feed-thru adapter designed specifically for 12G applications. Will mount in any Cannon ITT type series panel with proper mounting screws (See accessories). Until now, very little has been offered for 12G signals in the way of extension adapters and receptacles. Now Canare has several solutions to keep your 12G signal flowing smoothly and patched accordingly! In 2015, SMPTE released ST 2082-1 12G-SDI, a standard for UHD-SDI (4K 2160p), as the next-generation of the single-link SDI format. 12G-SDI makes possible transmission of as much as eight times the data volume of HD-SDI (2K 1080i), and as much as four times the data volume of 3G-SDI (2K 1080p) over a single coaxial cable. At the same time, high performance is also required of both cables and connectors and that's where they come in. Canare has everything you need to get your 12G signal to where it's got to go..be it anywhere on the planet and beyond.

Specifications:

Electrical characteristics

  • Insulation resistance: 1000MΩ or more
  • Contact resistance: Between center contacts: 6mΩ or less / Between external contacts: 3mΩ or less
  • Return loss: 26dB or more(0 ~ 3GHz) / 20dB or more(0 ~ 6GHz) / 15dB or more(0 ~ 12GHz)
  • Nominal impedance 75Ω unbalanced

Mechanical characteristics

  • Intermatability: To be engaged without any abnormality
  • Female contact retention force: 1.5 ~ 3.9N
  • Fixing force of contact with lock mechanism: No displacement more than 0.5 mm
  • Strength of coupling mechanism: Body shall not be disconnected or no deformation shall be made
  • Attachment strength: There shall be no break or damage on each part of connector.
  • Mechanical operation (repeated): Contact resistance 10m Ω or less

Environmental characteristics

  • Corrosion resistance (Salt Mist): 50mΩ or less
  • Operating temperature: -40°C ~ +85°C
  • Operating humidity: ~ 90%


AVShop.ca is a Canadian authorized Canare retailer.

Reviews: Canare BCJ-JRUK 75 Ohm BNC Bulkhead Connector- Recessed Jack to Jack

There are currently no product reviews.


Warranty: Canare BCJ-JRUK 75 Ohm BNC Bulkhead Connector- Recessed Jack to Jack

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

1-year limited
