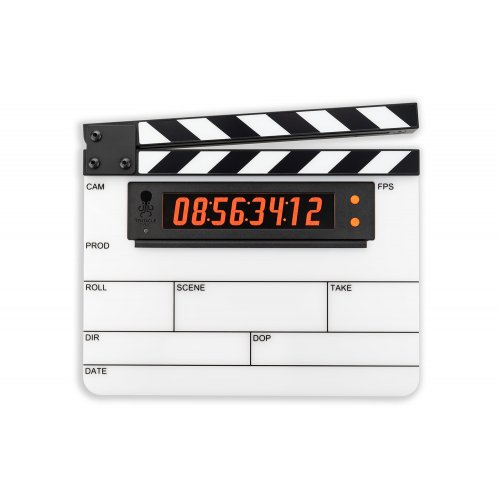

Tentacle Sync TIMEBAR Timecode Slate & Display

About: Tentacle Sync TIMEBAR Timecode Slate & Display

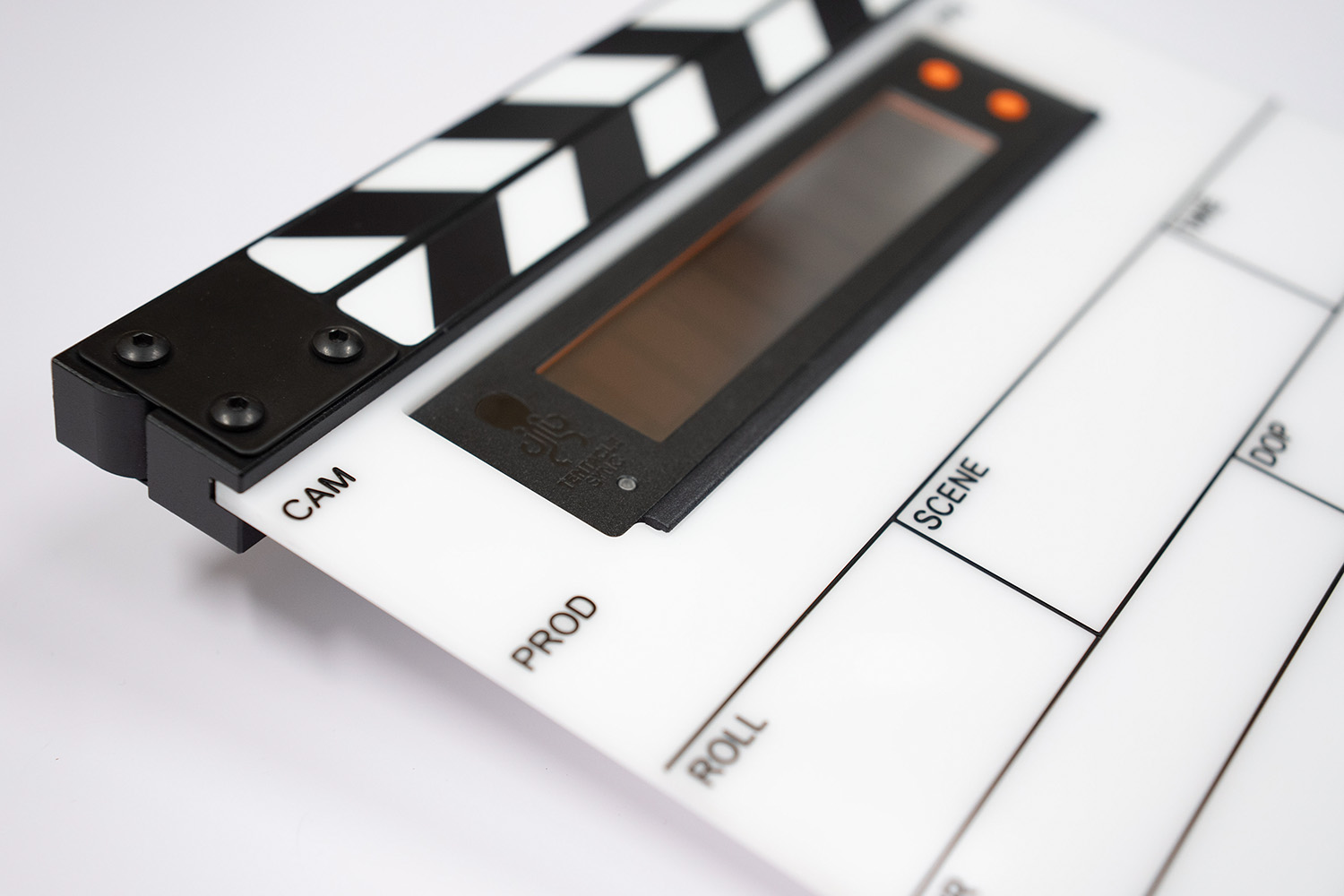

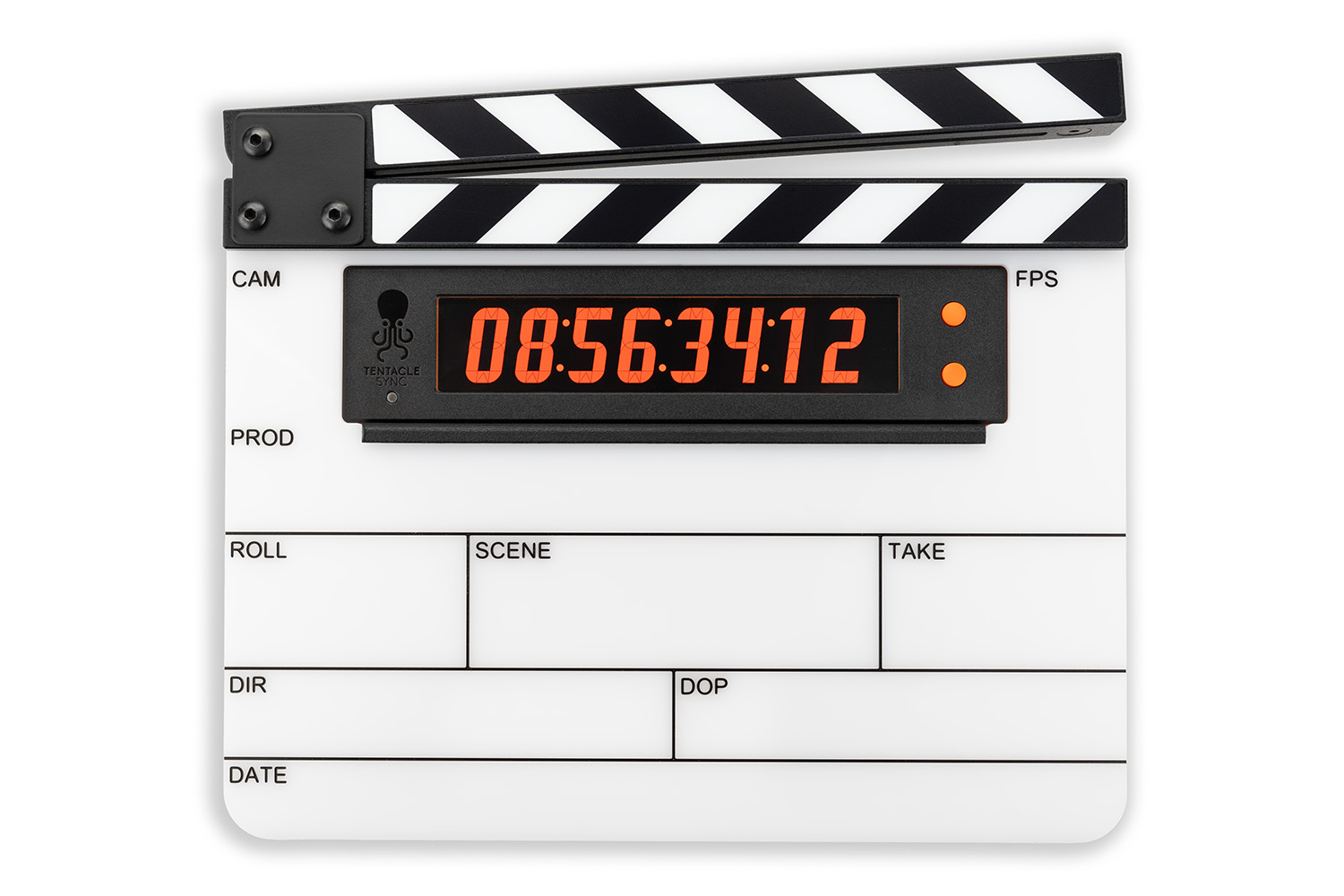

The TIMEBAR Timecode Slate is our all-in-one digital timecode slate kit, designed for seamless integration with the entire Tentacle Sync ecosystem. We‘ve collaborated with premium slate maker Filmsticks to create this unique, versatile solution. The kit includes the TIMEBAR — our multipurpose timecode display — paired with a high-quality board, clapper sticks and a custom holder, that also serves as a mount for the TIMEBAR. This lightweight, yet robust, setup not only enhances portability but offers flexibility on set. The TIMEBAR can be swiftly attached or detached from the slate, functioning independently as a timer, message display or stopwatch, whether mounted or not, all controlled effortlessly via our Setup App.

The OLED display not only provides high contrast, but also ensures low energy consumption, allowing the TIMEBAR to last throughout the entire day.

Additionally, the slate is built for longevity, with every component being user-replaceable. Even the long-lasting built-in lithium battery can be easily swapped by users after years of use, ensuring continued reliability. The TIMEBAR Timecode Slate is the ultimate tool for precise timecode management and efficient production workflows.

Features

• Precision-engineered Acrylic Board
• Durable Clapper Sticks
• Custom-designed TIMEBAR Holder / Mount
• High-contrast OLED Technology with a Wide Viewing Angle
• Typical Battery Runtime 24 hours
• Control, Sync Operate all devices via Bluetooth®
• Timecode Generator with TC In & Out
• Timer & Stopwatch Functionality
• Text Display
• Tentacle Sync Studio Software License included (macOS)
• Two Year Limited Warranty
• TIMEBAR Designed and Manufactured in Germany

Specifications

• CONNECTIVITY

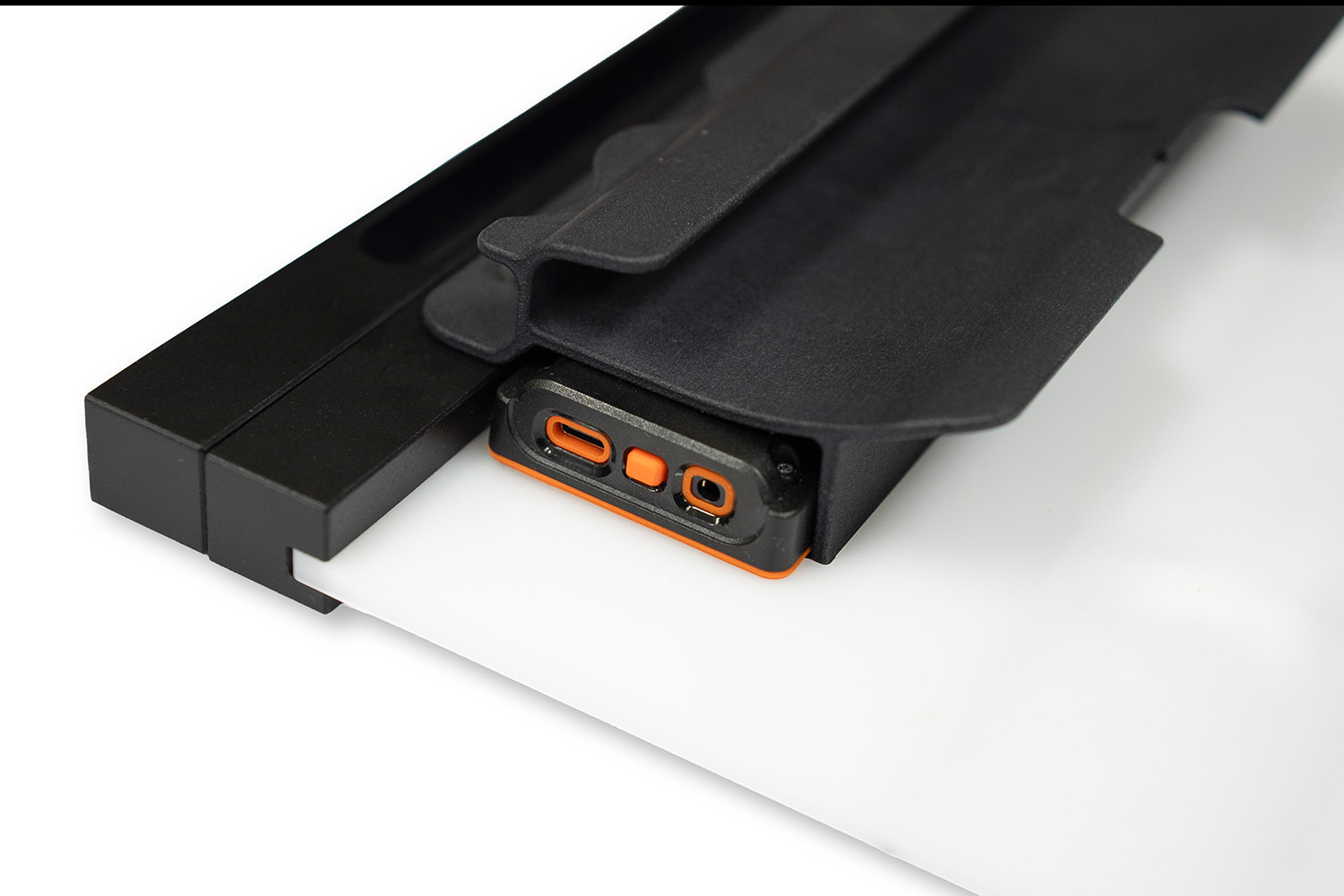

  • Timecode In/Out: 3.5 mm Jack
  • USB Connection: USB-C (USB 2.0)
  • USB Operating Modes: Charging, Firmware Update
• CONTROL & SYNC
  • Bluetooth: 5.2 Low Energy
  • Remote Control: Tentacle Setup App (iOS /Android)
  • Synchronization: Via Bluetooth (Tentacle Setup App)
  • Jam-Sync: via Cable
  • Timecode In/Out: LTC via 3.5 mm Jack
  • Drift: High Precision TCXO: Accuracy less than 1 frame drift in 24 hrs (–30°C to +85°C)
  • Frame Rates: SMPTE 12M / 23.98, 24, 25 (50), 29.97 (59.94), 29.97DF, 30 (60)
• POWER
  • Power Source: Built-in rechargeable Lithium Polymer Battery
  • Battery Capacity: 2200 mAh
  • Battery Operation Time
    • Slate Mode: Minimum 2 weeks
    • Continuous Mode: Approx. 6 hrs (highest brightness) to 80 hrs (lowest brightness)
  • Battery Charging Time
    • Standard Charge: 4-5 hrs
    • Fast Charging: 2 hrs
• HARDWARE

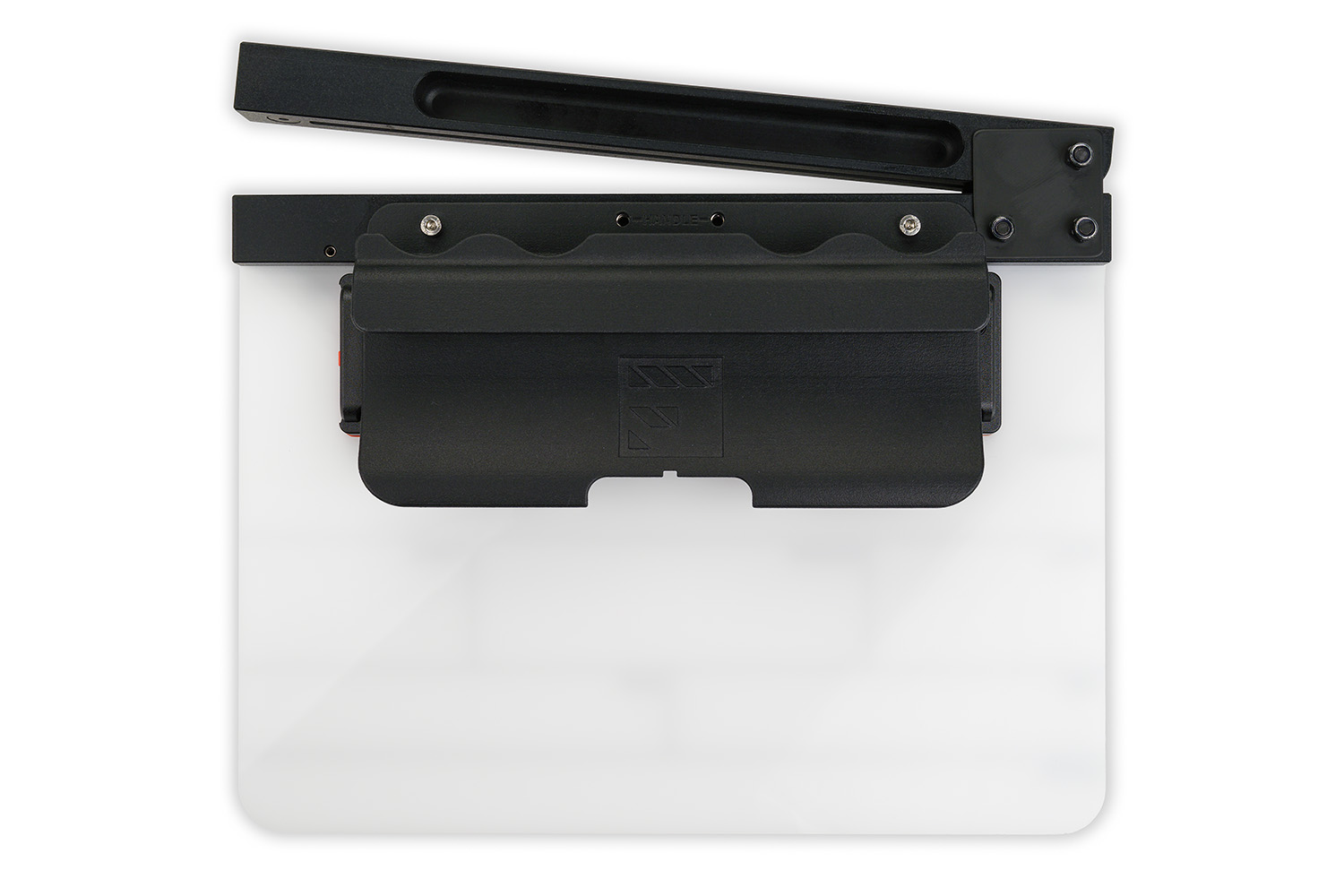

  • Mounting: Integrated Hook Surface on the Back for Easy Mounting, other Mounting Options available separately
  • Weight: 786 g / 27.7 oz
  • Dimensions: 280 × 226 × 43 mm / 11 × 8.9 × 1.7 in

What's in the Box

• 1x TIMEBAR – Multipurpose Timecode Display
• 1x Acrylic Board
• 1x Clapper Sticks
• 1x TIMEBAR Holder/Mount
• 1x USB-A to USB-C Cable
• 1x Zipper Bag Long
• 1x Software License for Tentacle Sync Studio (macOS)
• 2x M4 Screws
• 1x 1.5 Hex Key
