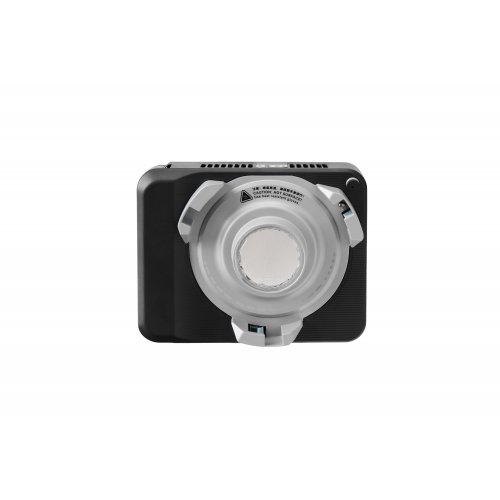

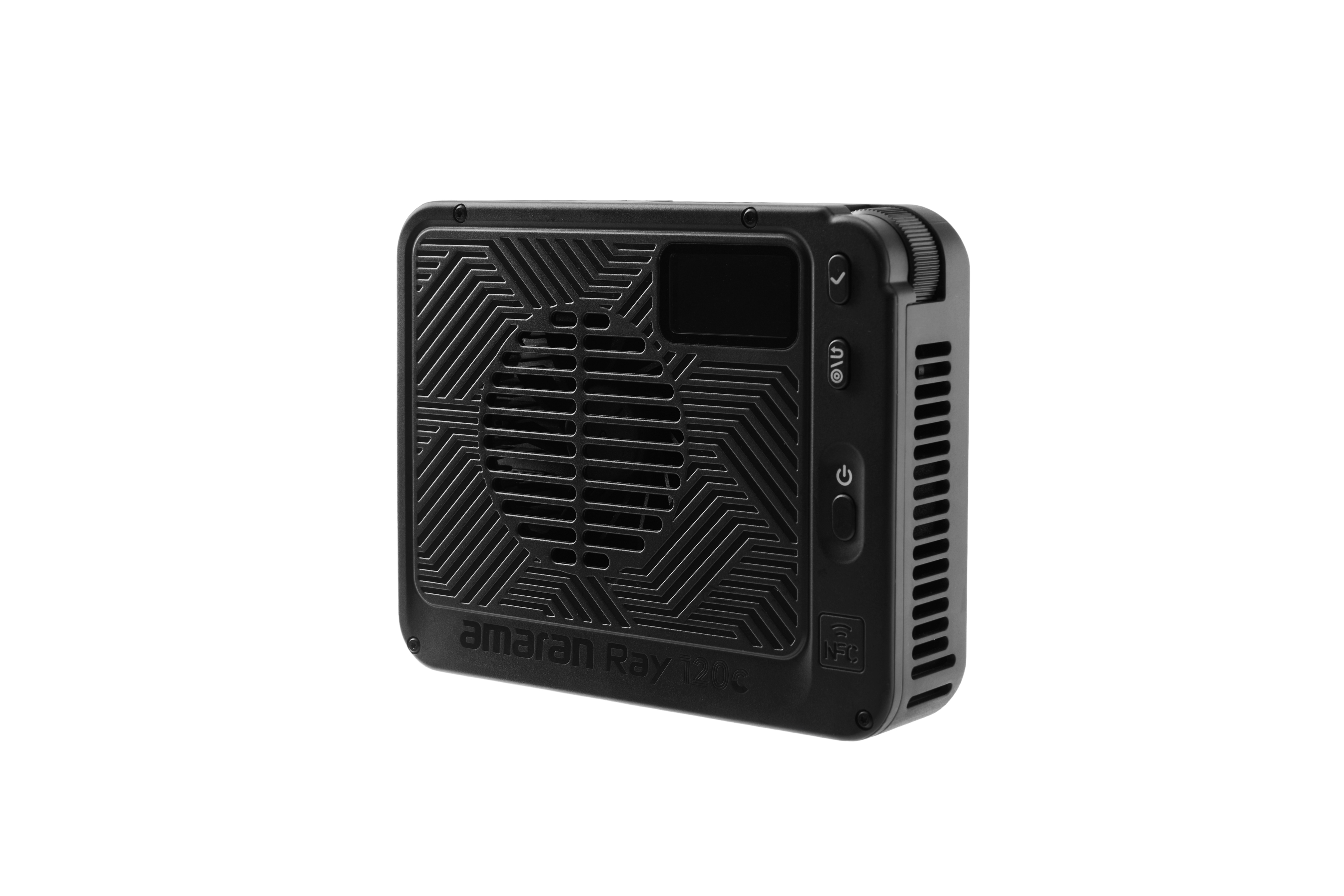

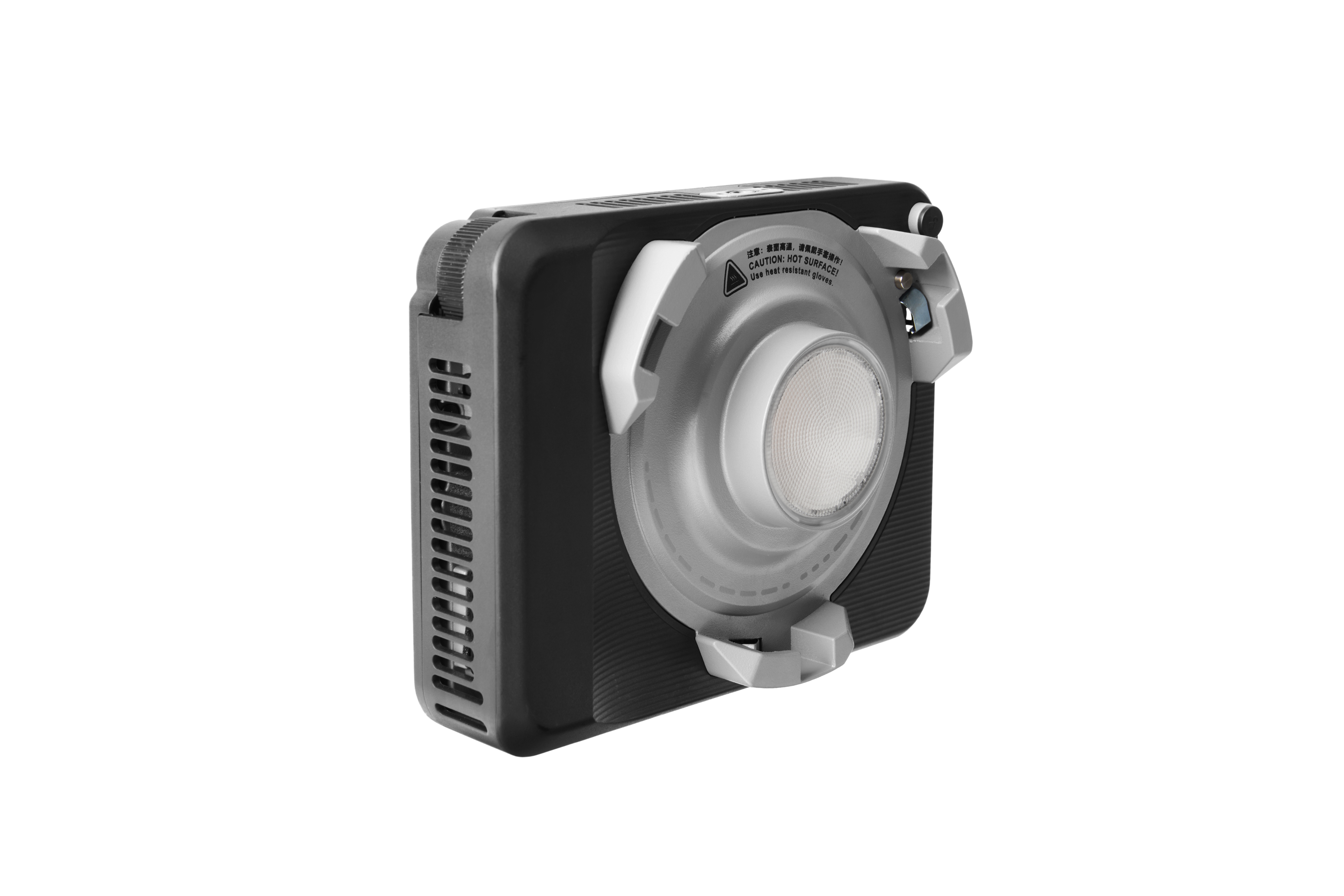

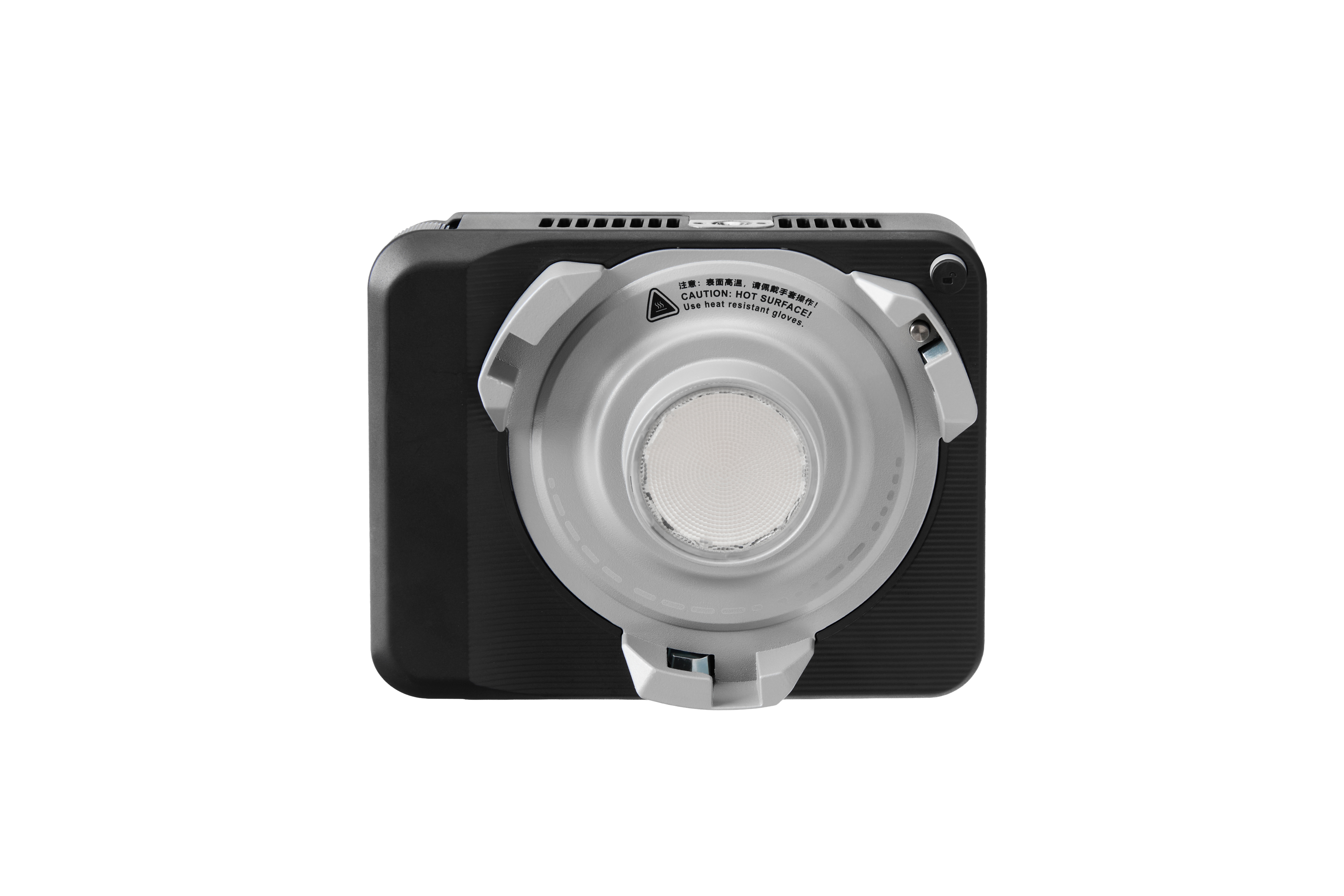

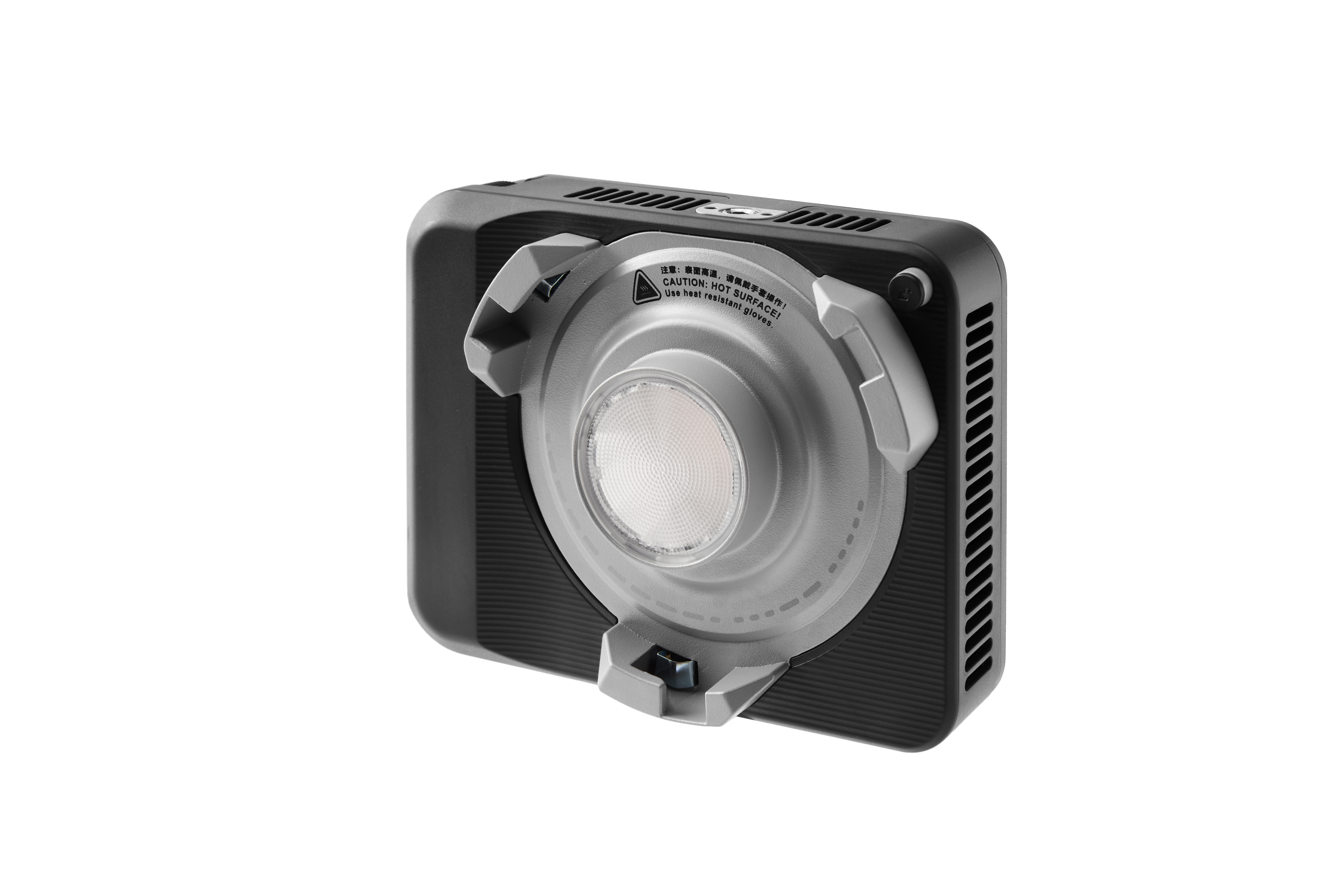

Amaran Ray 120c Full-Colour Point Source LED Light Kit

About: Amaran Ray 120c Full-Colour Point Source LED Light Kit

Designed for creators on the move who need more punch, the amaran Ray 120c is an ultra-compact, 120W full-color point-source LED light powered by the OmniColor light engine – delivering class-leading output and true-to-life color in a slim, travel-ready body. With an IP54-rated build for real-world shoots, amaran Ace E-Lock compatibility, and simplified USB-C PD power, the amaran Ray 120c moves effortlessly from outdoors to the studio.

• Ultra-compact, 120W output full color COB light
• Compact power for on-the-go: Slim (5.1cm), lightweight (599g) body that’s quick to pack, mount, and carry
• Best-in-class output: Up to 6,850 lux @ 1m (bare) – 22%+ brighter than amaran 150c with nearly 85% reduction in size
• True-to-life, OmniColor light engine: Enhanced, fuller color spectrum with expanded red and blue ranges for cleaner whites, truer skin tones, and more accurate color
• Wireless amaran Ace E-Lock: Cable-free operation for 35 mins with amaran Peak or 46 mins with amaran Peak
• Compatible with USB-C PD 3.0 power banks and chargers for ultimate portable power flexibility
• IP54 weather-resistant design: Dust & splash resistant – ideal for wind, light rain, sand, or humidity
• Adaptive control with FlowTurn knob: Tactile feedback when adjusting lighting settings with speed or precision
• Instant, one-tap pairing to the amaran app via built-in NFC
• Included Octa Dome 30: 30cm (1ft) one-snap setup softbox

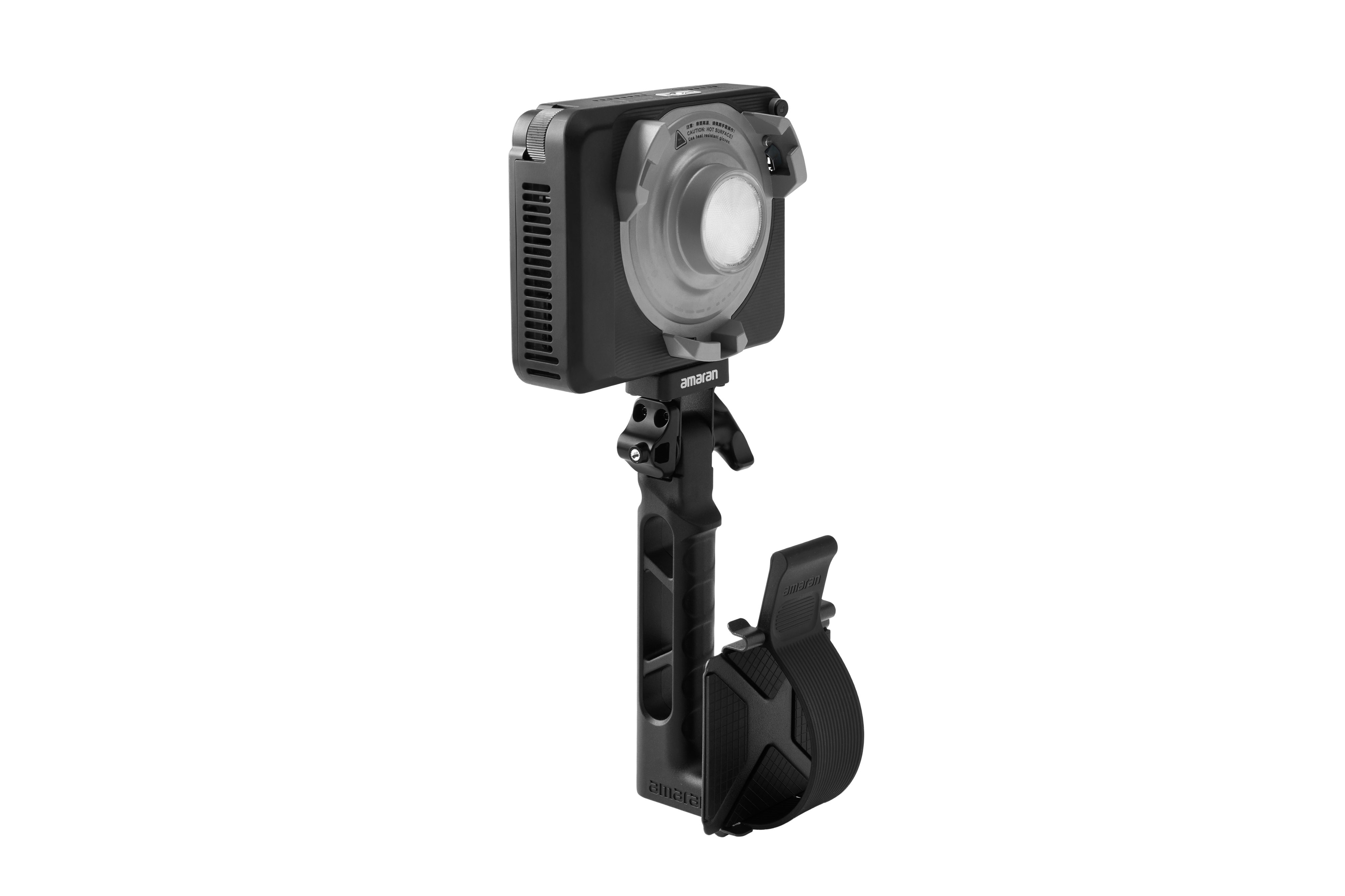

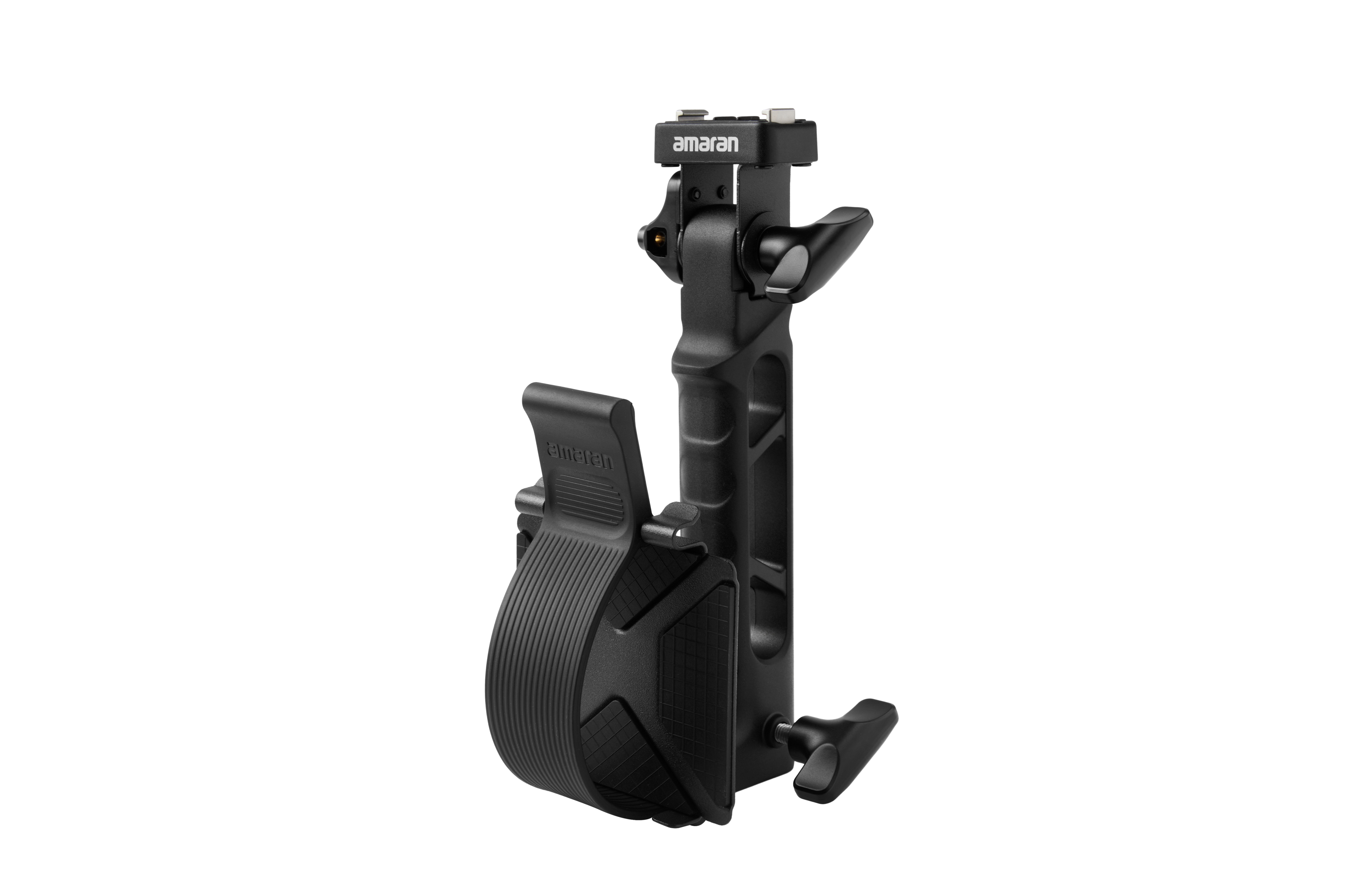

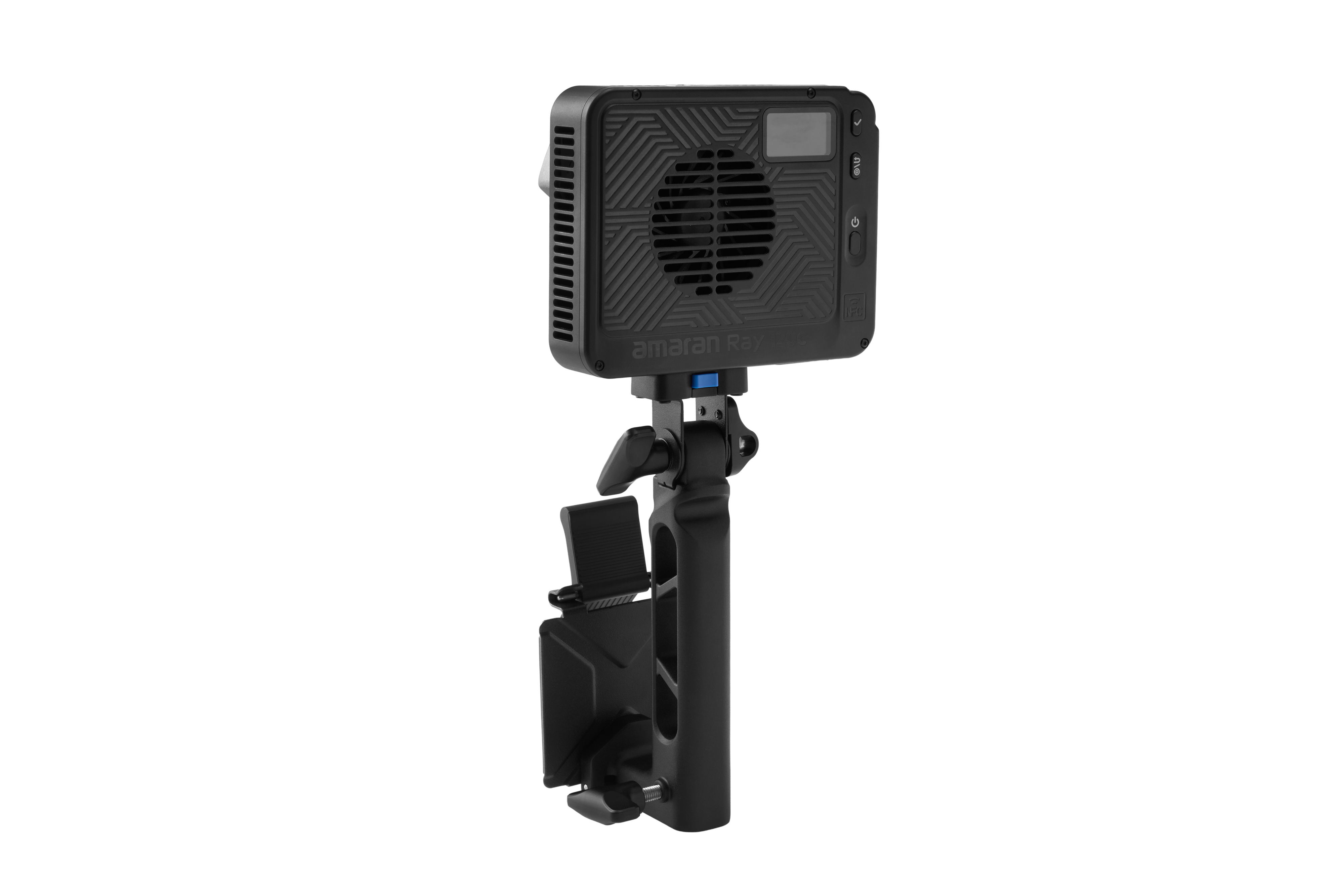

• Included Ace Lock to Baby Pin Adapter Grip for quick-mounting to light stands or handheld use with portable battery, with secure silicone strap for securing power source
• 2,300K to 10,000K ultra-wide adjustable color temperature (1,800K to 20,000K CCT with CCT+ Mode)
• Green-magenta adjustment for color-accurate skin tones
• Recreate any color with 360º full color control: HSI (hue, saturation, intensity) and RGB color modes
• Color accurate light: CRI: 95+, TLCI: 95+, TM-30 Rg: 100, TM-30 Rf: 94, SSI (Tungsten): 87, SSI (D56): 80
• Metal, full-size Bowens Mount compatible with optional Mini Reflector, Mini Fresnel, & other Bowens Mount modifiers
• Multiple power options: Supports amaran Ace E-Lock, USB-C PD3.0, and DC 12V-24V power input methods
• Integrated 1/4-20in screw mount for easy attachment to tripods, light stands, or other mounting solutions
• Instantly adjust light settings in Quick Operation Mode
• Long press and double click Custom Shortcuts
• High-Speed Photography Mode and Studio Mode
• 0-100% stepless brightness control
• 12 lighting FX: Fireworks, Faulty Bulb, Lightning, TV, Pulsing, Strobe, Explosion, Fire, Paparazzi, Welding, Cop Car, Party Lights
• Adjustable Silent or Smart fan mode
• Low fan noise: Max 28dBA at max. output
• Simplified, colored menu screen for easy operation
• Light effortlessly with wireless amaran app control
• All-in-one creator kit with included carrying bag

Ultra-compact power for on-the-go

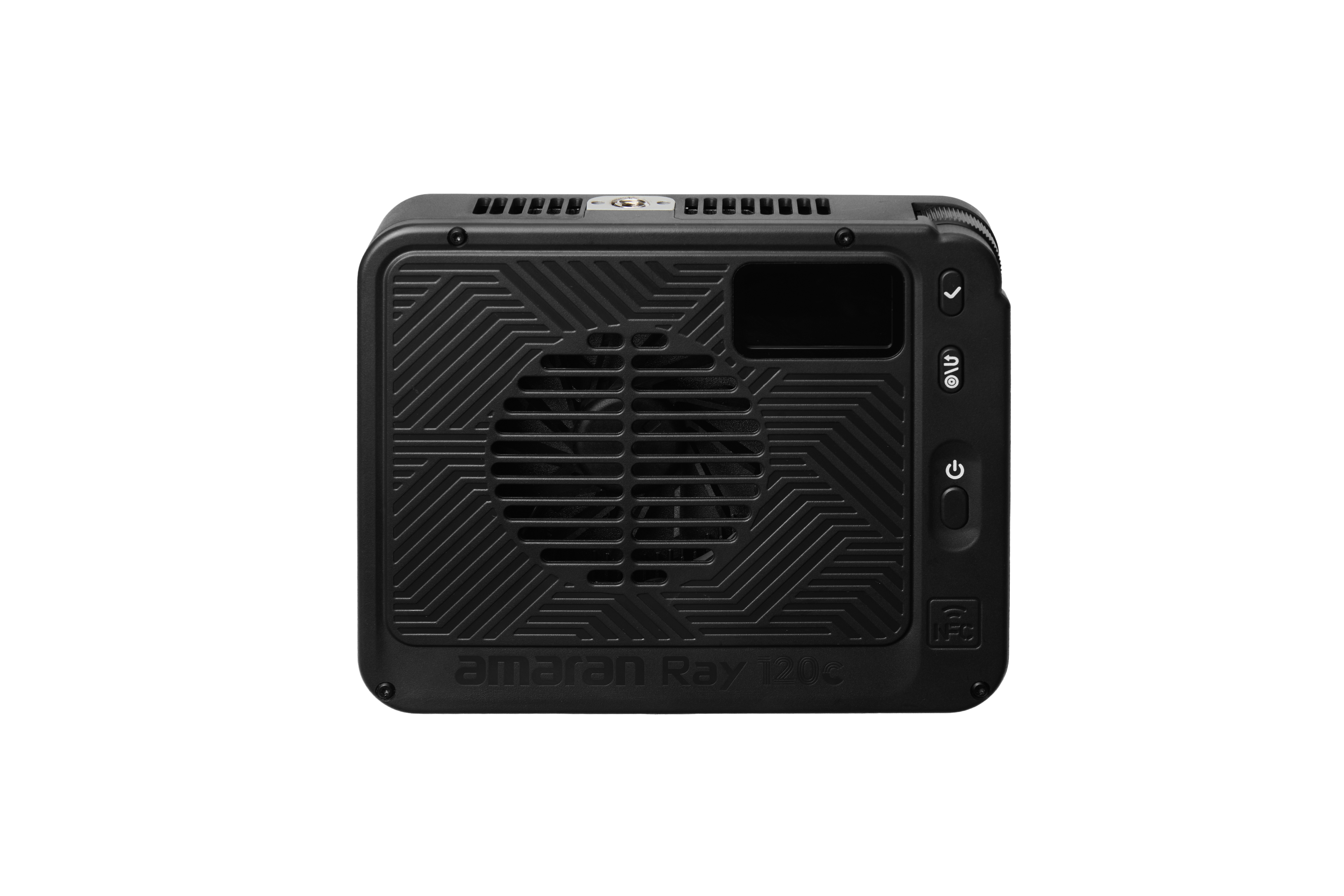

Keeping the ultra-compact footprint of the amaran Ray 60c, the amaran Ray 120c remains slim (5.1cm / 2.0in) and lightweight (599g / 1.32lbs) – comparable in size and weight to mirrorless camera bodies – yet still retains a full-size Bowens Mount. This compact build lets you travel lighter and set up faster in tight spaces, on the go, and between locations.

Best-in-class brightness

The amaran Ray 120c outshines competing ultra-compact COB lights, delivering up to 6,850 lux at 1m without accessories – 22% increase in output vs. the amaran 150c – while being nearly 85% smaller in size. Or pair with the optional Mini Reflector or Mini Fresnel for even more punch.

True-to-life color with OmniColor

Powered by the OmniColor light engine, the amaran Ray 120c reproduces light that looks true-to-life – both on camera and to the eye. Building on amaran’s previous full-color chipset, OmniColor expands the red and blue ranges to deliver a fuller, more balanced spectrum of light – achieving SSI scores of 87 (Tungsten) and 80 (D56). What you see is what you capture: cleaner whites, truer skin tones, and more accurate color that stays consistent on camera.

Ultimate portable power flexibility

In addition to the included DC power adapter, the amaran Ray 120c is built for mobility with amaran Ace E-Lock and USB-C PD support. Run for 35 minutes at 100% output with the amaran Peak via Ace E-Lock for a secure, cable-free setup. Or power with USB-C PD power banks and chargers – eliminating NP-F or V-Mount batteries while keeping your setup streamlined from outdoor locations to studio shoots.

Instant, effortless controls

The amaran Ray 120c is built to make setup and adjustments faster and more intuitive. Use the FlowTurn knob to fine-tune one step at a time when you need precision or spin quickly to accelerate through settings when efficiency is key. In the amaran app, pair your amaran Ray 120c or multiple lights in the Ray family with just a tap via built-in NFC – even before turning it on.

Specifications

• CCT
  • Standard: 2,300K - 10,000K
  • Expanded (CCT+): 1,800K – 20,000K
• CRI: 95+
• TLCI: 95+
• SSI (Tungsten): 87
• SSI (D56): 80
• TM-30 RG (Average): 100
• TM-30 RF (Average): 94
• Max Power Output: 120W
• Max Power Consumption: 140W (USB-C)
• Color Chipset: OmniColor
• Lumens: 8,719 lumens
• Beam Angle: 70º
• Weather Resistance Rating: IP54
• Power Supply Methods
  • USB-C PD 3.0
  • DC
  • amaran Ace E-Lock
• Operating Voltage
  • Fixture: DC 12V – 24V
  • Power Supply: AC 100V - 240V / 2.5A / 50 - 60Hz
• Max Noise Level: 28dBA (30ºC / 86ºF)
• Operating Temperature: -10°C - 40°C / 14°F - 104°F
• Storage Temperature: -20ºC - 80ºC / -4ºF - 176ºF
• Control Methods: On-board, amaran App
• Firmware Upgradeable: amaran App
• Wireless Operating Range: ≤80m / ≤262.5ft (Bluetooth)
• Screen Type: TFT
• Cooling Method: Active Cooling
• Dimensions
  • Fixture: 5.7 x 4.5 x 2in (14.5 x 11.5 x 5.1cm)
  • Octa Dome 30
    • Assembled: 7.9 x 11.8 x 11.8in (20.0 x 30.0 x 30.0cm)
    • Collapsed: 13.6 x 7.1 x 2.6in (34.76 x 18.0 x 6.5cm)
  • AC Power Cable: 13.12ft (4m)
  • Adapter Cable: 1.64ft (0.5m)
  • Ace Lock Grip: 9.1 x 4.3 x 4.3in (23.0 x 11.0 x 10.8cm)
  • Carrying Bag: 10.1 x 10.4 x 4.3in (40.8 x 26.4 x 11.0cm)
• Weight
  • Fixture: 1.32lbs (599.4g)
  • Octa Dome 30: 0.53lbs (240g)
  • Ace Lock Grip: 0.93lbs (420g)
  • Carrying Bag: 1.06lbs (480g)

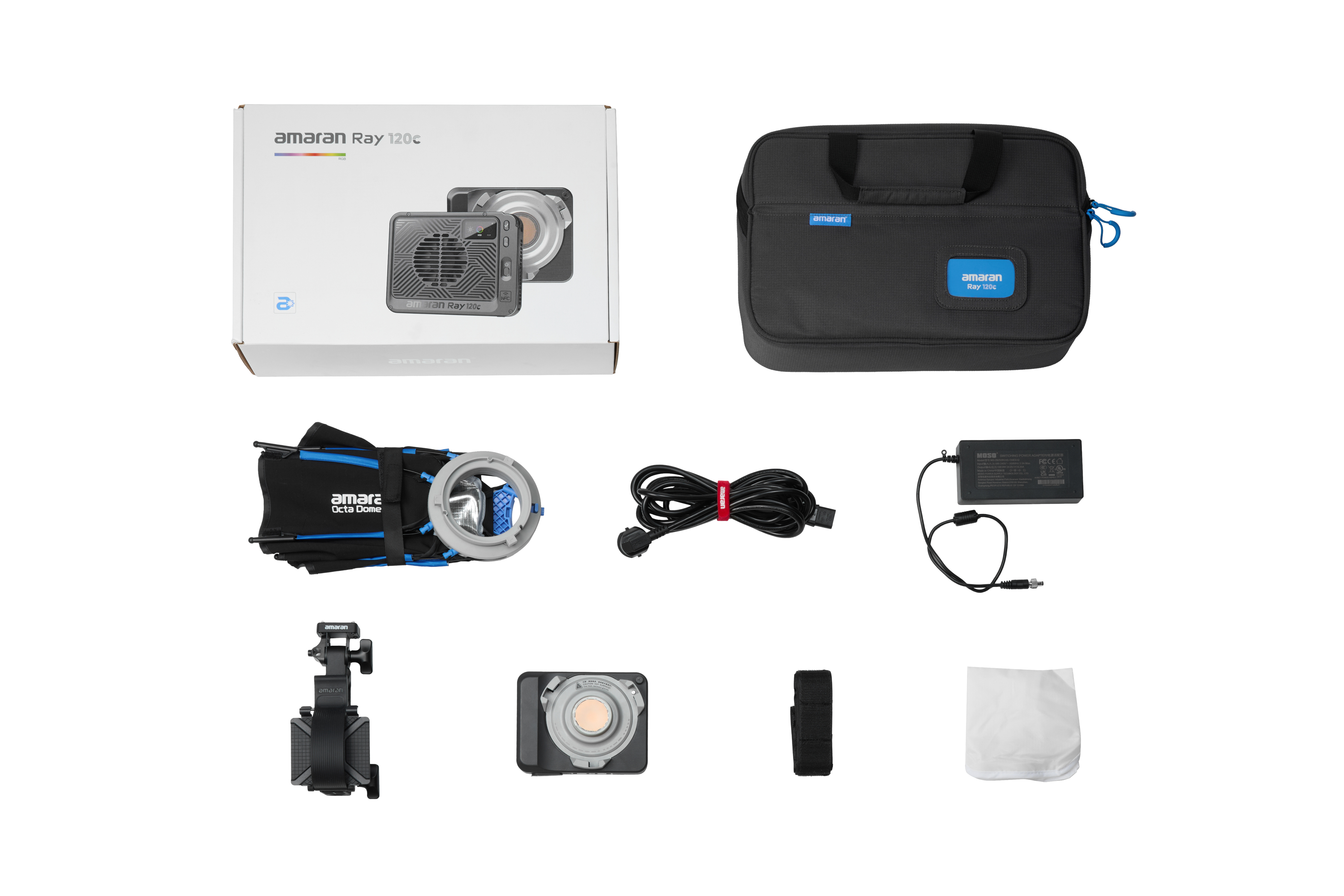

What’s in the Box

• 1x amaran Ray 120c
• 1x amaran Ace Lock to Baby Pin Adapter Grip
• 1x amaran Octa Dome 30
• 1x amaran Octa Dome 30 Difusion Cloth
• 1x amaran Octa Dome 30 Light Control Grid
• 1x amaran AC to DC 1500W Power Adapter (0.5m)
• 1x amaran AC Power Cable (4m)

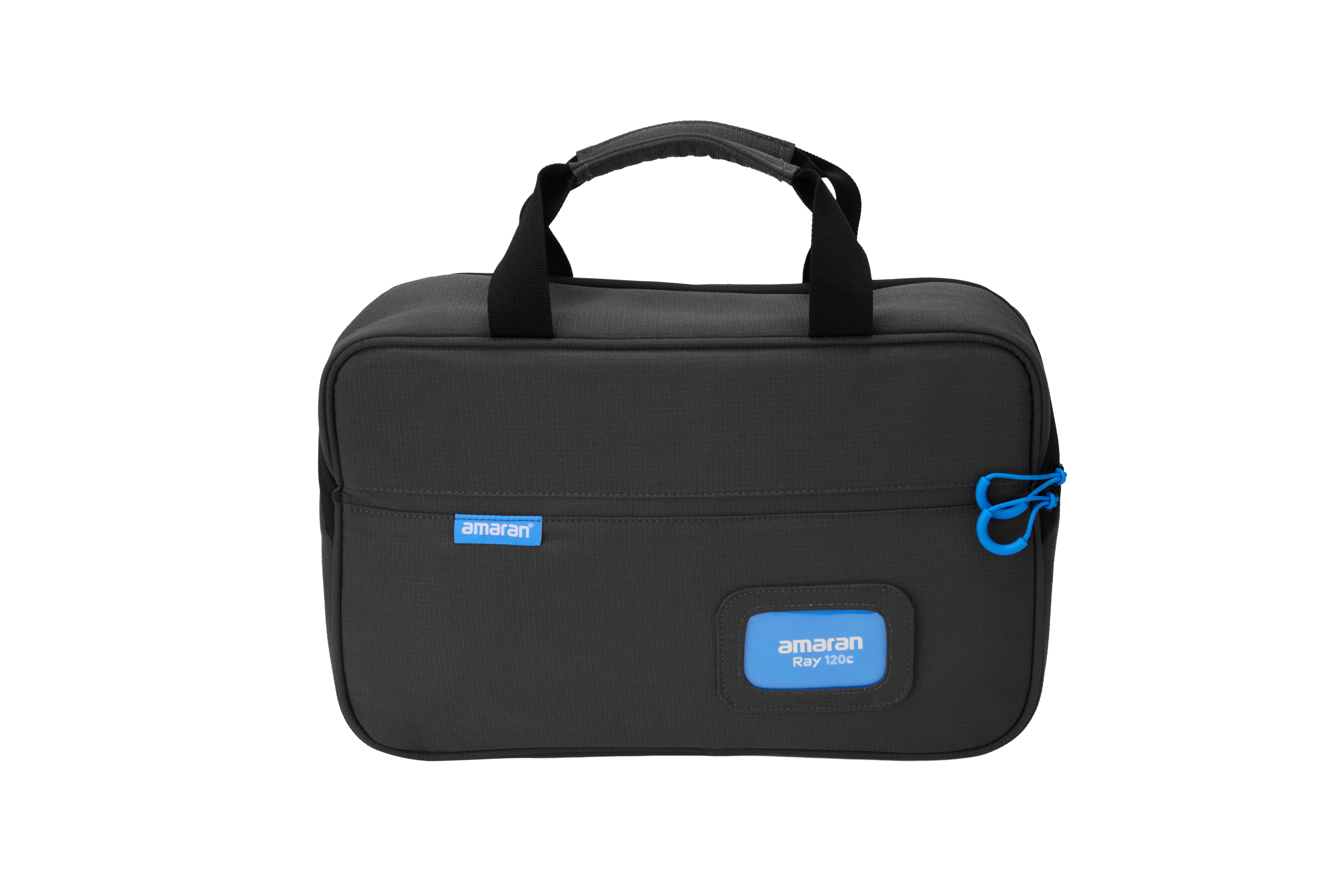

• 1x amaran Ray Carrying Bag
