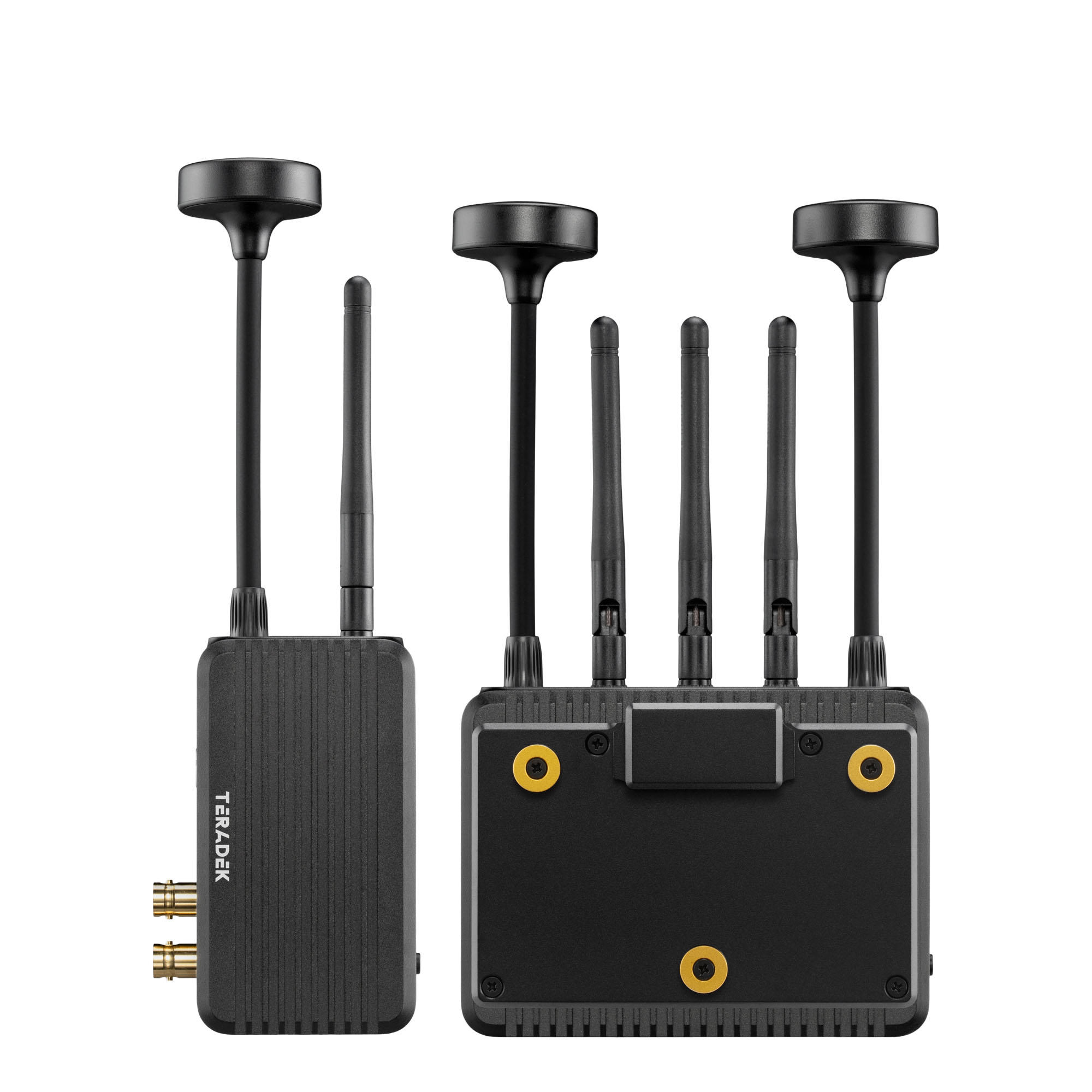

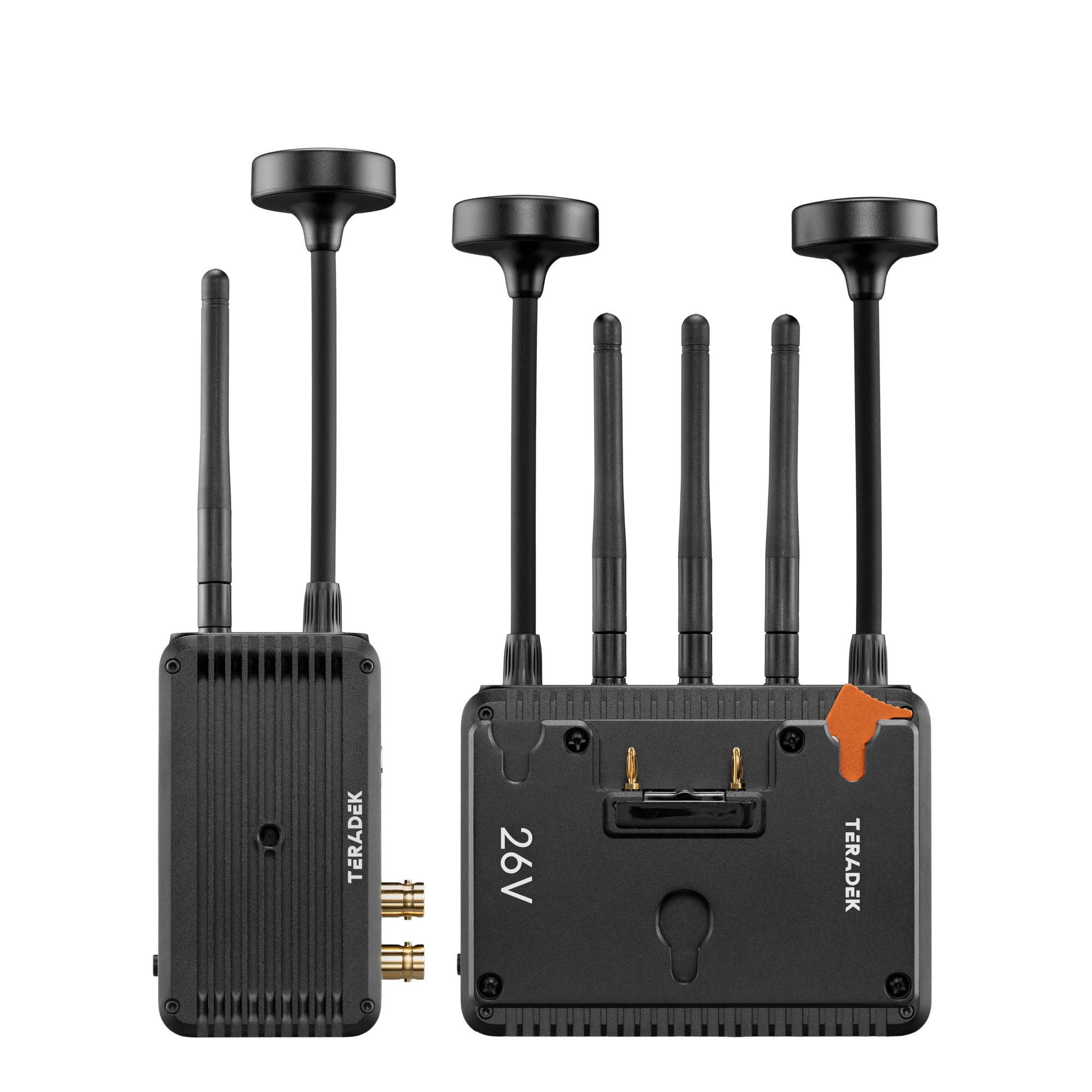

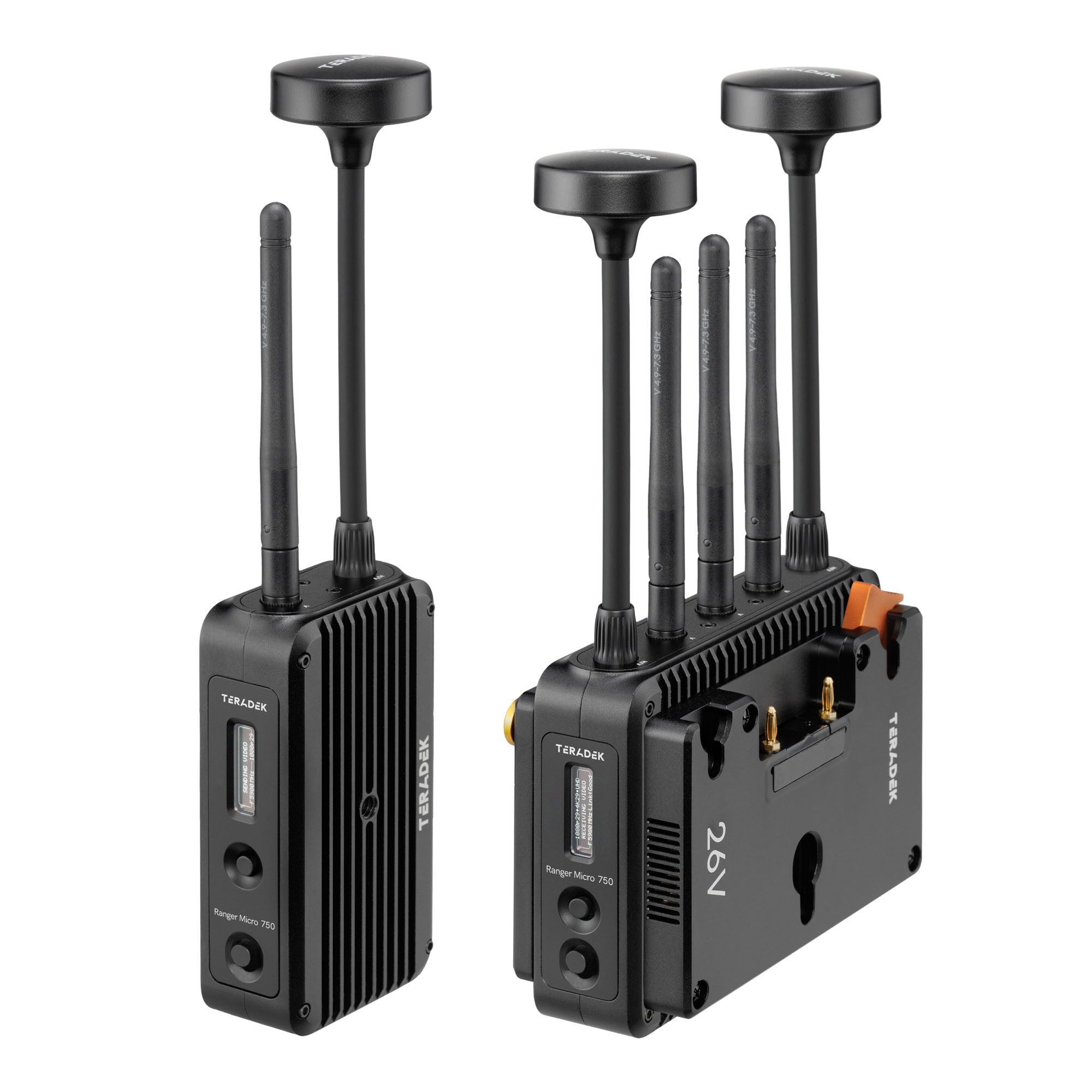

Teradek Ranger Micro 750 3G-SDI/HDMI Wireless TX/RX Set - 26V Gold Mount

About: Teradek Ranger Micro 750 3G-SDI/HDMI Wireless TX/RX Set - 26V Gold Mount

Introducing the Ranger Series. Zero-delay wireless video for live production, now with 6GHz.

You've Seen Low-Delay. Now Experience Zero-Delay.

The average latency for RF-based wireless video transmission is 30.8ms. But the human eye can detect a delay as low as 13ms. That’s why we designed Ranger: the only wireless video solution to achieve true zero-delay (<1ms) with visually lossless picture quality. And now with 6GHz support (U-NII 5), you gain access to 12 newly-opened RF channels – allowing you to operate without interference.

Features

• ZERO-DELAY - Go from TX to RX in .001 seconds – perfect for IMAG and live event production.
• VISUALLY LOSSLESS 4K HDR - Transmit video in exceptional detail – superior to HEVC and H.264 solutions.
• AES-256 ENCRYPTION - Keep your video transmission confidential and secure.
• GRANULAR FREQUENCY CONTROL - Make adjustments to the frequency of your signal in 5MHz increments.
• LICENSED & UNLICENSED FREQUENCIES - Operate from 4.9GHz to 6.4GHz on licensed and unlicensed bands.
• INTERCOMPATIBLE - Pair any previous and current Ranger systems together.

Premium Wireless Video for Broadcast

State-of-the-art hardware. Designed for professional video production. The Ranger Series is powered by our Emmy® & Academy Award-winning technology for zero-delay wireless video transmission. It boasts a maximum range of 5,000 feet (1,524 meters). And it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including hand-held gimbals, drones, and shoulder-mounted production cameras.

Licensed & Unlicensed Bands - Operate Over a Massive Spectrum

With the number of wireless devices on the rise, and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption. But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.

Patented Zero-Delay Technology - Seriously, No Delay

When a delay in audio and video transmission is noticeable, it’s nearly impossible to give your fans a lifelike experience. Ranger’s patented zero-delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency – even in 4K60 – providing a visually lossless and engaging experience for your viewers.

Discover Workflows

• Transmit from Source to Receiver - Deliver secure and reliable 4K wireless video transmission in an instant.
• Transmit from Source to Multiple Receivers - Use Broadcast Mode* to transmit your stream to multiple destinations.
  • *Available only on Ranger 5000 models
• Connect Ranger to Ranger - Transmit to 6 receivers simultaneously in Multicast Mode or to unlimited receivers with Broadcast Mode*.
  • *Broadcast Mode only available on Micro and Mk II 5000 models.

RANGER CROSS-COMPATIBILITY - Mix and Match Your Ranger Workflow

Pair any combination of Ranger TX and RX together – regardless of model. That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range*.

• *Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.

Ranger App - Configure Ranger From Your Phone

Manage your Ranger wireless workflow from your mobile device with the Launchpad app for iOS and Android.

• Pair transmitters and receivers with the touch of a button
• Measure and analyze the frequency and amplitude of a signal
• View live channel strength for licensed/ unlicensed bands
• Monitor your live RF spectrum bandwidth

Specifications

RANGER MICRO TX

• VIDEO
  • Video Inputs

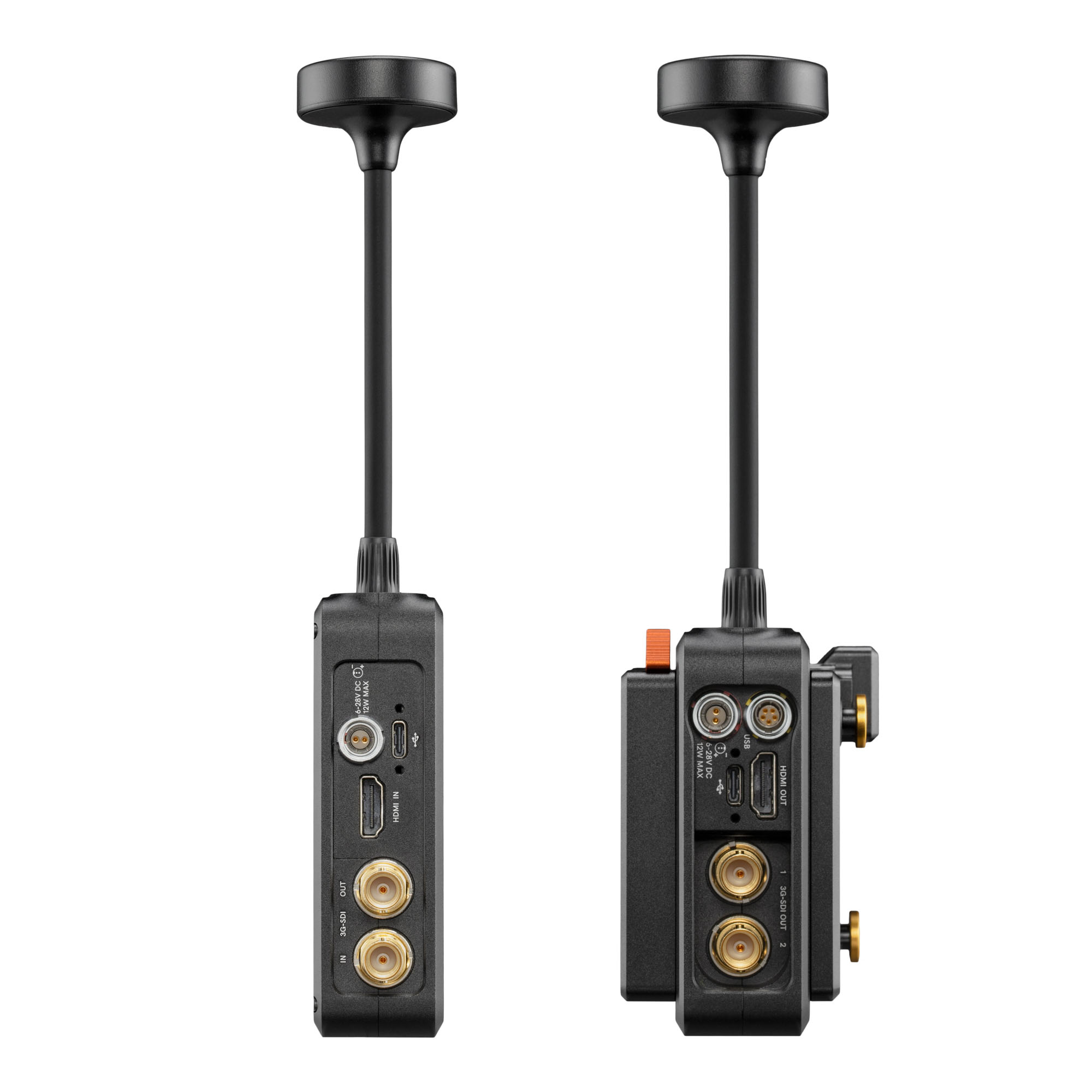

    • 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
    • 1x HDMI 2.0 Type-A receptacle
  • Video Outputs -  3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
  • Color Sampling
    • SDI: YCbCr 4:2:2, 10-bit
    • HDMI: RGB 4:4:4, 8-bit | YCbCr 4:2:2, 10-bit
  • Delay (TX to RX) -  <0.001sec (without format conversions)
  • Supported Resolutions
    • 1080p23.98/24/25/29.97/30/50/59.94/60
    • 1080psf23.98/24/25/29.97/30
    • 1080i50/59.94/60
    • 720p50/59.94/60
    • 480p50 576p59.94/60
  • Input Cross Conversion -  Yes, HDMI to SDI
  • Output Video Scaling -  N/A
• VIDEO PROCESSING
  • Video Compression -  Uncompressed
  • Test Pattern Generator -  N/A
  • Video Format Conversion Support -  Yes
  • Spectrum Analyzer -  Yes (via Launchpad App)
• AUDIO
  • Audio Compression -  48kHz 24-bit PCM
  • Audio Input -  Embedded SDI/HDMI Audio Input (2 channel)
  • Audio Output -  N/A
• PHYSICAL ATTRIBUTES
  • Dimensions -  2.4” x 4.1” x 1.3” (60 x 103 x 33mm)
  • Weight -  7.3oz (206g)
  • Construction -  Milled aluminum (chassis) and regulation-compliant PCB
• INTERFACES

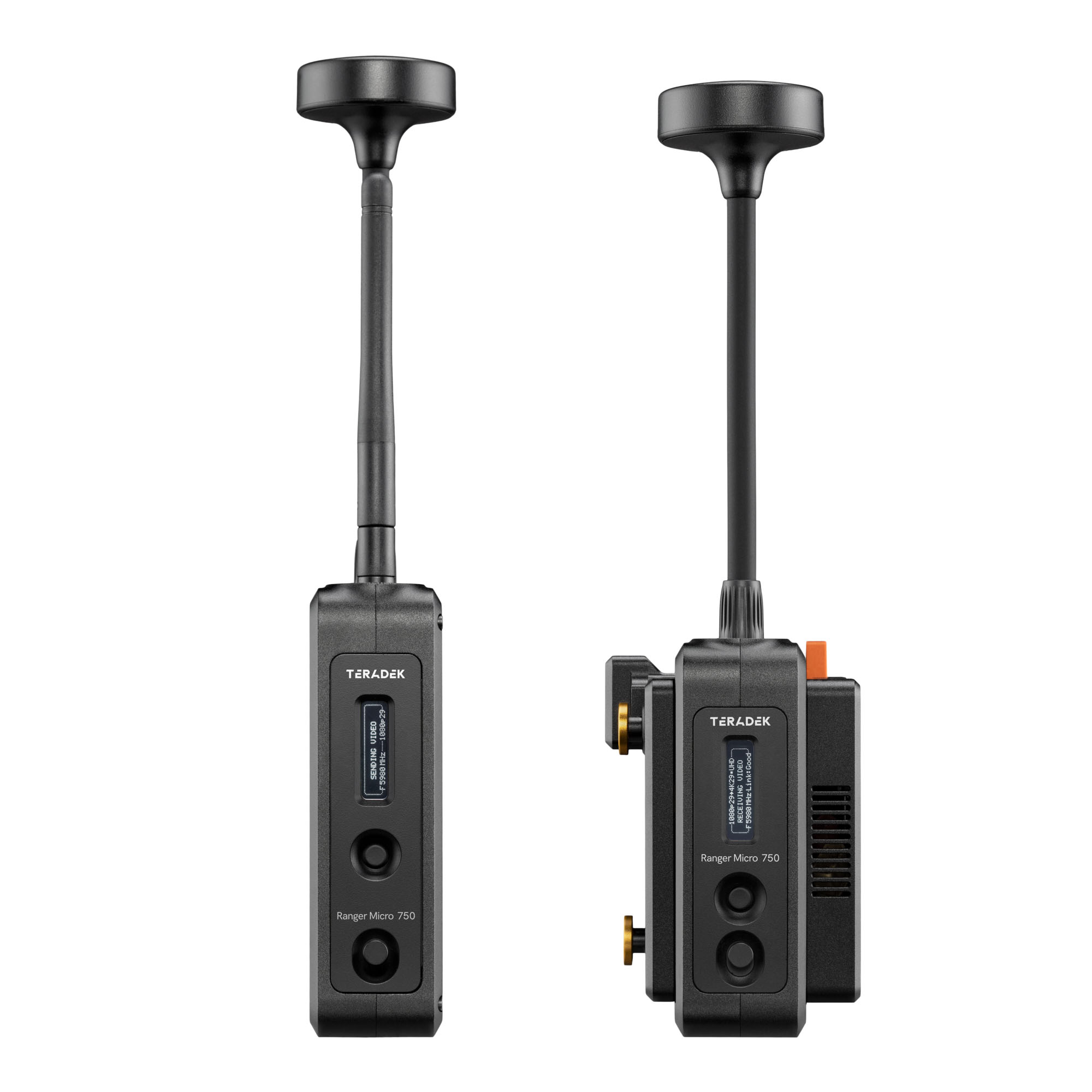

  • Configuration Interface -  OSD Screen with Menu Joystick Navigation
  • Switches -  On/Off Switch
  • Desktop App -  Launchpad application for OSX & Windows
  • Mobile App -  Launchpad app (iOS and Android) configuration via Bluetooth
  • USB Interface -  Upgrade via USB-C
  • Bluetooth -  Bluetooth 5 LE
• NETWORK
  • Wireless
    • Licensed Frequencies*:
      • 4.850 ~ 5.150 GHz
      • 5.350 ~ 5.470 GHz
      • 5.850 ~ 5.925 GHz
        • *By using this product in the licensed frequencies, you acknowledge and agree to comply with all applicable regulations and rules, and to only operate this system in compliance with the applicable license requirements.
    • Unlicensed Frequencies:
      • 5.150 ~ 5.250 GHz (Non-DFS)
      • 5.250 ~ 5.350 GHz (DFS)
      • 5.470 ~ 5.725 GHz (DFS)
      • 5.725 ~ 5.850 GHz (Non-DFS)
      • 5.725 ~ 5.850 GHz (Non-DFS)
      • 5.925 ~ 6.425 GHz
  • RF Channel Selection -  Auto, Manual (Manual available for non-DFS, DFS and Licensed Frequencies)
  • Encryption -  AES-256, RSA-1024 key exchange
  • RF power -  23 dbm EIRP

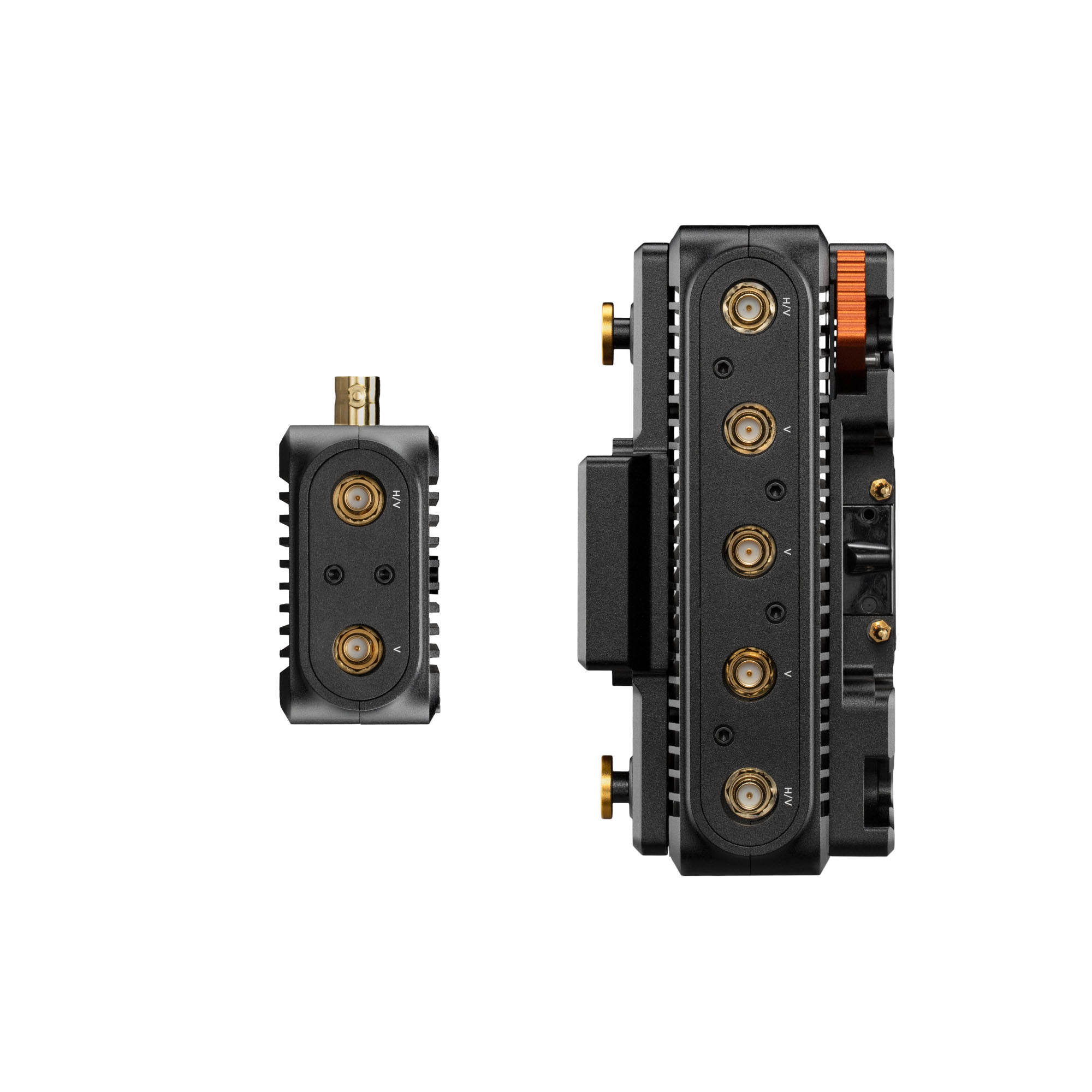

  • Antennas
    • 1x Horizontal N-Type 2dbi antenna
    • 1x Vertical N-Type 2dbi antenna
  • Range -  Up to 750 ft, line of sight (using Panel Antenna)
  • Multicast -  Can connect one transmitter to up to 6 receivers
  • Noise Rejection
    • Can coexist with WiFi and 5GHz cordless phones
    • Can operate up to 6 sets in same location
• POWER
  • Power Input -  2-Pin Circular locking connector 7-28 VDC
  • Battery -  N/A
  • Nominal Power Consumption -  9 Watts
  • Operating Temperature -  0-40℃
• GENERAL

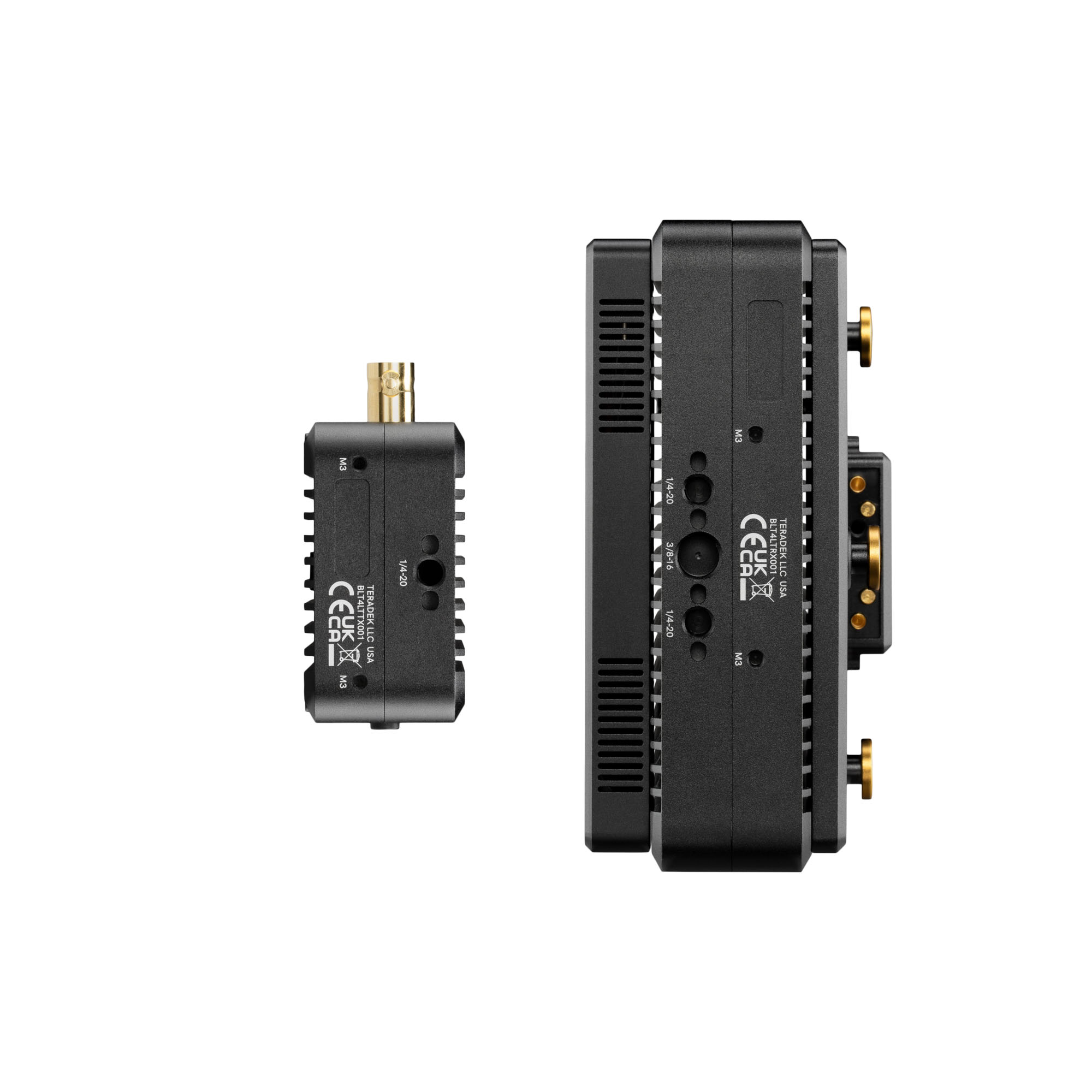

  • Mountability -  Multiple mounting options with M3 and 1/4-20” holes

RANGER MICRO RX

• VIDEO
  • Video Inputs -  N/A
  • Video Outputs
    • 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
    • 1 x HDMI 2.0 Type-A receptacle
  • Color Sampling
    • SDI: YCbCr 4:2:2, 10-bit
    • HDMI: RGB 4:4:4, 8-bit | YCbCr 4:2:2, 10-bit
  • Delay (TX to RX) -  <0.001sec (without format conversions)
  • Supported Resolutions
    • 1080p23.98/24/25/29.97/30/50/59.94/60
    • 1080psf23.98/24/25/29.97/30
    • 1080i50/59.94/60
    • 720p50/59.94/60
    • 480p50 576p59.94/60
  • Input Cross Conversion -  N/A
  • Output Video Scaling -  Yes, Framerate and Resolution Scaling
• VIDEO PROCESSING
  • Video Compression -  Uncompressed
  • Test Pattern Generator -  Yes
  • Video Format Conversion Support -  Yes
  • Spectrum Analyzer -  Yes
• AUDIO
  • Audio Compression -  48kHz 24-bit PCM
  • Audio Input -  N/A
  • Audio Output -  Embedded SDI/HDMI Audio Input (2 channel)
• PHYSICAL ATTRIBUTES
  • Dimensions -  4.8” x 3.7” x 1” (122 x 94 x 27mm)
  • Weight -  10.3oz (292g))
  • Construction -  Milled aluminum (chassis) and regulation-compliant PCB
• INTERFACES
  • Configuration Interface -  OSD Screen with Menu Joystick Navigation
  • Switches -  On/Off Switch
  • Desktop App -  Launchpad application for OSX & Windows
  • Mobile App -  Launchpad app (iOS and Android) configuration via Bluetooth
  • USB Interface -  Upgrade via USB-C
  • Bluetooth -  Bluetooth 5 LE
• NETWORK
  • Wireless
    • Licensed Frequencies*:
      • 4.850 ~ 5.150 GHz
      • 5.350 ~ 5.470 GHz
      • 5.850 ~ 5.925 GHz
        • *By using this product in the licensed frequencies, you acknowledge and agree to comply with all applicable regulations and rules, and to only operate this system in compliance with the applicable license requirements.
    • Unlicensed Frequencies:
      • 5.150 ~ 5.250 GHz (Non-DFS)
      • 5.250 ~ 5.350 GHz (DFS)
      • 5.470 ~ 5.725 GHz (DFS)
      • 5.725 ~ 5.850 GHz (Non-DFS)
      • 5.725 ~ 5.850 GHz (Non-DFS)
      • 5.925 ~ 6.425 GHz
  • RF Channel Selection -  Auto, Manual (Manual available for non-DFS, DFS and Licensed Frequencies)
  • Encryption -  AES-256, RSA-1024 key exchange
  • RF power -  21 dbm EIRP
  • Antennas -  5x External 2 dBi antennas (Included)
  • Range -  Up to 750 ft, line of sight (using Panel Antenna)
  • Multicast -  Can connect one transmitter to up to 6 receivers
  • Noise Rejection
    • Can coexist with WiFi and 5GHz cordless phones
    • Can operate up to 6 sets in same location
• POWER
  • Power Input -  2-Pin Circular locking connector 7-28 VDC
  • Battery -  None, optional Gold or V mount battery plate
  • Nominal Power Consumption -  11 Watts
  • Operating Temperature -  0-40℃
• GENERAL
  • Mountability -  Multiple mounting options with M3, 3/8” and 1/4-20” holes
