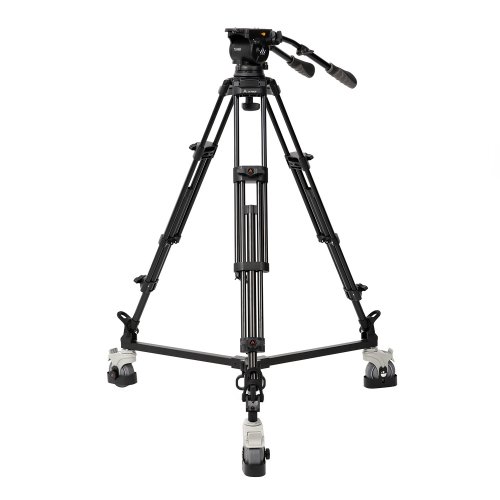

E-Image 2-Stage Aluminum Tripod Kit w/ Dolly (33 lbs Payload)

About: E-Image 2-Stage Aluminum Tripod Kit w/ Dolly (33 lbs Payload)

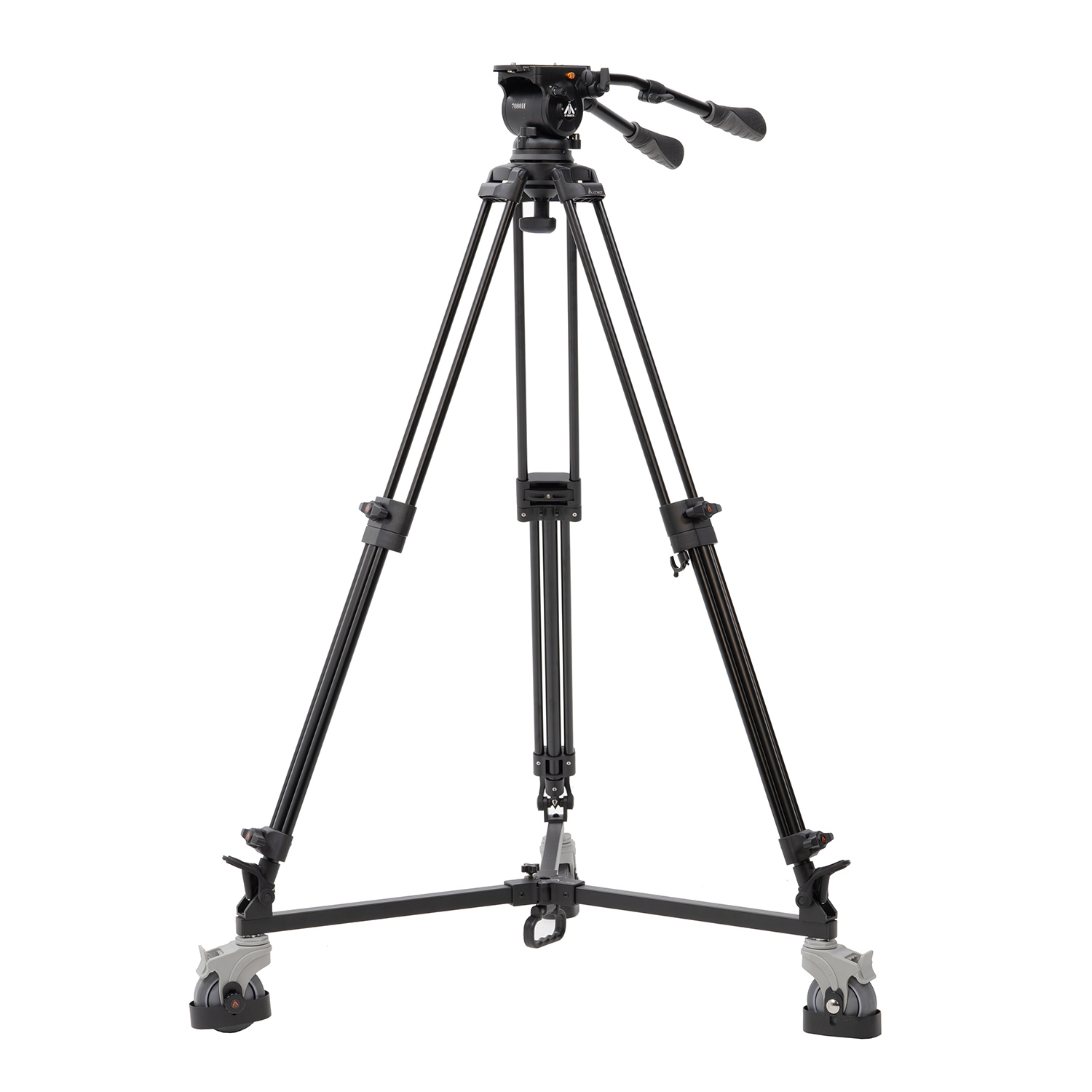

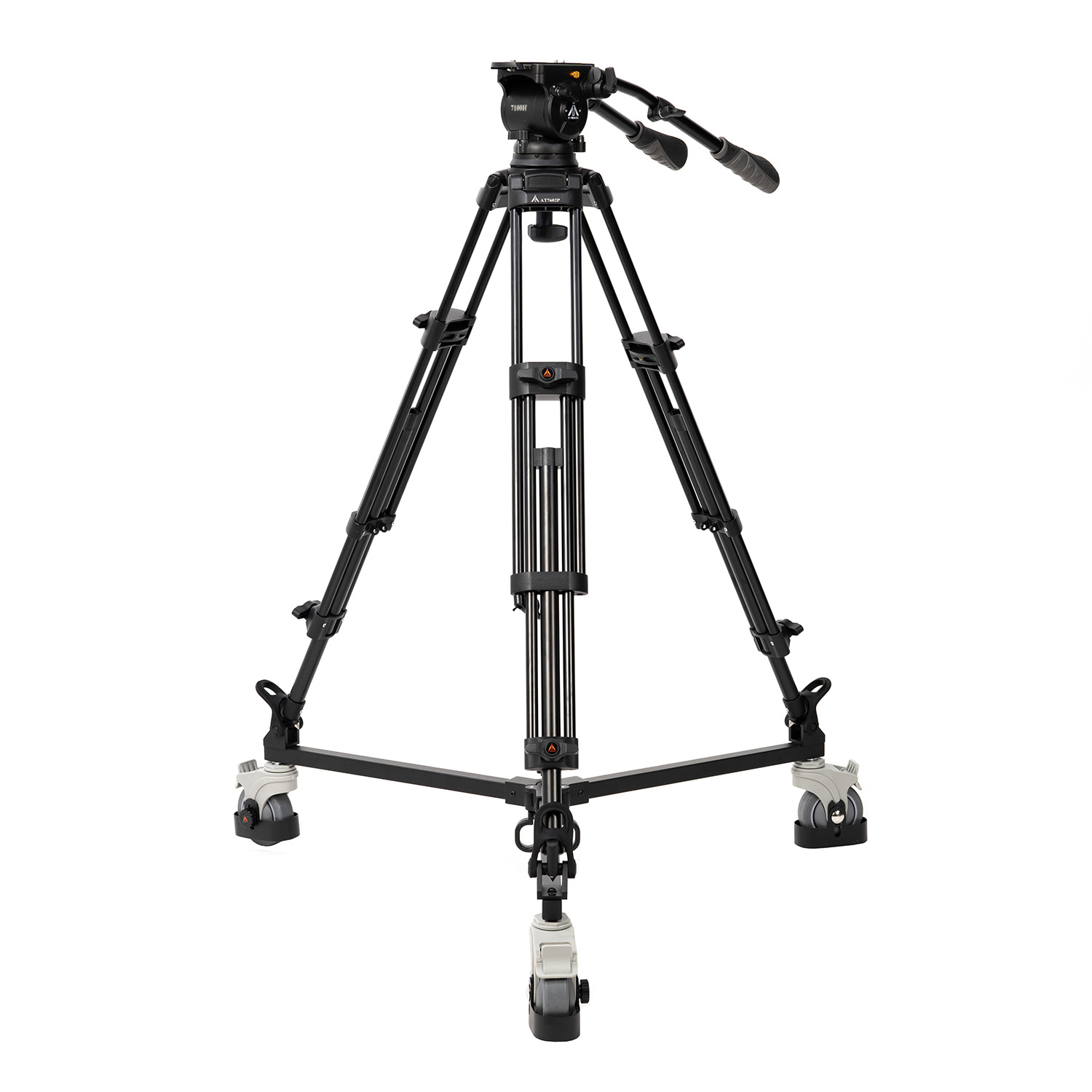

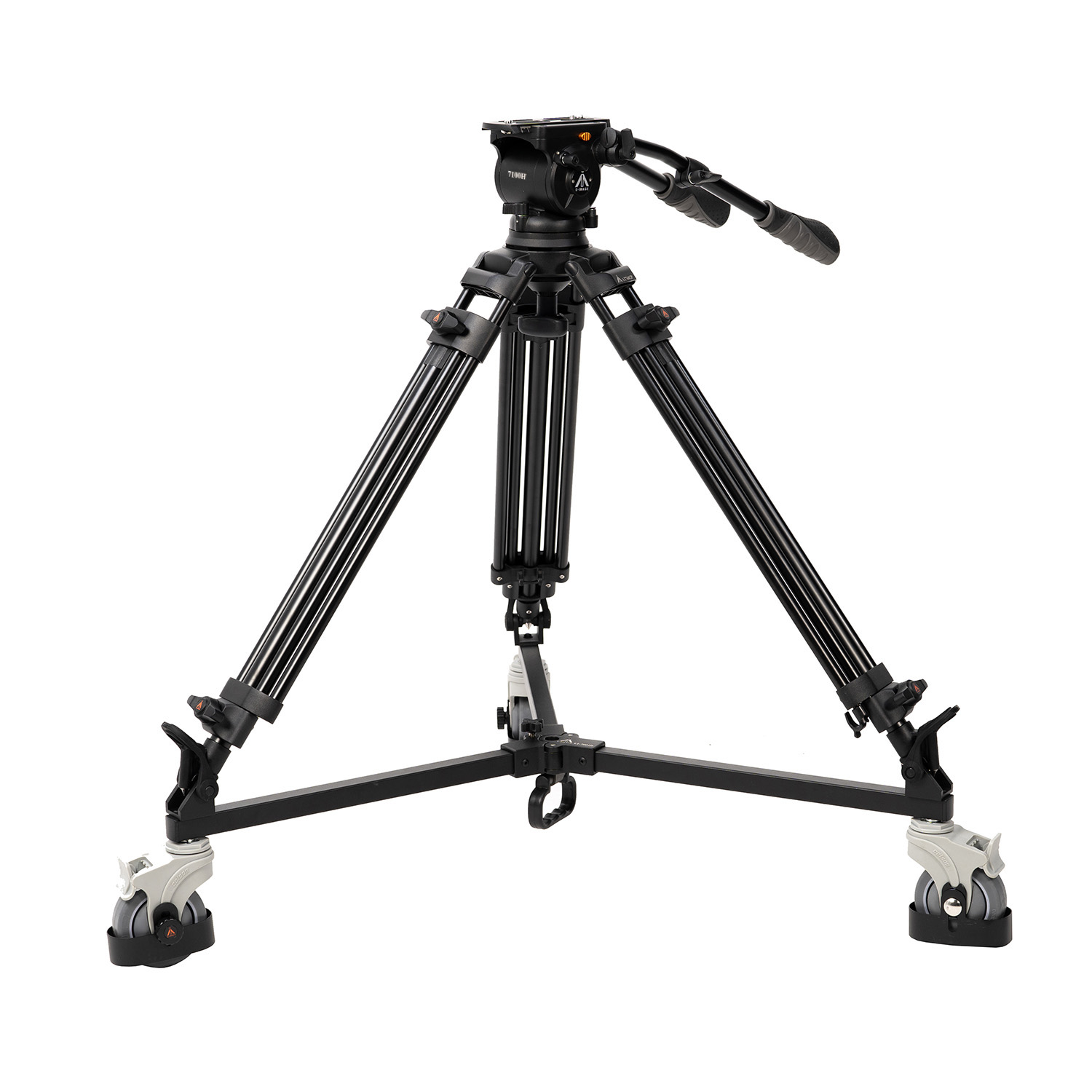

The EI-7100-AAD is a complete 100mm 2-stage aluminum tripod solution that can handle payloads up to 33 lbs. This studio version of the tripod kit includes a fluid head, two panhandles, tripod legs, and a dolly with cable guards.

• Max Payload: 33 lbs. / 15kg
• Bowl Size: 100mm
• Height Range:35.2-72.4″ / 89.5-184cm
• Counterbalance: 0-5
• Pan Drag: Fixed
• Tilt Drag: Fixed
• Studio Kit Includes Additional Panhandles & Dolly w/ Cable Guards

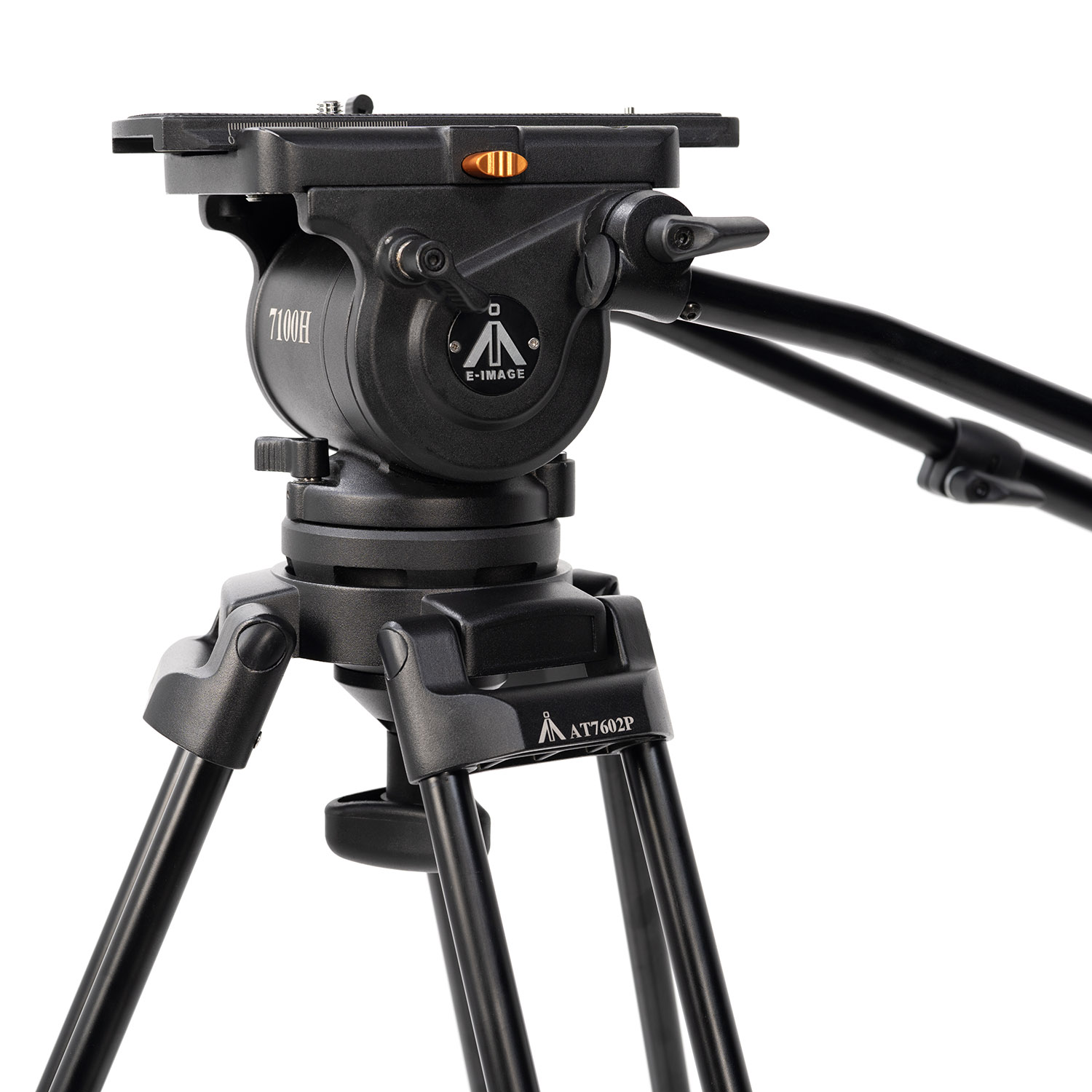

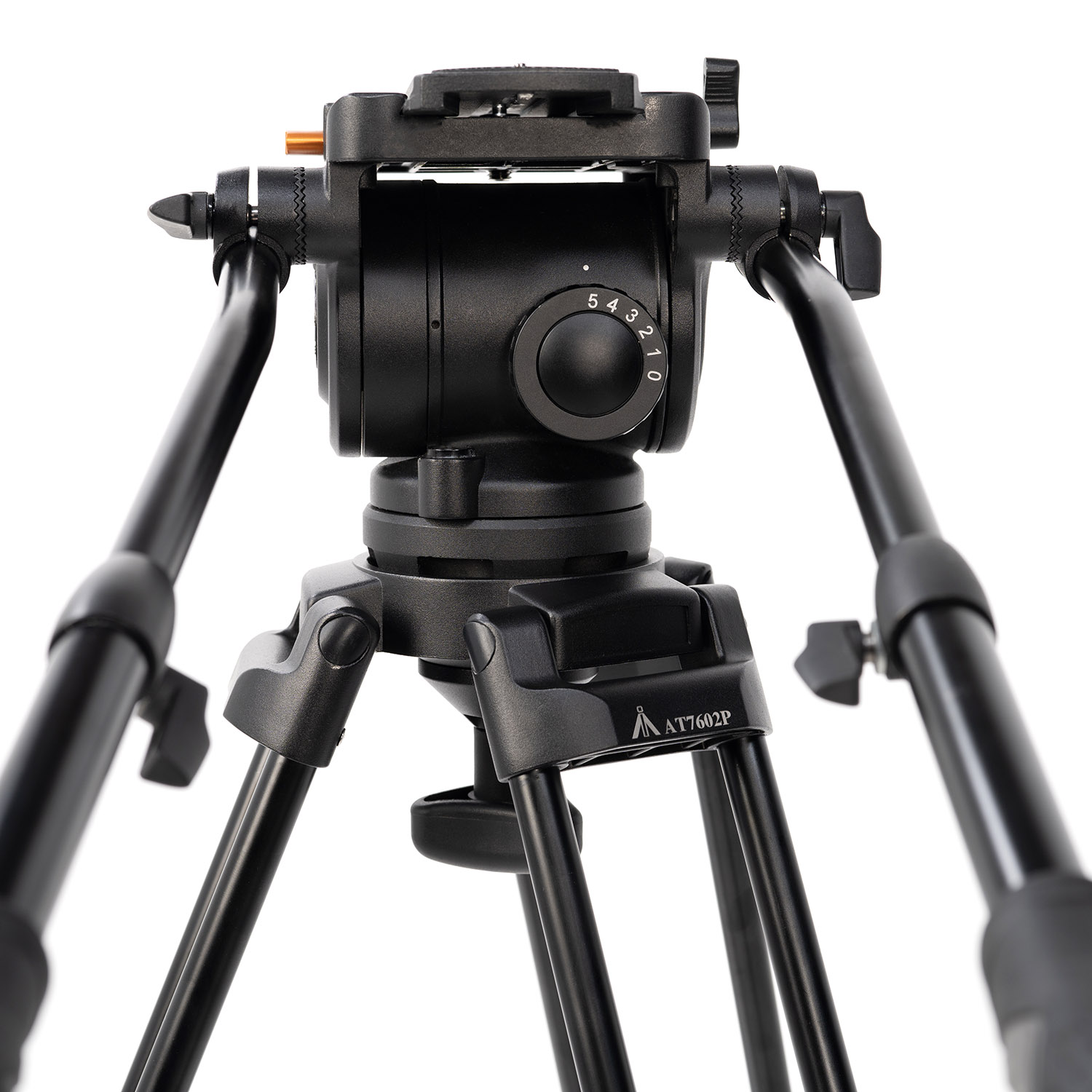

FLUID HEAD

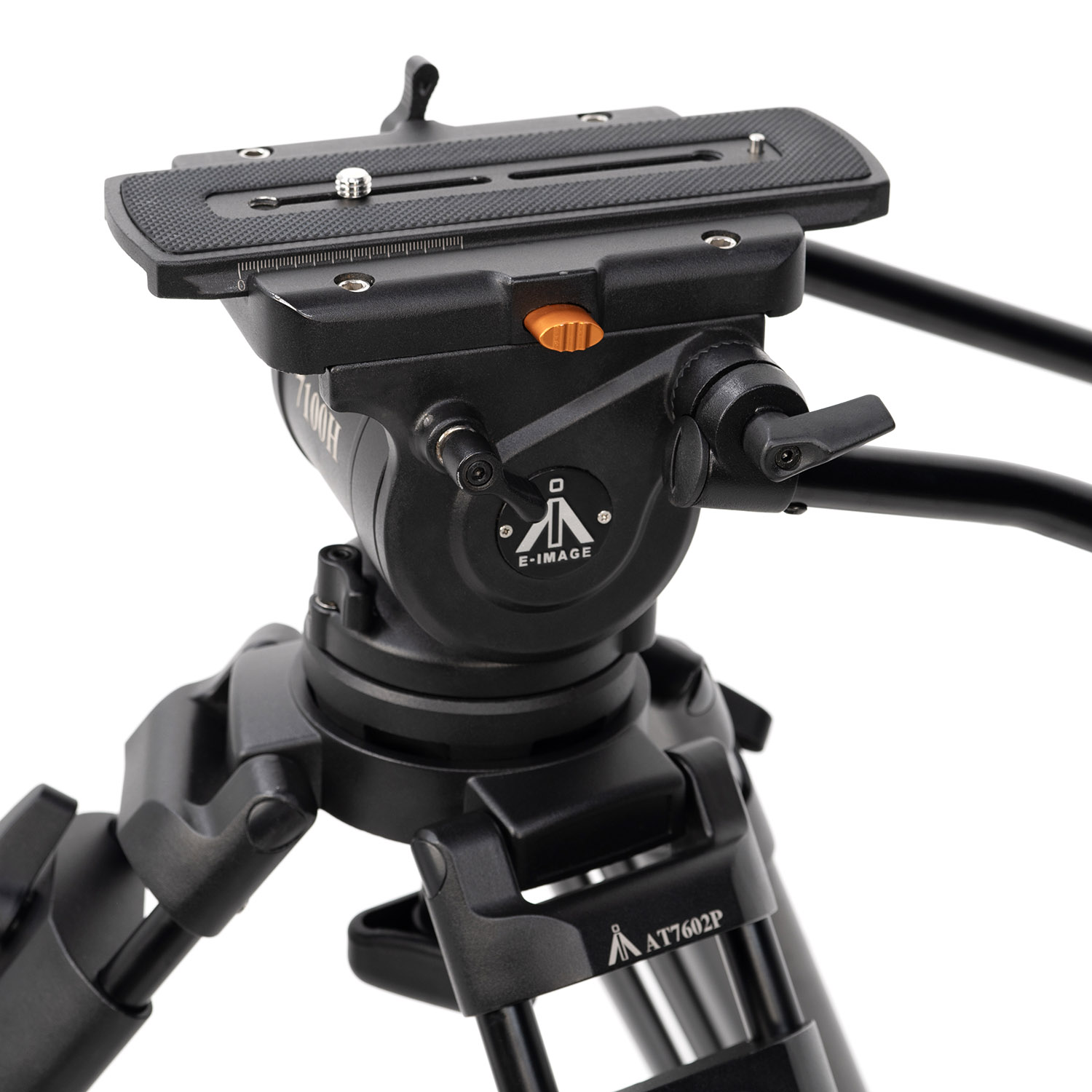

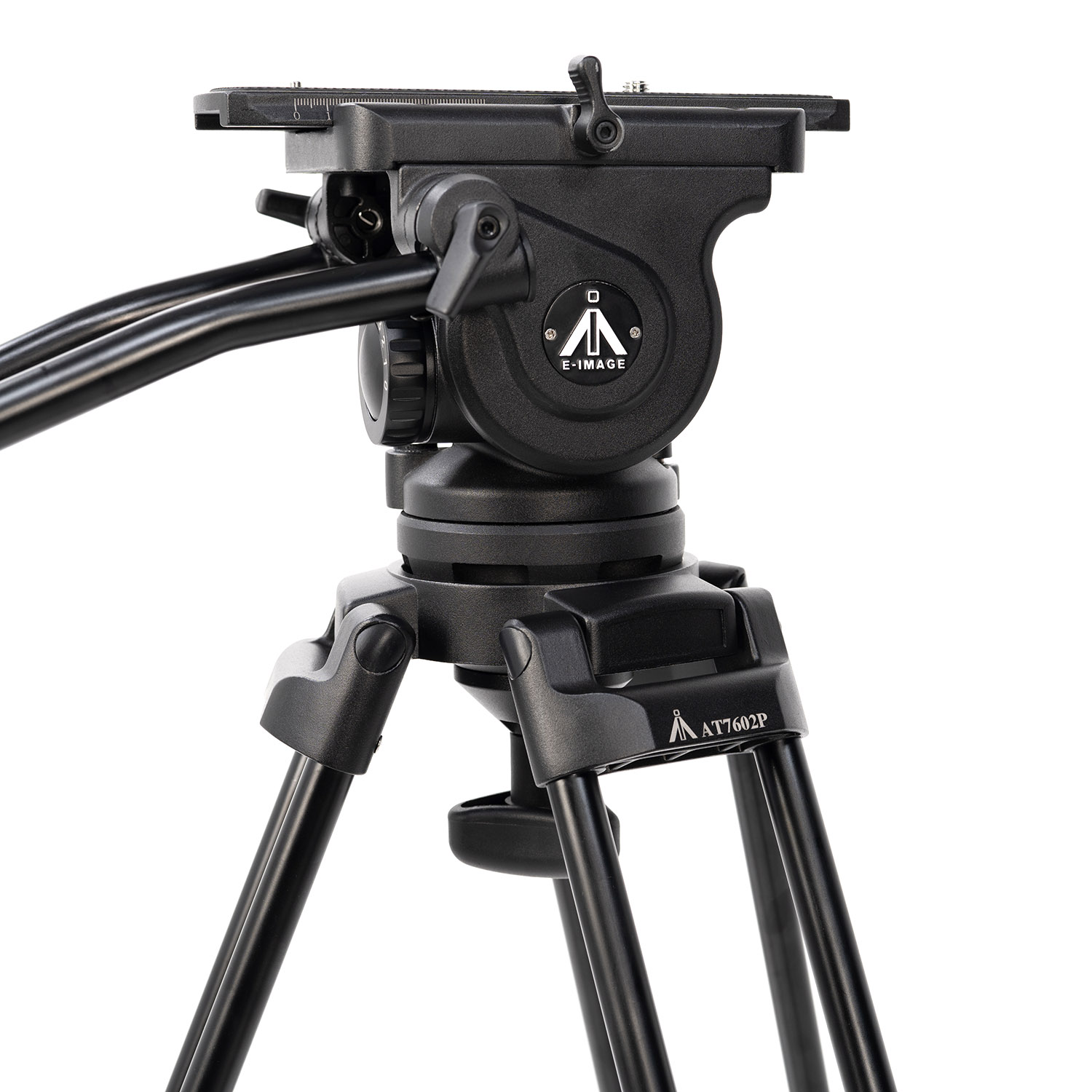

The fluid head, designed with a 100mm bowl size, is adept at supporting equipment with a maximum payload of 33 lbs (15kg). It features a slide range of 100mm, allowing for precise positioning and balance adjustments. The counterbalance can be finely tuned within a range of 0-5, ensuring stability and smooth movement during operations. Additionally, the fluid head comes with two extendable panhandles that can be adjusted from 15.9″ to 23.8″, offering users flexibility and enhanced control during filming.

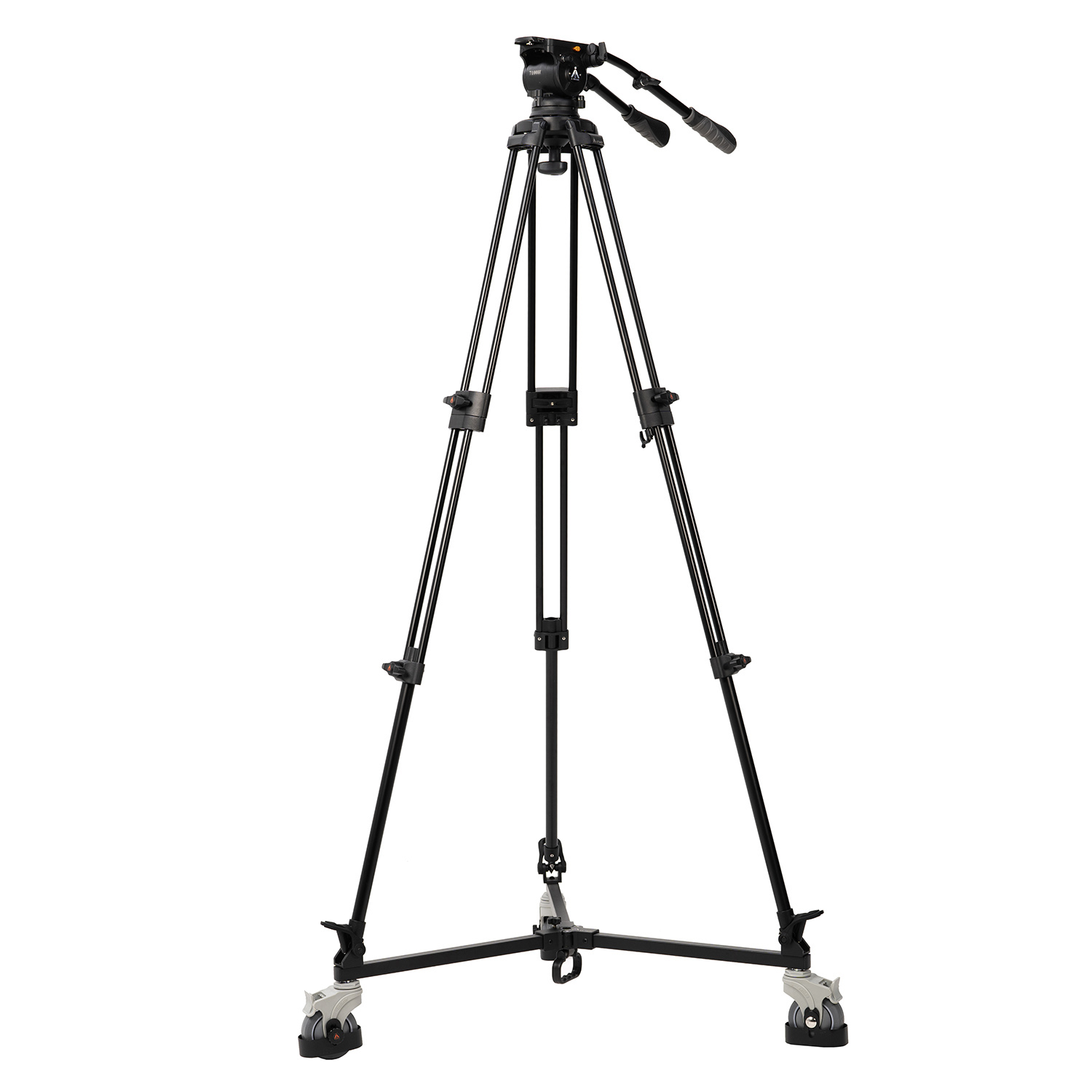

HEAVY-DUTY TRIPOD

These tripod legs, constructed from durable aluminum, ensure strength while remaining lightweight with a net weight of 10.1 lbs (4.6kg). Designed with a 100mm bowl size, they can comfortably support equipment with a substantial payload of up to 132.3 lbs (60kg). The legs are versatile in terms of height adjustments, ranging from 16.9″ (43cm) to an impressive 60.8″ (154.5cm). When it’s time to pack up and move, the tripod legs can be collapsed to a compact transport length of 28.1″ (71.5cm). With three sections, they offer flexibility and stability, making them suitable for a variety of shooting environments.

STUDIO SHOOTING

This studio version of this tripod includes a dolly equipped with cable guards, ensuring any cables will be swiftly pushed aside when moving the dolly during studio shoots. This kit also includes an additional pan handle which not only offers users enhanced control and flexibility during their shoots but are also designed to accommodate the mounting of servo controls. This feature allows for precise camera movements and adjustments, making it an invaluable tool for professionals in studio settings.

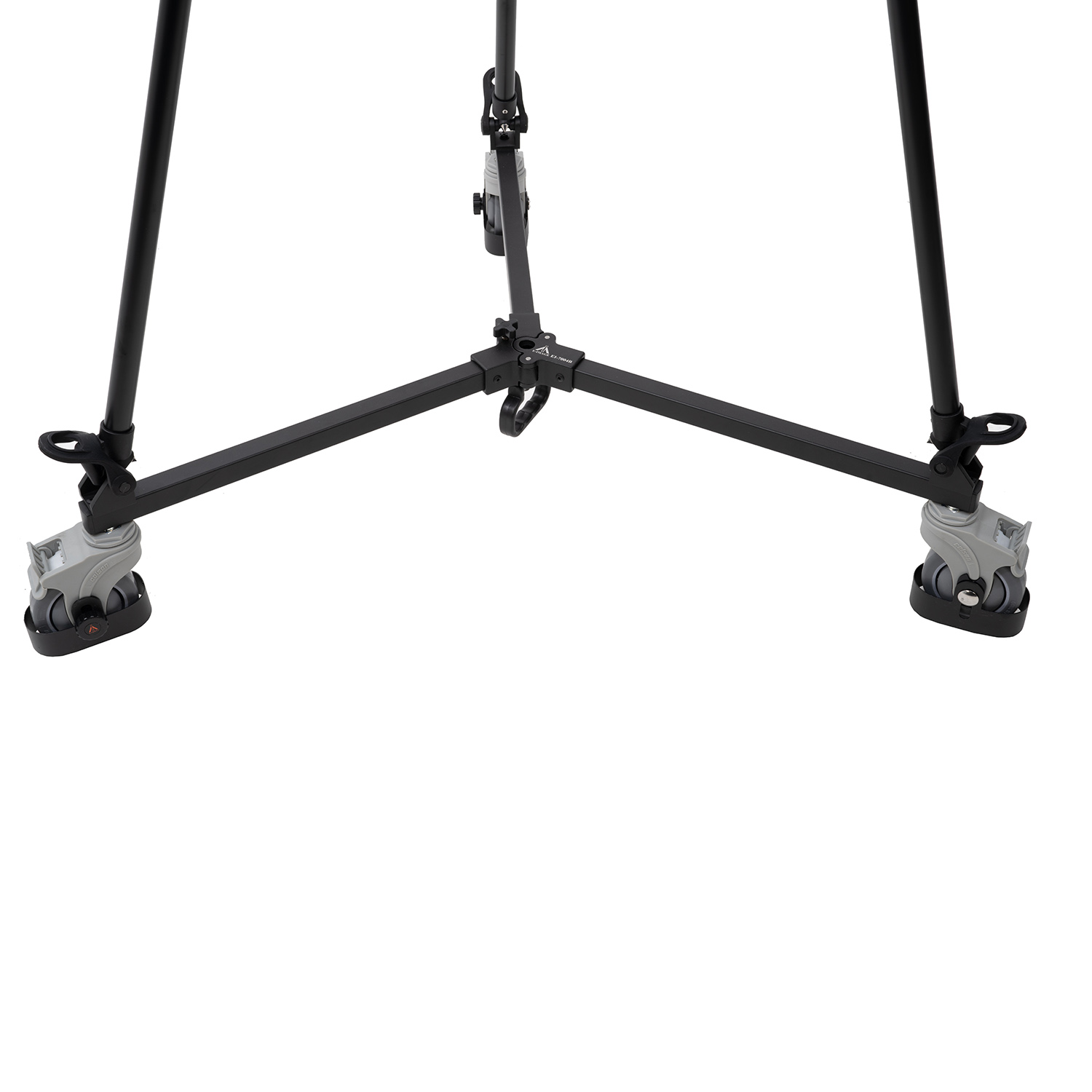

DOLLY

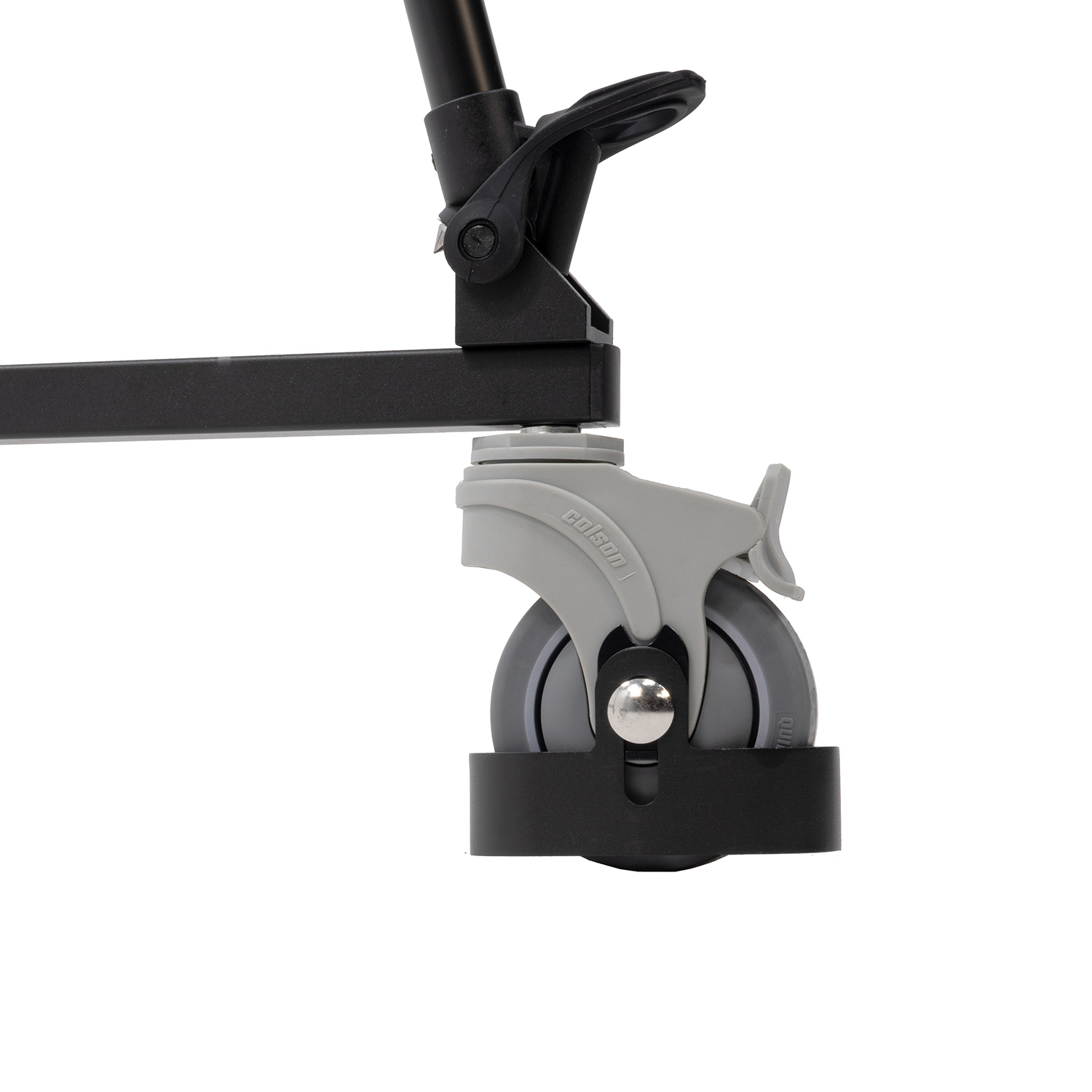

The EI-7004B dolly features 4″ locking rubber wheels with a capacity of 132.3 pounds. This system has a working footprint of 39.4 inches and has height-adjustable cable guards. Each dolly system is easy to fold with its handle and single wingnut for transport in the DB-01 carrying bag (included).

Specifications

• General Specs
  • Max Payload: 33 lbs
  • Min Height: 34.2" / 89.5cm
  • Max Height: 72.4" / 184cm
• Fluid Head
  • Max Payload: 33 lbs / 15kg
  • Net Weight: 7.7 lbs /3.5 kg
  • Counterbalance: 0-5
  • Grades of Pan Drag: Fixed
  • Grades of Tilt Drag: Fixed
  • Tilt Range: -60° / +90°
  • Camera Plate: Sliding Plate
  • Slide Length: 100mm
  • Bowl Size: 10mm
  • Temperature Range: -22°F / +150°F |-30°C / +65°C
  • Bubble Level: Yes
• Tripod Legs
  • Payload Range: 132.3 lbs / 60kg
  • Material: Aluminum
  • Net Weight: 10.1 lbs / 4.6kg
  • Bowl Size: 100mm
  • Height Range: 16.9" - 60.8 / 43-154.5cm"
  • Transport Length: 28.1" / 71.5cm
  • Sections: 3
• Dolly
  • Net Weight: 15 lbs./6.8 kg
  • Footprint Diameter: 39.4 in./100 cm
  • Cable Guard Diameter: 4.92 in./12 cm
  • Height: 6.7 in./17 cm
  • Radius: 19.7 in./50 cm
  • Wheel Width: 3.9 in./100 mm
  • Lockable Wheels: Yes
  • Build Material: Legs: Aluminum | Wheels: Rubber | Screws: Steel
  • Payload: 132.3 lbs./60 kg.

What's Included

• 1x EI-7100H Fluid Head
• 1x GP2 Tripod Plate
• 2x GB3 Pan Handle
• 1x AT7602A Tripod Legs
• 1x EI-7004B Dolly
