Tilta Nucleus Nano II Hand Wheel Controller

About: Tilta Nucleus Nano II Hand Wheel Controller

The new and improved Hand Wheel, part of the Nucleus Nano II,  puts control at your fingertips allowing you to control two focus motors from the compact controller.

Users can utilize the Main Dial to adjust focus, while the new Control Rocker lets you effortlessly handle Zoom or Iris functions with a dampened Rocker, perfect for easing in or out of zooms.

Experience unparalleled flexibility and control with the Nano II's ability to handle up to 3 motors for Focus, Iris, and Zoom when used with the optional Multi-Functional Power or Control Handle.

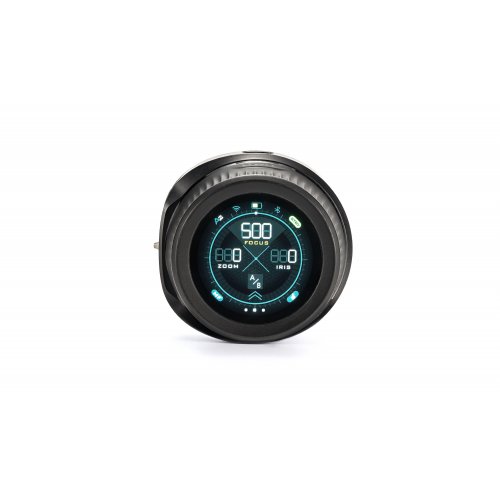

Navigating through the system has never been easier thanks to the new 1.6” Touch Screen Display and user-friendly interface which provides quick access to an array of advanced functions including dedicated pages for lens mapping and camera control functions. The Nano II allows users to wirelessly adjust camera settings via WiFi, Bluetooth, and the motor’s USB-C port for compatible camera systems such as Canon, Sony, Black Magic Design and more.

This makes the Nano II the perfect option for filmmakers who regularly utilize support systems like Drones, Car Mounts, Cranes, Gimbals, or any other rig that makes it difficult to quickly adjust camera settings.

The lens mapping control screen offers real-time focus distance information, allowing you to stay informed and in control of every frame without relying on physically marking a focus disc.

With an internal battery powered by a USB-C port, the Nano II offers an impressive 7 to 20 hours of continuous power, depending on usage.

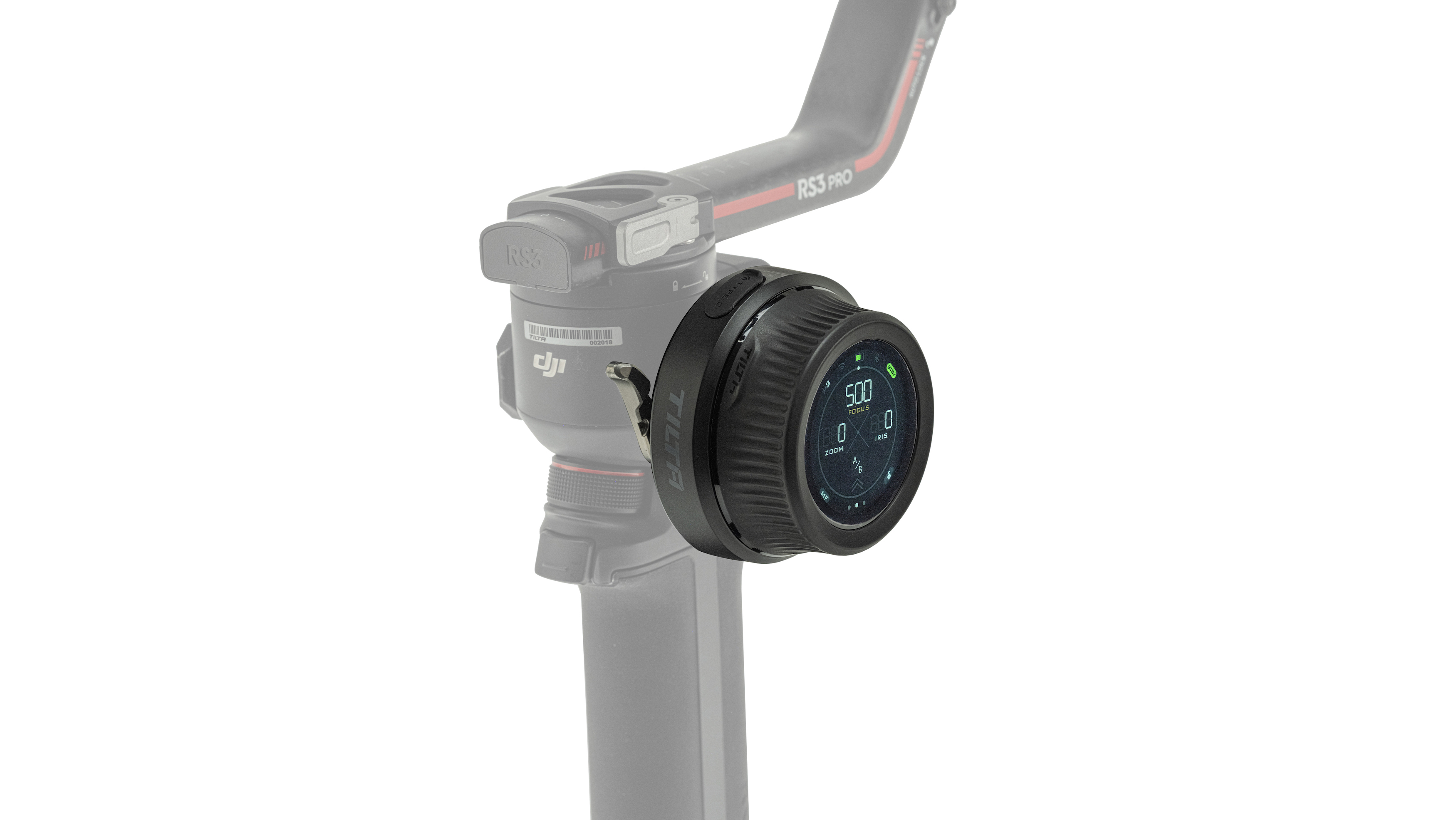

The Nano II is our most compatible system to date featuring compatibility with DJI RS2, RS3 Pro, DJI Focus Motors, Nucleus M and the previous generation of Nucleus Nano, ensuring a smooth workflow for users who already utilize previous iterations of the Nucleus Ecosystem.

Features

• CAMERA COMMUNICATION - for Adjusting Settings such as ISO, Shutter Speed, & Frame Rate via Wifi, Bluetooth & USB-C
• MULTIPLE MOTORS - Can be Controlled by the Hand Unit Alone, Up to 3 Motors for Focus, Iris, & Zoom via an External Handle (optional)
• LENS MAPPING - Functionality Displays Real Time Focal Distance Information for More Accurate Focus Pulling
• COMPATIBLE - with Nucleus M & Nano, DJI Focus Motors, RS2 & RS3 Pro Gimbals, as well as Cameras from Canon, Sony, Black Magic Design and More
• TOUCH SCREEN - Display Provides Easy Access to Advanced Features and Enhanced

What's in the Box

• 1x Nucleus Nano II Hand Wheel Controller（12009.00002.00.00)
• 1x USB-C Power Cable (30cm)（21114.00061.00.00)
• 1x Instruction Manual
