Teradek CTRL.5 Wireless FIZ Lens-Control Handsets

About: Teradek CTRL.5 Wireless FIZ Lens-Control Handsets

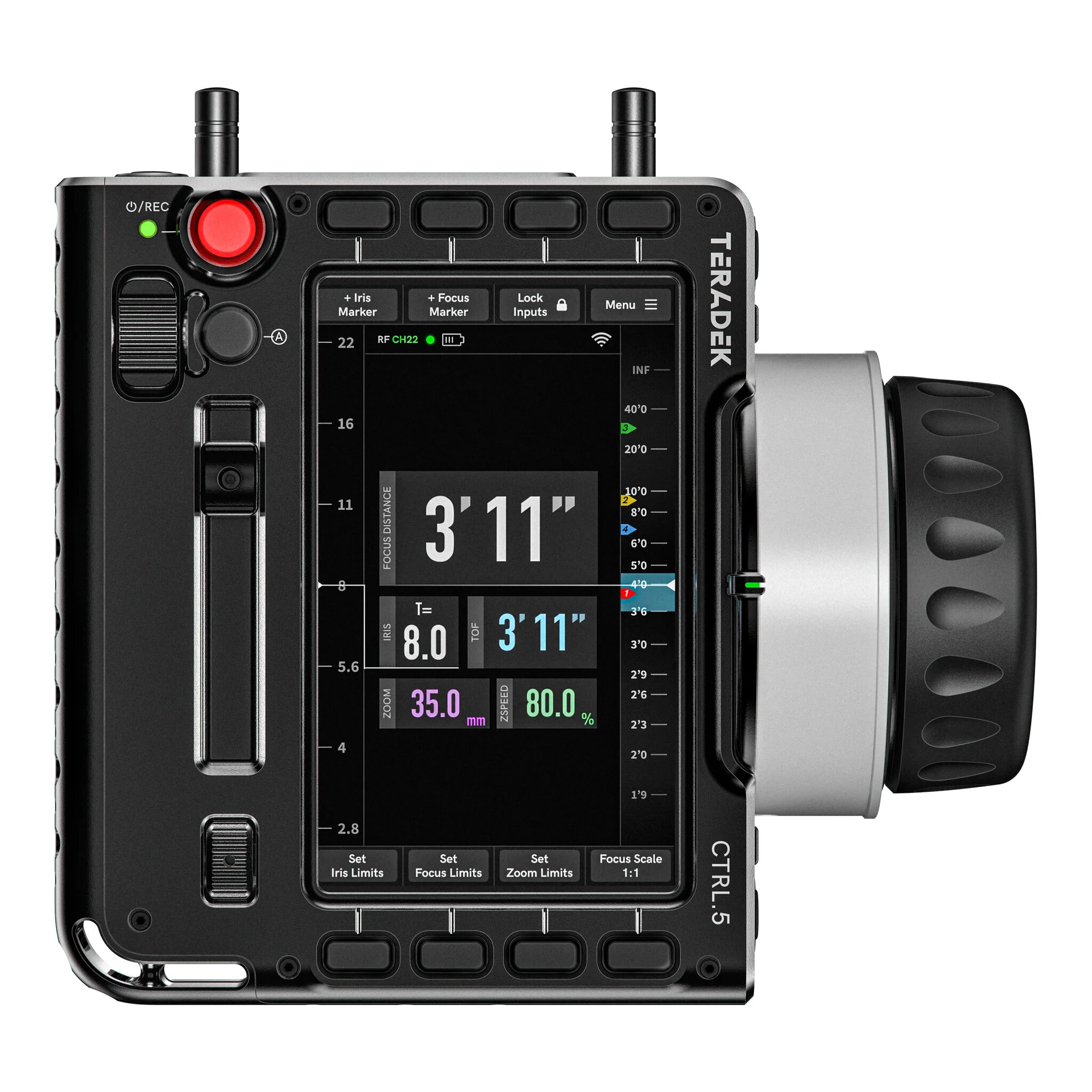

CTRL.5 raises the bar for wireless FIZ lens-control handsets with a 5-inch SmallHD Ultra-bright touchscreen powered by CTRL.OS, a task-specific evolution of SmallHD’s PageOS. View critical lens data overlays while pulling focus without taking your eyes off the video feed. Calibrate lenses to pre-marked focus rings and access configurations at any time via the touchscreen or one of eleven programmable function buttons. The hand unit includes a multitude of mounting points for accessories. CTRL.5 is fully cross-compatible across the Teradek RT Lens Control Ecosystem.

• 5-inch Ultra-bright Touchscreen
• CTRL.OS - page-based operating system
• 11 programmable function buttons
• Visual Lens Library
• Cross-compatible with full Teradek RT Ecosystem

CTRL.5 finally brings a page-based operating system to a hand unit. Like SmallHD’s PageOS, CTRL.OS is built for focus pullers, camera technicians, and DITs. Customize control functions and data visibility via touchscreen and 11 programmable function buttons. Add unlimited digital marks, and instantly view focus and iris scale, rangefinder information, depth of field, and more.

• Enhanced Information Visibility: A high-readability display for clearer text and brighter images, delivering faster recognition of key data when you need it most.
• Customizable Interface: Personalize your setup and streamline your workflow with 11 programmable tactile buttons and intuitive touchscreen UI.
• Unlimited Focus Marks: Quickly edit, adjust, and delete digital focus marks on the fly.
• Enhanced Lens Mapping: Create and store your lens library.
• Automated Workflows: Automatically calculates depth of field, hyperfocal distance, and more, saving time on set.

More Features and Functionality

Additional CTRL.5 integrations and control interfaces are continuously added to our production pipeline as our engineers work with our users to identify new opportunities. Upcoming enhancements include:

• WiFi Camera Control: Connect CTRL.5 to the RED camera’s WiFi .
• Rangefinder integration: Support for 3rd-party rangefinders.
• Native Camera Control: Robust camera control coming for ARRI, RED and Sony

Specifications

• Power
  • Power Input: NP-F
• Interfaces
  • Connectors: 5-pin USB port and 4-pin AUX port
  • Runstop Control: RED (Epic, Scarlet, Weapon, Raven, etc.), ARRI (Alexa, Amira, etc.), Phantom, Sony F55, LANC (Blackmagic, Canon C100/300/500 Sony FS7)
  • Axes: 4 total
    • knob
    • slider
    • rocker
    • wheel
  • Bluetooth: Bolt Pairing and Control (coming soon)
  • Display: 5 inch Highbright SmallHD
• Network
  • Wireless
    • FW Updates
    • Camera Control (coming soon)
  • Wireless Range: 5000 ft
• Physical
  • Weight: 1lb 83 oz (830g)

What's in the Box

• 1x CTRL.5
• 1x Blank Ring
