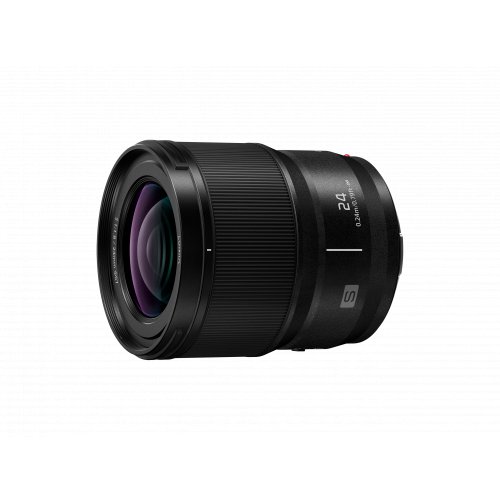

Panasonic LUMIX S 24mm F1.8 L-Mount Lens

About: Panasonic LUMIX S 24mm F1.8 L-Mount Lens

Panasonic is pleased to introduce a new large-aperture wide fixed focal length lens, the LUMIX S 24mm F1.8 (S-S24), as the third addition to the series of four F1.8 large-aperture lenses based on the L-Mount system standard. A total of four F1.8 fixed focal length lenses from the LUMIX S Series including 85mm(S-S85), 50mm(S-S50) and the new 24mm(S-S24) lens feature a common size and position of control parts to provide practical advantages in use. The center of gravity of these lenses is almost the same so that it is easy to exchange lenses quickly with minimum balance adjustment when the camera is on a gimbal. Common filters can also be used thanks to the same diameter.The descriptive performance of these lenses is also consistent.

The LUMIX S 24mm F1.8 is comprised of twelve lens elements in eleven groups including three aspherical lenses, three ED (Extra-Low Dispersion) lenses and one UED (Ultra Extra-LowDispersion) lens. The use of three aspherical lenses realizes both high descriptive performance and beautiful bokeh, which are common advantages to the series of all F1.8 lenses. It is suitable for versatile situations including landscapes to snapshots taking advantage of the wide angle of view. The ED lenses and the UED lens effectively suppress chromatic aberration.

The LUMIX S 24mm F1.8 is capable of smooth, silent operation to work with the camera’s high-speed, high-precision contrast AF system with the sensor drive at max.240 fps. For the non-linear setting, focus is shifted with a variable amount according to the rotation speed of the focus ring while focus is shifted with a designated amount according to the rotational quantum of the focus ring for the linear setting. Sensitivity (the amount of focus shift per rotational quantum) can be selected from 90 to 360 degrees by 30 degrees to enable intended focus operation. The LUMIX S 24mm F1.8also excels in video recording performance with a mechanism that suppresses focus breathing, which was a fatal problem of all interchangeable lenses designed for still image photography.Together with a micro-step aperture control for smooth exposure change, professional quality video can be recorded.

With its approximately 310g compact size and light weight, the LUMIX S 24mm F1.8 features stunning mobility to fit the S5, LUMIX’s smallest full-frame model.The rugged dust/splash-resistant* design withstands use under harsh conditions even at 10 degrees below zero for high mobility. The filter diameter is 67 mm, with a 9-blade circular aperture diaphragm.

With the addition of the upcoming standard 35 mm fixed focal length lens and the four F1.8 large-aperture lenses of the LUMIX S series, the Panasonic and L-Mount system alliance is committed to the development of L-Mount lenses for the further expansion of its lineup to fulfill the needs of customers.

• Lens Construction: 12 elements in 11 groups (3 aspherical lenses, 1 UED lens, 3 ED lens)
• Mount: L-Mount
• Optical Image Stabilizer:  No
• Focal Length: f=24mm
• Aperture Type: 9 diaphragm blades / Circular aperture diaphragm
• Maximum Aperture: F1.8
• Minimum Aperture: F16
• Closest Focusing Distance: 0.24m/0.79ft
• Maximum Magnification:  0.15x
• Diagonal Angle of View: 84°
• Dust and Splash Resistant: Yes*
• Recommended Operating Temperature: -10℃ to 40℃  (14℉ to 104℉)
• Filter Size: φ67mm
• Max. Diameter: φ73.6mm / 2.90inch
• Overall Length: Approx. 82.0mm / 3.23inch  (from the tip of the lens to the base side of the lens mount)
• Weight: Approx. 310g / 0.68lb (excluding lens cap, lens rear cap and lens hood)
• Standard Accessories: Lens cap, Lens rear cap, Lens hood

*Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
